CS-12080

Our CS-12080 is one of our larger Programmable Pattern machine.  Used in operations like Home Décor, Large Interior Patterns to be seamless and much more.

     * Some features of the machine include:

        * Sewing Speed: 2,500 spm, (XY Axis moving speed maximum 10meters/minute.

        * Hook: 2X Japan Hirose Hook / Koban Hook (3X Size Hook is Optional).

        * Uses latest A8 CPU, Disk/USB Date Memory, XYZ Servo Motor, Highly Accurate (to 0.001mm).

        * All templates work with Intelligent Judgement.

        * Thread - Break Detector.  (Bottom thread stitch quantity is optional).

        *Sewing Area: X = 1,200mm, Y = 800mm.  Larger sizes are available.

        * Needle Type: DPx5 / DPx17

        * Sewing Thickness: 0.1mm - 10mm.

        * Presser Foot: Electropneumatic.

        * Applications: Tents, Sleeping Mats, Drapes, Banners, etc...

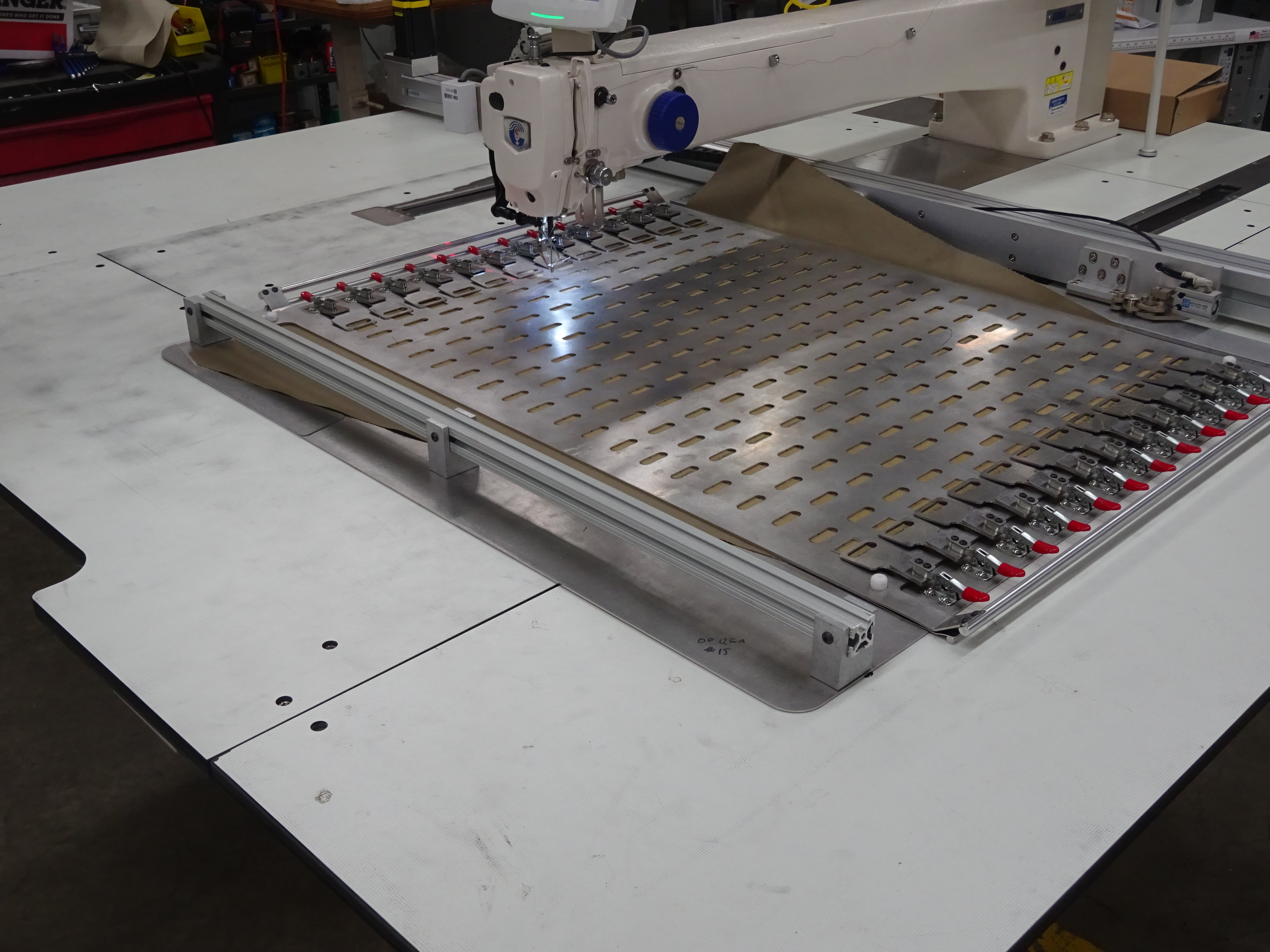

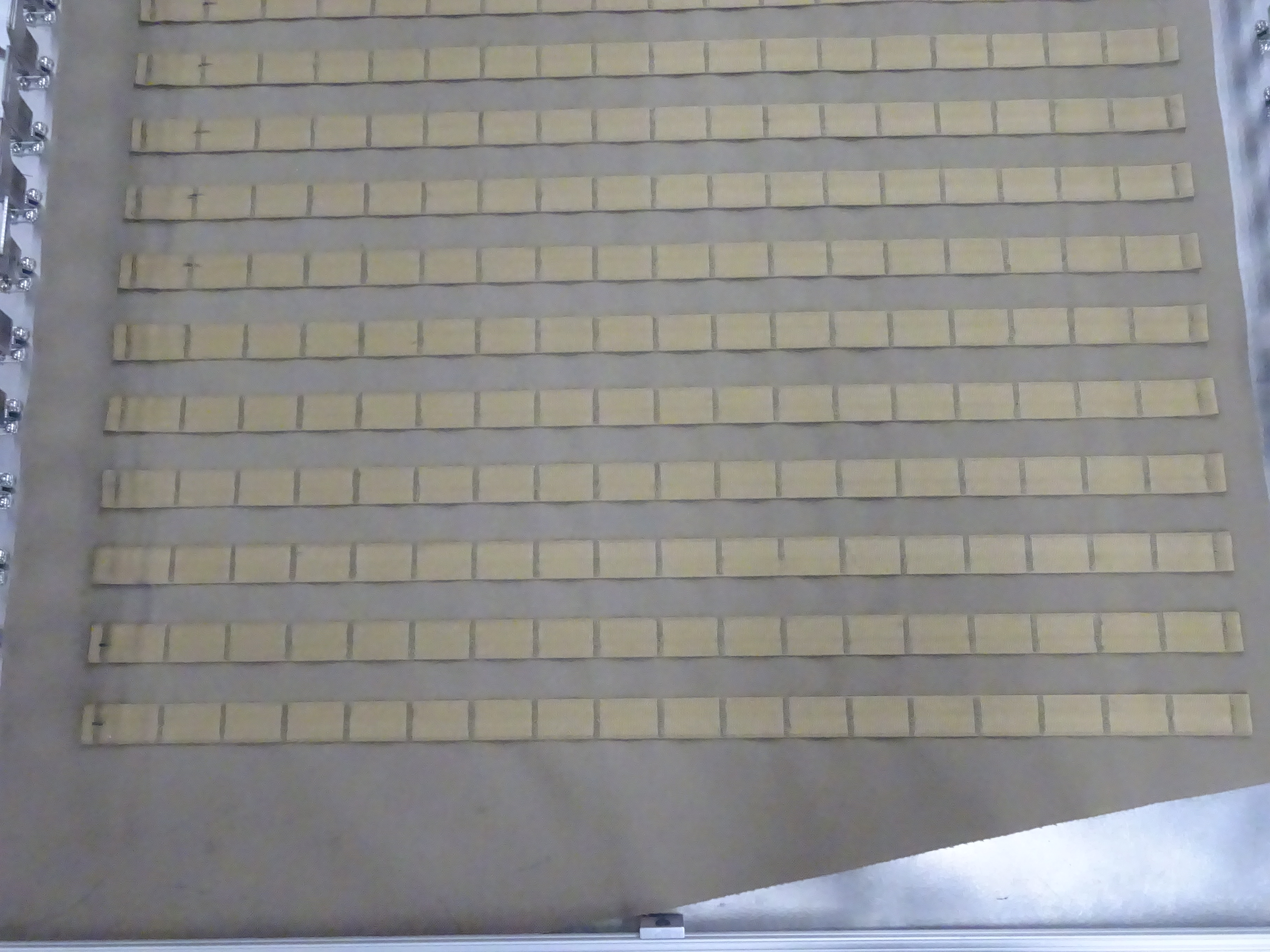

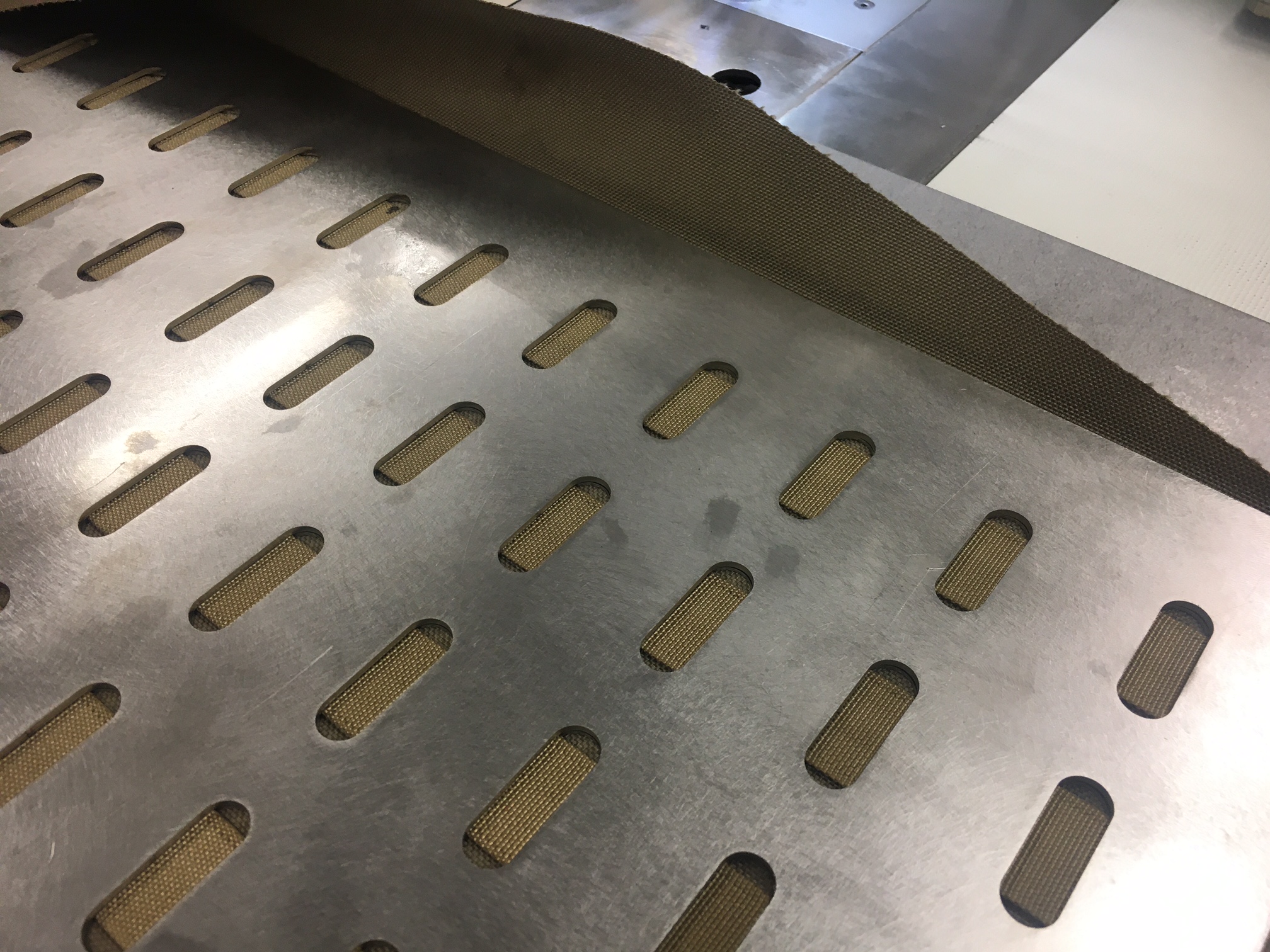

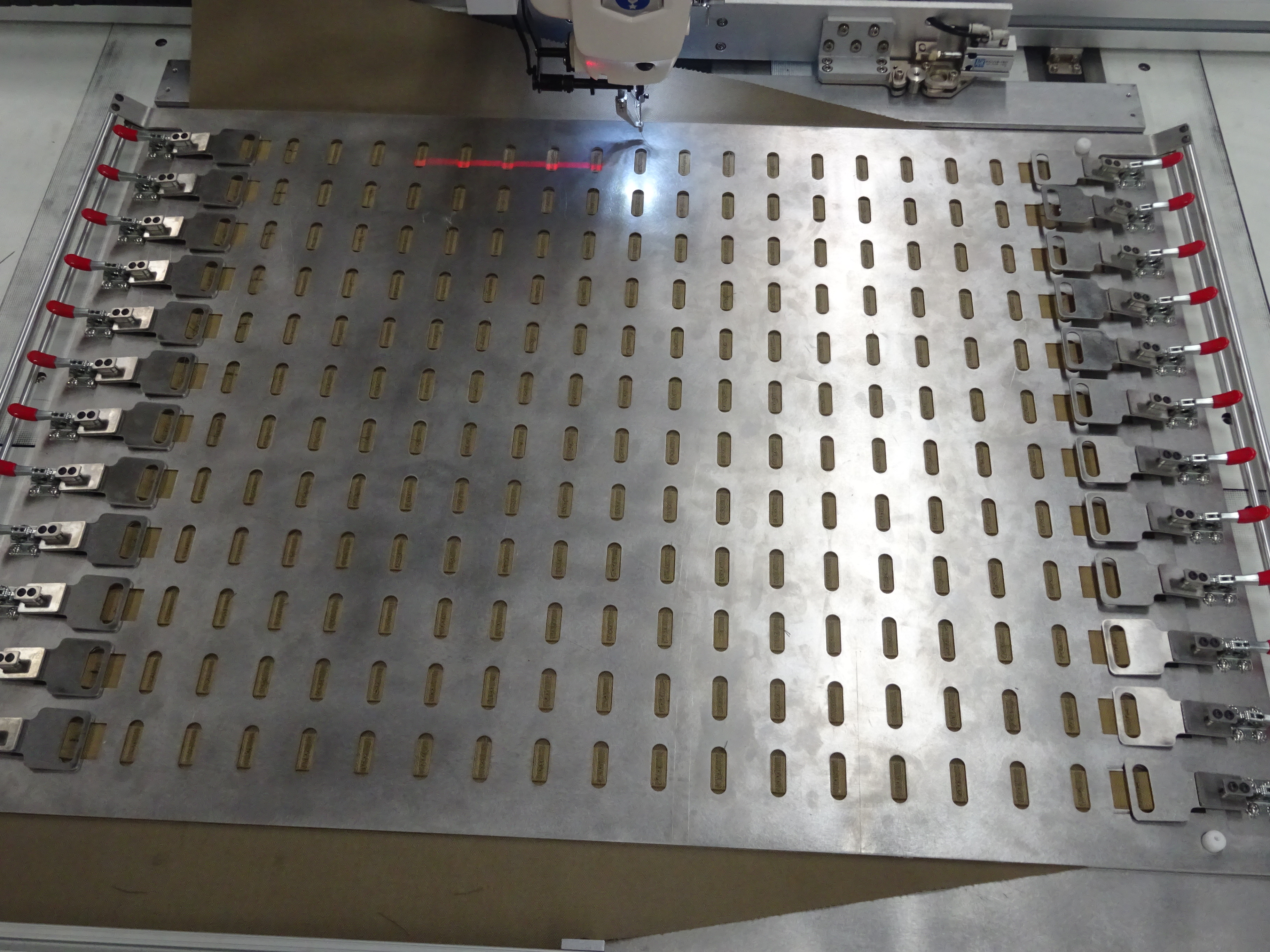

  In this video, we are sewing more than 200 MOLLE Style Bar Tacks per pallet.  The right and left sides of the webbing is hot cut and turned under.

The 2nd pallet in this video has longer left and right tabs to be able to reach over the extended panel to hold the folded webbing.

This machine is equipped with a bar code reader that switches the program automatically between pallets.

Thanks for watching and sharing our videos.  I hope you enjoy the video as much as we enjoy building Automated Machines for the Industrial Sewing Industry.

     * Custom Designed Pallet Systems are available.

* Custom Folders, Binders and Guides for the Sewn Products Industry.
