We are a family business with over 100 years combined experience in the Sewn Products Industry, providing high-quality Parts and Supplies for all your sewing needs. Browse our collection and find exactly what you need for your next project. We also offer custom made Folders / Binders, Gauge Sets, etc.
We are continuously adding products to our store. If you don't find what you are looking for, call our office at 256-229-6595 or send an email to rachelleroberts@collierequipment.com.
Cedar Special
CS-5214

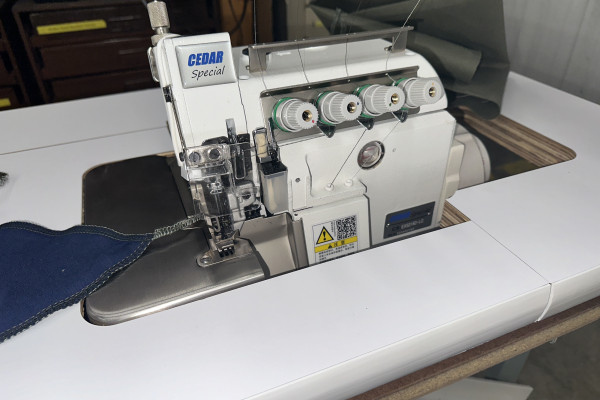

The CEDAR Special CS-5214 is a High Speed, Direct Drive, Mock Safety Stitch overlock machine. It uses 2 needles that are side-by-side, a bottom looper and an upper looper for a total of 4 threads to help ensure the top-quality seams that active wear apparel demands.
* Pneumatic suction chain cutter device
* Footlifter air cylinder
* Solenoid Valves Switch
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

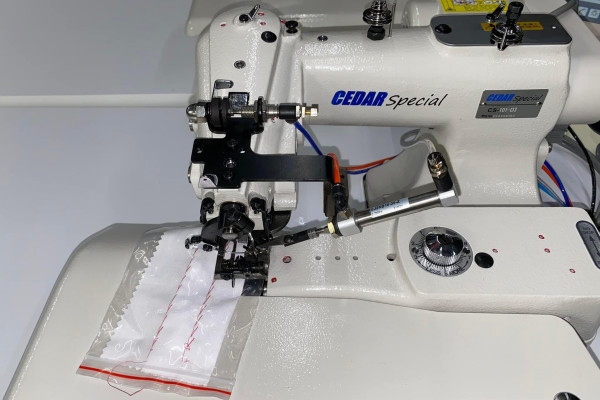

CS-101-D3
The CEDAR Special CS-101-D3 is a Blind Stitch Hemming Machine equipped with an Integrated Drive with Thread Trimming Device, and creates nearly invisible hems on trousers, skirts, and curtains by using a curved needle and a single thread chainstitch.
Unlike standard machines, it catches only a few threads of the fabric's fold so the stitches don't show on the outside.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

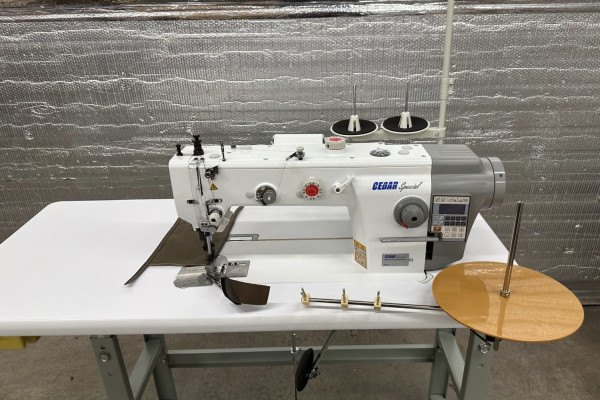

CS-6400BL-7D
The CS-6400BL-7D is TOP in its class.
Direct drive, long arm type, 1-needle, up & low feed, large bobbin, lock stitch sewing machine with automatic thread trimmer series.
Advanced technology, Optimized sewing condition for heavy materials.
Dual control system of presser foot and easy regulation of ascending amount of both main presser foot and auxiliary presser foot by dial are suitable for various sewing conditions such as the work for stepped and different thickness heavy duty material.
With applying reliable feed mechanism, firm stitches and best quality are guaranteed.
The best trimming mechanism for thick materials. The machine realizes structures of dual safety devices and strong trimming drive. The movable knife and fixed knife composed of special materials, not only performs strong trimming drive but guarantees excellent anti abrasion with perfect quality as a sewing for thick materials.
NOTE: * Excellent feeding properties for binding operations
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special
CS-1900

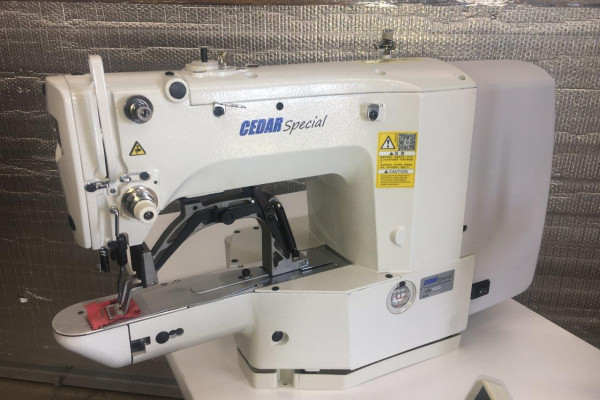

This CEDAR Special CS-1900A is a premium, computer-controlled, high-speed bartacking industrial sewing machine.
The sewing field is 30mm x 40mm and is capable of sewing speeds up to 3,200 stitches per minute.
The onboard touch screen programmer allows for maximum flexibility that can be tailored to your specific stitch specifications. PC programming is also available.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

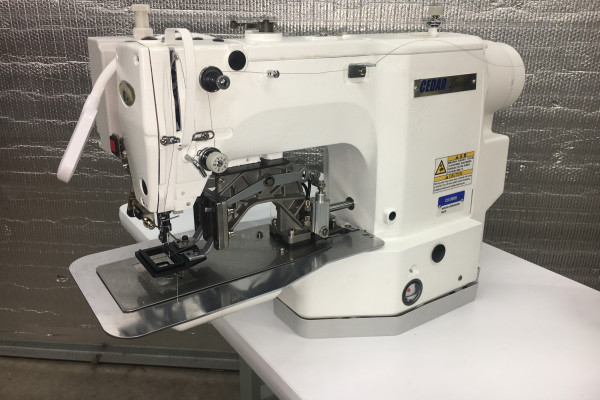

CS-0606
With powerful pneumatic clamping system, the CEDAR Special CS-0606 has a sewing field of 60mm x 60mm (2.36" x 2.36") and is a premium, computer-controlled, high-speed, programmable pattern, industrial sewing machine.
It is capable of sewing speeds up to 3,000 stitches per minute.
The onboard programmer allows for awesome flexibility that can be tailored to meet specific stitch specifications. PC programming is also available.
Minimal 2D programming ability is a plus for successful PC programming.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

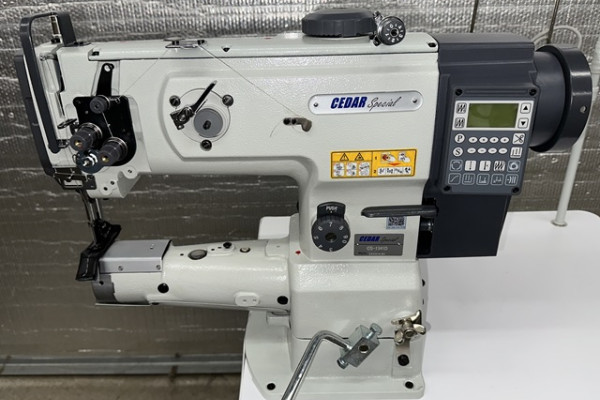

CS-1341D-7
Our CS-1341D-7 is a Direct Drive, Heavy-Duty, single-needle Cylinder-Bed, Walking Foot, lockstitch sewing machine. It is engineered for thick, demanding materials such as automotive interiors, leather goods, home upholstery, and heavy bags.
Specifications:
* Max Speed: 2,500
* Max Stitch Length: 8mm
* Working Space: 255mm Left to Right, 110mm Top to Bottom.
* Feed System: Compound feed (walking foot) and needle feed.
* Bed Type: Cylinder bed, which allows for easy manipulation of 3D, tubular, and curved items.
* Applications: Ideal for car seats, sofas, tents, luggage, and thick thread sewing.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
CEDAR Systems Automated
215-A.CP

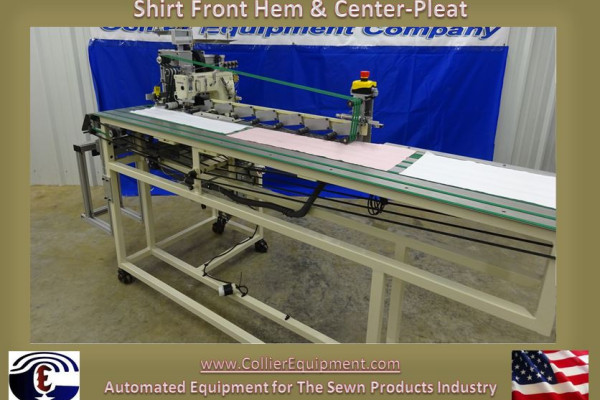

The CEDAR Systems 215-A is modeled after the historic and original Exkell machine that was granted a patent on November 11, 1975.
* Primary Sewing Head is Kansai Special DLR-1508 (Max 3,500 SPM). Other sewing heads may be adapted.
* Machine can be built for Center Pleat (Placket) or Front Hem.
* Machine can be used with or without lining. Please specify when ordering.
* Independently controlled Sewing Head speed and Conveyor speed (Efka DC Drives)
* Complete with Thread Sensors, Cut-Apart (for lining or thread) and Saddle style stacker.
* Sewing Head slide-out for easy maintenance.
* Pre-programmed with Maintenance Functions.
* Level-Locking Casters for easy mobility and stability.
* 50 LED light.
* Easy to clean and maintain for years of service.
- Specific notes were received via phone calls from the inventor and designer of the Original Exkell Center Pleat Machine. Mr. Farney was kind enough to give me his blessing and part of his knowledge to lead me in the right direction so I could successfully re-invent his original machine that he patented in November of 1975. What an awesome gentleman and inventor.
Cedar Special

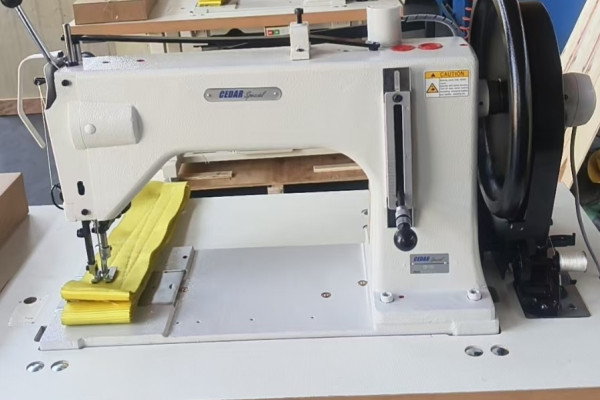

CS-733
The CS-733 is an Extra Heavy -Weight Material Super Large Shuttle, Top And Bottom Feed Sewing Machine.
A few features of the CS-733
*Work Area: 42cm
*With Backstitch + Foot Lift (pneumatic)
* For stitching extra heavy-weight materials. Can sew up to size Tex 556 cord (thread)
Designed for such operations and products as extra heavy duty harnesses and slings (can sew up to 18,000 lb. strength webbing,) safety and logging belts, cargo slings, tents, sails, tarpaulins and covers, fabric structures, construction barriers, buffing wheels, parachutes, balloons, industrial bags, boot stitching, book binding.
* Extra Heavy Duty, Long Arm, Single Needle, Drop Feed, Alternating, Presser Feet, Lockstitch Machine.
* With: Extra Large, Long Point, Oscillating Shuttle Hook and Bobbin, Extra High Foot Lift - (1-11/32” - 34 mm), Two Row Feeder and Reverse Feed.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Binders
205 Binder

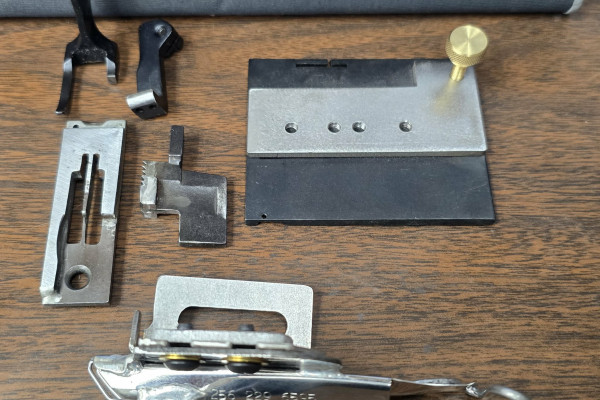

There are a few different styles of the 205 binder. It can be mounted on a swingout, flat bed, or a slide plate. Available for Lock Stitch or Chain Stitch machines as well as Single Needle or Double Needle machines. Also available as a Moving Binder Series to help achieve better quality on inside and outside curves.
A Binding Reel is available along with special Gauge Sets to suit specific operations.
Samples of your materials will be required for us to recommend and produce the best option for you.
* Contact us for all your Custom Folders, Guides, Clamps and Pallets needs.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Binders

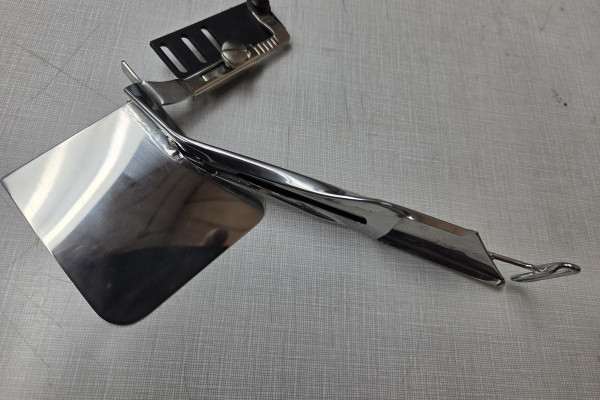

252 Binder
The 252 Binder is often referred to as a "C Type" binder. Produced for binding that is coming from a roll. Can be mounted to a front slide plate or on a swingout. Available in various configurations.
A Binding Reel is available along with special Gauge Sets to suit specific operations.
Samples of your materials will be required for us to recommend and produce the best option for you.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Labor Saving Devices
Custom Pallets
We design Custom Pallets to suit your specific applications using the most advantageous materials to make them relatively light weight and strong for many production cycles.
Sample materials and products may be needed.
* Contact us for your Custom Folders, Guides, Clamps and Pallets.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

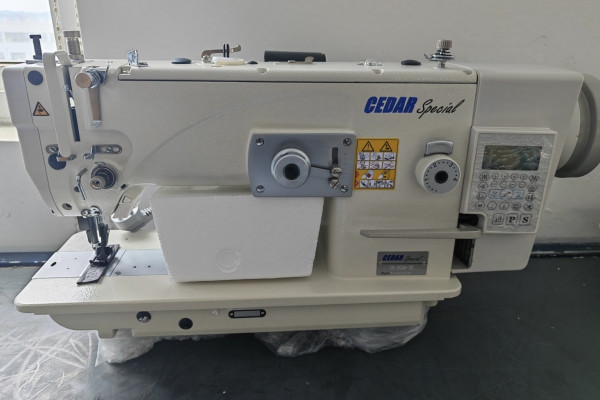

CS-2530-7C
The CS-2530-7C is a Direct Drive, Top & Bottom Feed, Zigzag.
Primary Features:
* 1 step 2 point
* Full function machine utilizes a synchronized top-and-bottom feed mechanism to prevent slippage when sewing thick, heavy layers. Designed for materials like leather, canvas, neoprene, and upholstery.
* Complimented with Automatic Thread Trim, Automatic Back Tack and Automatic Foot Lift.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
