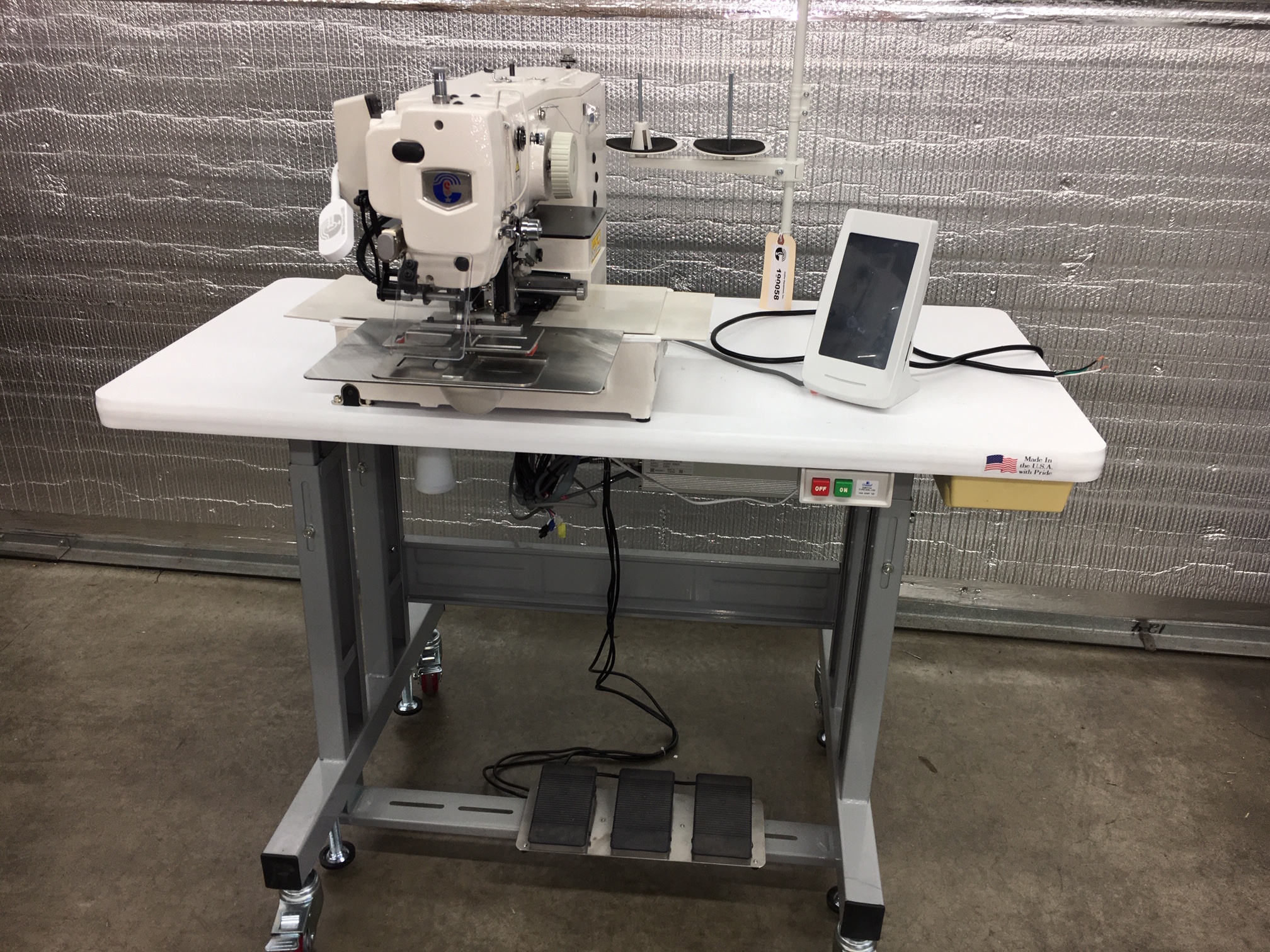

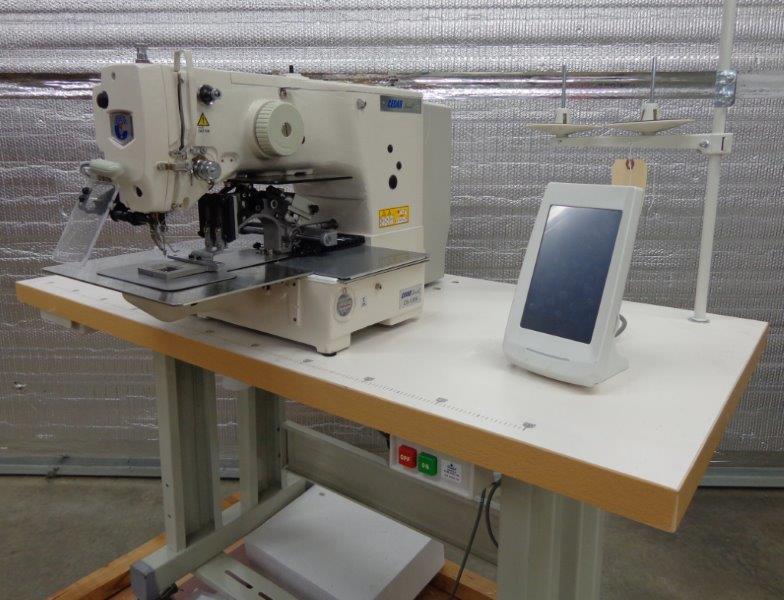

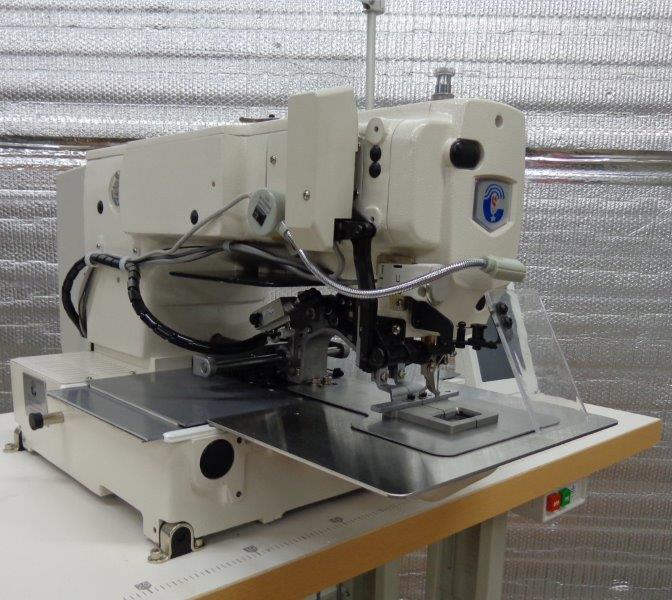

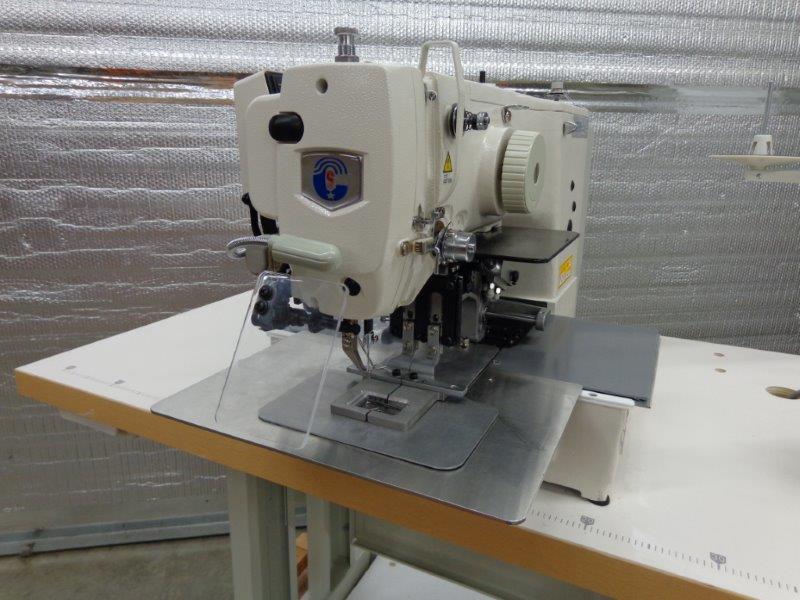

CS-1306

The digital sewing system of the CS-1306HS-22 offers Standard Clamping, Custom Engineered Clamping or Labor Saving Devices that are designed for specific operations.

Key Features and Benefits:

   * Sewing Area: 130mm x 60mm.

   * Shortened Cycle Time

   * Onboard or PC Programmable Patterns.

   * Speed: Achieves a maximum sewing speed of 2,500 stitches per minute.  The machine reaches this speed by the third stitch and maintains it until the end of sewing, significantly reducing cycle time.

   * Thread Trimming: Ensures speedy and consistent thread trimming performance.

   * Main-Shaft Direct-Drive System: Enhances machine responsiveness.

   * Improved Seam Quality

   * Enhanced Feed Accuracy: The encoder-controlled X-Y drive stepping motor improves feed accuracy, reducing pattern deformation when sewing at high speeds or with heavy materials.

   * Semi-Dry Head: Utilizes advanced dry technology to prevent oil stains on products.

   * Programmable Intermediate Presser

   * Adjustable Height: The intermediate presser height can be adjusted steplessly during sewing to accommodate multi-layered materials, preventing stitch skipping and thread breakage.

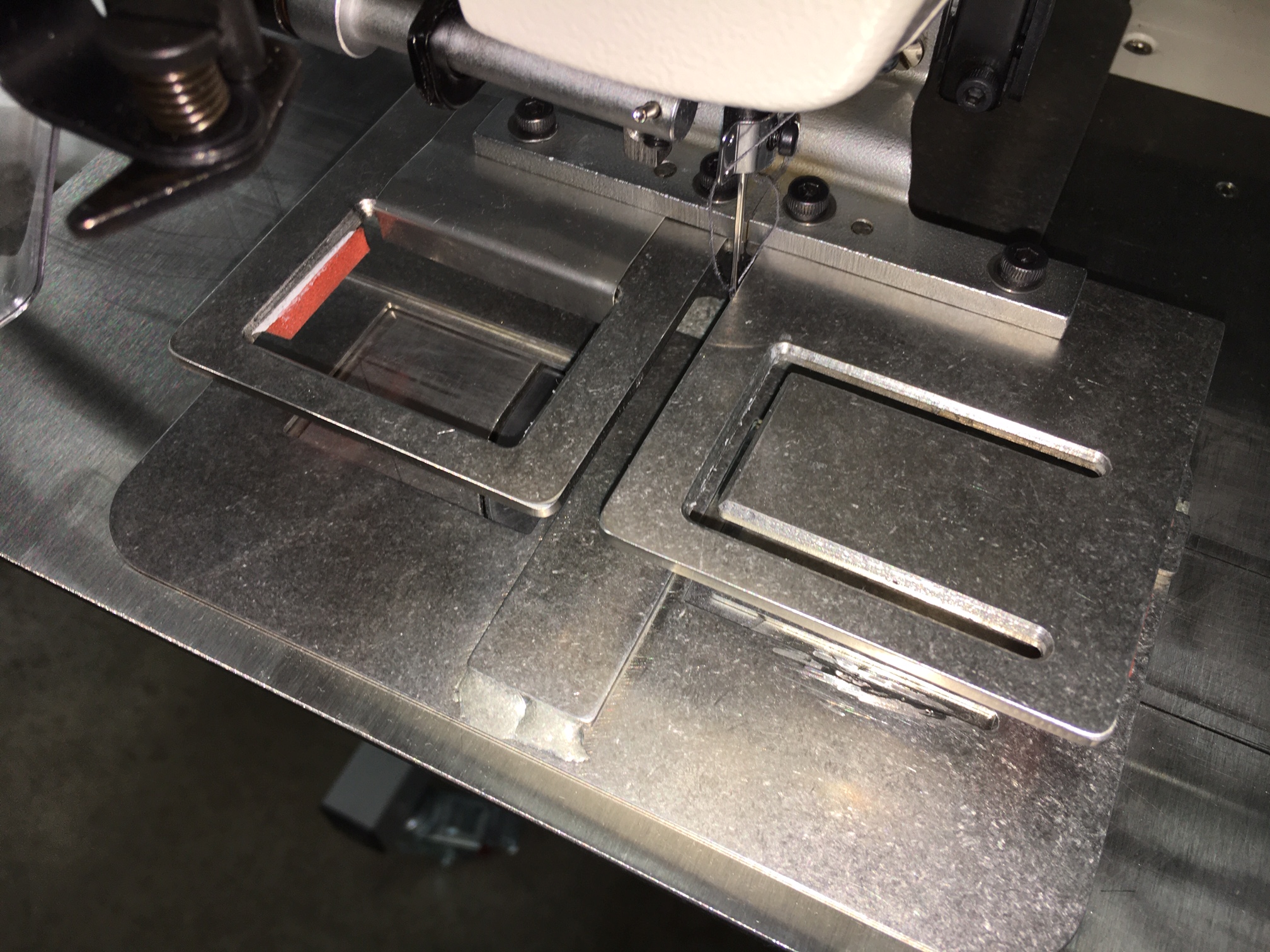

   * Two Types of Feeding Frames

   * Monolithic and Separately-Driven: The separately-driven feeding frame allows for easier placement of sewing materials, with adjustable lift and speed for each frame part.

   * Double-Stepped Stroke Feeding Frame

   * Convenient Positioning: Allows for fine positioning of materials with adjustable stopping height.

   * Active Tension

   * Precision Control: Enables pinpoint changes in needle thread tension during sewing, adjustable through the operation panel. This reduces setup time for process changes and supports a broader range of sewing conditions.

        * Custom Folders, Guides, Clamps and Pallets are available.
