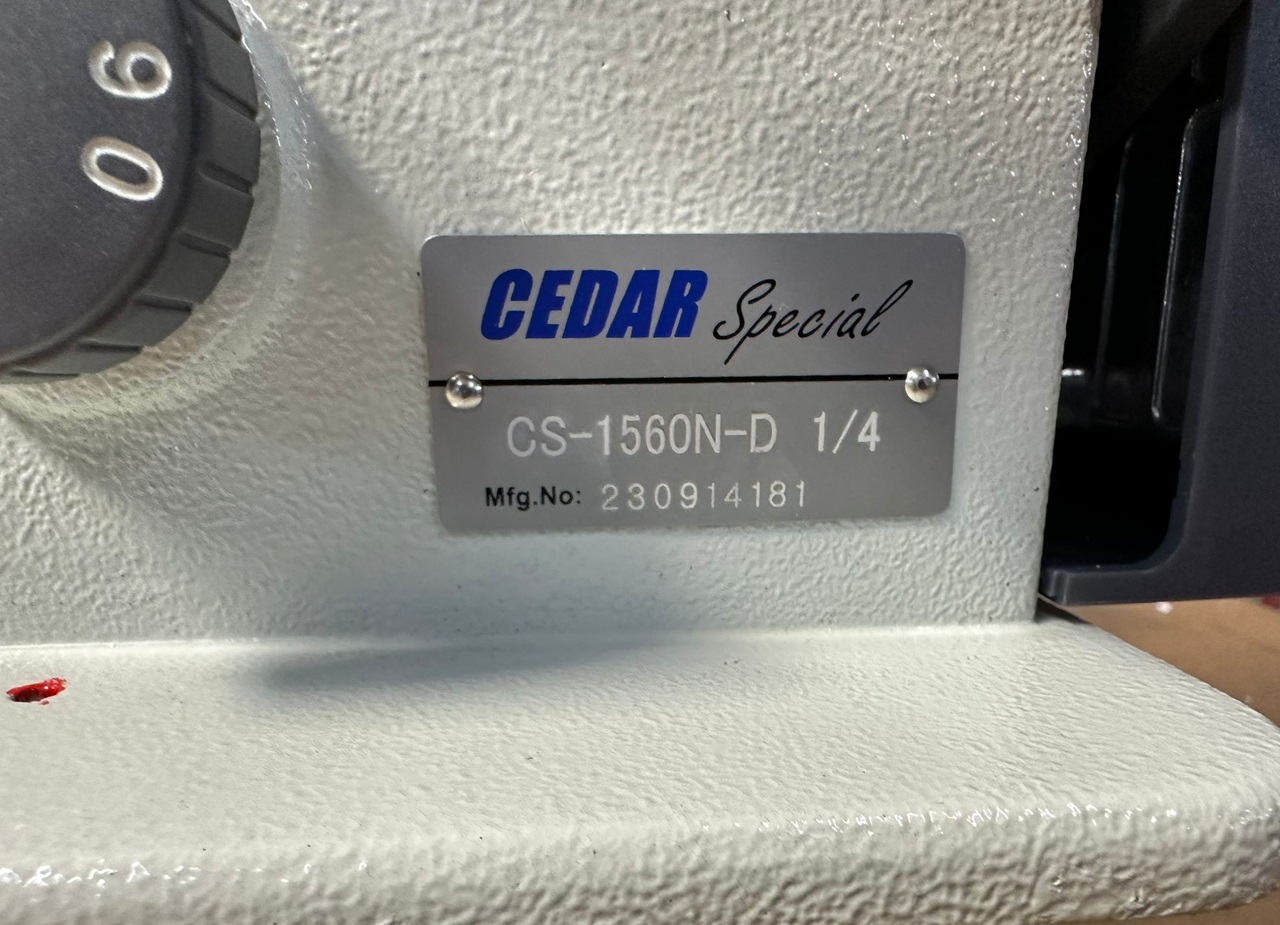

CS-1560N-D

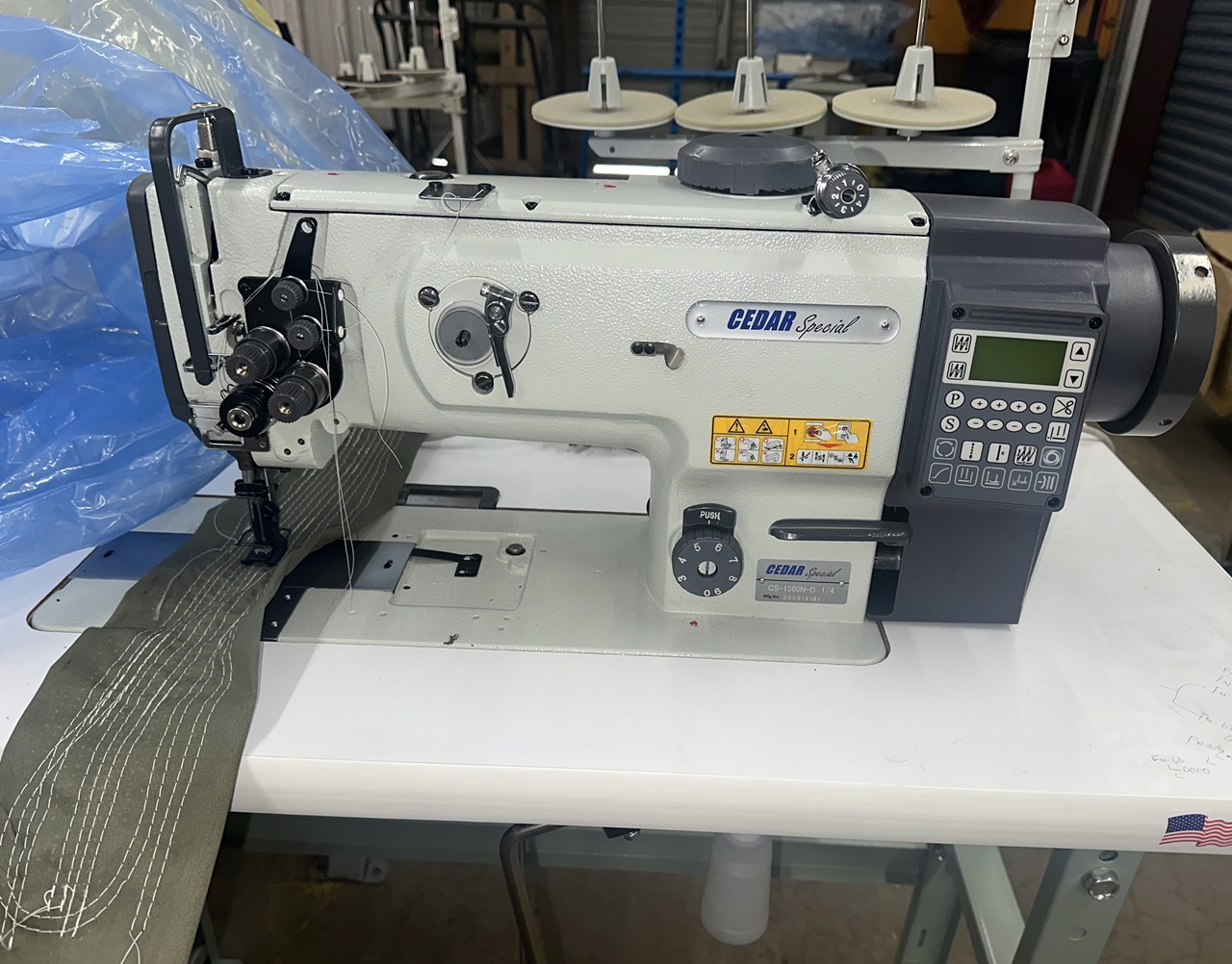

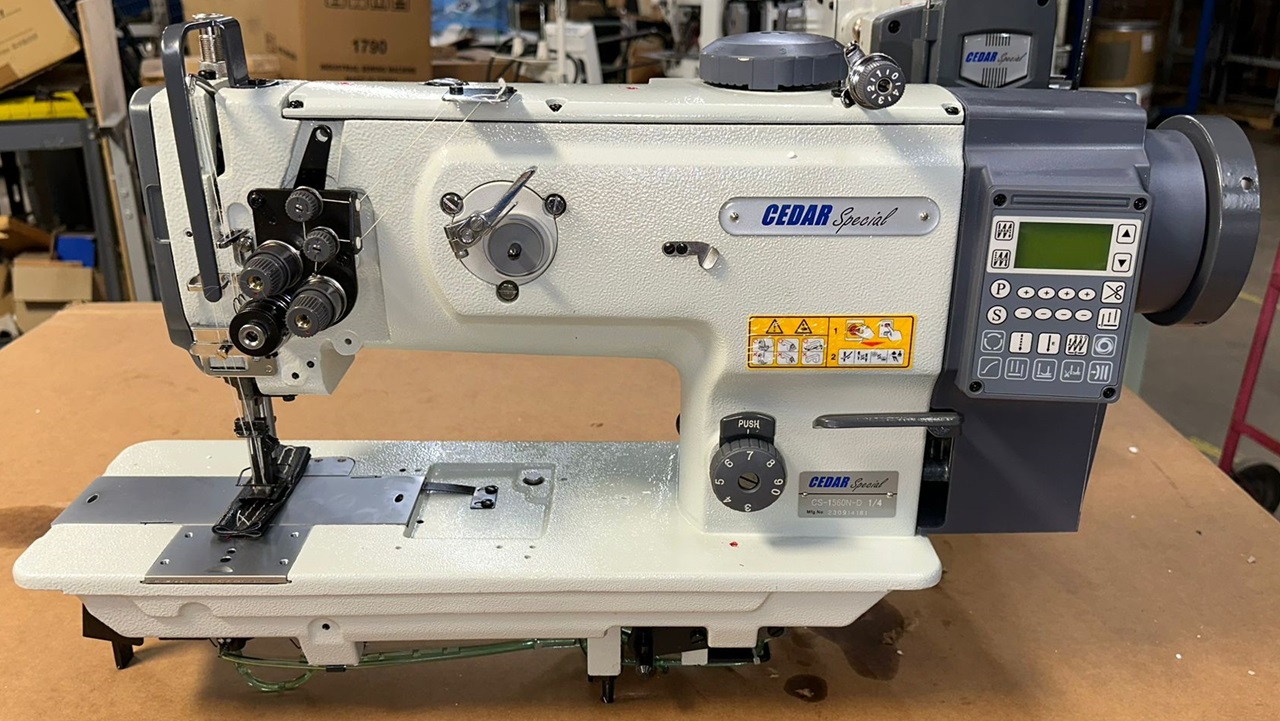

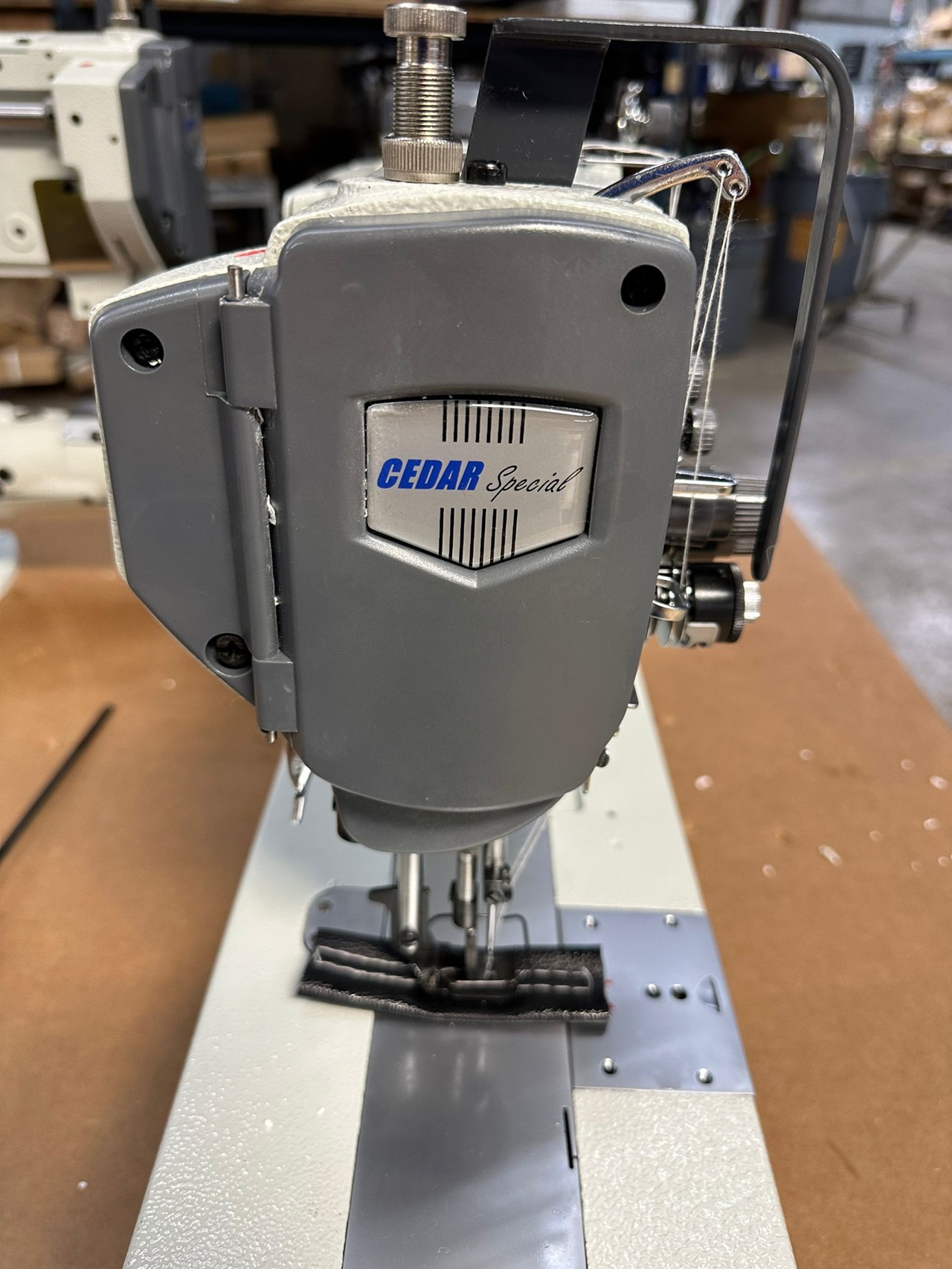

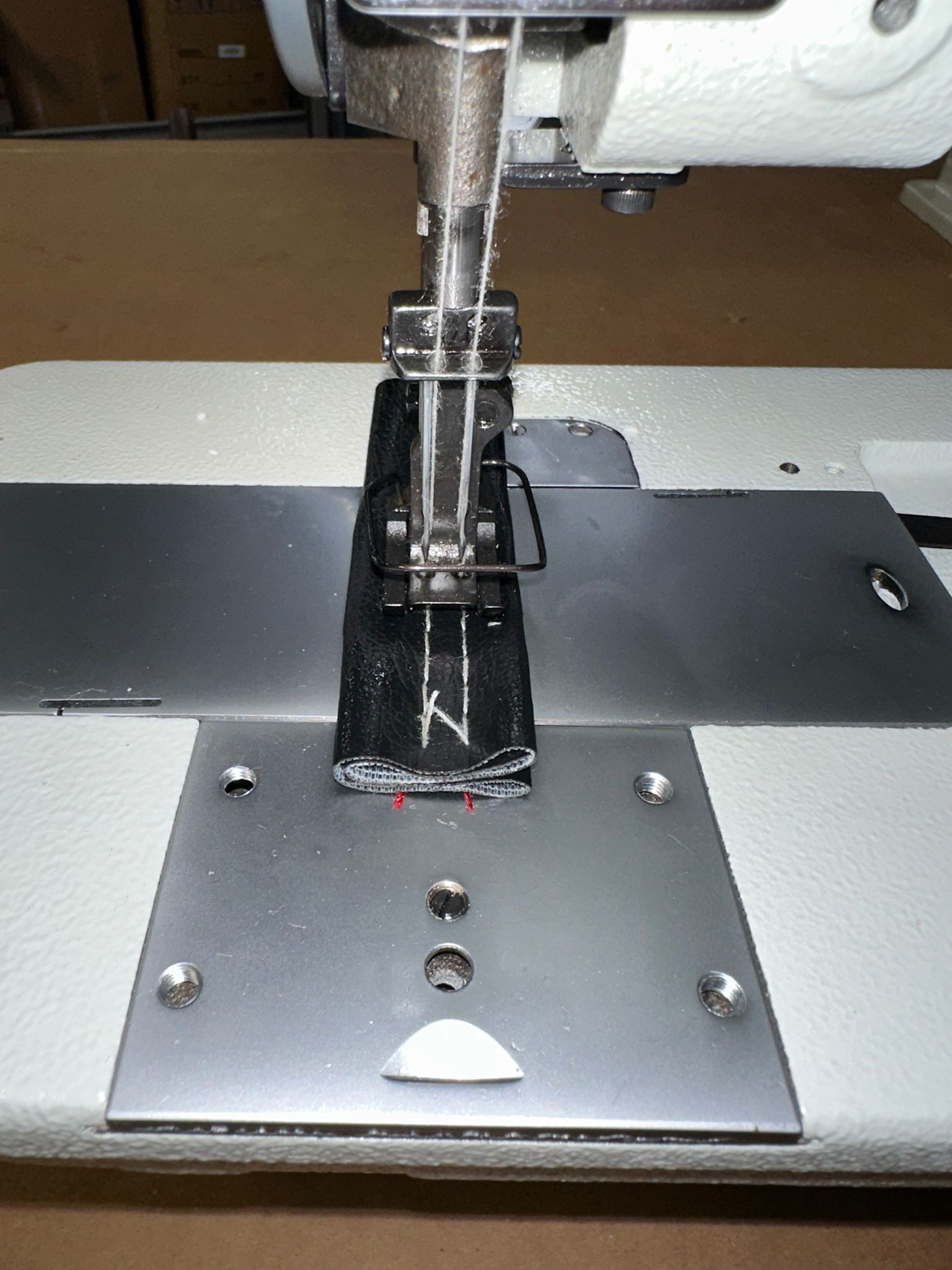

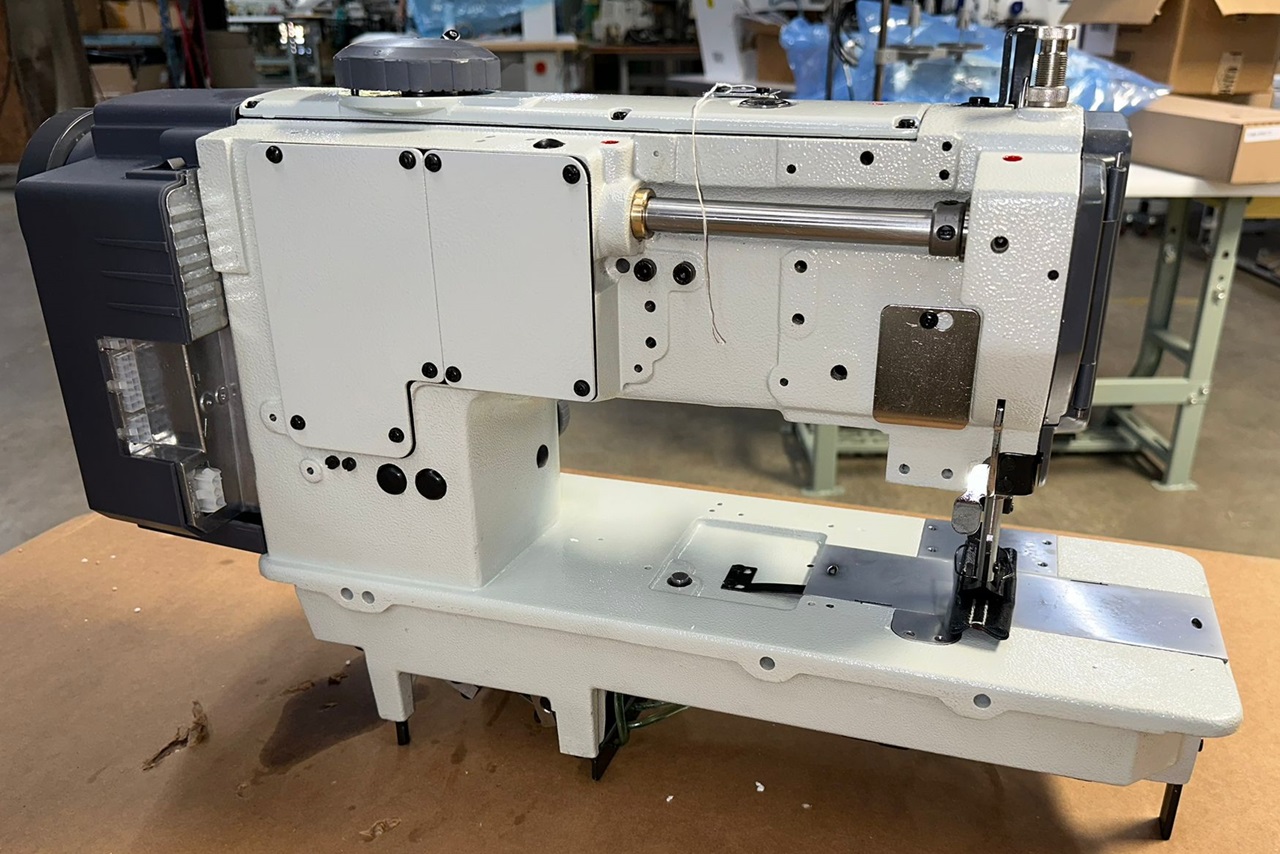

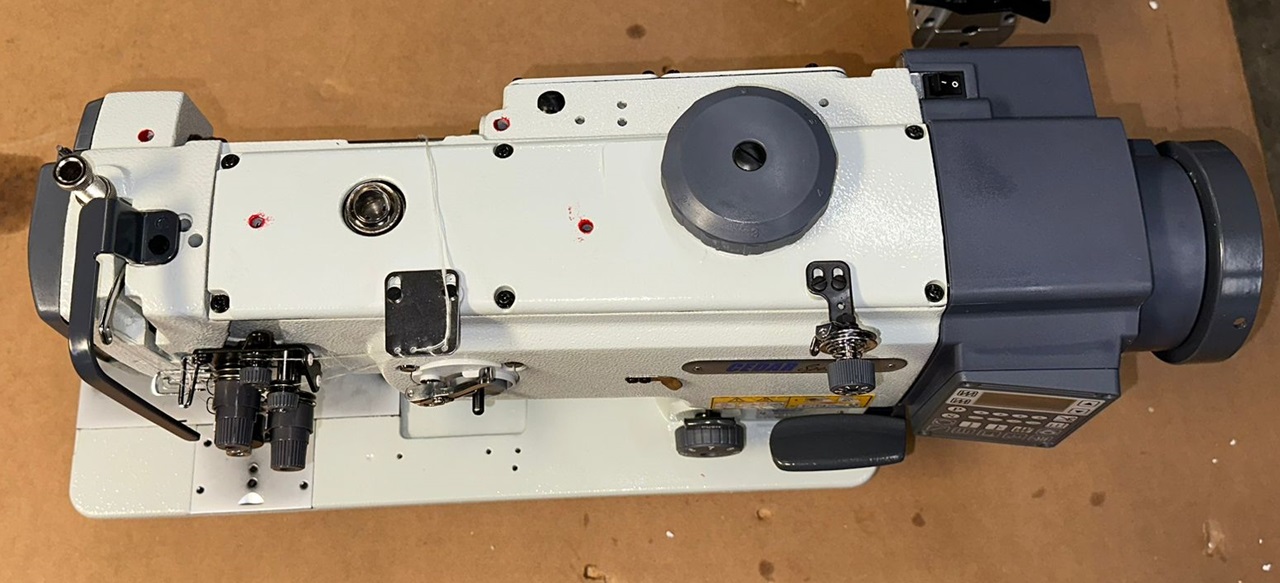

The CEDAR Special CS-1560N-D is a heavy-duty, 2-needle unison-feed (walking foot) lockstitch machine with alternating foot stroke adjusting dial.  It is purpose-built for heavy materials like leather, canvas, upholstery, and vinyl.

   * Key Specifications

        * Direct Drive

        * Sewing Speed: Up to 2,500 stitches per minute (spi/min)

        * Stitch Length: Up to 9 mm (both forward and reverse)

        * Needle System: 135x17 (Sizes from Nm125 to Nm180)

        * Needle Bar Stroke: 36 mm

        * Presser Foot Lift: 9 mm (by hand), 16 mm (by knee)

        * Alternating Vertical Movement: Adjustable between 1 mm to 6.5 mm

        * Hook: Vertical-axis double-capacity hooks (28mm)

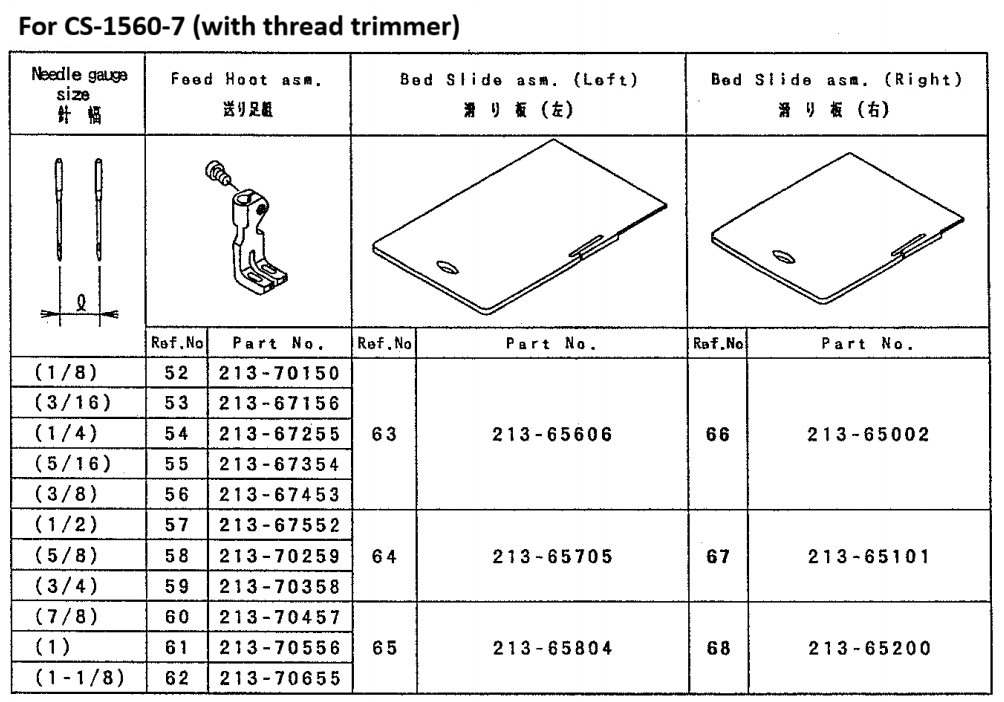

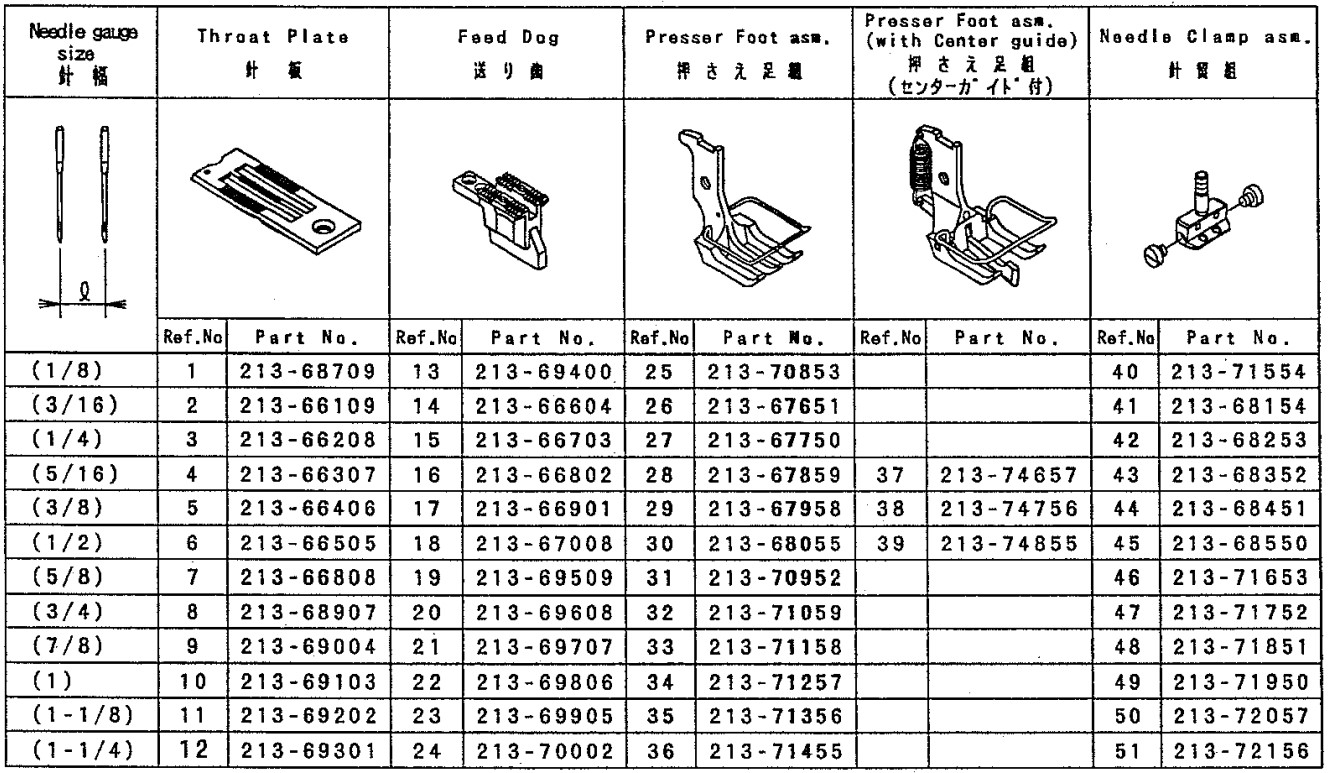

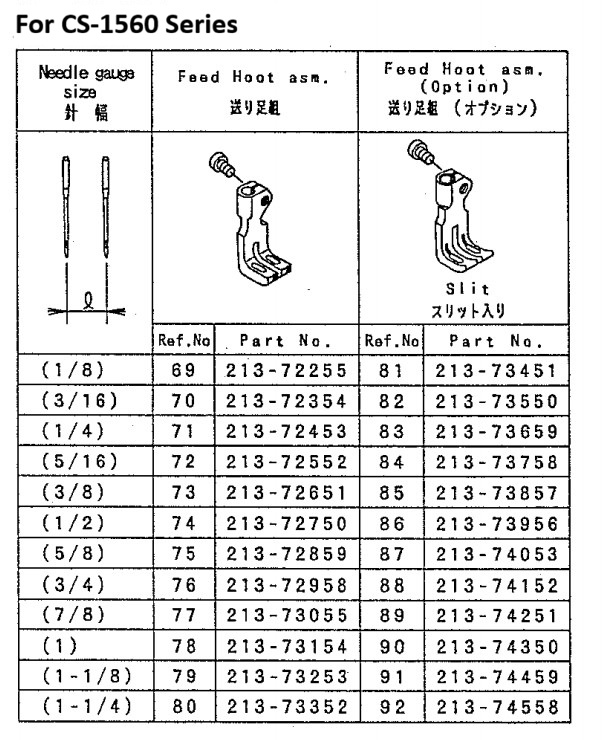

        * Standard Needle Gauges: 1/4" (6.4 mm) (Available from 3/16" to 1/2")

 * Custom Folders, Binders, Hemmers, Guides, Pallets and Clamp Sets for the Sewn Products Industry.

          For more information, call or email.

             •    Phone: (256) 229-6595

             •    Email: CEDAR-Special@CollierEquipment.com

*****  Click on Mr. Hook to order CS-1560 Parts *****
