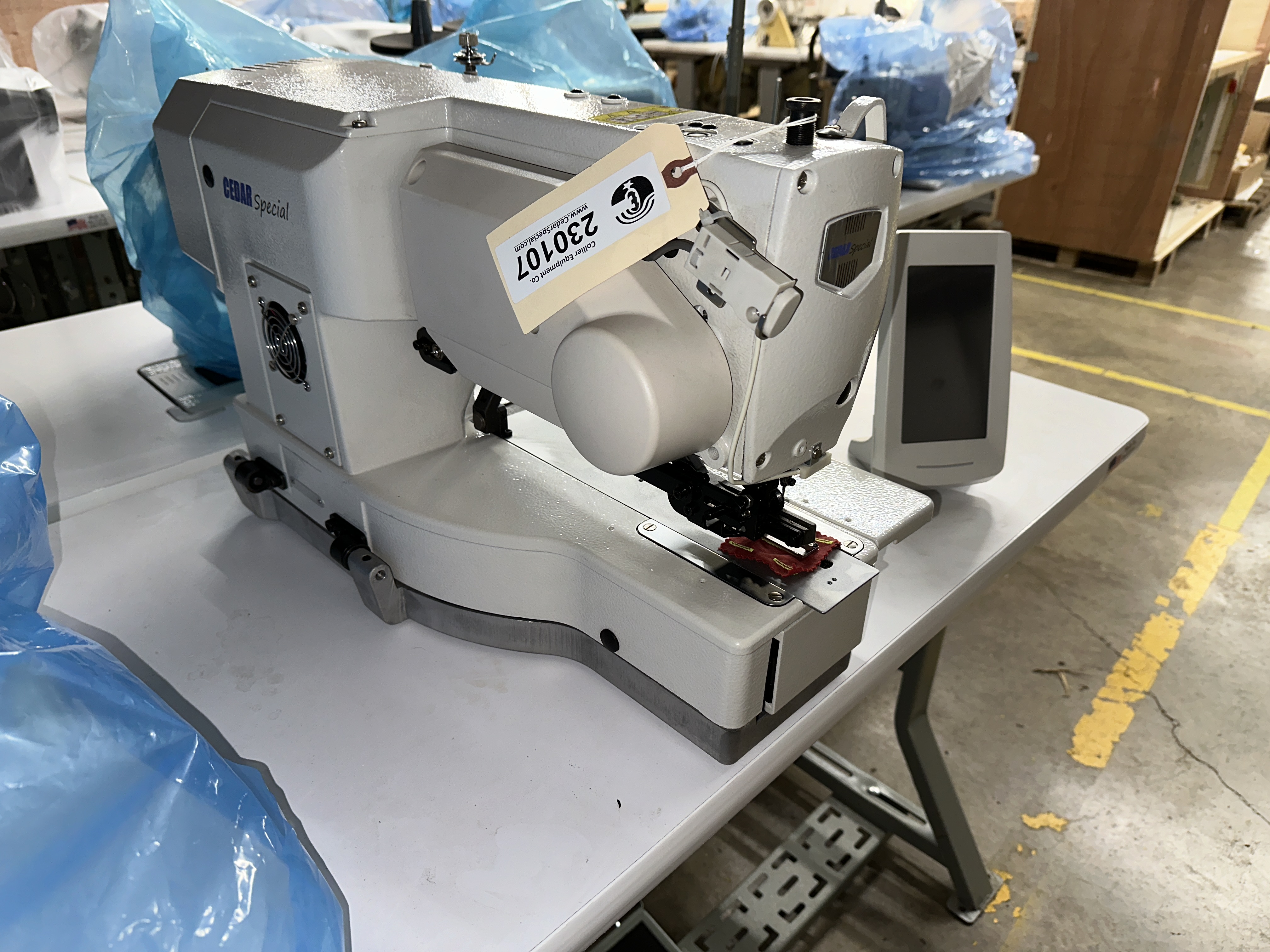

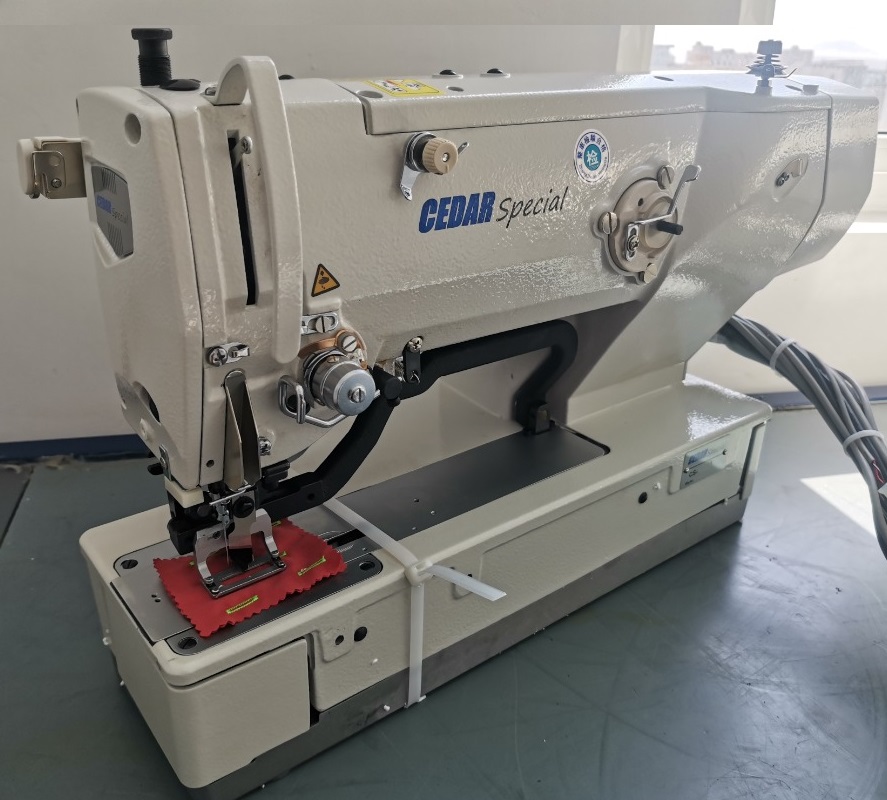

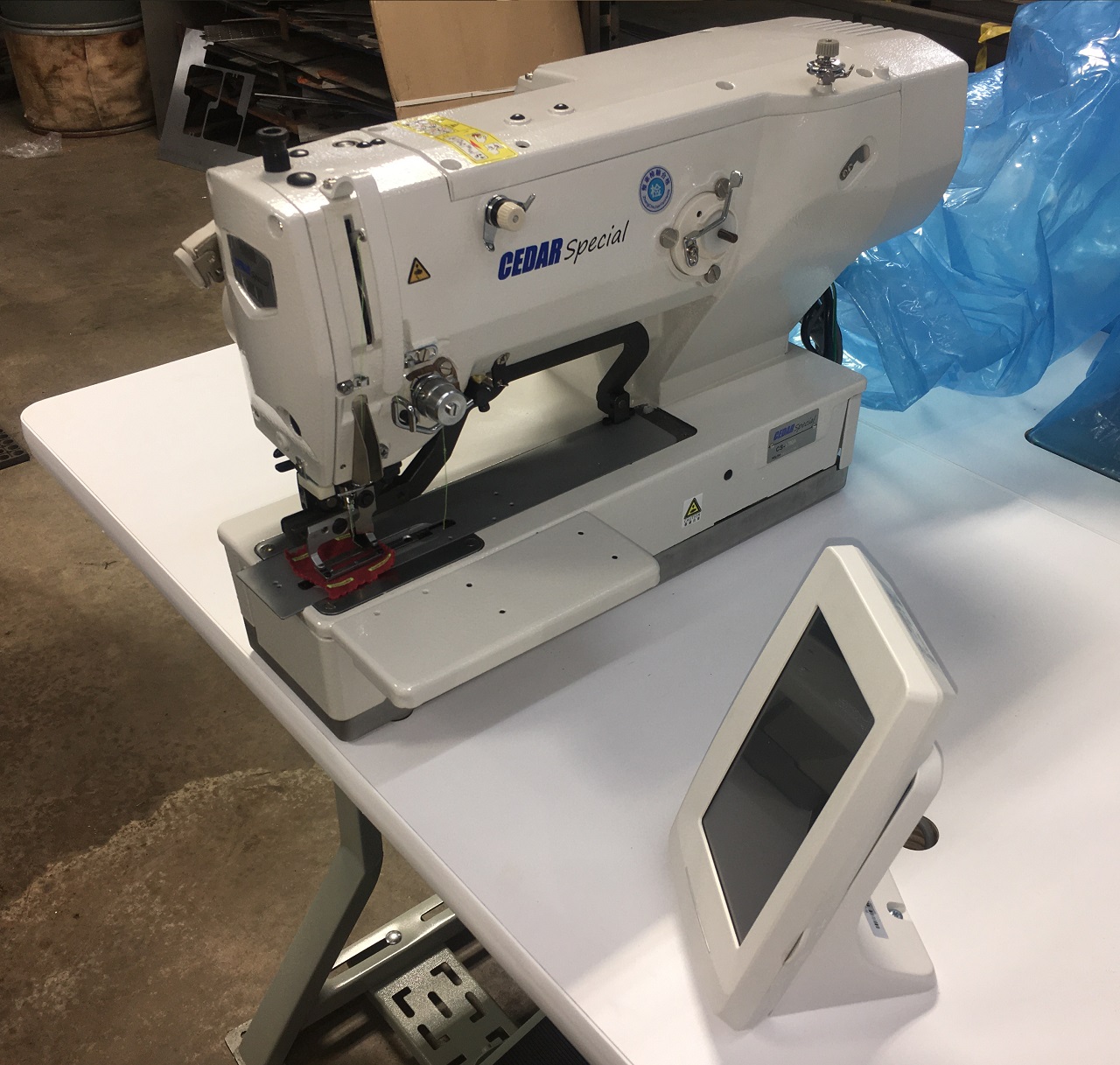

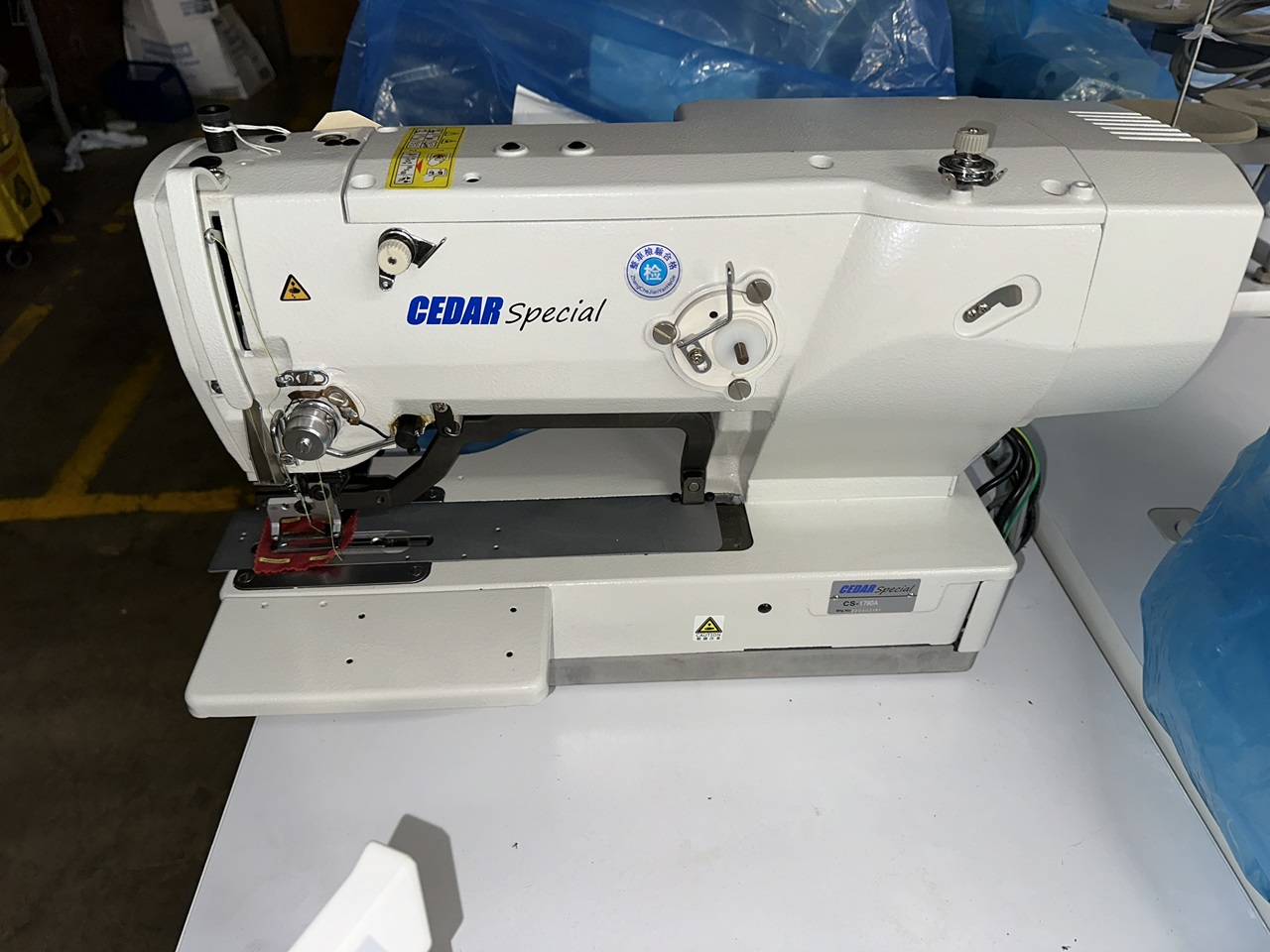

CS-1790A

Our CS-1790A is a highly automated, computer-controlled industrial lockstitch buttonhole machine.  It features fully digitized adjustments, active electronic thread tension, and a semi-dry head to eliminate oil stains.

   * Here are the key technical specifications for the Juki LBH-1790 series:

        * Max. Sewing Speed: Up to 4,200 stitches per minute (spi/min)

        * Buttonhole Length: Standard max. 41 mm (optional kits extend this to 70 mm or 120 mm)

        * Cloth Cutting Knife Size: 6.4 to 31.8 mm (1/4" to 1-1/4")

        * Bartacking Width: Max. 5.0 mm (special order parts allow up to 10 mm)

        * Lift of the Work Clamp: 14 mm (up to 17 mm using the reverse-rotation needle-up function)

        * Machine & Electronic Specifications

        * Lubrication: Semi-dry head (only the hook requires min-quantity lubrication)

        * Needle System: DP×5 (#11J) #11J to #14J

        * Built-in Patterns: 30 to 31 standard patterns (stores up to 99 distinct input patterns)

        * Tension Control: Active Tension (solenoid-controlled electronic thread tension)

        * Drive System: Compact AC servomotor (direct-drive)

        * Power Requirement: Single-phase 200–240V / 370VA (3-phase also supported on specific models)

        * USB & NFC Connectivity: Features an integrated USB port for easy software updates and data management; supports NFC for data transfer.

        * Custom Folders, Guides, Clamps and Pallets are available.
