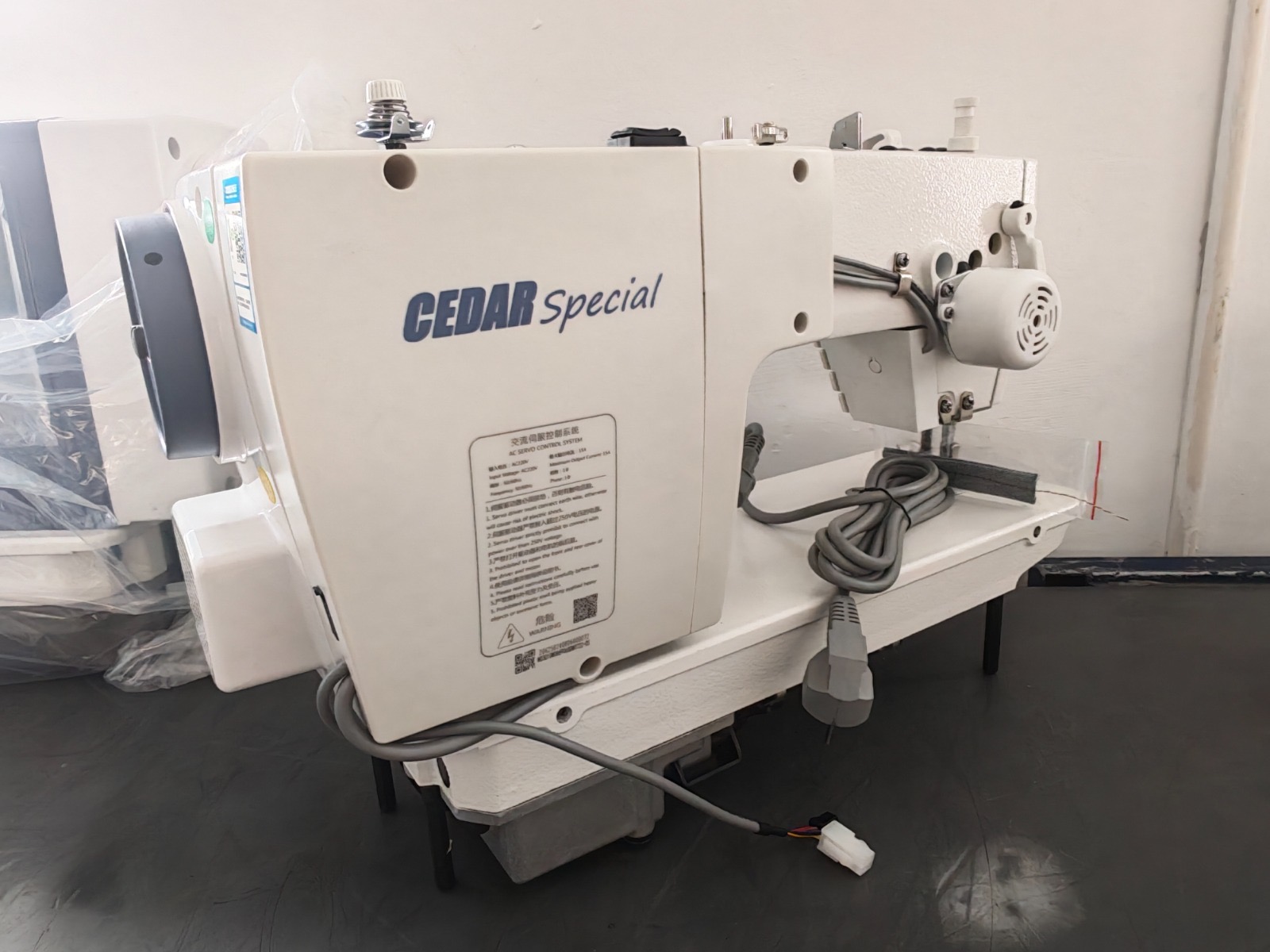

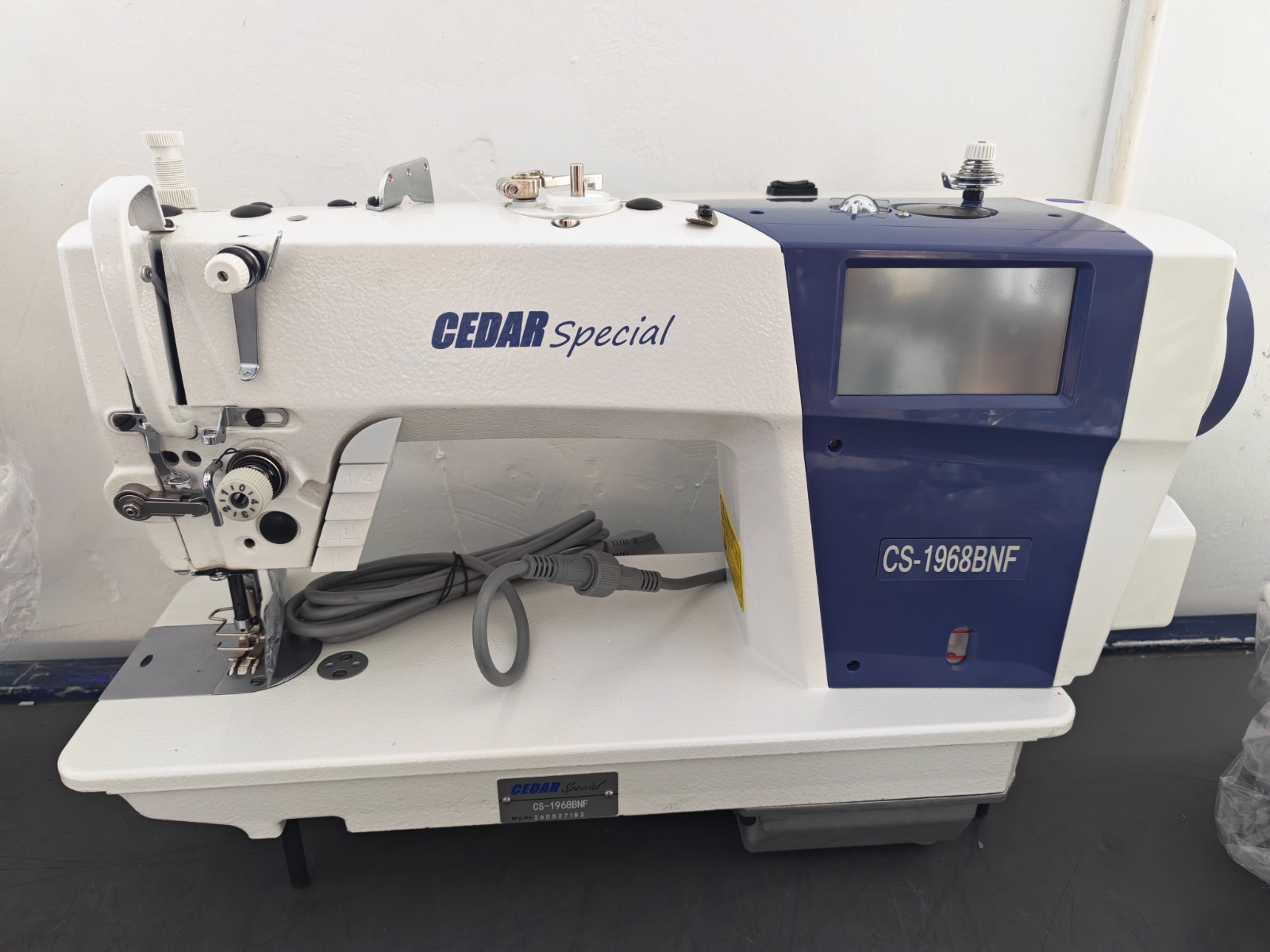

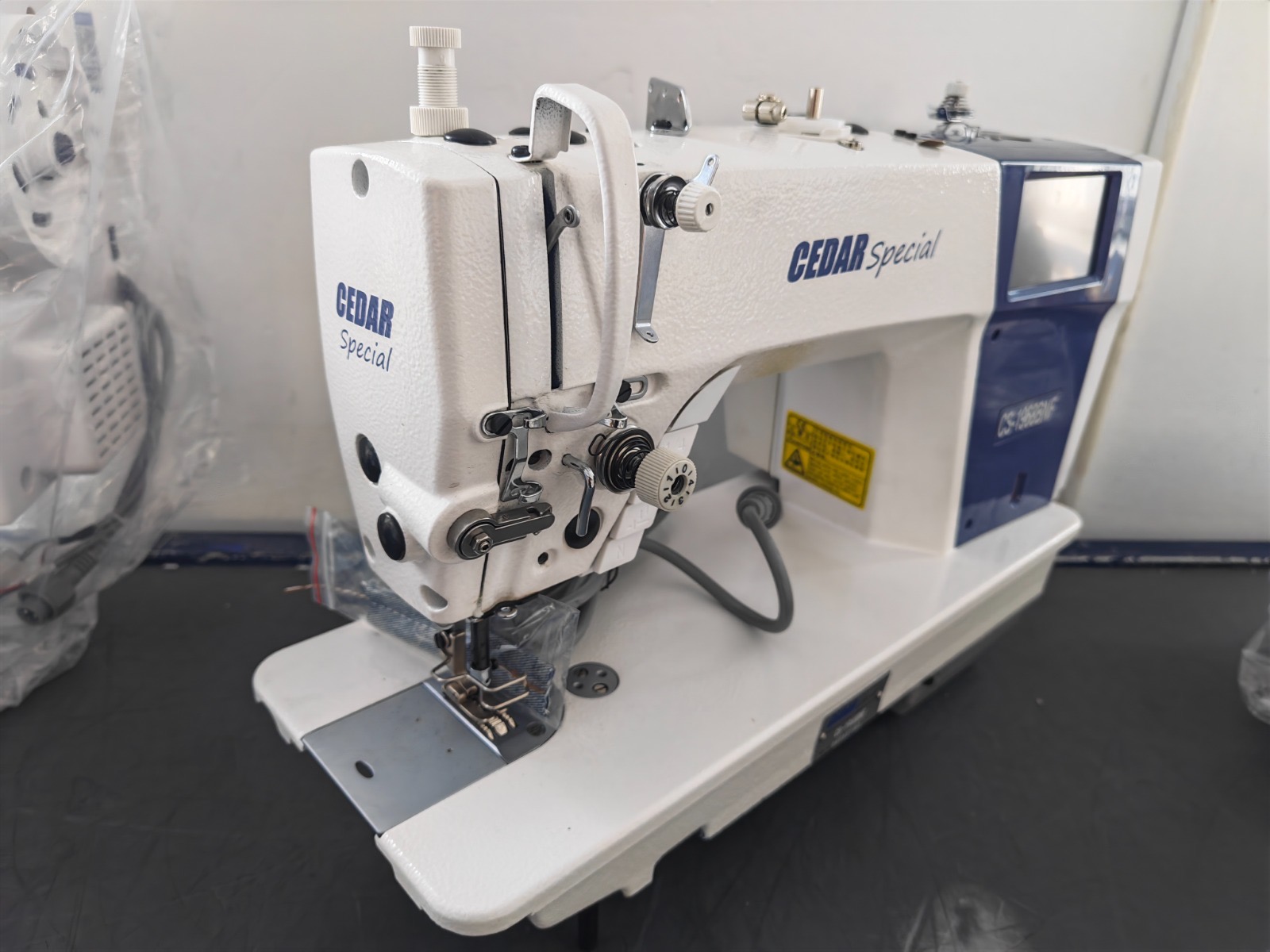

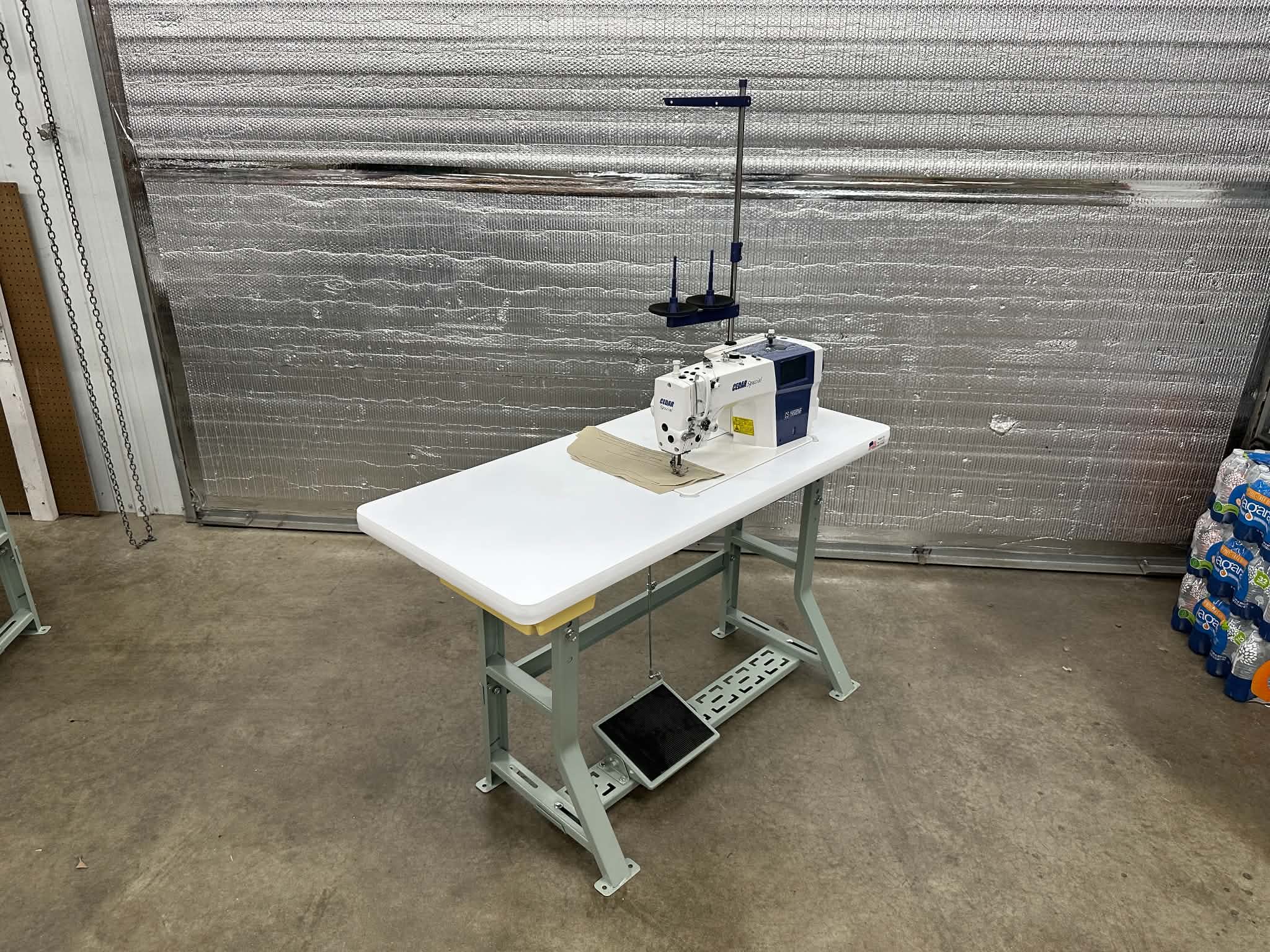

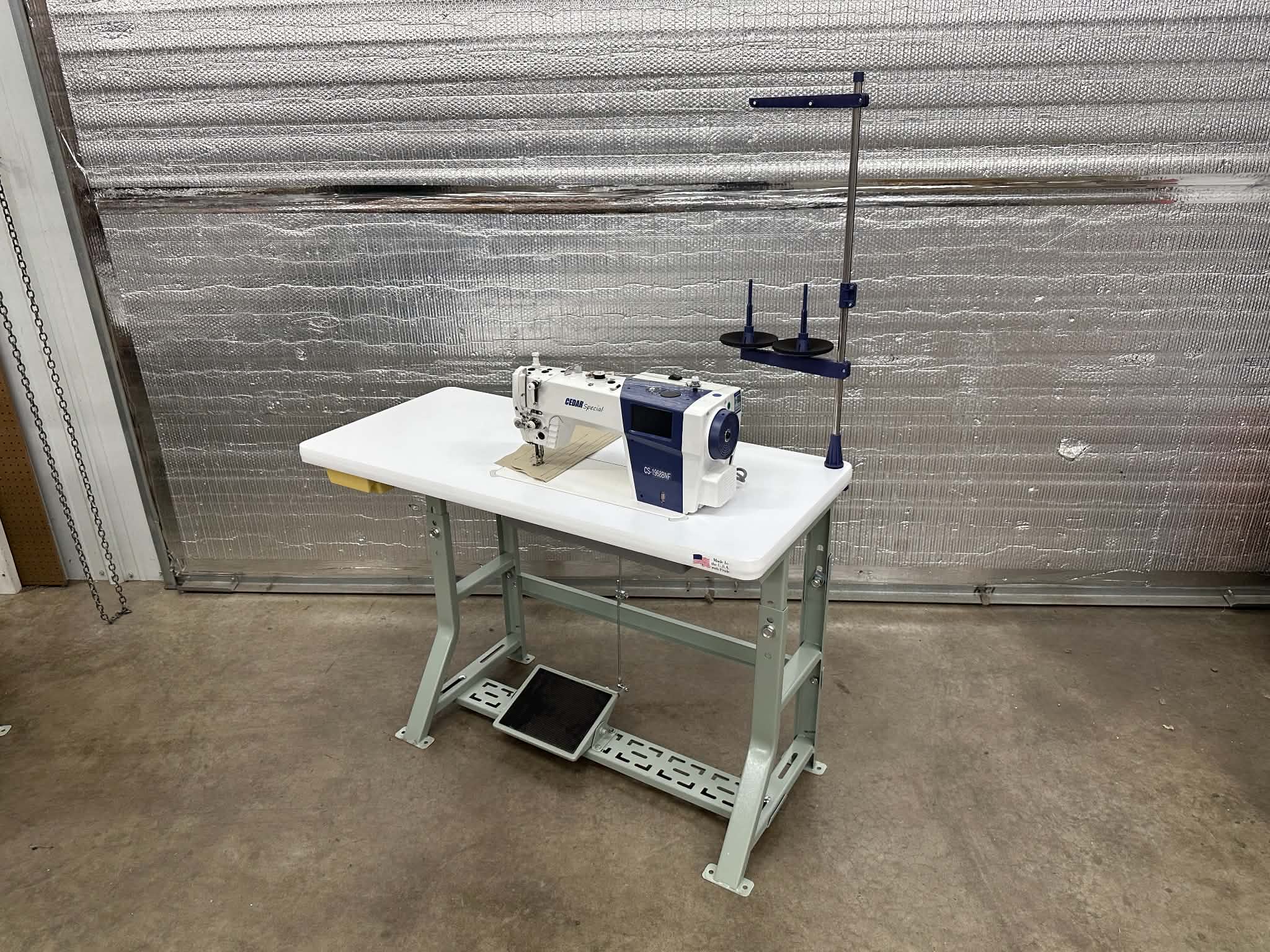

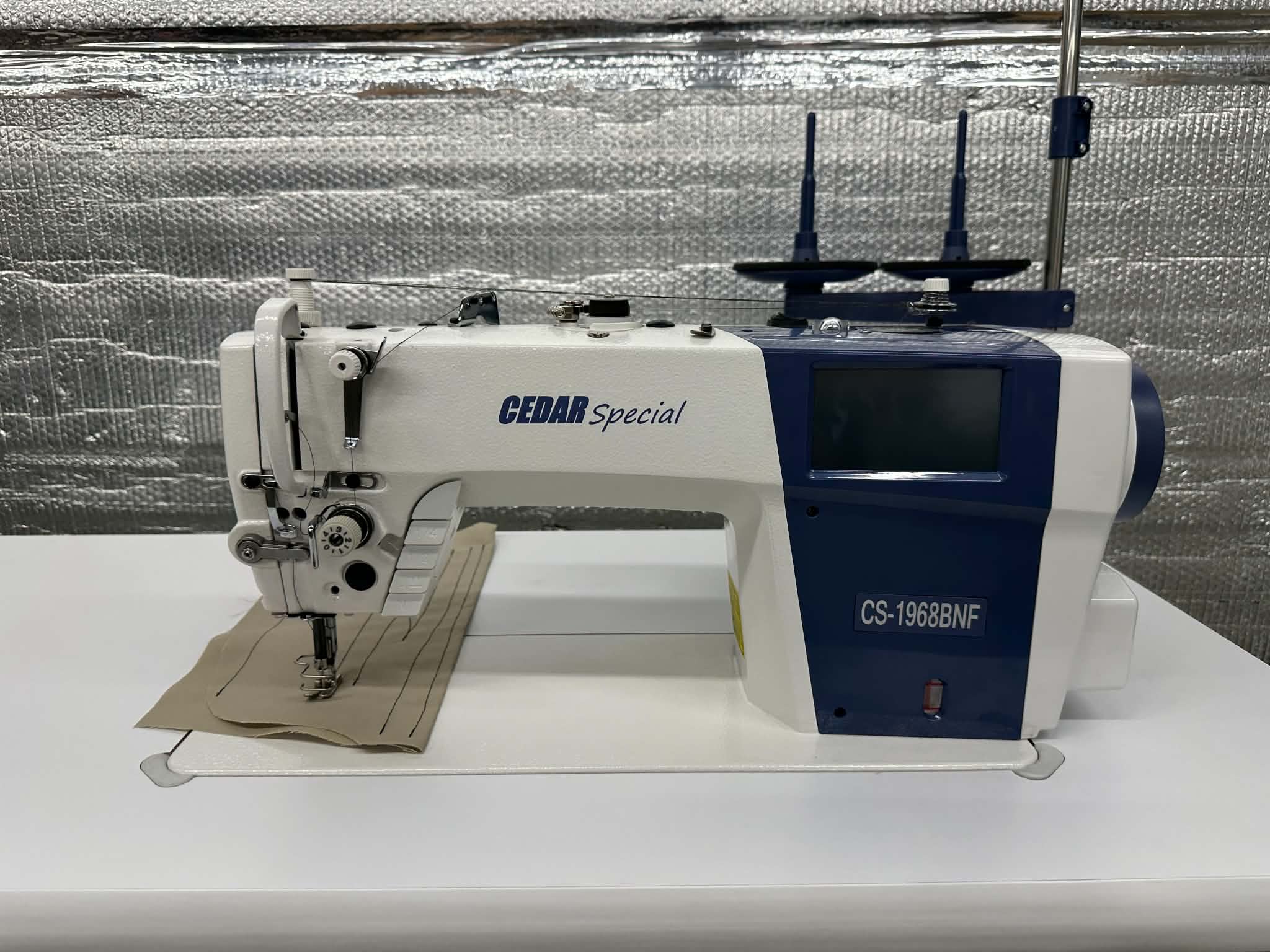

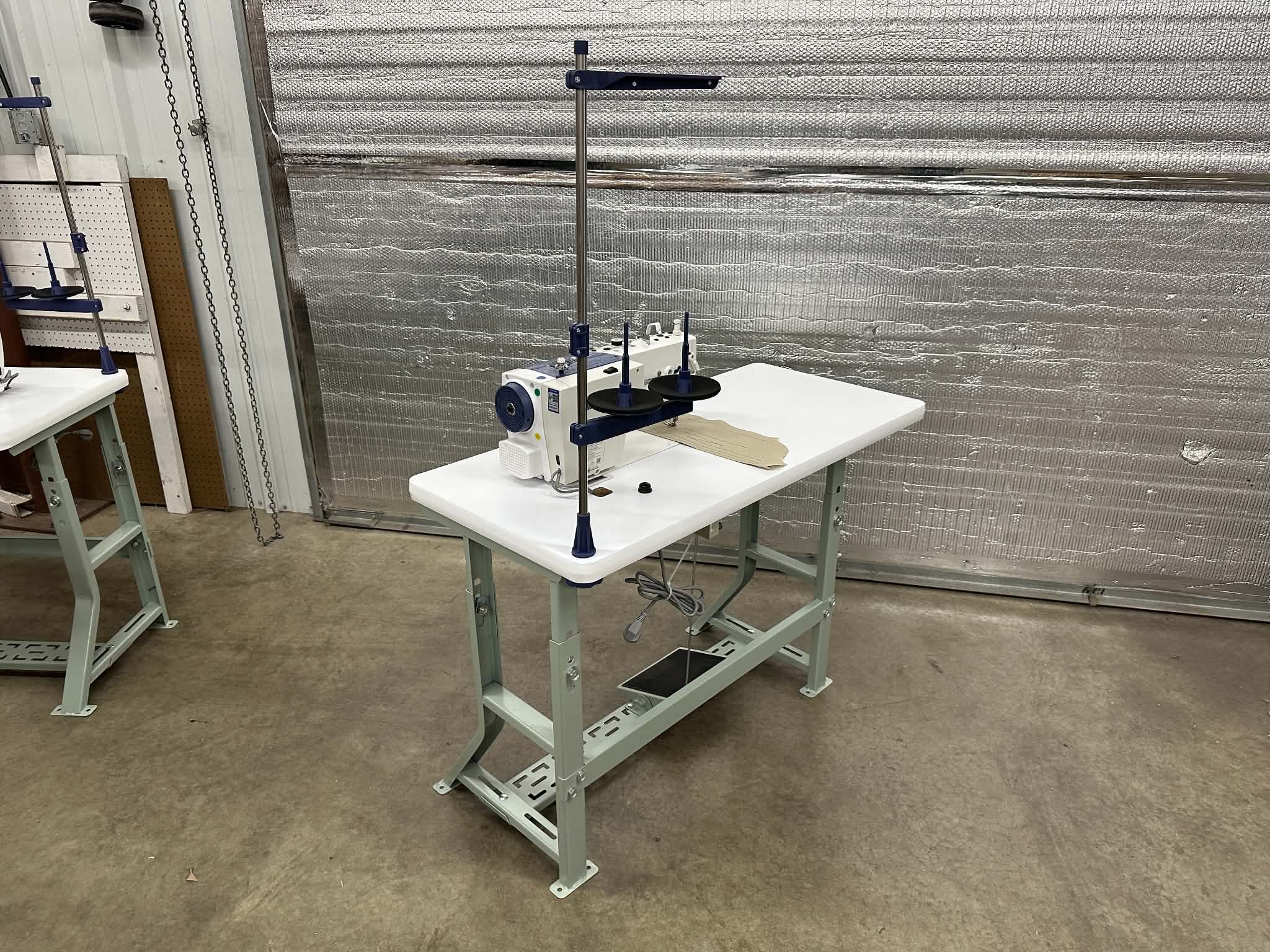

CS-1968BNF

Our CS-1968BNF Needle Feed machine is one of our newest additions.  With the intelligent step motor driven feed mechanisms and operator friendly functions, it is quickly becoming one of our most popular machines.

Key Machine Specifications:

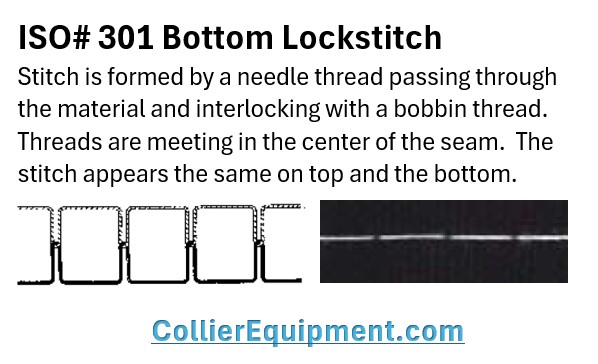

   • Machine Type: Computerized Single-Needle Lockstitch / Needle Feed.

   • Max Sewing Speed: 4,000 to 4,500 rpm (stitches per minute)

   • Max Stitch Length: 5 mm (some pattern variants configured up to 2 mm).

   • Needle Bar Stroke: 36.5 mm

   • Needle Type: DB×1 (sizes #7 to #16)

   • Presser Foot Lift Height: 6 mm to 12 mm

   • Power Supply: Direct-drive bearingless servo motor, 550W

   • Lubrication: Automatic system with a sealed oil/fuel tank and low-oil alarm.

   • Single Needle, Needle Feed

   • Intelligent Needle feed single needle lockstitch with double step motor driving.

   • LED Light

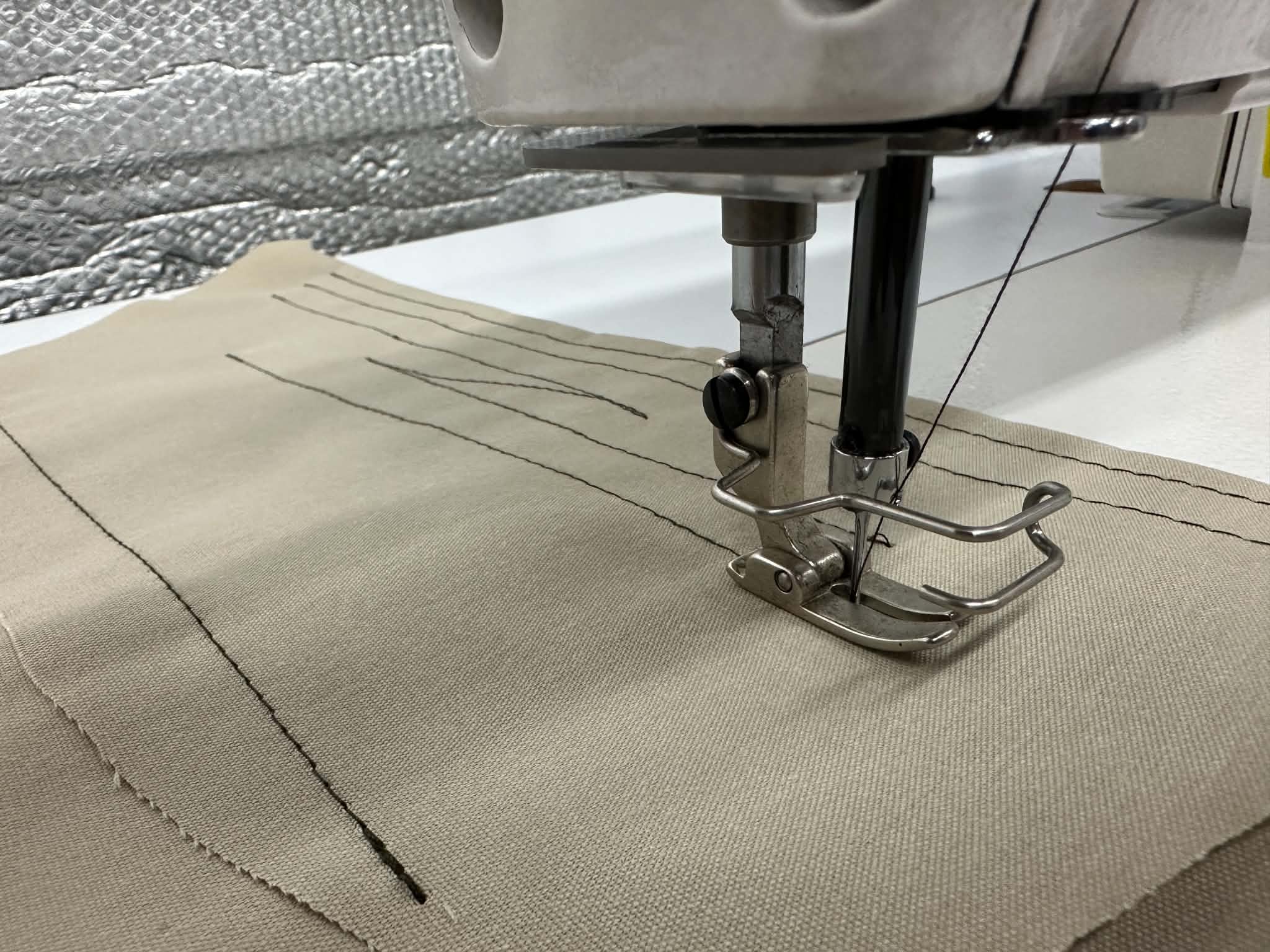

   • The machine adopts connecting rod type needle feeding structure, which makes the feeding characteristics more stable, making fabric slips less likely between layers.

   • LCD touch screen with simple and clear functions.

 * Custom Folders, Binders, Hemmers, Guides, Pallets and Clamp Sets for the Sewn Products Industry.
