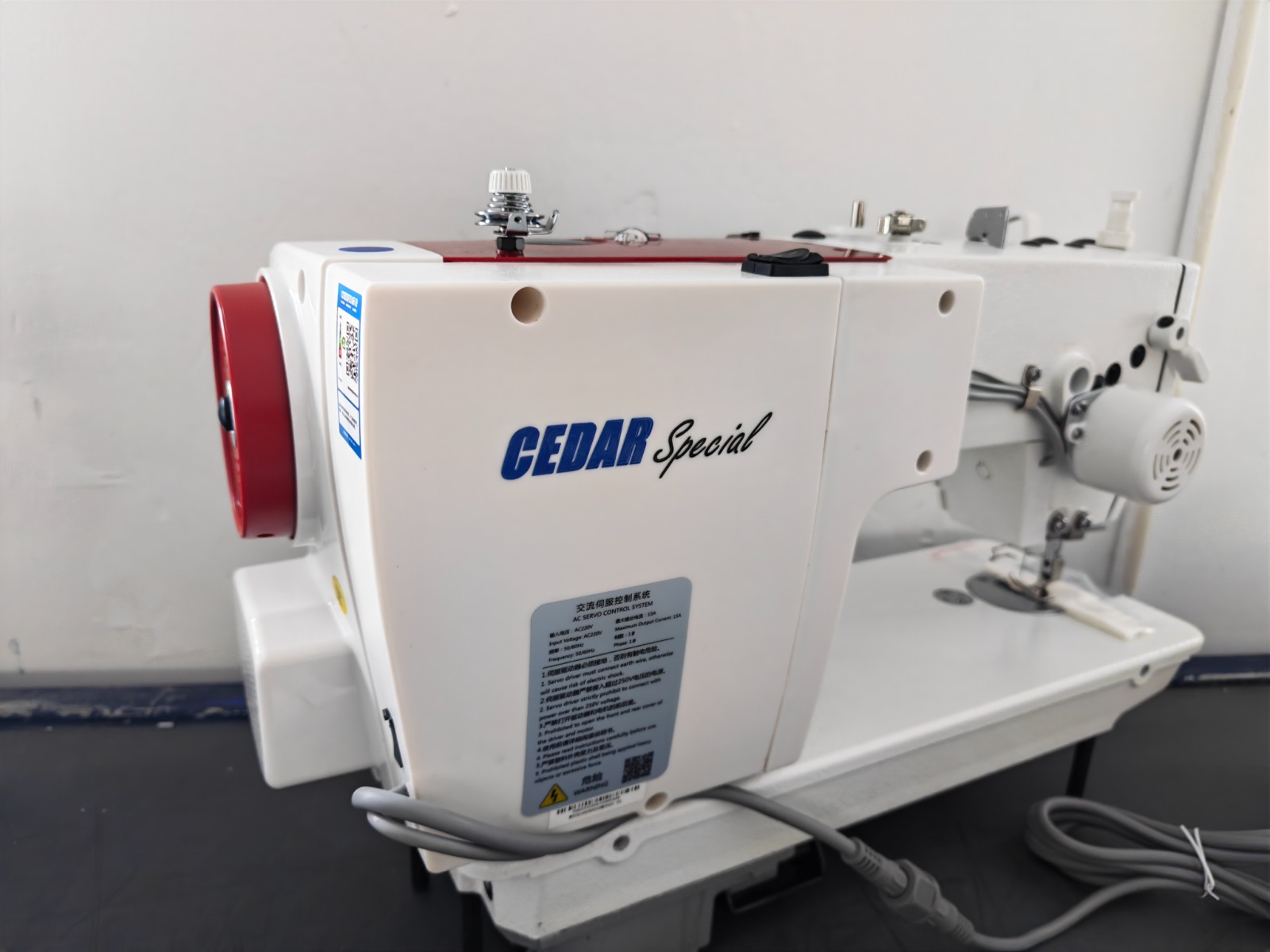

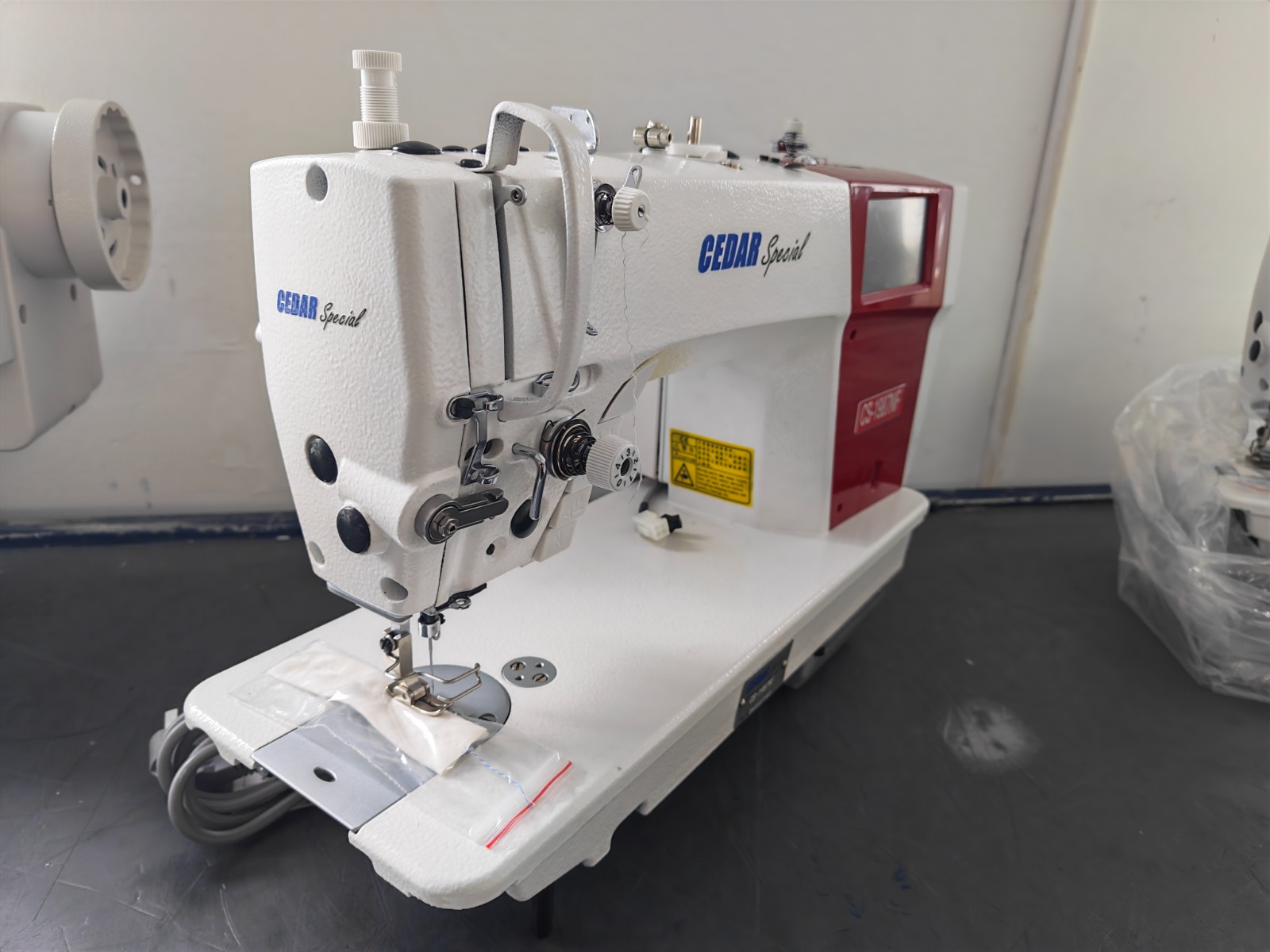

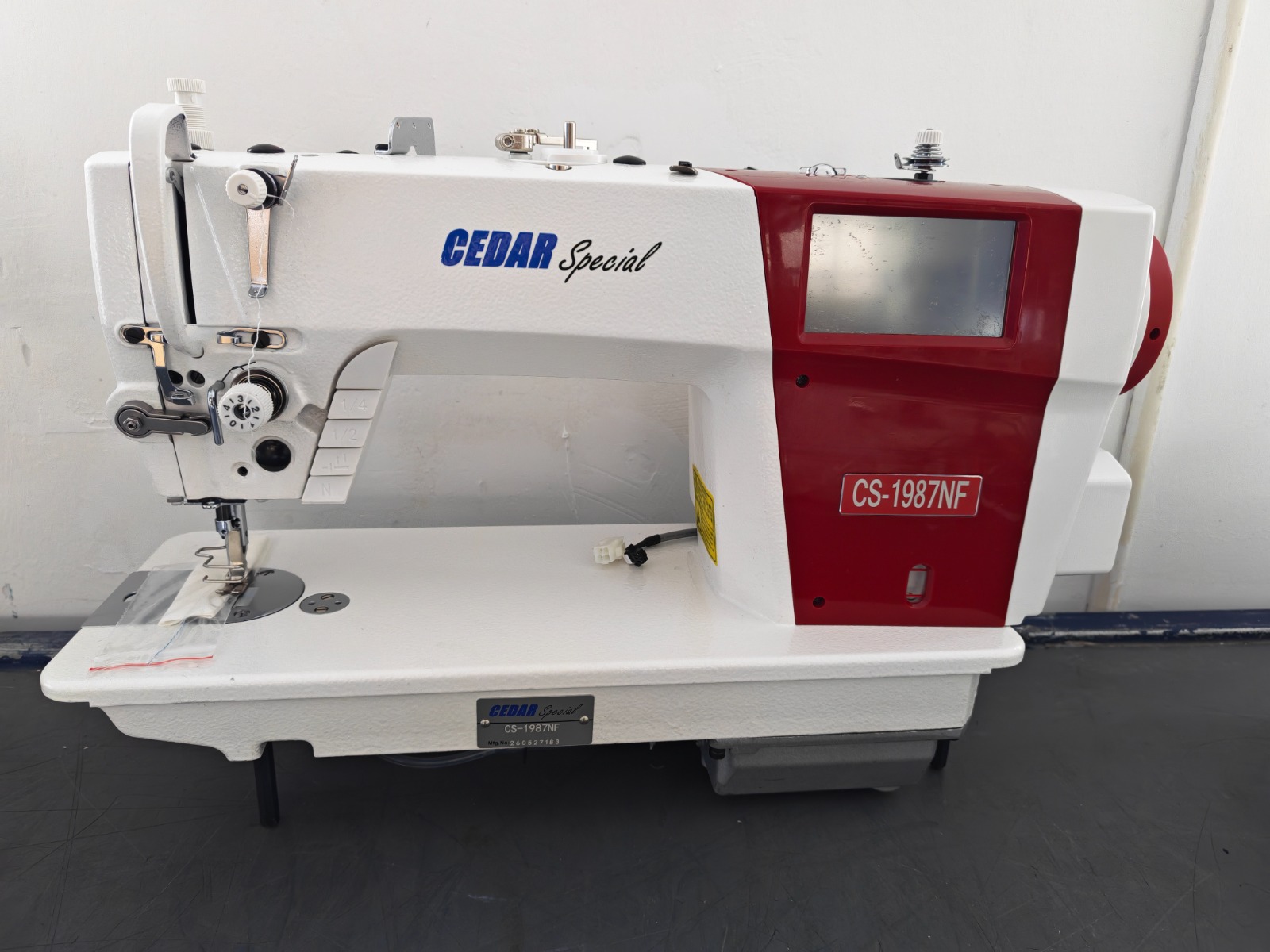

CS-1987NF

Introducing our CS-1987NF, Single Needle, Needle Feed industrial sewing machine.

Technical Specifications

   • Machine Type: Computerized Digital Lockstitch Industrial Sewing Machine.

   • Maximum Sewing Thickness: 1 cm (10 mm)

   • Stitch Length Adjustment: Minimum precision increments down to 0.1 mm

   • Remaining Thread Tail: Short remaining thread design (≤ 3 mm after automatic trimming)

   • Motor Type: Directly-driven, bearingless undermounted servo motor combined with independent stepper motors.

   •  Full Function

   •  Needle feed

   • Fully automatic

   •  Pattern sewing

   •  "Bar tack"

   •  1/4 and 1/2 stitch advance buttons

   •  Easy to use touch screen

   •  Semi-dry head

   •  500 watt direct drive servo motor

   •  DBx1 needle system

   •  "L" class bobbin

Key Features & Operational Capabilities

   • Multi-Motor Drive Control: Utilizes a dual-step/multi-step motor architecture. Fabric feeding, automatic thread trimming, and presser foot lifting are driven entirely by dedicated stepper motors to maximize stability and minimize operation noise.

   • Digital Interface: Equipped with a smart digital interface—ranging from a 4.3-inch LCD touch panel on baseline models to a massive 7-inch Wi-Fi LCD display on Pro variants—allowing seamless, single-key adjustments of stitch patterns and modes.

   • Advanced Feed Mechanism: Features direct motor-controlled electronic feeding with up to four selectable trajectory curves (standard oval, front rise, back rise, and rectangular). This structural control accommodates a broad spectrum of weights, from ultrathin garments to thick multi-layered leathers.

   • Anti-Birdnest Technology: Integrates an independent step motor drive for anti-pass thread trimming alongside a dual round knife trimmer system, ensuring a clean finish without messy thread nesting on the underside of fabrics.

   • Clean & Lubrication-Free Head: Features a completely sealed oil pan/box layout combined with a specialized oil-free take-up lever and a DLC (Diamond-Like Carbon) coated needle bar. This design prevents oil leakage and protects delicate fabrics from grease stains.

   • Ergonomic Features: Features automatic, electronically lifted presser foot mechanisms to alleviate physical strain on operators, synchronous belt transmissions for rapid start-stop speeds, integrated U-shaped LED light strips for uniform workspace visibility, and a built-in cooling fan for continuous thermal dissipation.

 * Custom Folders, Binders, Hemmers, Guides, Pallets and Clamp Sets for the Sewn Products Industry.

          For more information, call or email.

             •    Phone: (256) 229-6595

             •    Email: CEDAR-Special@CollierEquipment.com
