CS-2210+SD

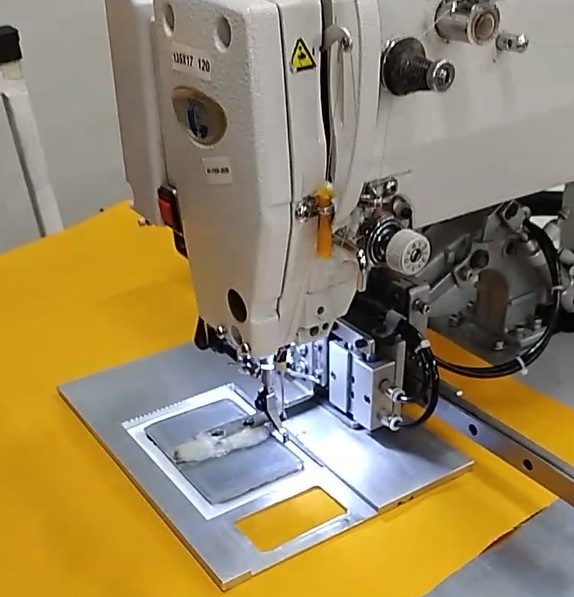

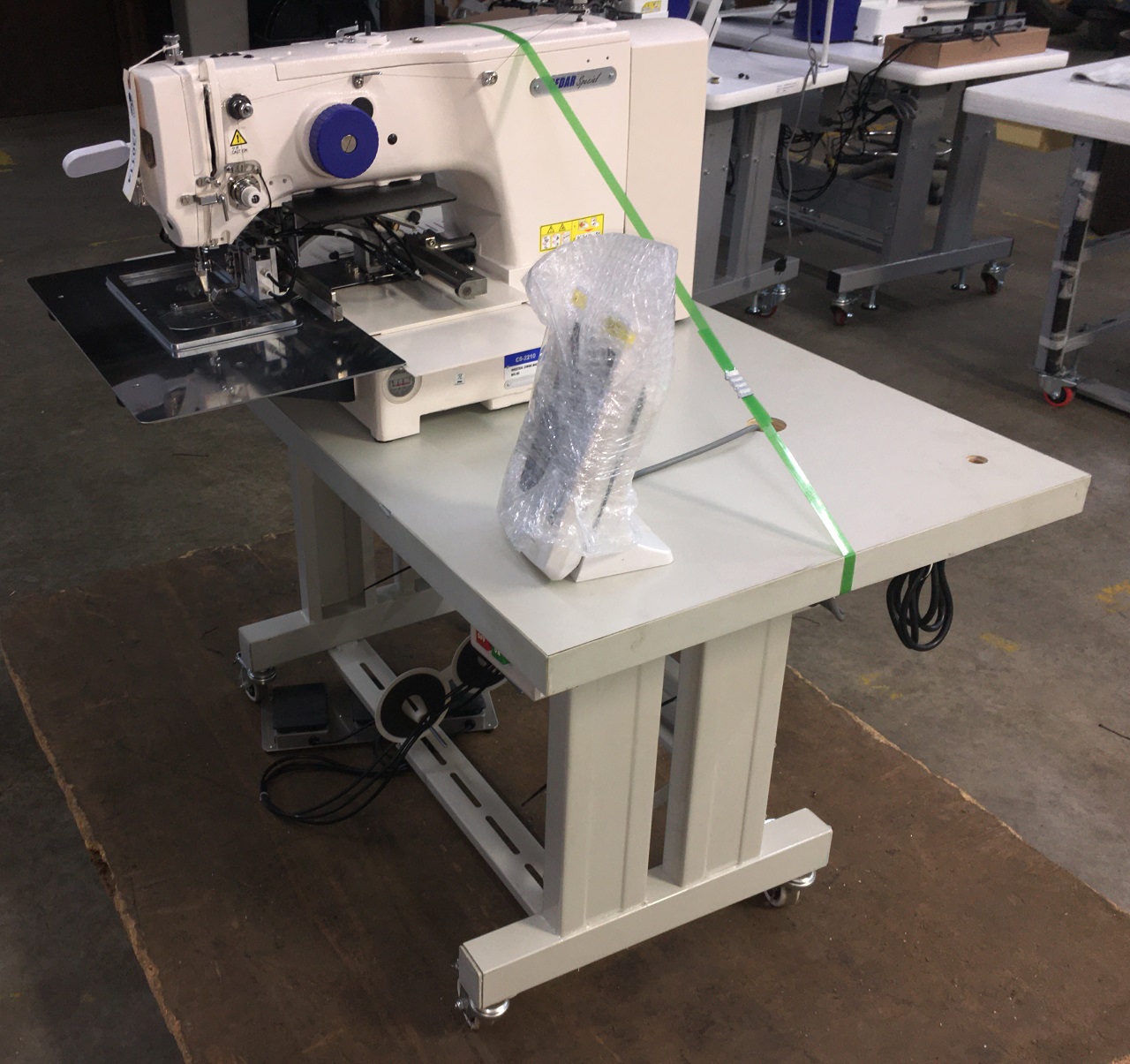

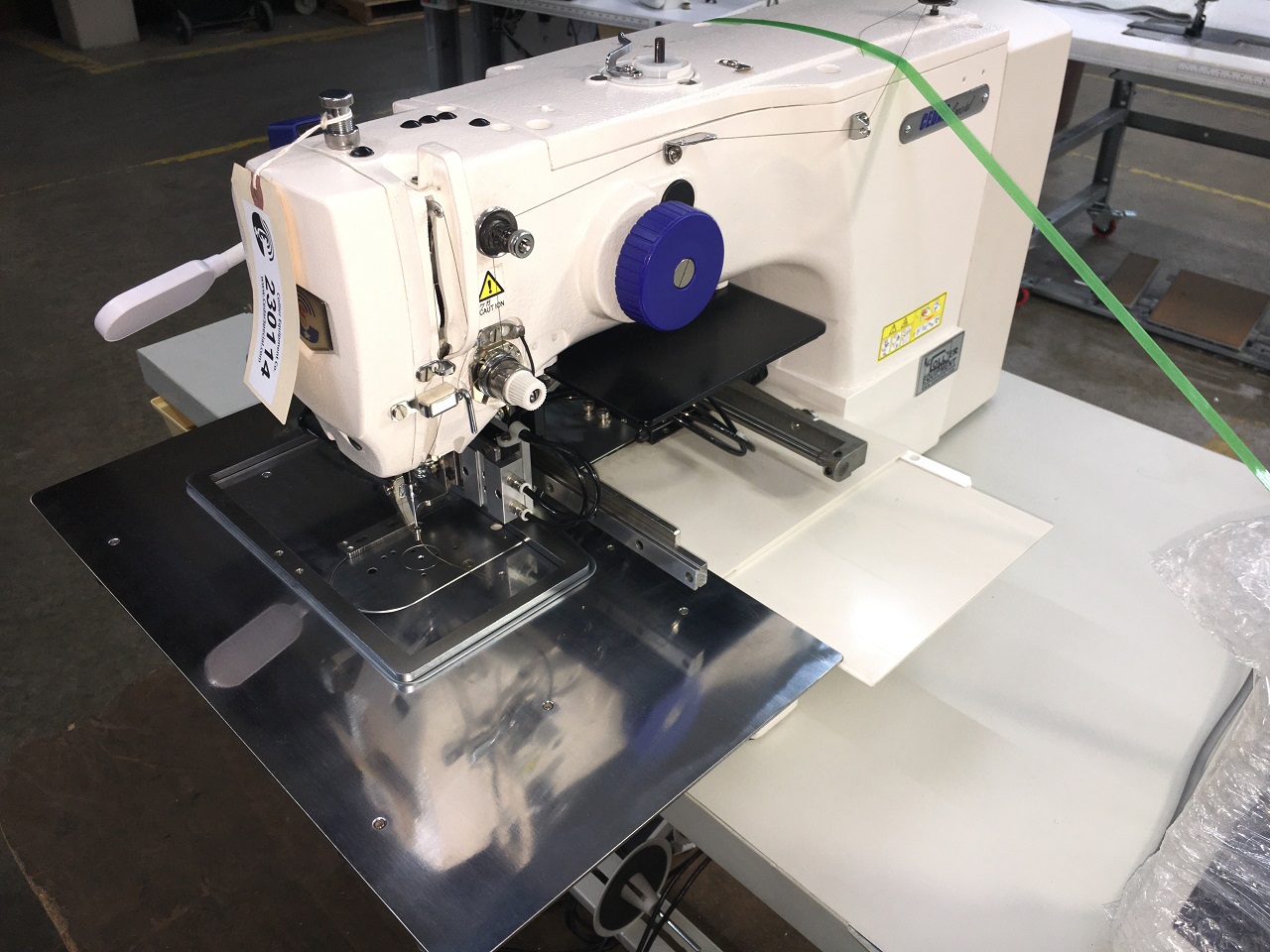

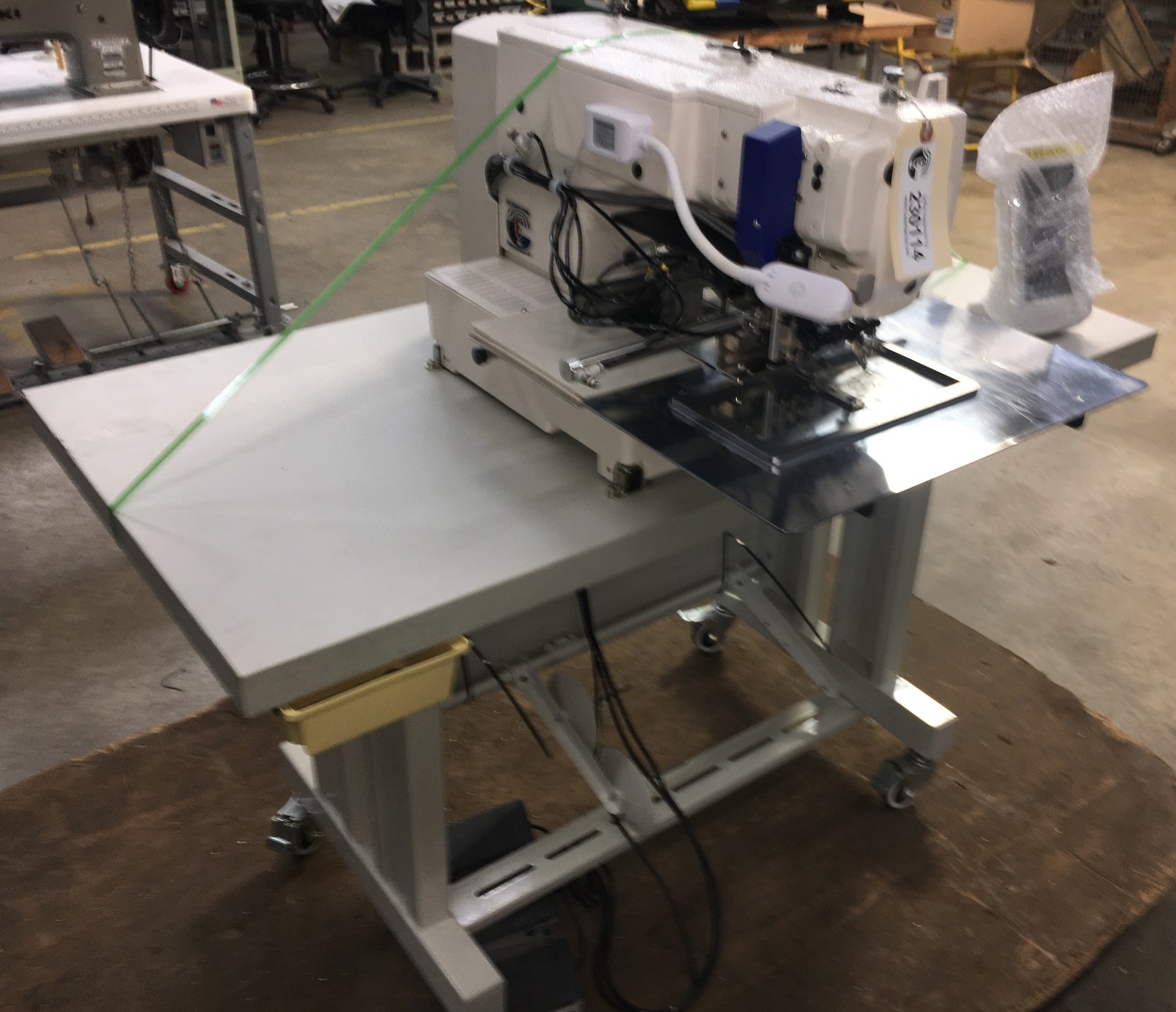

The CEDAR Special CS- 2210+SD has all of the benefits of the basic 2210 with the added feature of the Slide Device for attaching small cut parts.  It is an industrial, computer-controlled pattern sewing machine featuring a 220 mm × 100 mm sewing area that is designed for high-speed shape-tacking, attaching labels/emblems, sewing small parts, and stitching jean pockets.

  * Core Specifications & Features

     * Sewing Area: 220 mm (X) × 100 mm (Y)

     * Max Sewing Speed: 2,800 stitches/min (spi/min)

     *Drive System: Main-shaft direct-drive system with a compact AC servomotor.

     * Memory Capacity: Up to 999 patterns and 500,000 stitches

     * Active Thread Tension: Digitally controlled tension allows for precise, repeatable seam quality

        * Productivity Advantages

           * Fast Acceleration: Reaches the maximum 2,800 spi/min by the second stitch and maintains it until the end of the seam, drastically reducing cycle times.

           * Active Tension Mechanism: Needle thread tension can be adjusted digitally from the touch screen to suit varying material thicknesses and stitch lengths.

           * Semi-Dry Head: Minimizes the risk of oil stains on finished garments by using grease lubrication for the needle bar and thread take-up, paired with a minimum-oil-quantity mechanism for the hook.

        * Available Options

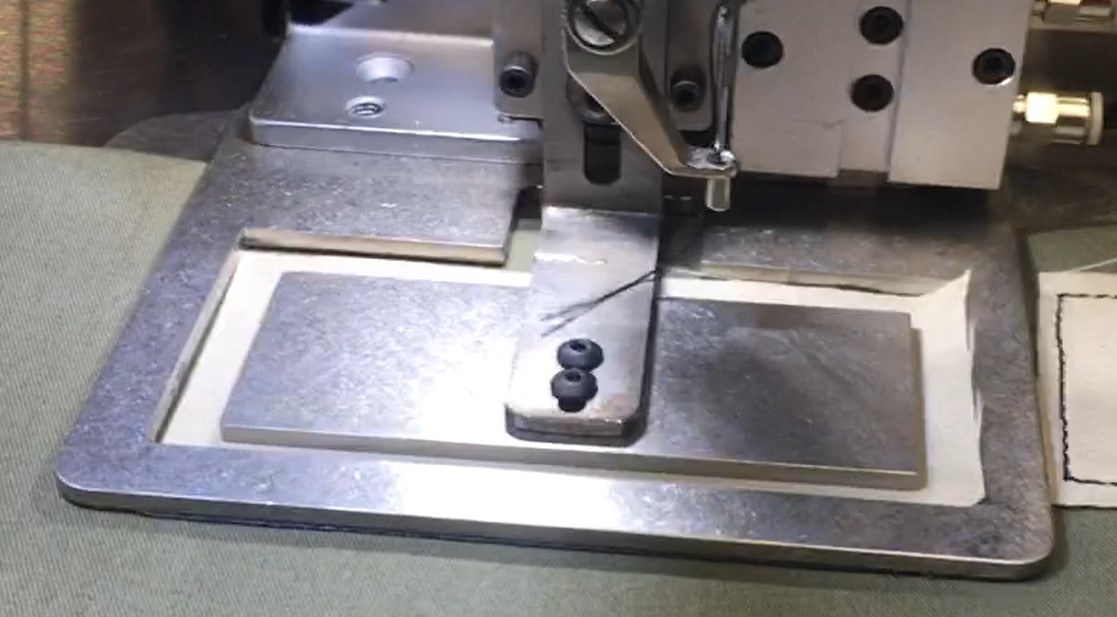

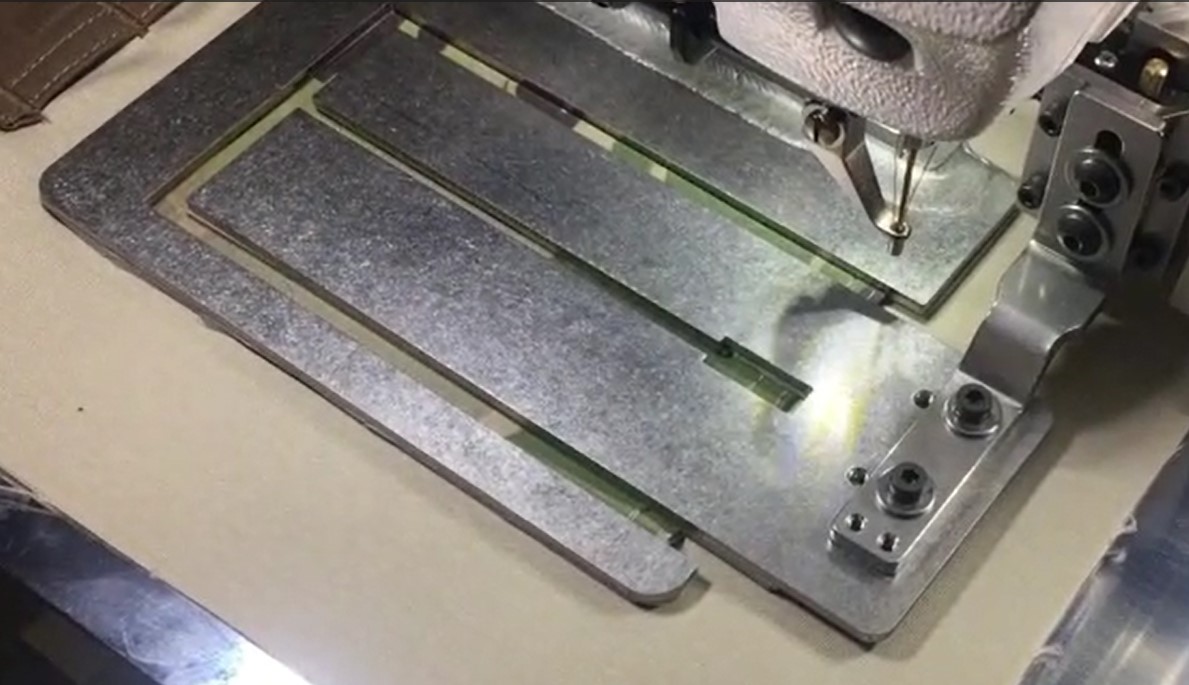

           * Pneumatic Feeding Frame: Holds materials securely in place, ideal for heavy webbing or thick layered materials.

           * Separate Two-Step Clamping: Allows the left and right clamps to operate independently for easier, perfectly aligned material positioning.

  * Touch Panel Control: Models come with the control panel for editing, data input, and easy pattern selection.

                    * Custom Clamping is a must for this application to be successful *

        * Custom Folders, Guides, Clamps and Pallets are available.
