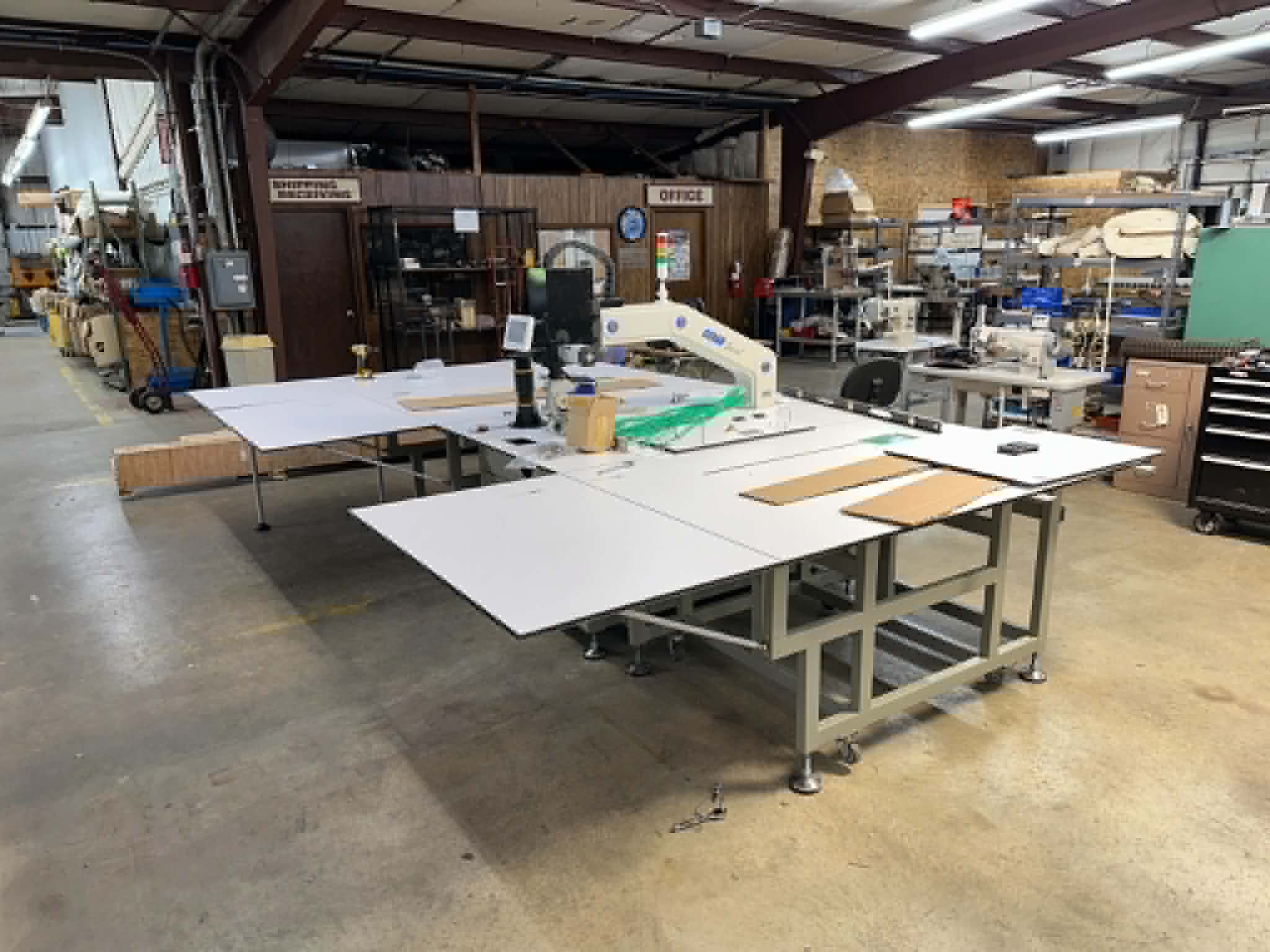

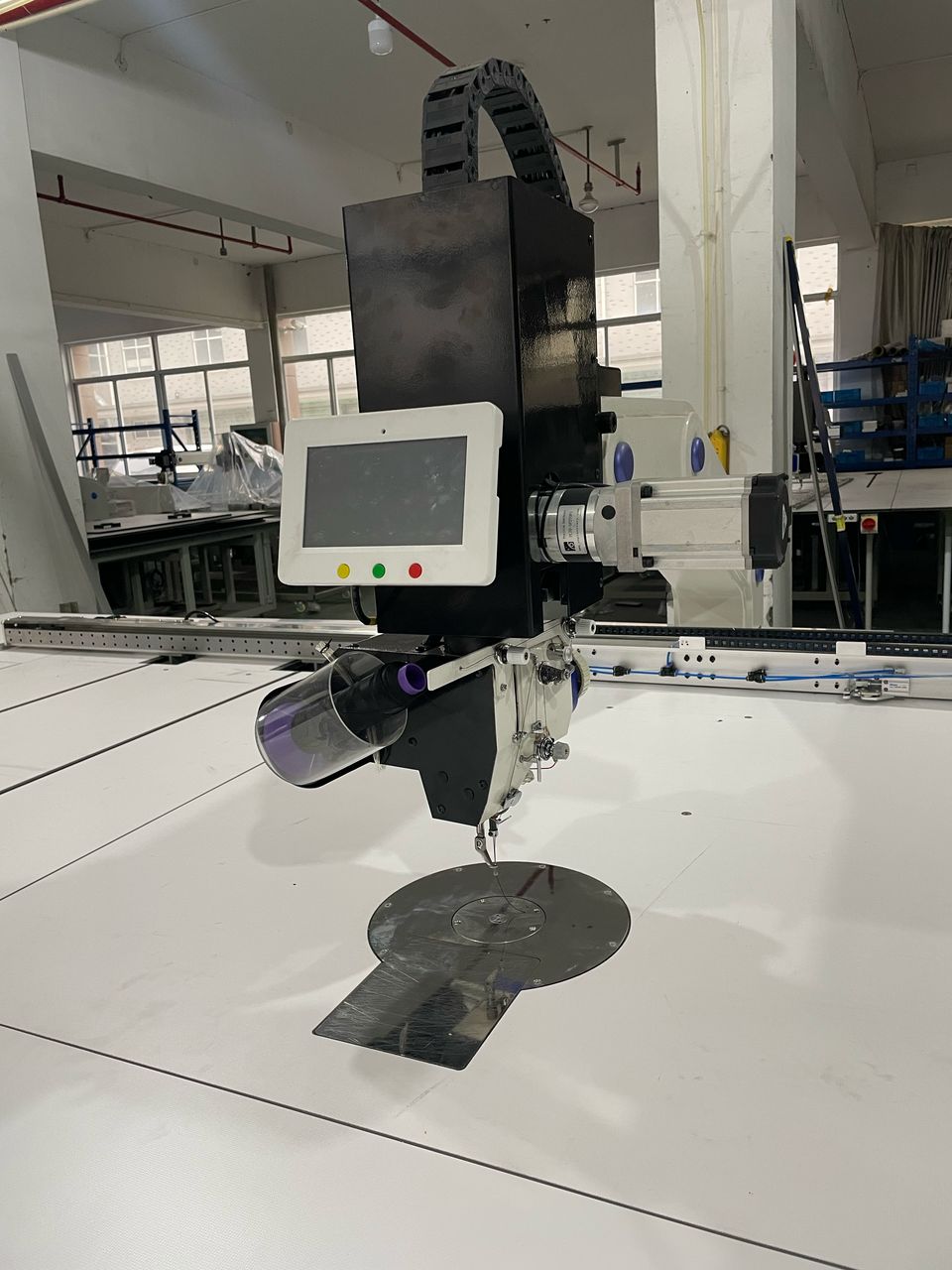

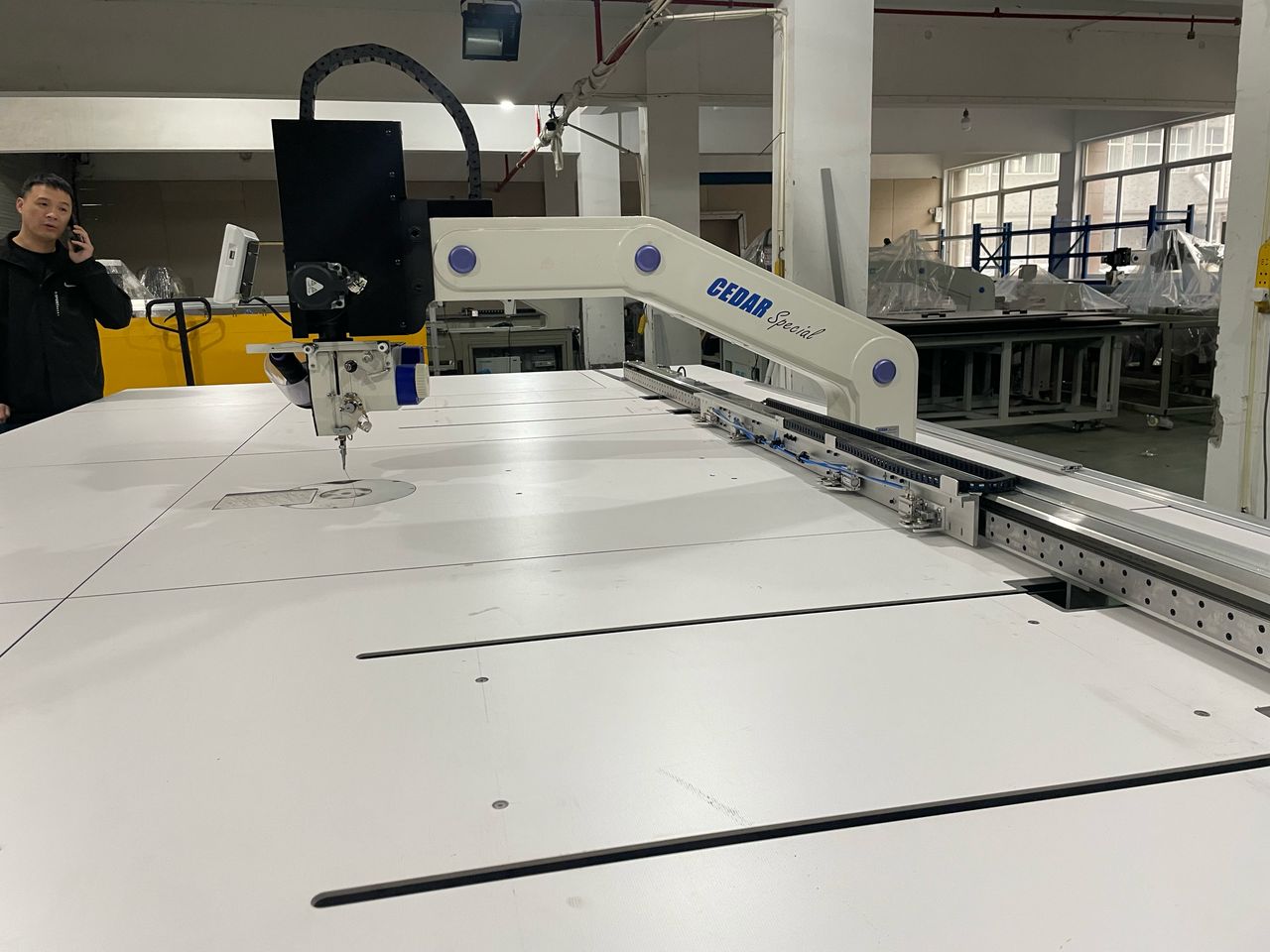

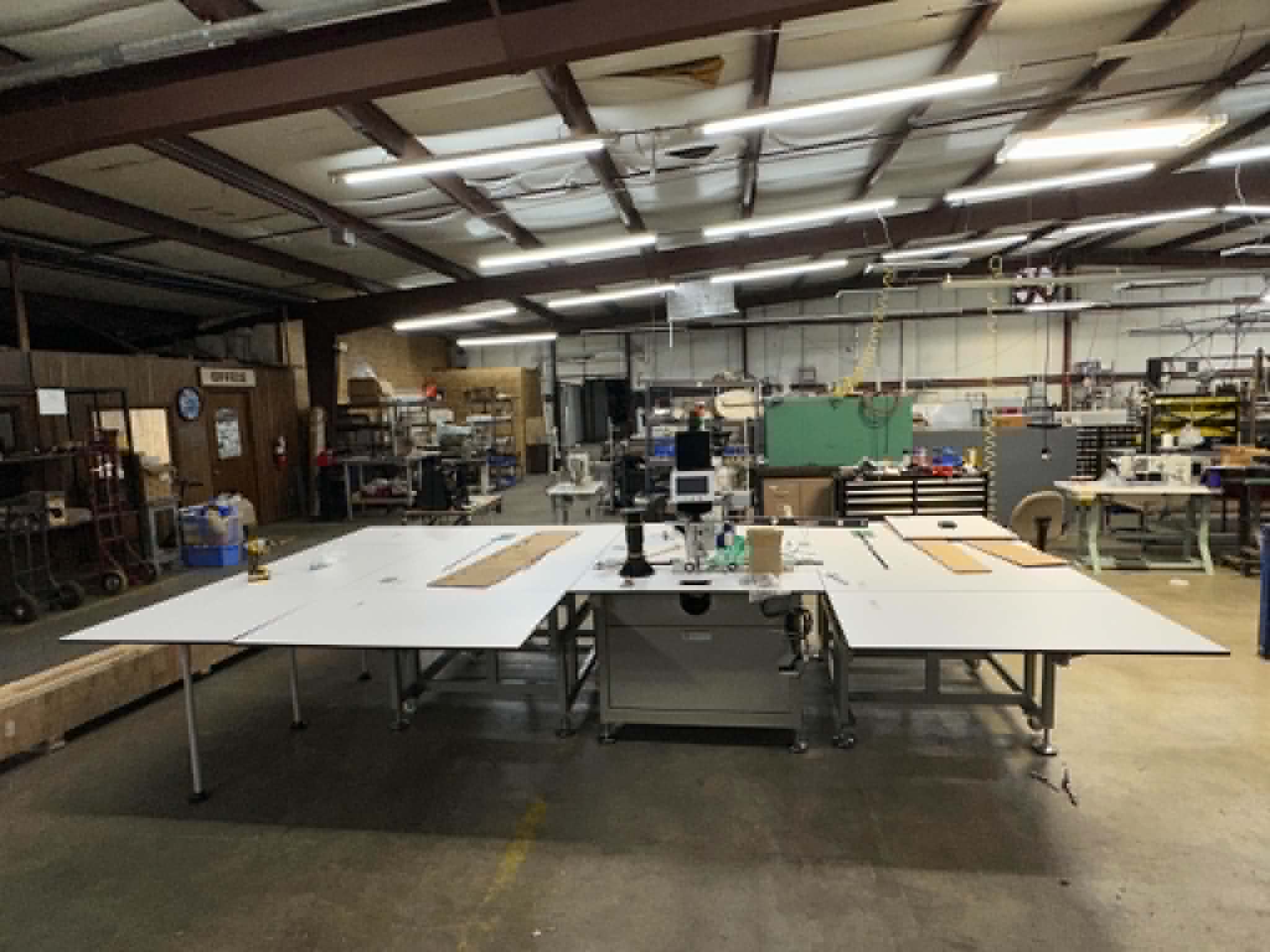

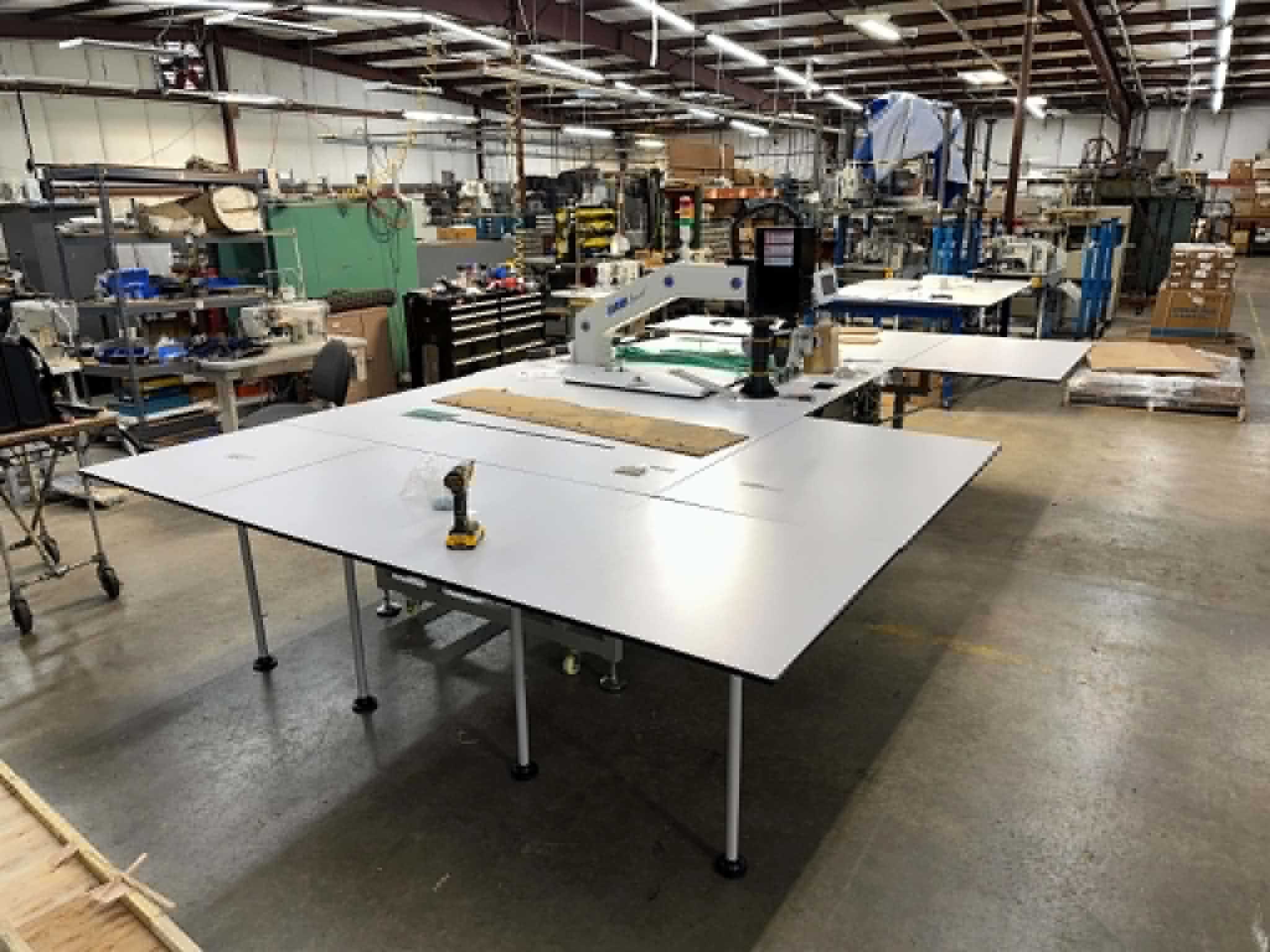

CS-2690H-360

Our CS-26090H-360 is our largest Programmable Pattern machine (so far).  The sewing head turns in a complete 360° circle for near-perfect stitching.  Used in operations like Home Décor, Large Interior Patterns to be seamless and much more.

     * Some features of the machine include:

        * Sewing Speed: 2,500 spm, (XY Axis moving speed maximum 10meters/minute.

        * Hook: 2X Japan Hirose Hook / Koban Hook (3X Size Hook is Optional).

        * Uses latest A8 CPU, Disk/USB Date Memory, XYZ Servo Motor, Highly Accurate (to 0.001mm).

        * All templates work with Intelligent Judgement.

        * Thread - Break Detector.  (Bottom thread stitch quantity is optional).

        *Sewing Area: X = 2,500mm, Y = 900mm.  Larger sizes may be built.

        * Needle Type: DPx5 / DPx17

        * Sewing Thickness: 0.1mm - 10mm.

        * Presser Foot: Electropneumatic.

        * Applications: Tents, Sleeping Mats, Drapes, Banners, etc...

        * Custom Folders, Guides, Clamps and Pallets are available.
