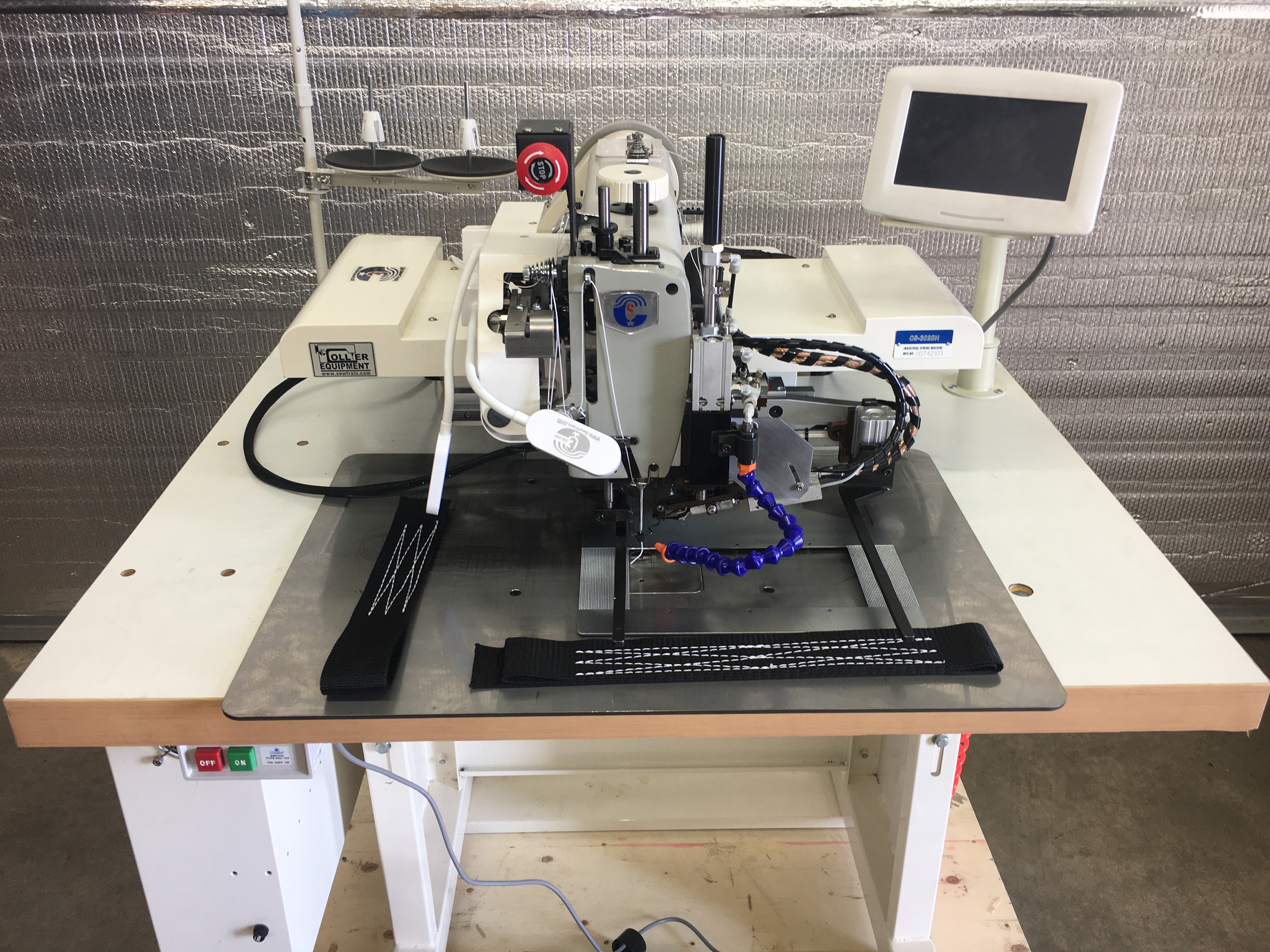

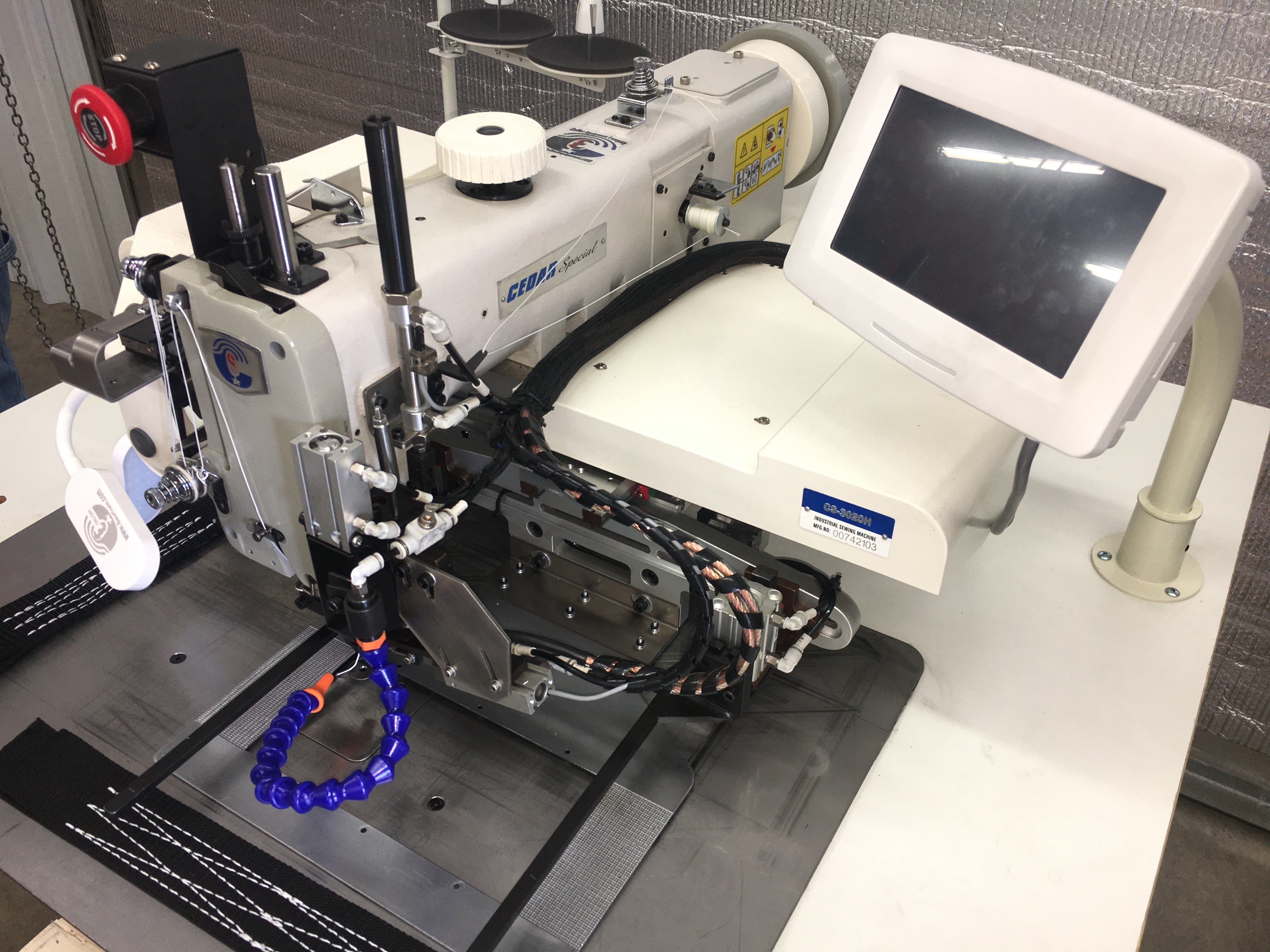

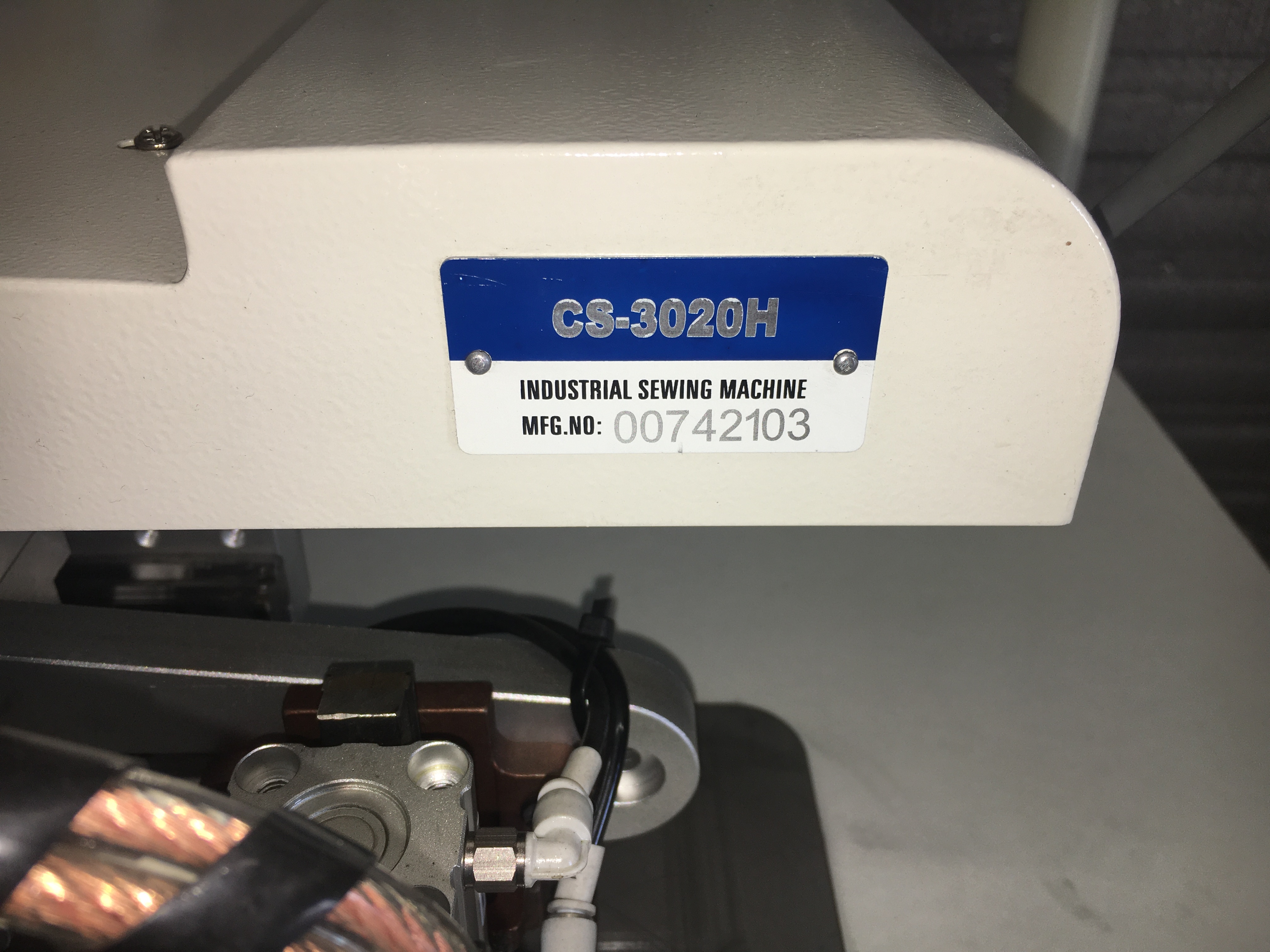

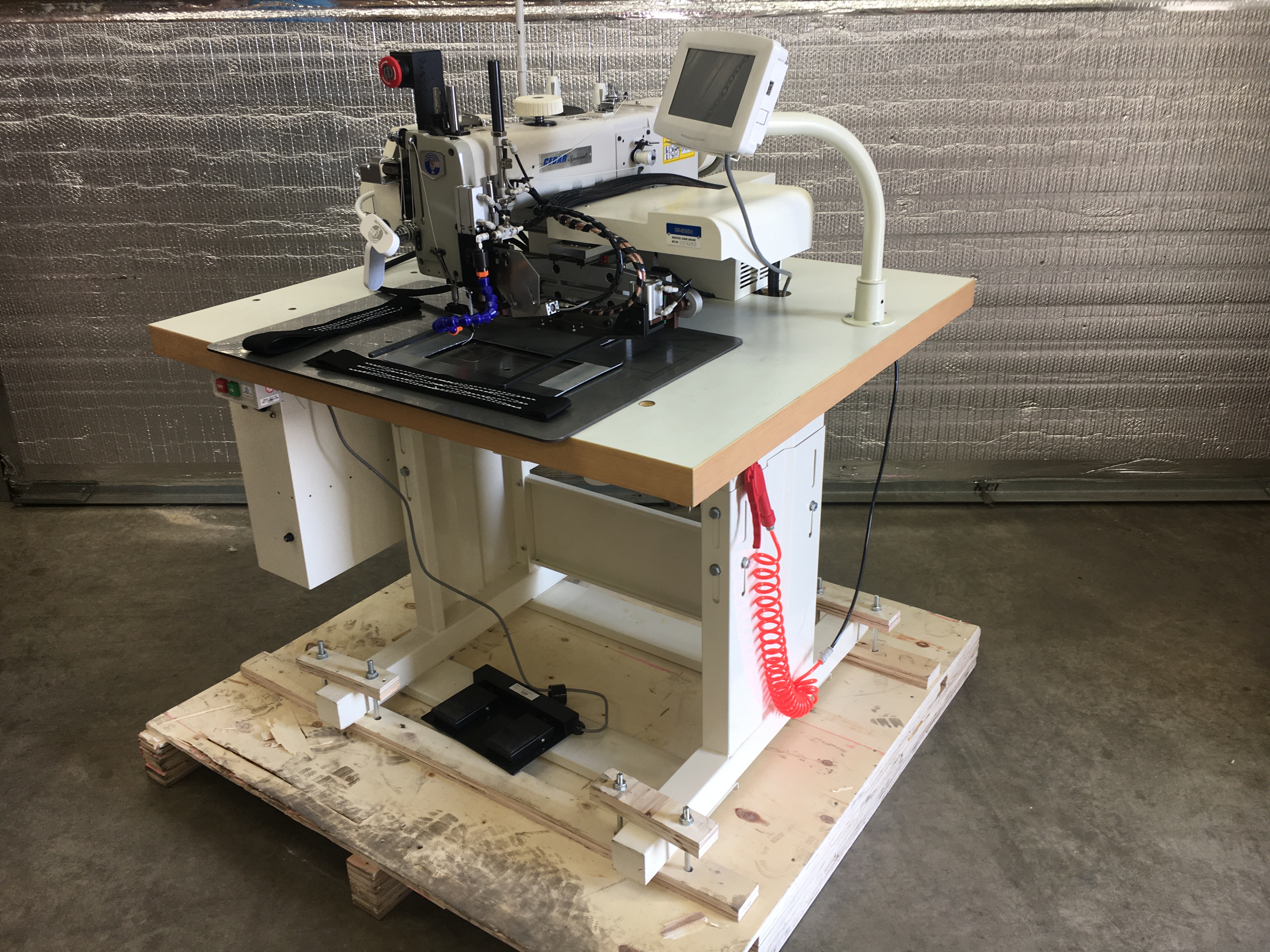

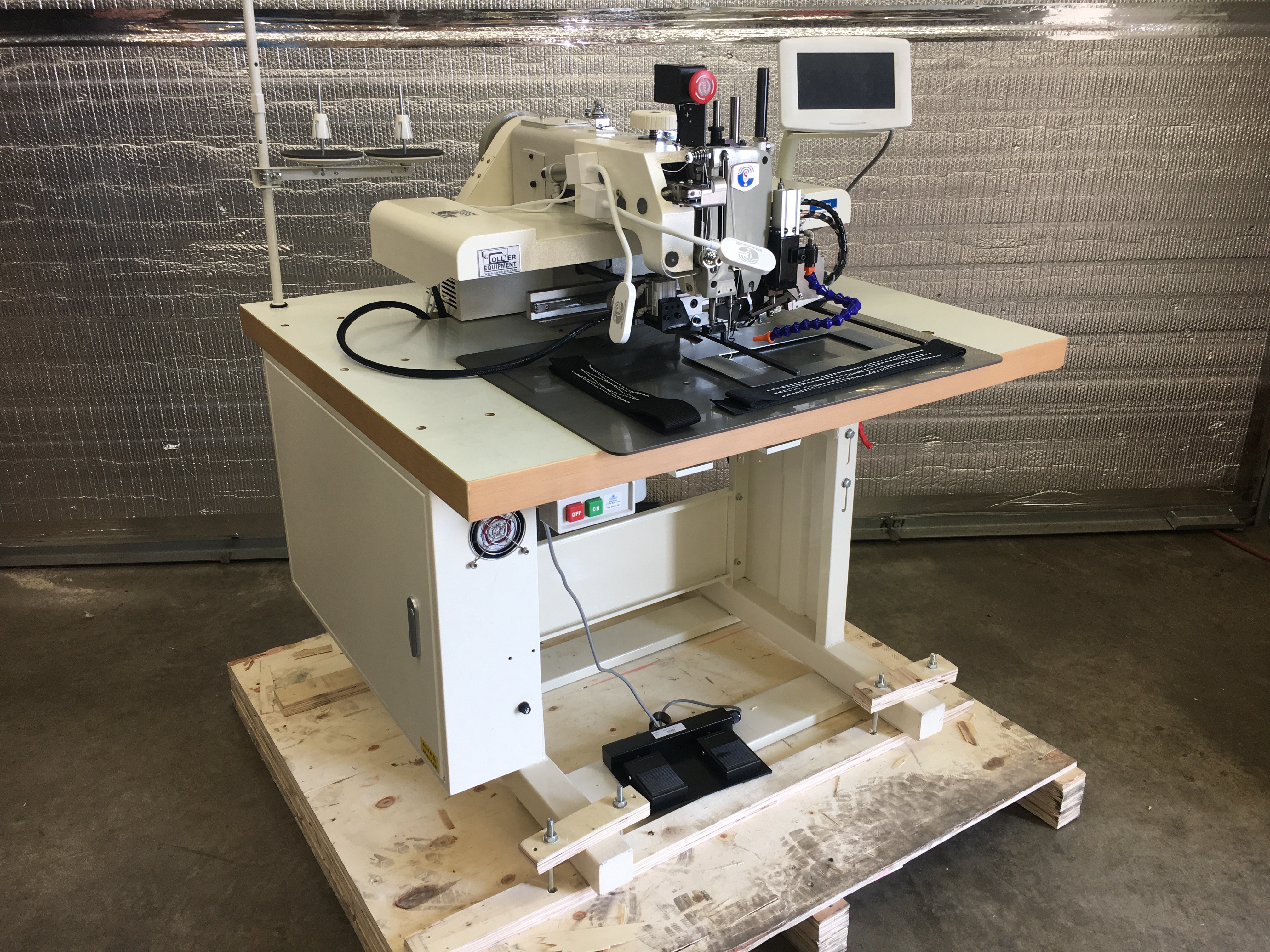

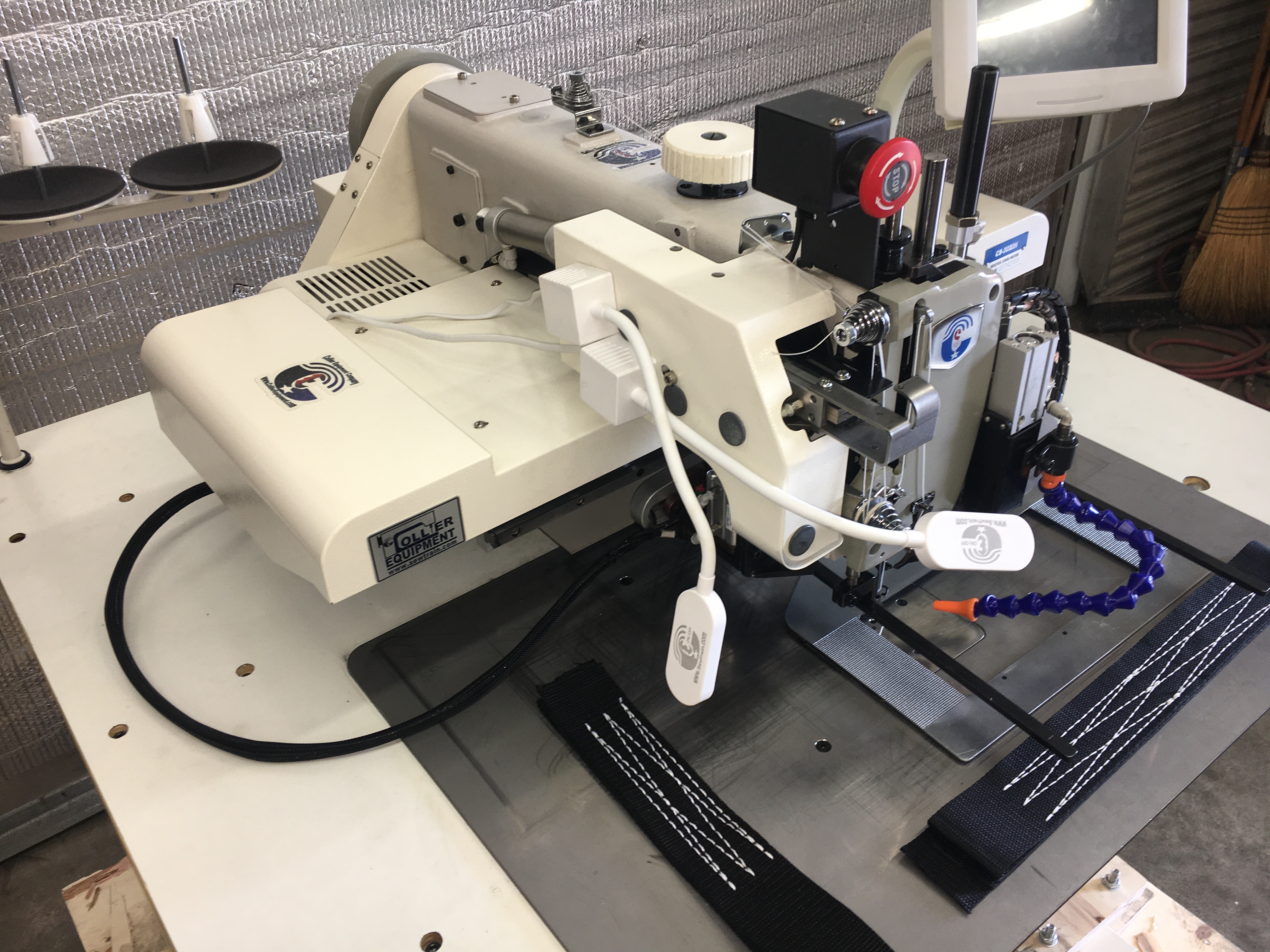

CS-3020H

The CS-3020H is our Heaviest programmable electronic pattern sewing machine for extra heavy duty lifting slings.

The special extra large shuttle hook and bobbin capacity offers high efficiency in sewing products using extra thick thread and has a thread rating up-to Metric size #4, V693, 2000dx3.

     Advantages:

        * Working Area: 300mm x 200mm

        * Maximum Speed: 700 spm

        * Trimming Mode: Electrical Heating Cut - Top & Bottom

        * Motor: Stepping close-loop motor, synchronous belt, linear guide driven.

        * Stitch Length: 0.10 - 12mm

        * Presser Foot lifting height: 30mm

        * Shuttle: Super Large Shuttle Hook

Can easily sew 6-8 ply synthetic webbing slings (3.5mm of each) or join two ropes and cords together with each of 28mm (independent break testing results show strengths similar to hand splicing, and in some cases exceeding the strength of the rope itself).

        * Custom Folders, Guides, Clamps and Pallets are available.
