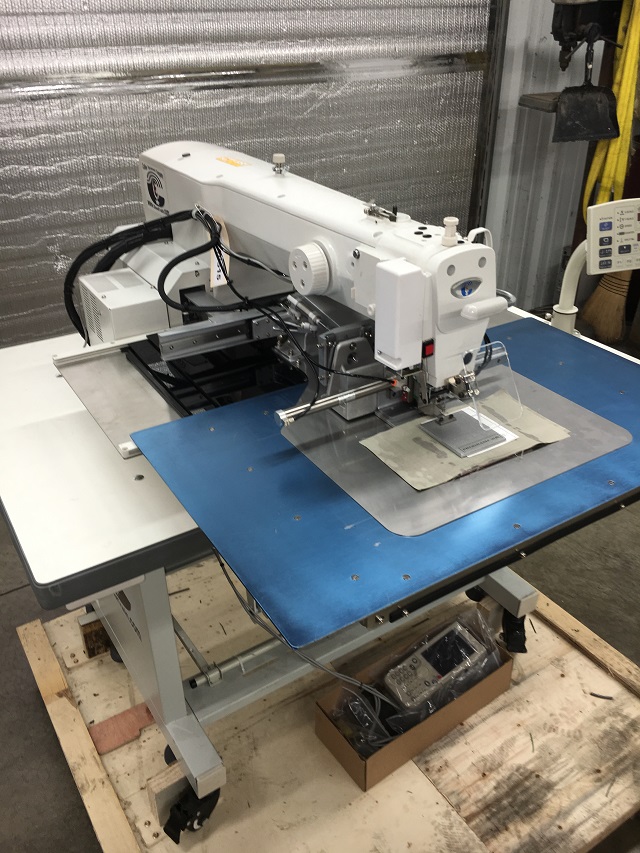

CS-342G

The CEDAR Special CS-342G is an advanced, direct-drive, programmable electronic pattern sewer with a cylinder bed.  It delivers a max sewing speed of 2,300 stitches per minute.

This machine is ideal for heavy-duty stitching on materials like canvas, bags, and mattress handles.

   Key Machine Specifications

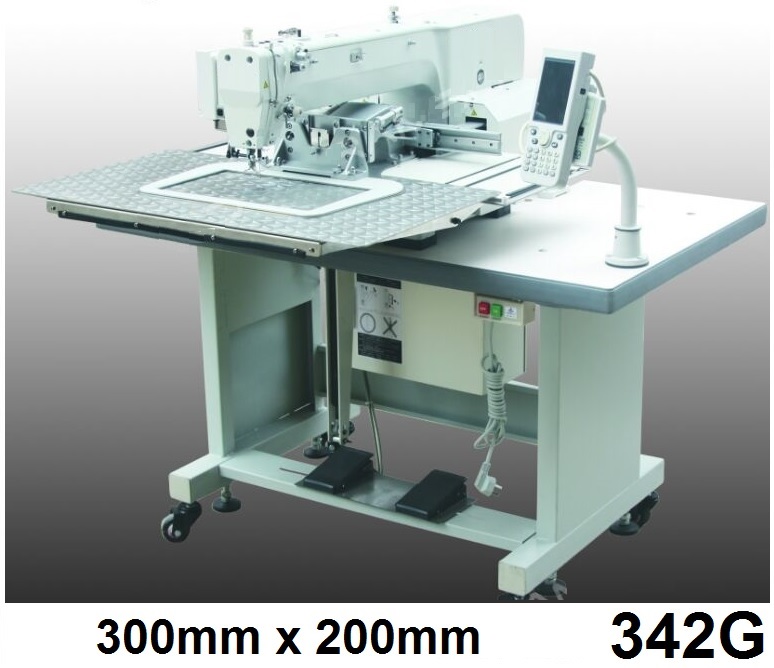

   * Sewing Area: 300 mm × 200 mm (Option for 130 mm × 100 mm).

   * Max Sewing Speed: 2,300 stitches per minute.

   * Max Stitch Length: 0.05 to 12.7 mm

   * Memory Capacity: Up to 512–520 stored programs or patterns.

   * Work Clamp Lift: 19.5 mm (presser foot) and 30 mm (clamp foot).

   * Onboard or PC Programming.

   **  Also available with Slide Device for attaching hook, loop, labels, and other hard-to-handle small parts **

        * Custom Folders, Guides, Clamps and Pallets are available.
