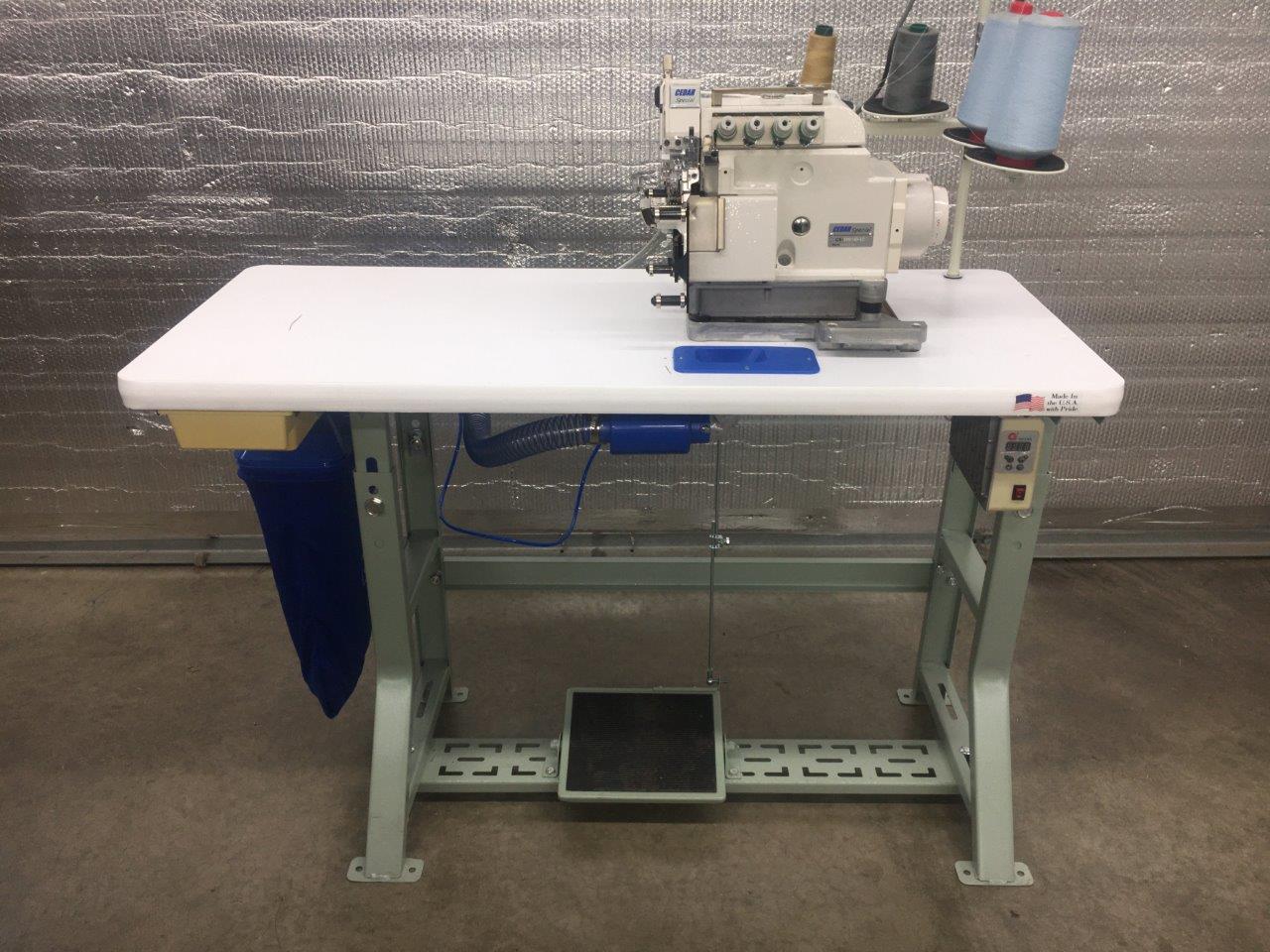

CS-5114D

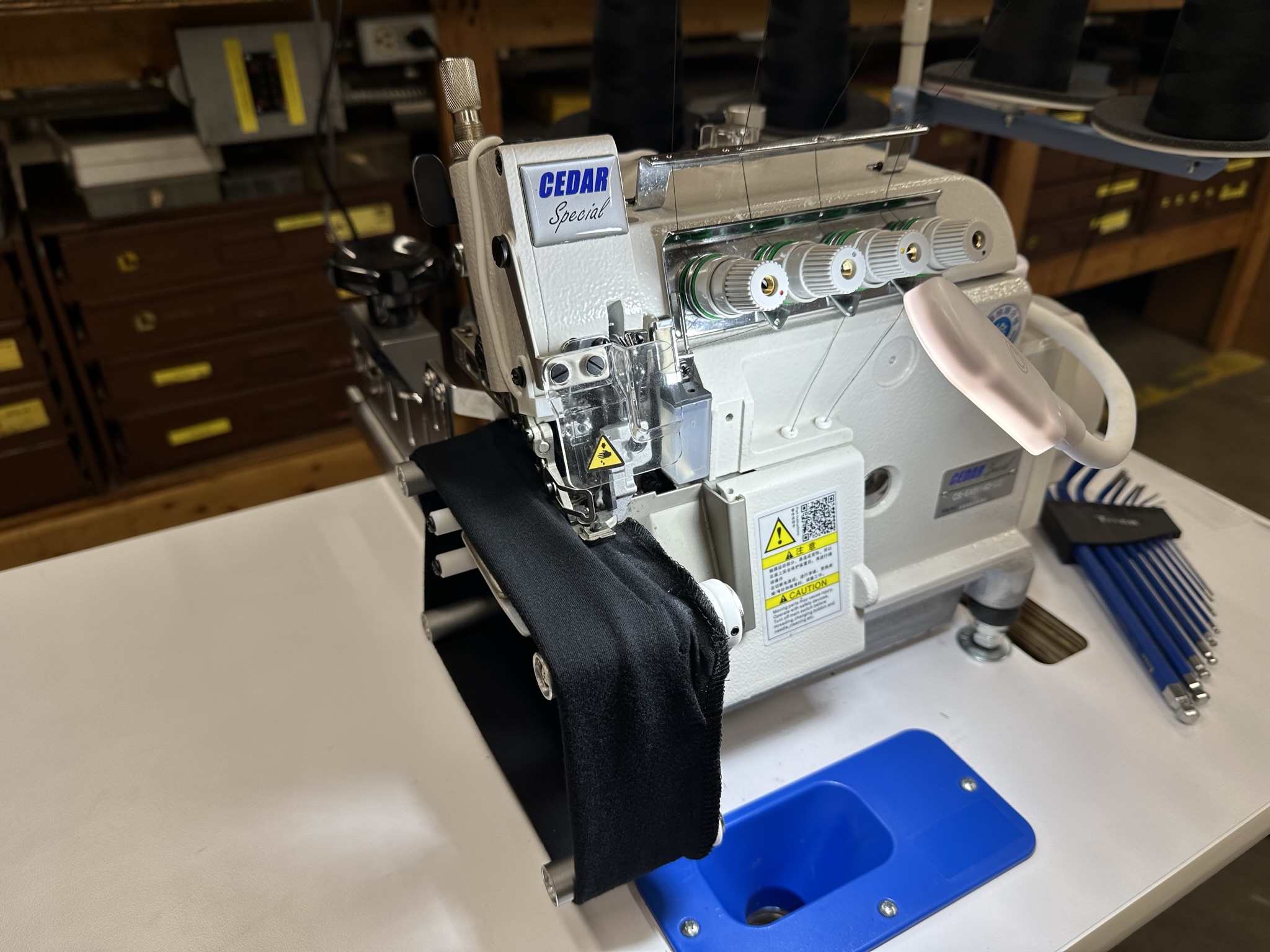

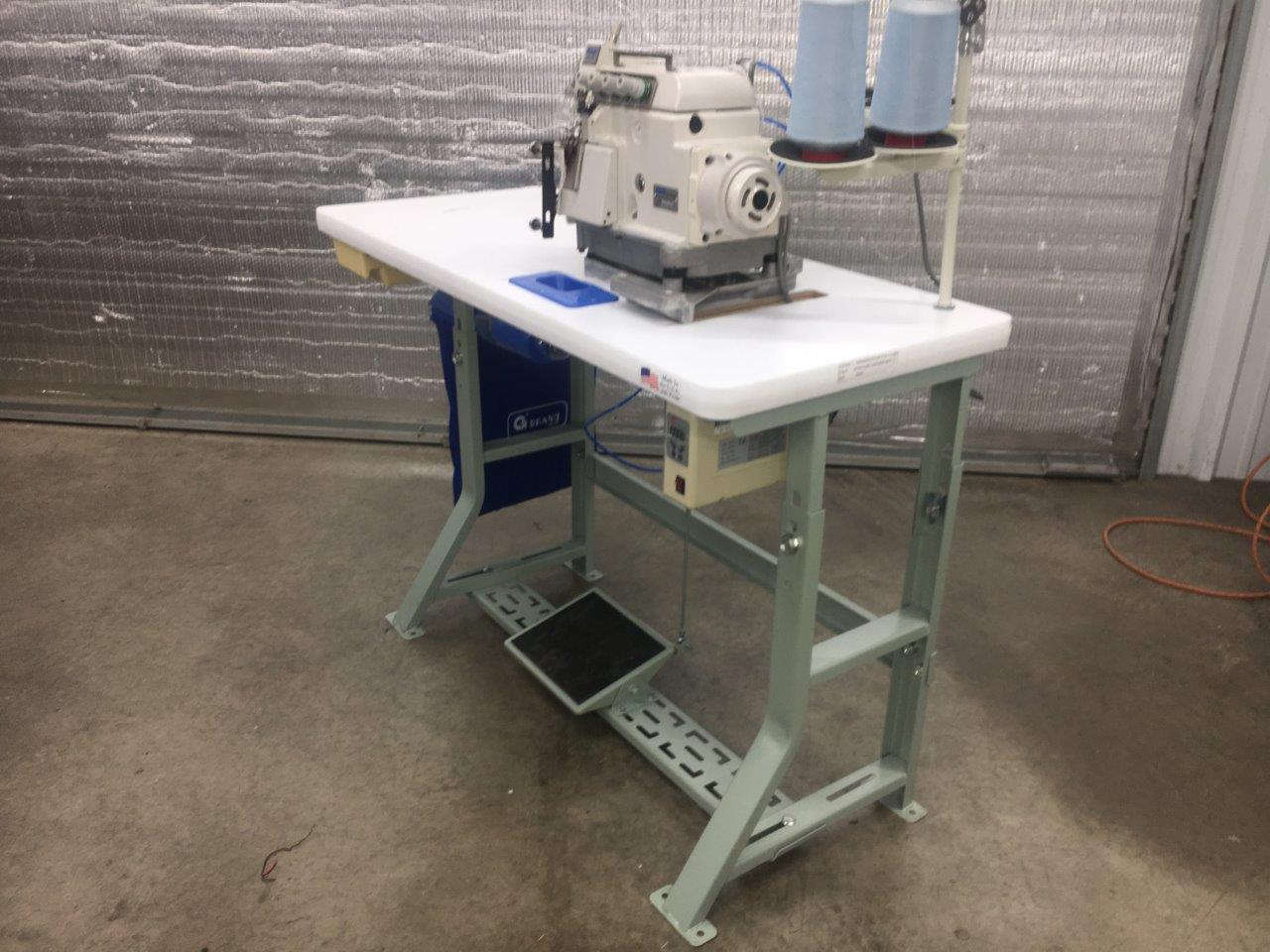

The CS-5100D Series is a Direct Drive, Cylinder Bed Overlock Machine with Lower Differential Feed Mechanism.  It also comes in a Variable Top Feed Version for heavy fabrics.

   * General Specifications:

        * Stitch Length Adjustment: Push-Button

        * Differential Feed Ratio Adjustment: Lever that can be adjusted intermittently, during sewing.

        * Maximum Speed: 7,000 spm (Top Feed 6,00 spm)

        * Lubrication: Fully Automatic (internal oil pump)

        * Cylinder Circumference: 148mm

        * Top Feed version feeds the fabric accurately without ply shift or twist.

        * Top Feed version can be utilized with light to heavy fabrics.

        * Flat Bed style plate available for multi-use setup.

   * Alternate Devices & Attachments:

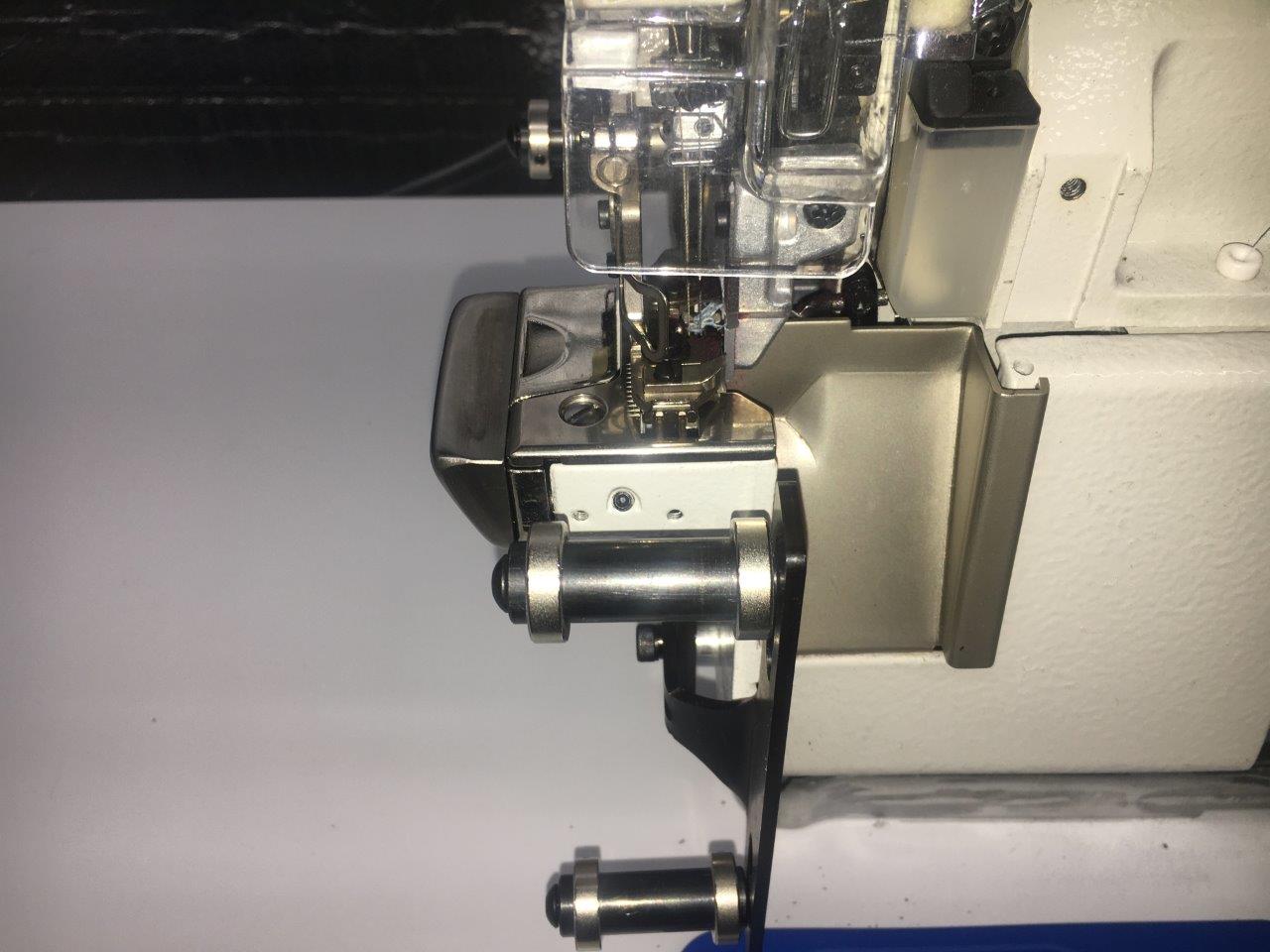

        * Roller guide assembly (tensioner style or basic)

        * Upper Metering Device for attaching elastic.

        * Round Collar

        * Tape Cutter

        * Chain Cutter

        * Automatic Foot Lift

        * Hemming Guide

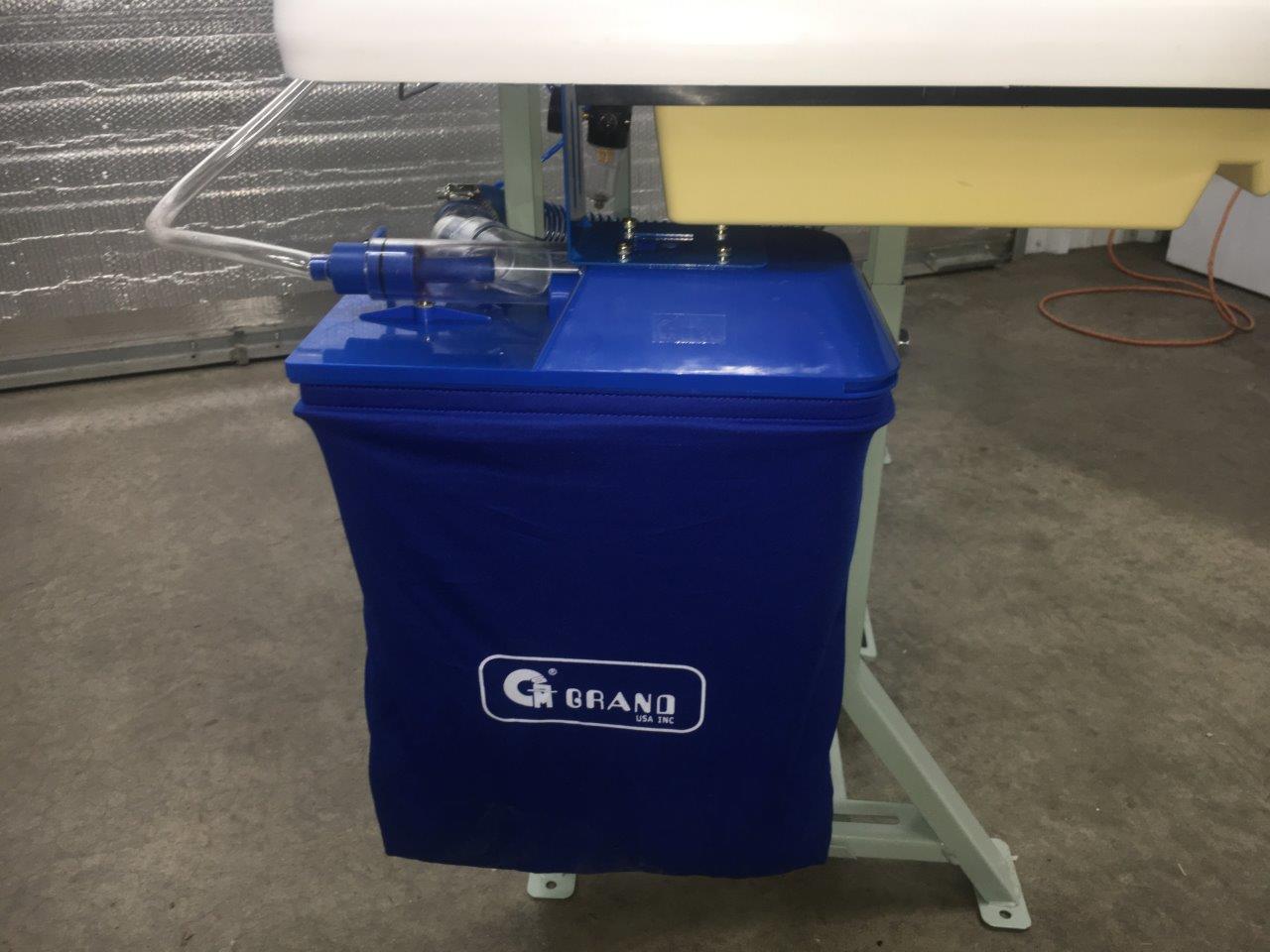

        * Pneumatic trimming & lint collector

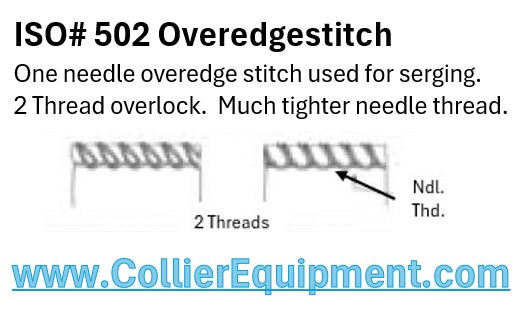

   * Available Stitch Formations:

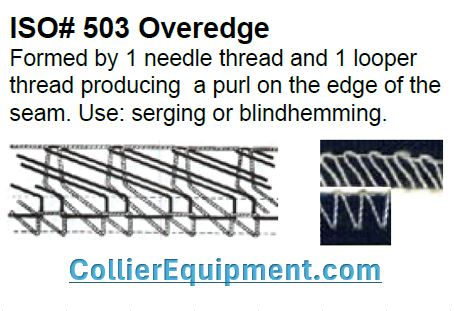

        * 503, 1 needle thread + 1 looper thread

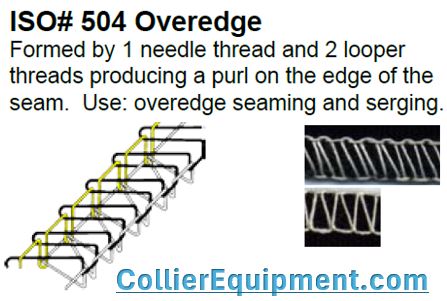

        * 504, 1 needle thread + 2 looper threads

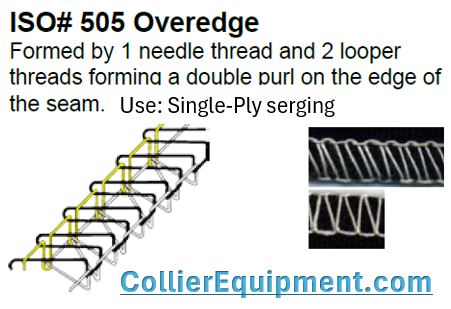

        * 505, 1 needle thread + 2 looper threads

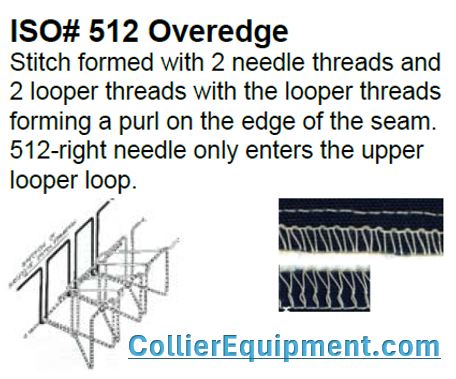

        * 512, 2 needle threads + 2 looper threads

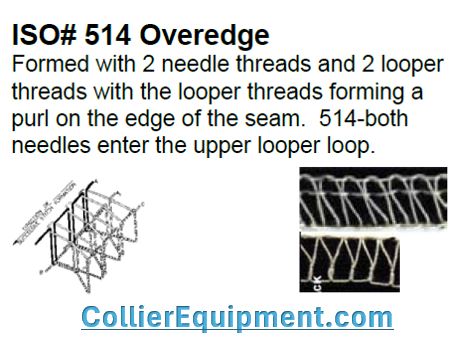

        * 514, 2 needle threads + 2 looper threads

             *   Custom Folders, Guides and Accessories are available.

  -   Special Automated Machines are Available.  Check with one of our experienced sales representatives  -
