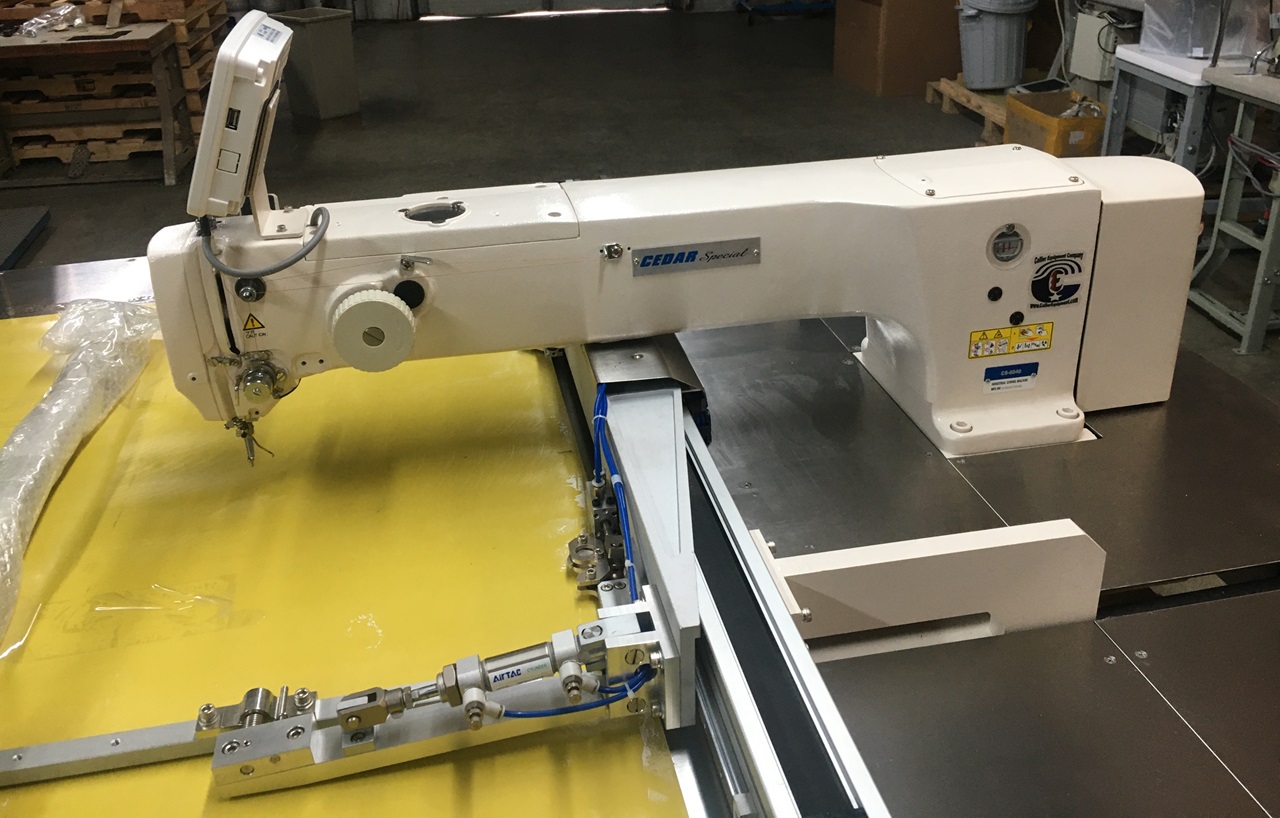

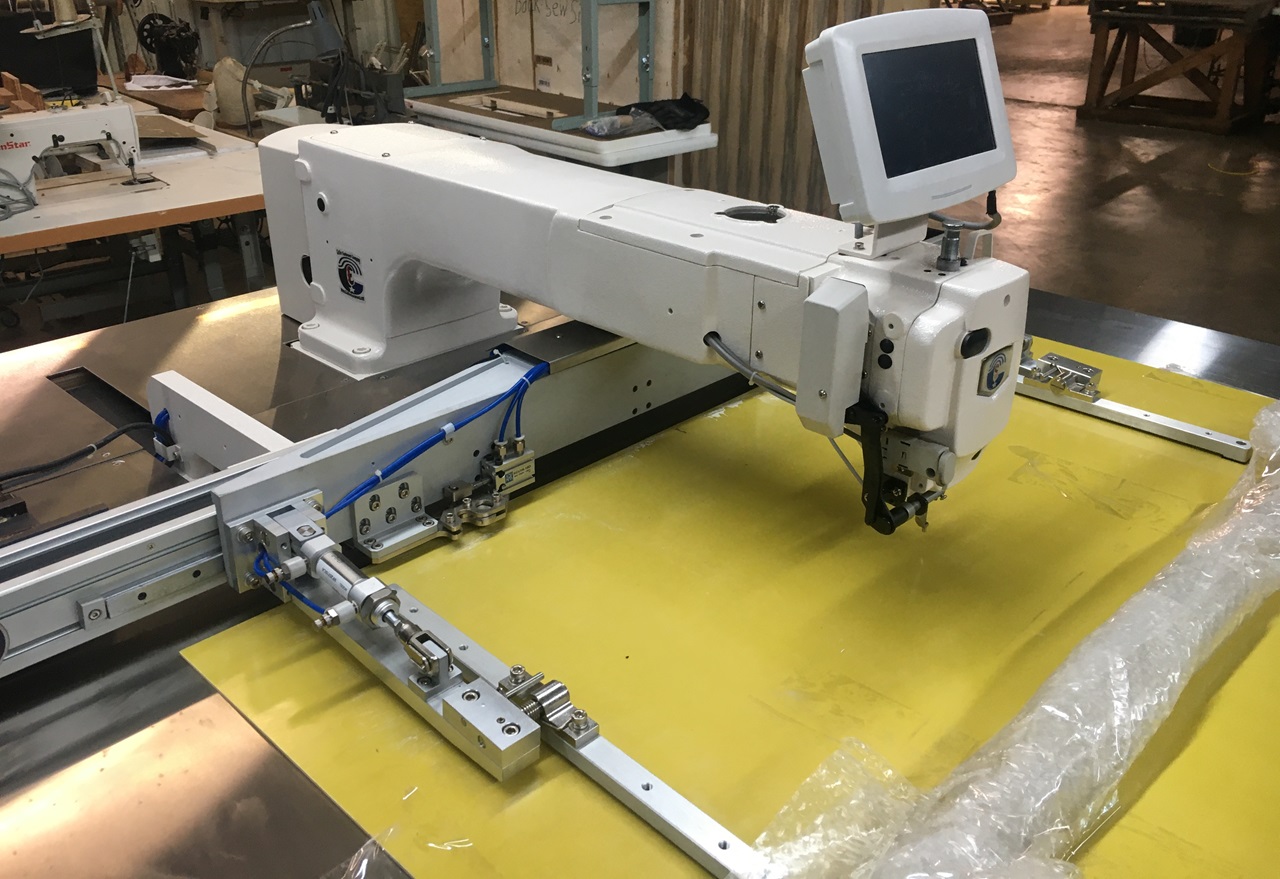

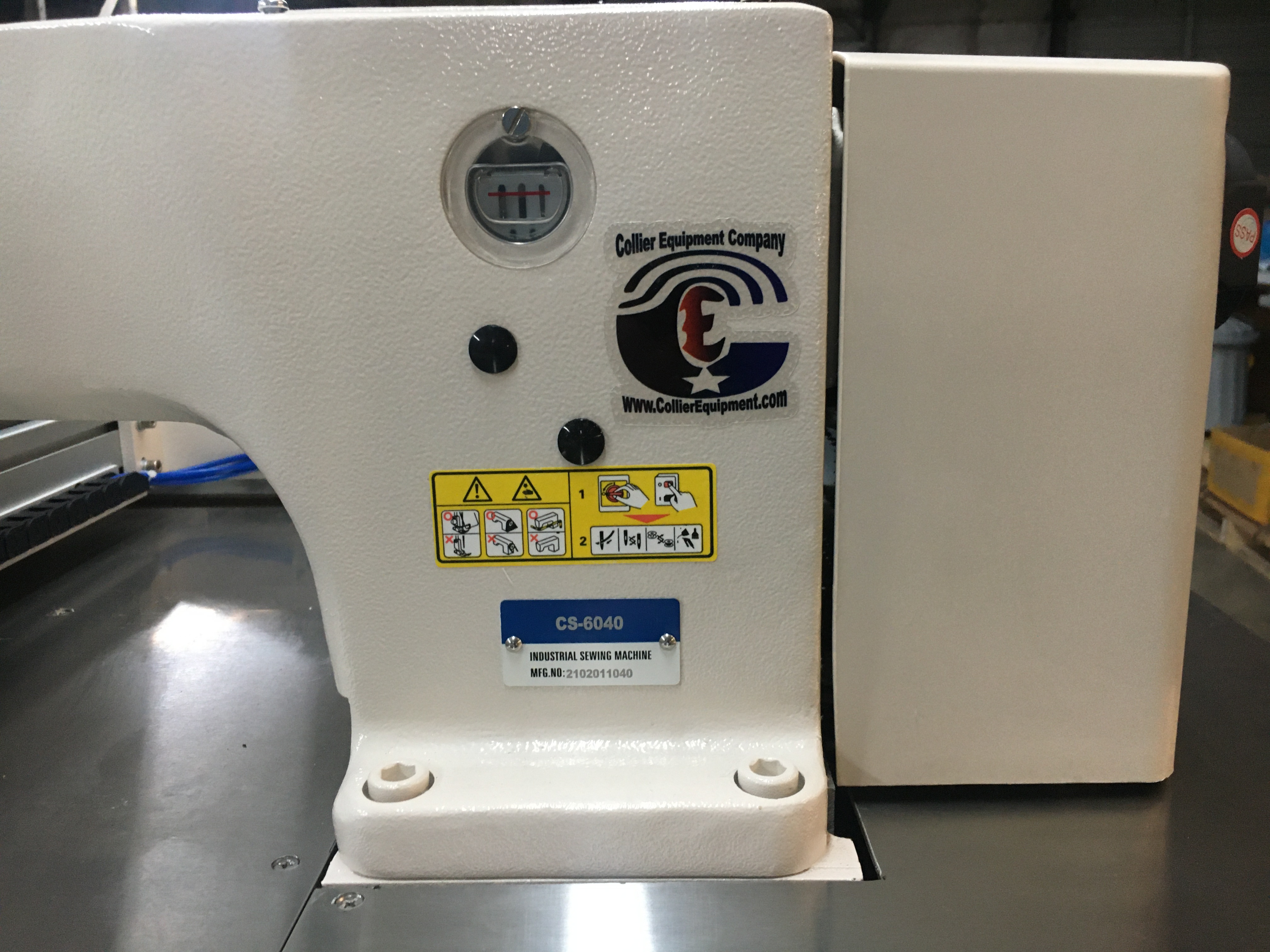

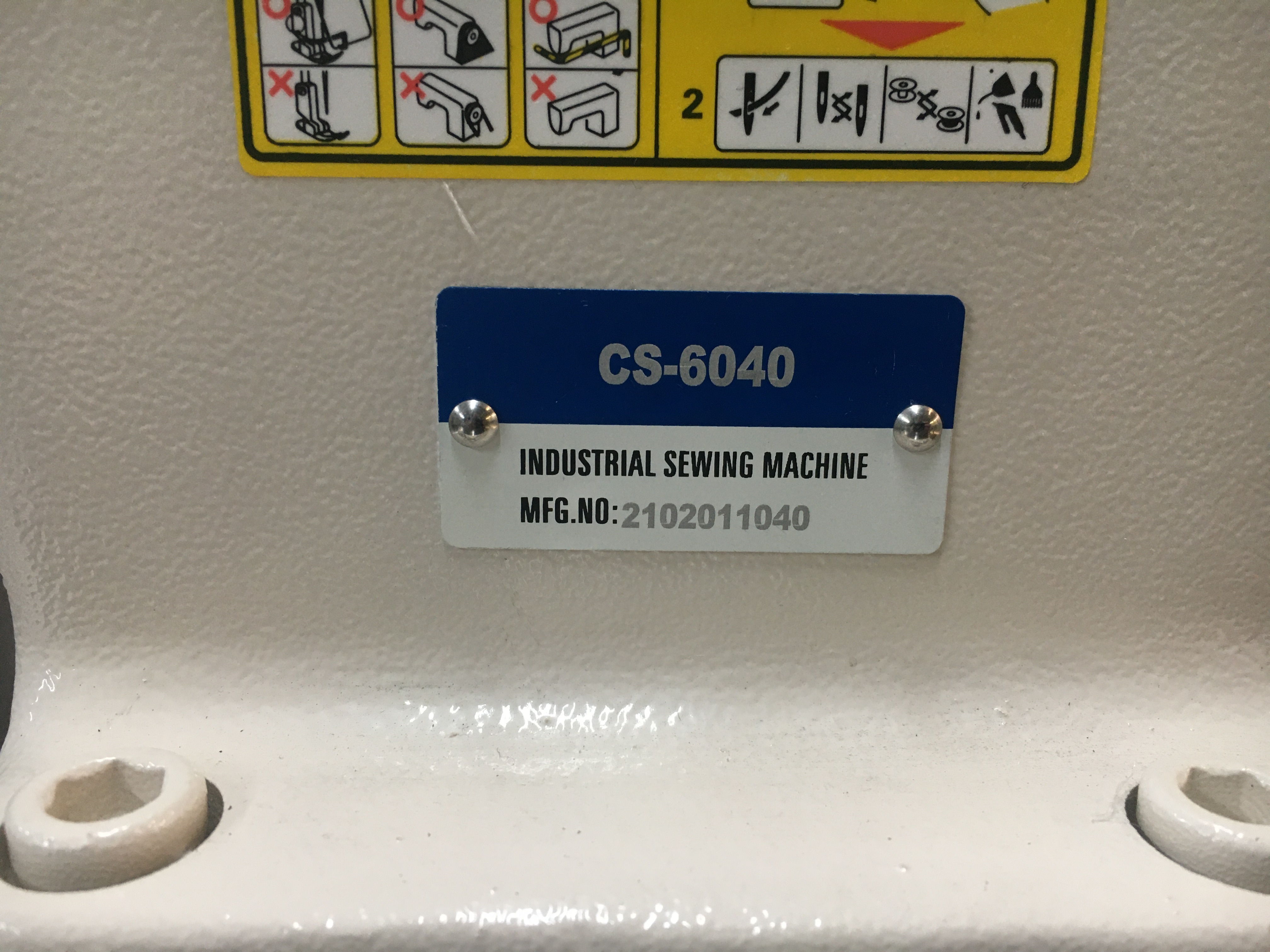

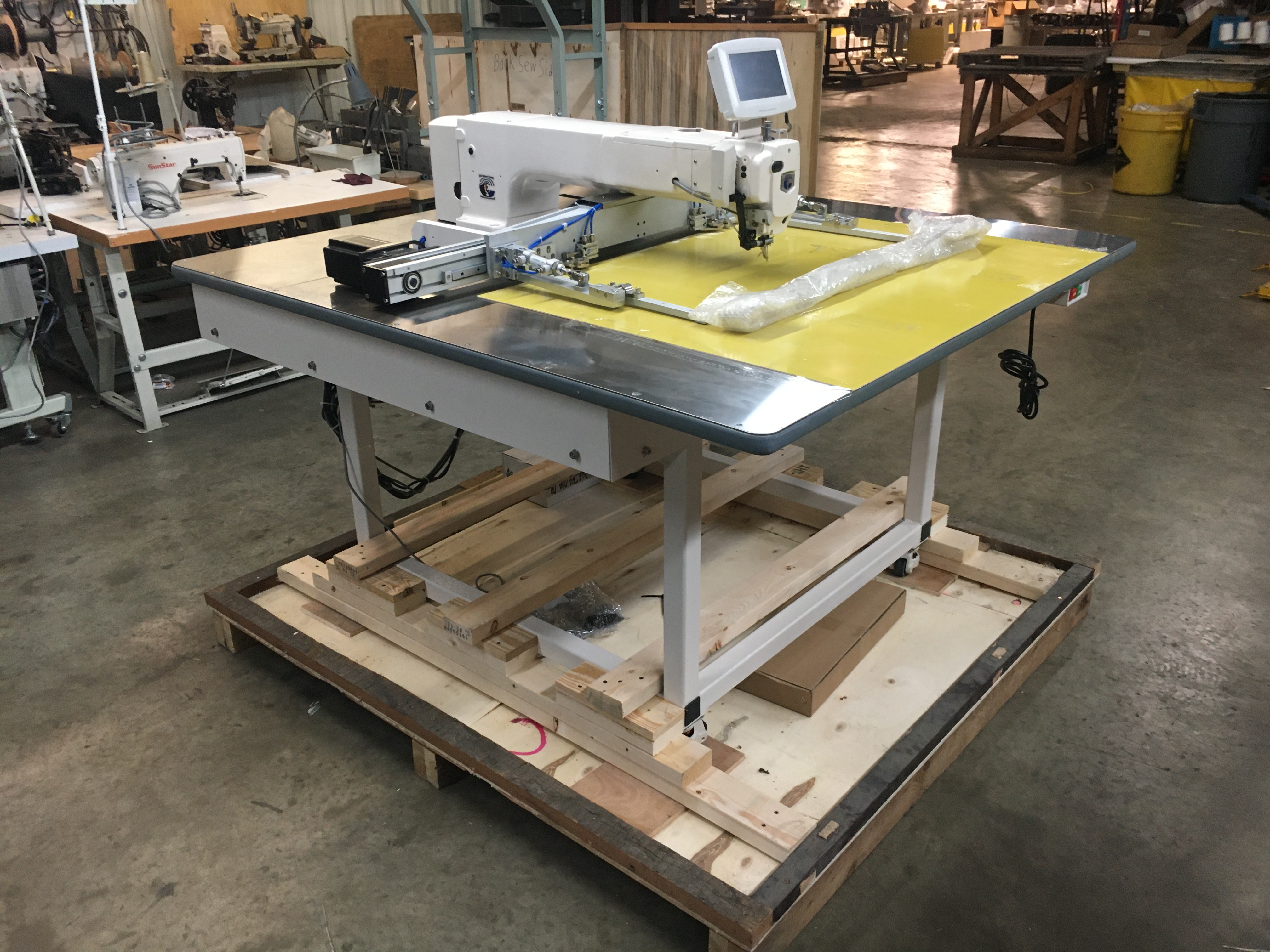

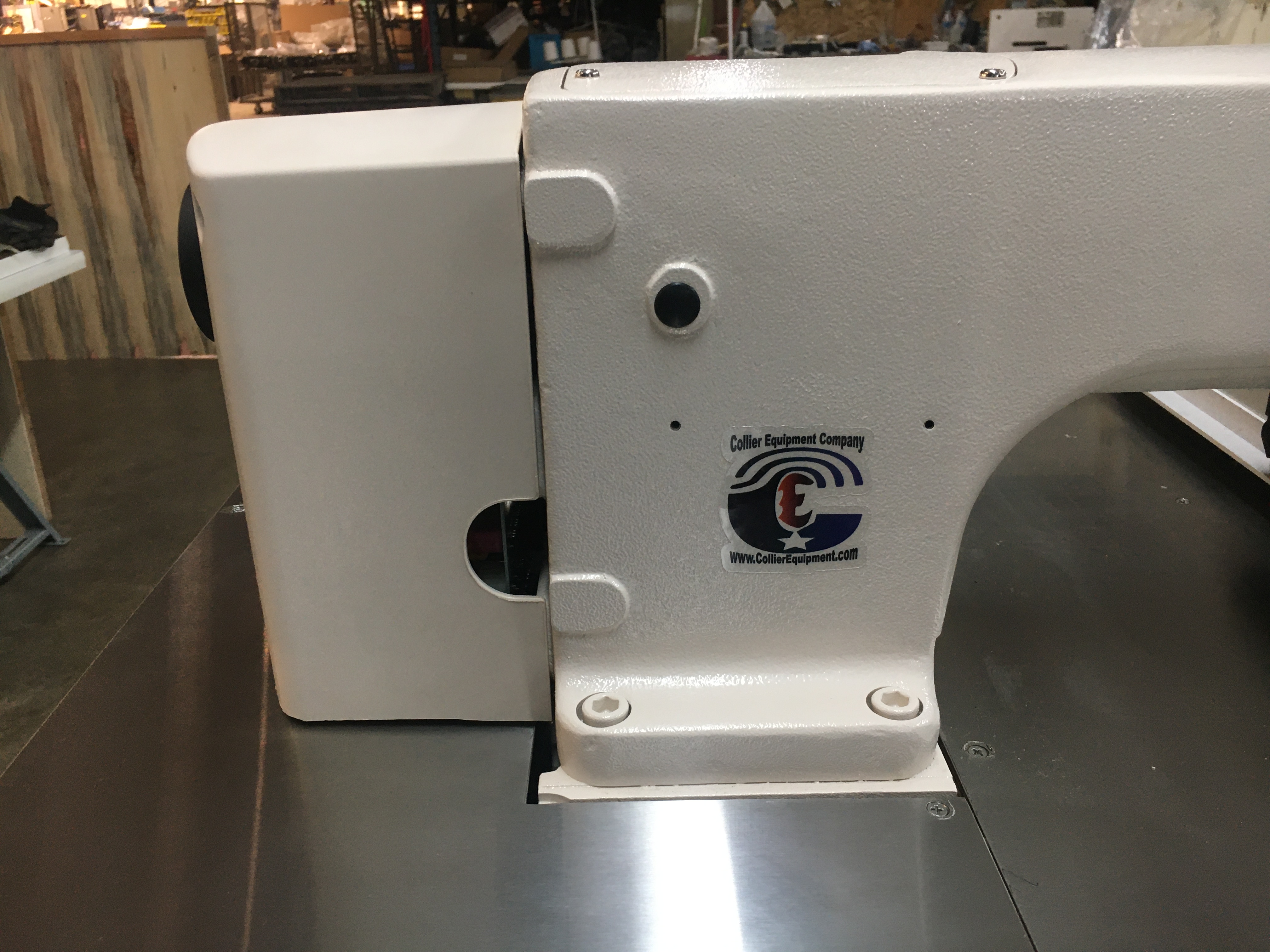

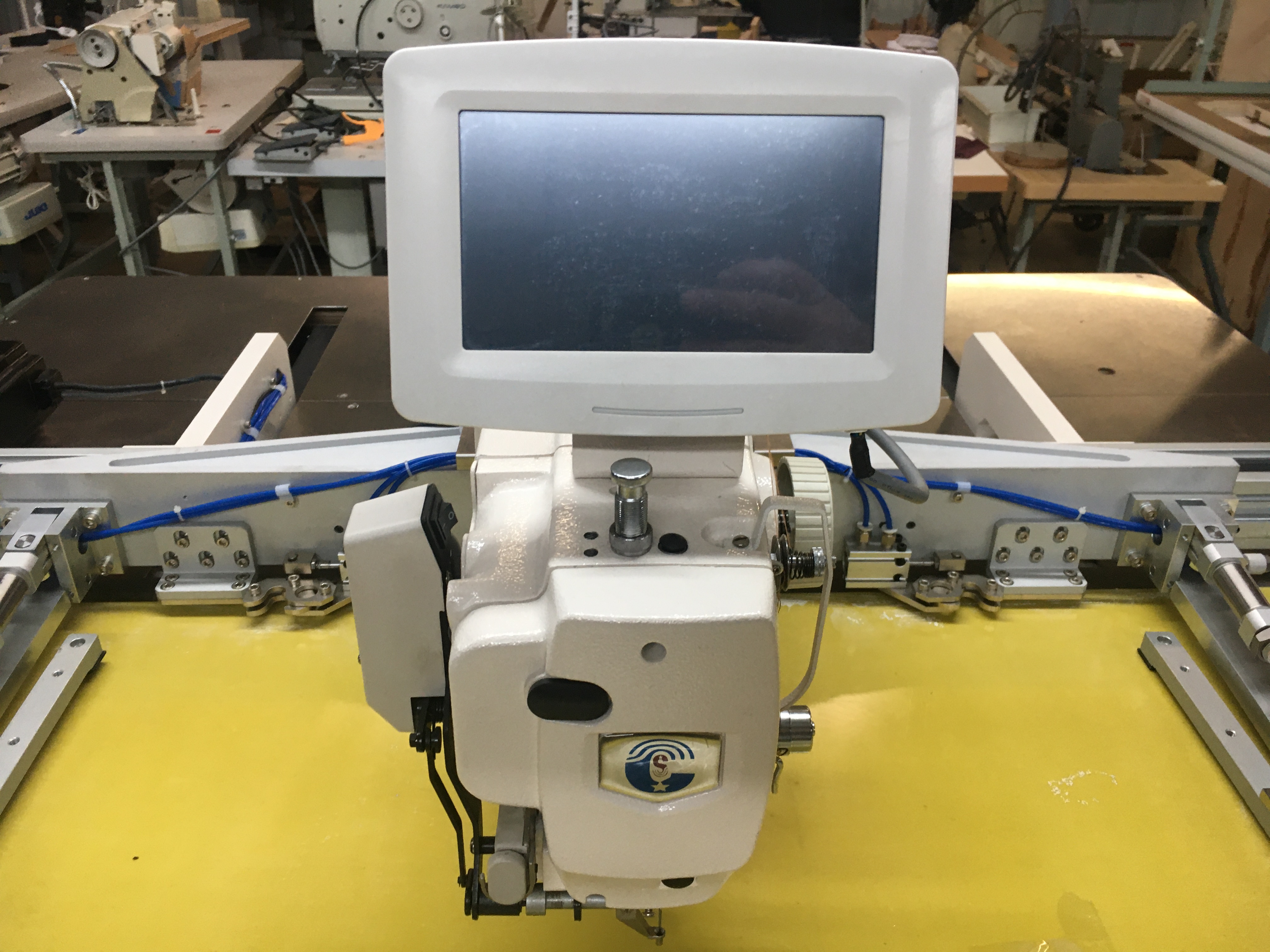

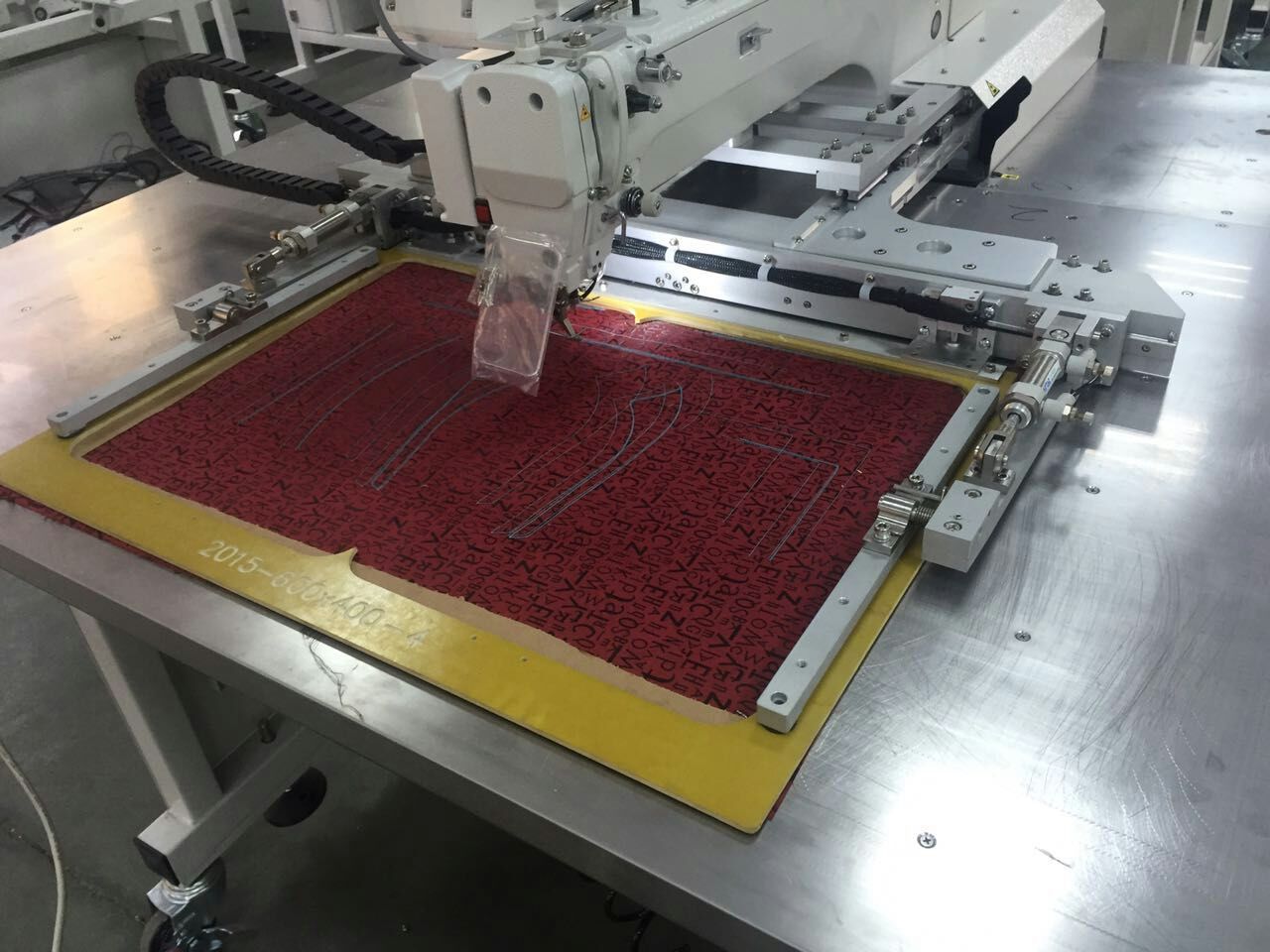

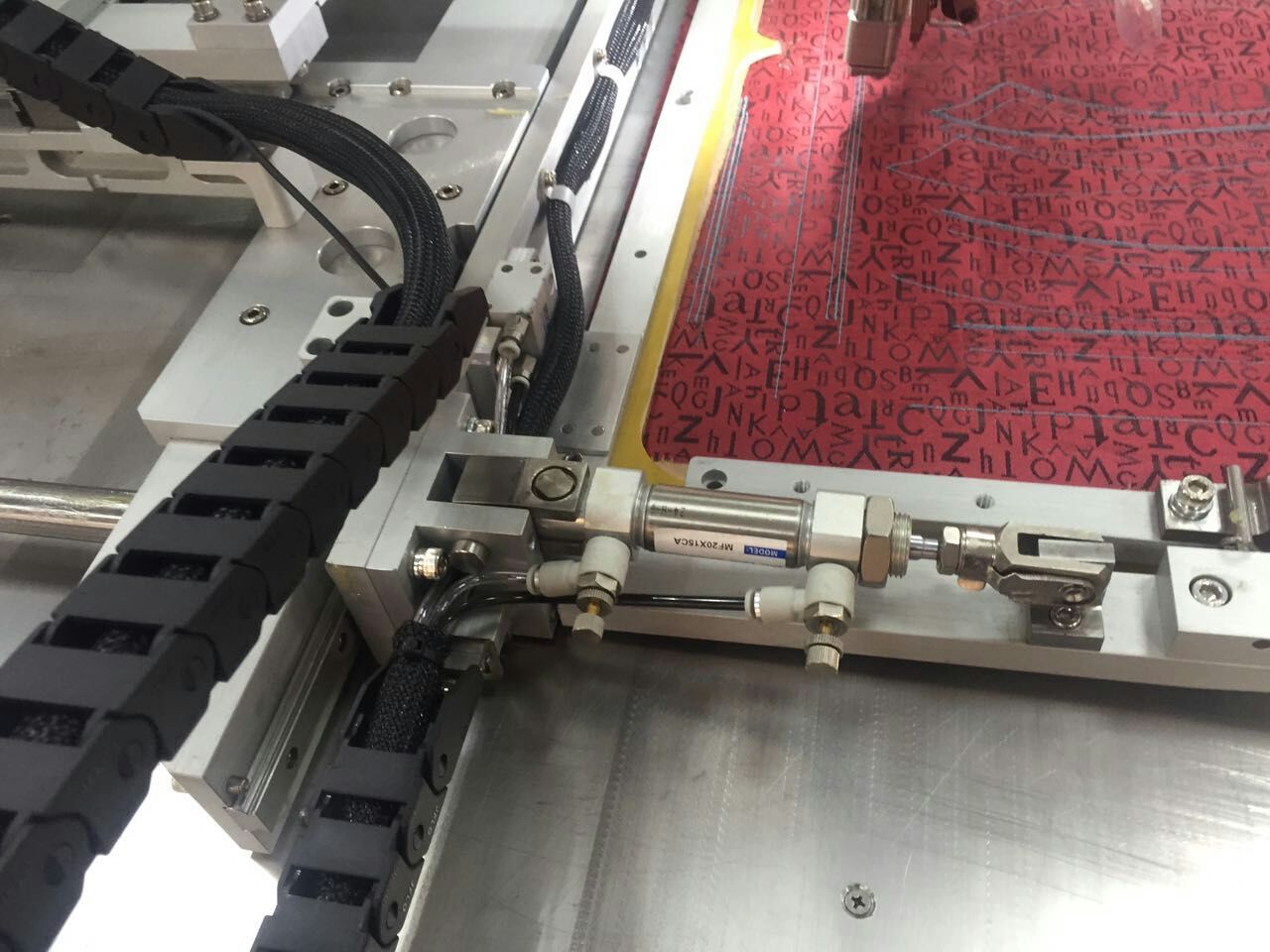

CS-6040+

Our CS-6040+ ( 600mm x 400mm ) is also available as a CS-10040 ( 1000mm x 400mm ) and represent some of our larger Programmable Pattern machines.  Used in operations like Home Décor, Large Interior Patterns to be seamless and much more.

   Some features of the machine include:

        * Sewing Speed: 2,500 spm, (XY Axis moving speed maximum 10meters/minute.

        * Hook: 2X Japan Hirose Hook / Koban Hook (3X Size Hook is Optional).

        * Uses latest A8 CPU, Disk/USB Date Memory, XYZ Servo Motor, Highly Accurate (to 0.001mm).

        * All templates work with Intelligent Judgement.

        * Thread - Break Detector.  (Bottom thread stitch quantity is optional).

        * Needle Type: DPx5 / DPx17

        * Sewing Thickness: 0.1mm - 10mm.

        * Presser Foot: Electropneumatic.

        * Applications: Tents, Sleeping Mats, Drapes, Banners, etc...

Thanks for watching and sharing our videos.  I hope you enjoy the video as much as we enjoy building Automated Machines for the Industrial Sewing Industry.

     * Custom Designed Pallet Systems are available.

    * Custom Folders, Binder and Guides for the Sewn Products Industry.

          For more information, please call or email.

             •    Phone: (256) 229-6595

             •    Email: Sales@CollierEquipment.com
