CS-E380ND

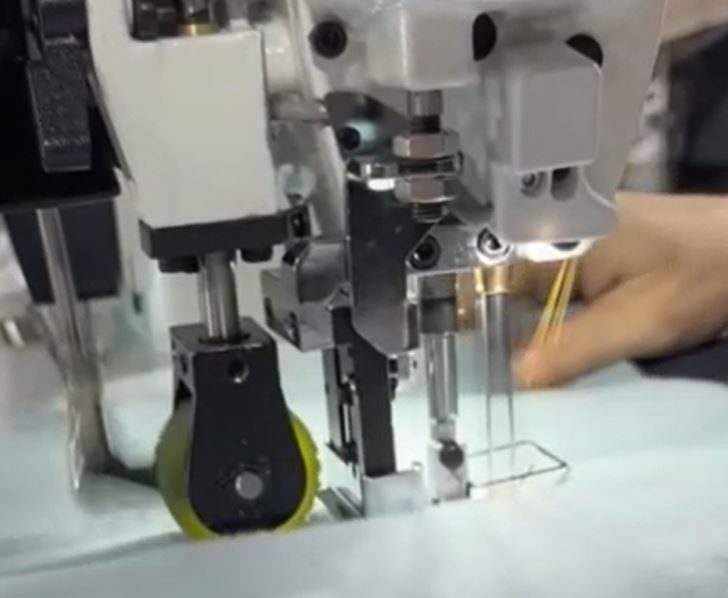

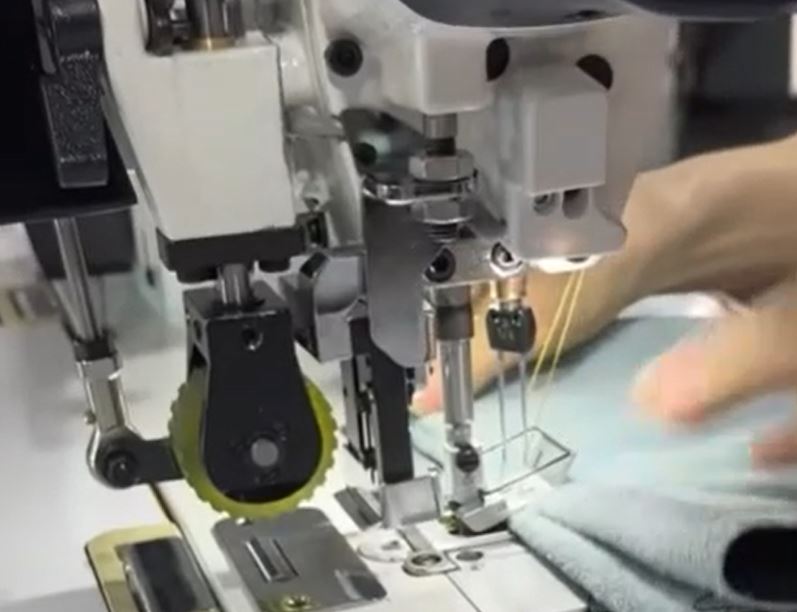

The CS-E380ND is an industrial multi-needle chain stitch sewing machine.  High-speed, flat-bed, parallel 2-Needle or 3-Needle chainstitch, built for heavy-duty garment manufacturing like jeans and workwear.

   - It features Servo motor control for thread cutting and an automatic foot lifter -

    * Machine Highlights

          * Heavy-Duty Power:  Built to handle extremely thick materials, such as 16 layers of heavy denim fabric.

          * Smart Controls: Uses a step motor to manage automatic  presser foot lifting.

          * Multi-Needle Setup: Designed with optimized needle positions for specialized chain stitching tasks.

    * Key Performance Specs

          * Max Needle Distance: 5mm overall

          * Max Speed: 4,000 stitches per minute

          * Stitch Length: Up to 4 mm (adjusted via a stitch dial)

          * Presser Foot Lift: 5 mm by hand, 13 mm by knee

          * Needle Type: TVx7 (sizes #14 to #18)

          * Lubrication: Automatic

   * Core Features

          * 2-Needle or 3-Needle Setup: Sews multiple rows of chain stitch at the same time to boost output.

          * Condense Stitching: Uses an easy-to-reach lever to lock/reinforce end stitches to help prevent raveling.

          * Durable Looper: Features an inclined crank rocking-type looper designed for long-term stability with minimal wear.
