MA-1245

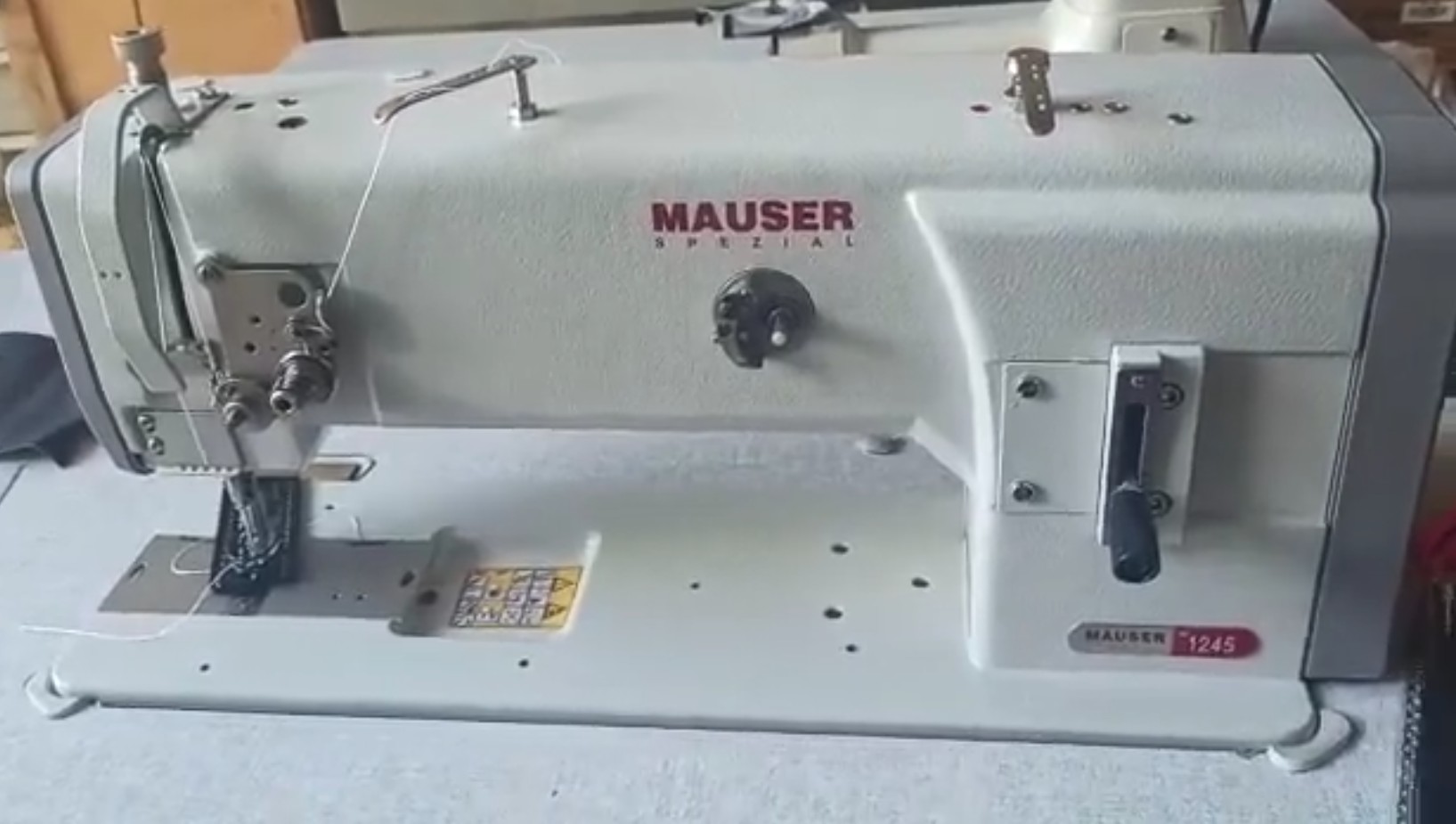

MA 1245 Single and two-needle lockstitch flat bed sewing machines with unison feed.

Special features:

◼ High traction due to unison feet.

◼ Even feed motion without any ply-shift of individual layers.

◼ Large vertical rotary hook with 60% more bobbin thread capacity than other standard-sized hooks.

◼ Automatic hook lubrication.

◼ Efficient hook protection against thread jamming due to standard built-in overload coupling (M).

◼ Rugged and durable.

◼ The high top feed lift (7 mm) allows trouble-free sewing of thick materials and an easy sewing over cross seams.

◼ Easy to service.

◼ Easy loading and unloading – even of bulky material – due to a high fabric clearance of 14 mm

Explanations and additional equipment:

◼ -6/07 CN Special part set for seams with particularly bulky cross seams stitch length max 6 mm, available for machines with thread trimmer -900/56 and for machines without thread trimmer.

◼ -6/07 CN8 Same as -6/07 CN, but stitch length 8 mm

◼ -17/01-650/03 CN Part set for binding, without binder (for machines without P)

◼ -40/01 CN x 5.0 Piping part set for piping size 5 mm, device for the manufacture and simultaneous insertion of piping between two plies of fabric, device fastened on retractable carrier.

          * See chart in brochure or pictures for other necessary specification details:

                    - 1245-6/01 CLMPN

                              Hook Protection Device (M)

                              Four motion drop feed (P)

                              Stitch Length in mm (6)

                    - 1245-6/01 CLPMN8

                              Hook Protection Device (M)

                              Four motion drop feed (P)

                              Stitch Length in mm (8)

                    - 1245-6/01 CLMN8

                              Hook Protection Device (M)

                              Stitch Length in mm (8)

                    - 1245-6/01-900/56 / CLPMN

                              Hook Protection Device (M)

                              Four motion drop feed (P)

                              Thread Trimmer (-900/56)

                              Stitch Length in mm (6)

                    - 1245-6/01-900/56 / CLPMN8

                              Hook Protection Device (M)

                              Four motion drop feed (P)

                              Thread Trimmer (-900/56)

                              Stitch Length in mm (8)

                    - 1245-6/01-900/56-911-97 CLPMN*

                              Hook Protection Device (M)

                              Four motion drop feed (P)

                              Thread Trimmer (-900/56)

                              Auto Foot Lif / Backtacking (-911/97)

                              Stitch Length in mm (6)

* An air filter/pressure regulator -925/03 is required for the operation of all machines with -911/97.

Technical Data:

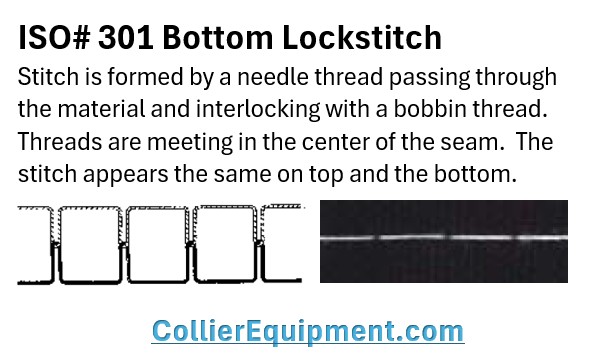

     Stitch type: 301 (lockstitch)

     Max speed**: 2800

     Top feed lift: 7 mm

     Fabric clearance: max. 14 mm

     Needle system: 134-35

     Needle size: 110-140 Nm

Balance wheel: 80 mm eff. dia

Motor power: 0.370 or 0.550 kW, depending on equipment

Clear work space: 270 x 115 mm

Carton dimensions: 77 x 62 x 38 cm

Bedplate dimensions: 476 x 177 mm

Net weight of head: approx. 36 kg

Gross weight (head in carton w/ accessories): approx. 44 kg

        * Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.

          For more information, call or email.
