MA-269-373

Mauser Spezial MA-269-373

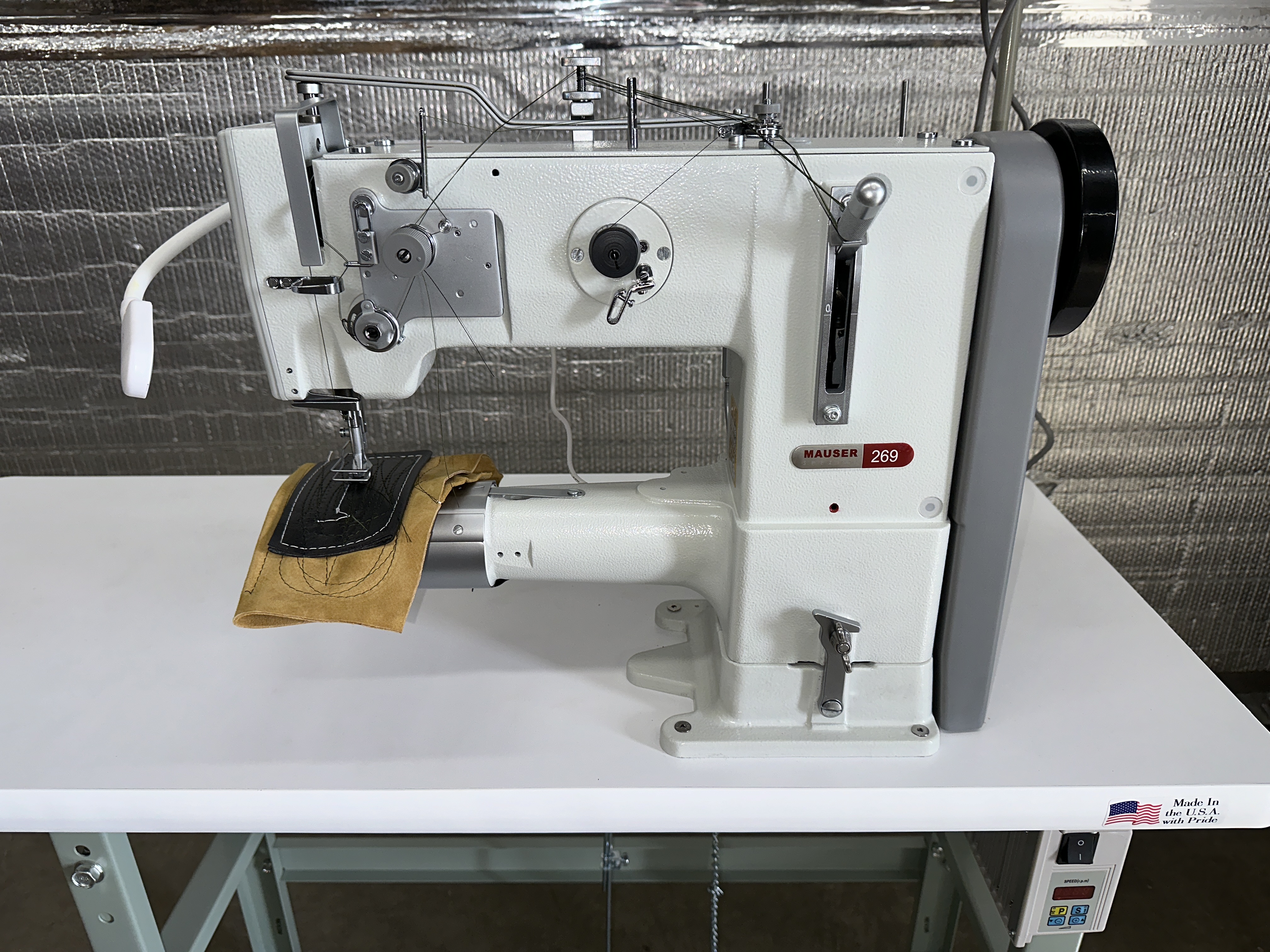

     * Robust single needle lockstitch sewing machine with cylinder arm and large vertical hook for medium heavy materials Equipped with bottom feed, needle feed and alternating top feed.

     * Due to the design of the 269 series with the use of a large vertical hook, the machine excellently meets the requirements for processing very dense and stiff materials.

The possibility of damage to the hook due to needle deflection during sewing is minimized.

     * This also minimizes downtimes and maintenance requirements.

     * A common application is, for example, the sewing of rubber lips on hard cases, the production of tool bags, but also used in particular for processing tubular, or pre-assembled, closed articles, also in the production of bridles for equestrian sports or dog leashes and harnesses.

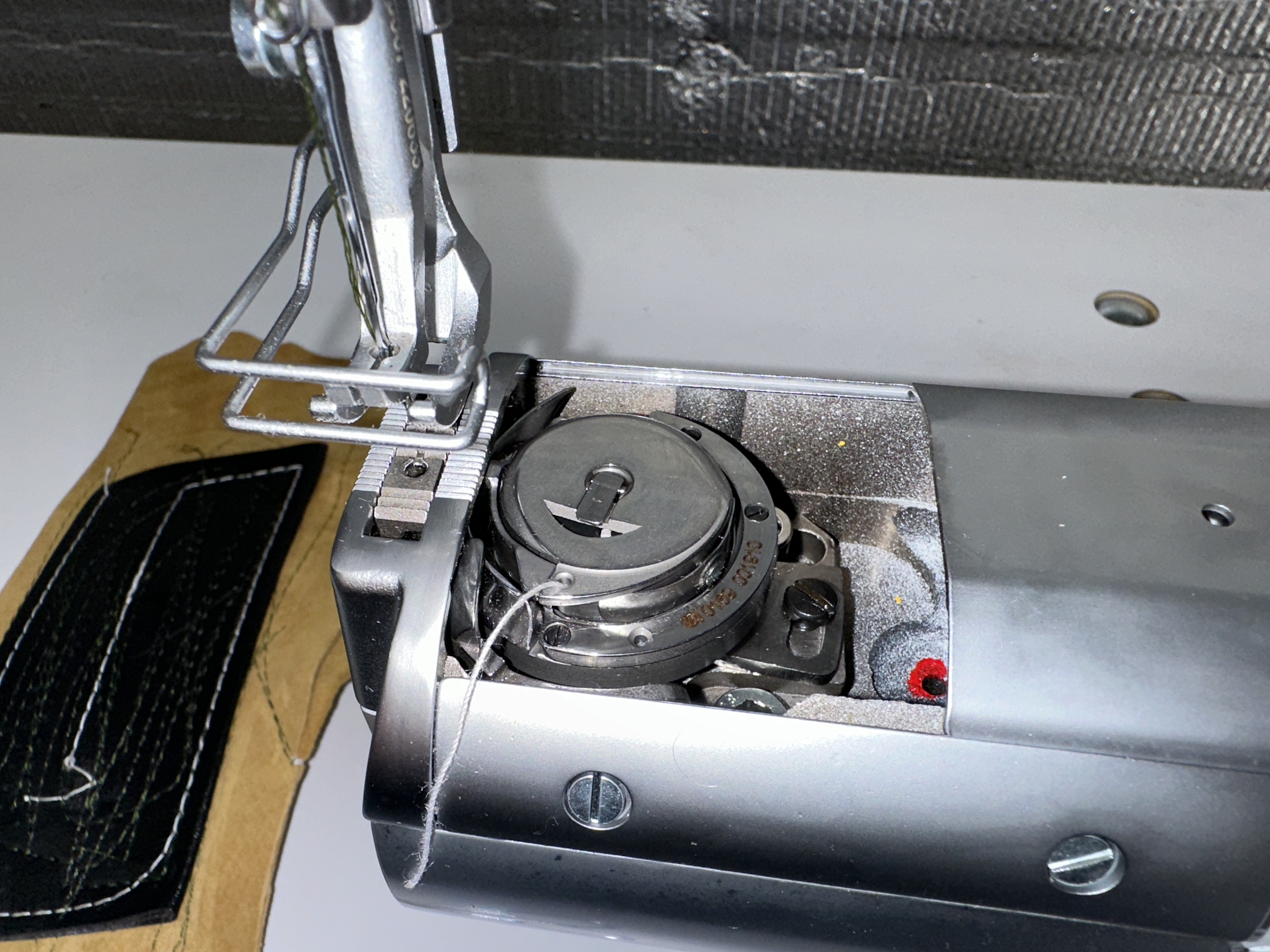

     * The use of a large vertical hook makes it possible to work with dense materials and multi layered workpieces.

     * This minimizes the risk of damage to the hook due to needle deflection.

     * In addition, the standard overload clutch prevents damage to the hook by unhooking the bottom feed when the machine is overloaded.

    * The bottom feed and needle feed in conjunction with the alternating top feed ensure a high pull through force and uniform material feed With the top feed stroke of 5 mm, material thickening and cross seams in the seam course can be climbed over.

               * The Mauser Spezial MA 269 is also optionally available as a twin needle machine.

        * Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.

          For more information, call or email.
