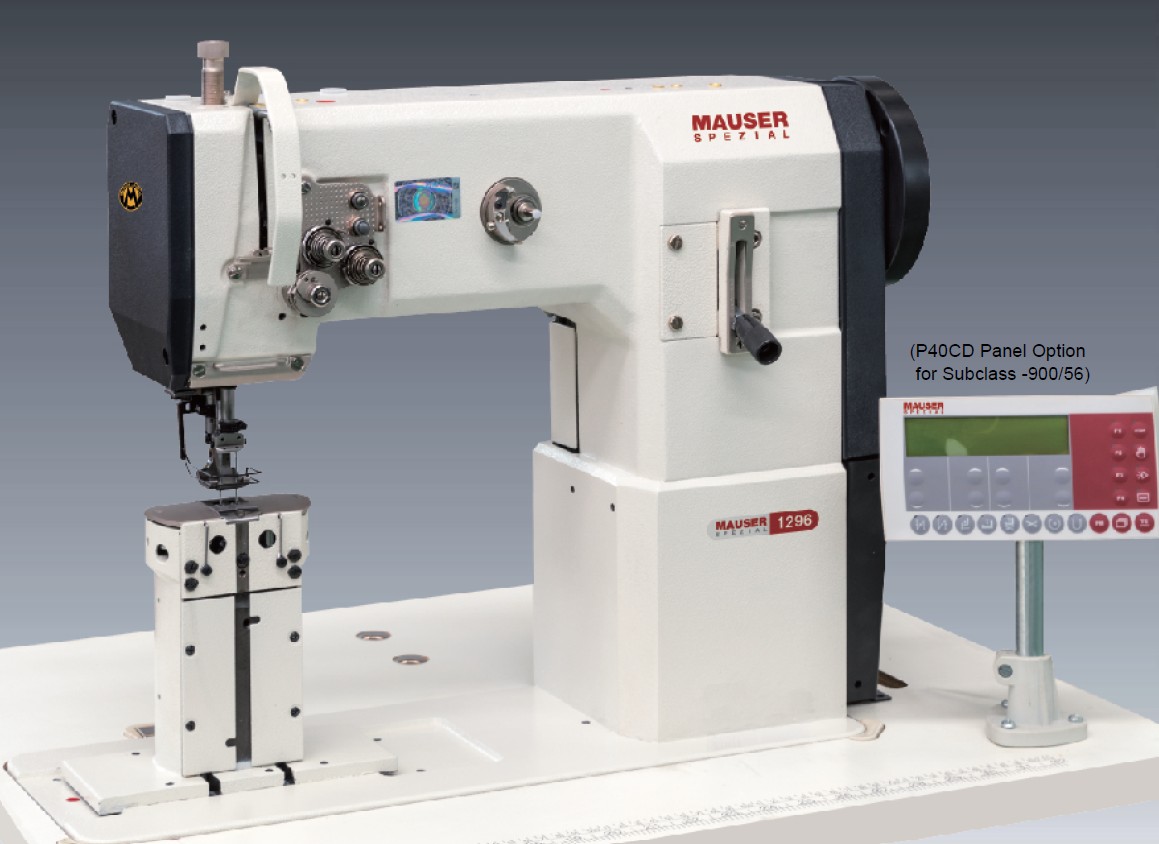

MH-1296

The Mauser Spezial MH-1296 has a Slim Post Bed for easy handling of materials, especially in garments and technical textiles.

     Ergonomic design with a narrow post with lower transport wheel integrated into the post.

Tape Cutter

Electronically controlled and fully concealed tape cutter for precise cutting of up to 25mm wide tapes.

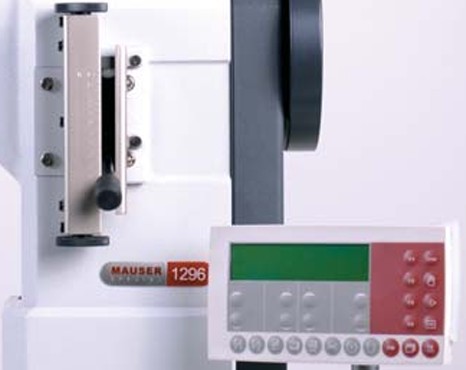

Integrated Touch Control Panel

   Touch control panel for setting and storage of all relevant welding parameters.

SPECIAL FEATURES

     ●  Unobstructed view of the stitching area .

     ●  The post-bed design is ideal for handling shaped parts before or after they are closed.

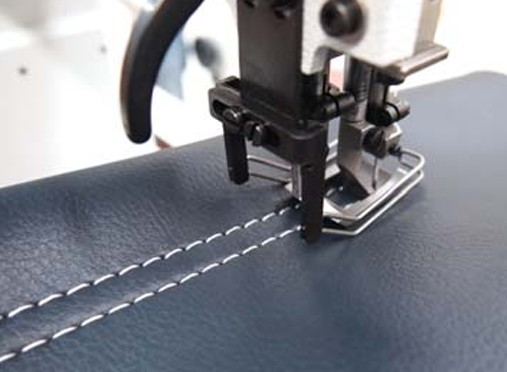

     ●  Trouble-free stitching over cross-seams with no difference in stitch length, due to the alternating top feed with 7 mm stroke.

     ●  Accurate and consistent stitch formation on all materials, up to thread sizes of 15/3, synthetic.

     ●  Uncomplicated mechanical system guarantees perfect function.

     ●  Built-in bobbin winder within operator’s view

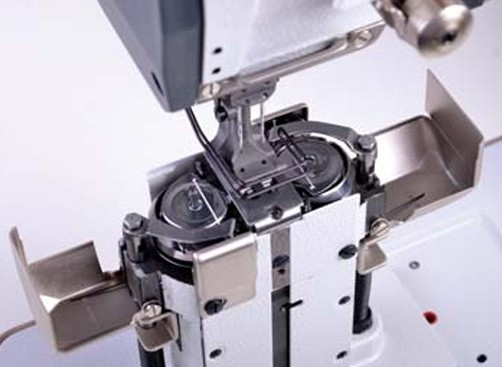

     ● Large vertical hook with 60% more thread capacity than conventional hook.

     ● Protection of the hook against thread jamming by built-in and easy-to-handle overload clutch as standard equipment

     ●  High sewing output and easy operation due to time and cost-saving work aids, such as:

            - Thread trimmer

            - Automatic presser foot lift

            - Back tacking mechanism

            - Needle positioning mechanism

     ●  Large fabric clearance of 14 mm for easier loading and removal of the work piece

     ●  As an alternative available with a long stitch (up to 11 mm) for rustic stitching.

AREAS OF APPLICATION

     Sewing of medium-heavy materials, e.g. furniture and car upholstery, leather clothing, leather goods, etc.

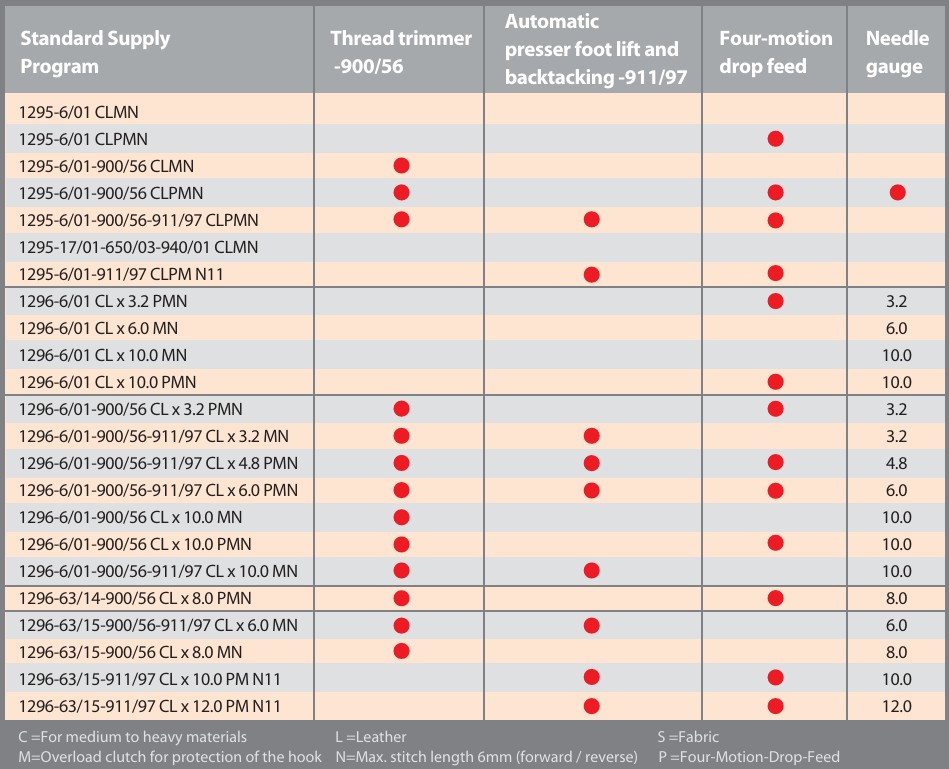

SUBCLASSES & WORK AIDS

     - 6/01: For plain seaming operations.

     - 17/01-940/01: Part set for binding, with balcony shaped needle plate for sewing convex-shaped work pieces (Binding attachment required as extra).

     - 63/14: Fancy- and top-stitching operations, also on one-sided bulky cross-seams; compensating presser with seam guide, tape guide from below.

     - 63/15: Fancy- and top-stitching operations, also on one-sided bulky cross-seams; compensating presser, pneumatically operated, engageable middle seam guide and tape guide from below.

     - 900/56: Thread trimmer.

     - 911/97: Automatic presser foot lift and back tacking (a pneumatic air filter / regulator is required)

        * Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
