SX6803-PD

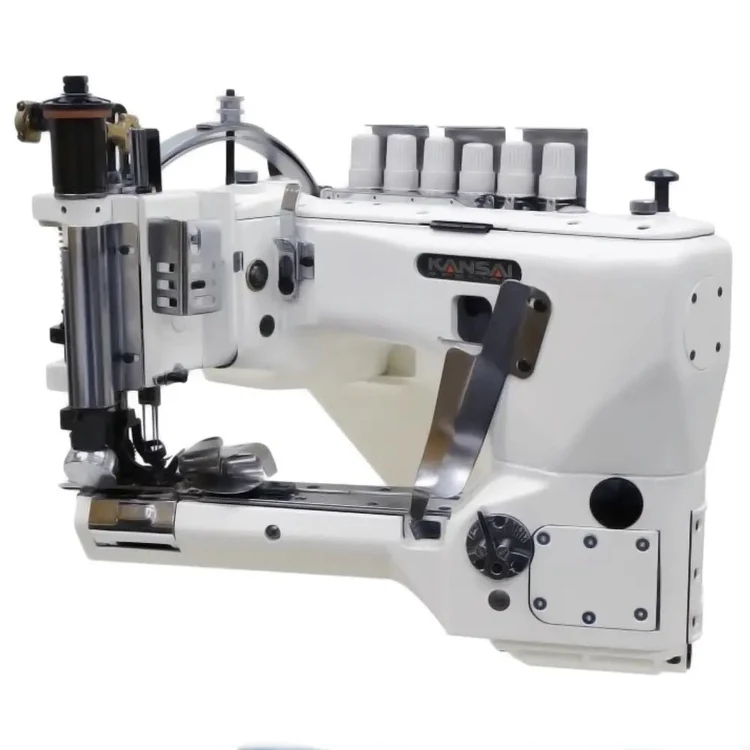

The Kansai Special SX6803-PD is a 3-needle, feed-off-the-arm double chain stitch machine built for lap seaming heavy fabrics like denim.

Key Specifications:

     * Machine Type: 3-needle, feed-off-the-arm double chain stitch (Type 401) for lap seaming.

     * Application: Heavy-weight materials like jeans and work pants.

     * Max Sewing Speed: Up to 4,500 rpm.

     * Needle System: TV × 3 (#21).

     * Stitch Length: Up to 4.2 mm (approx. 6–12 stitches per inch).

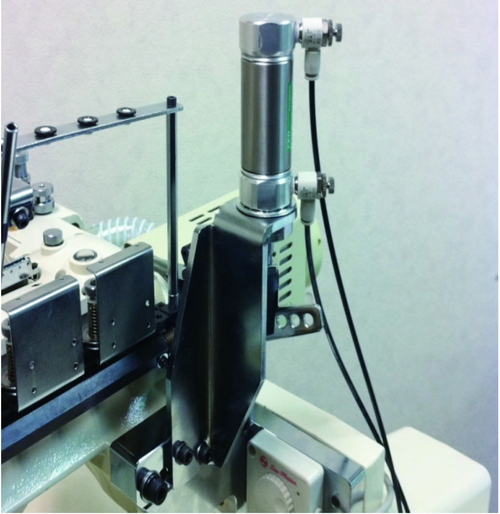

     * Presser Foot Lift: 8 mm maximum (Optional Pneumatic Foot Lift Device).

     * Special Features: Equipped with a rear puller mechanism and differential feed for advanced fabric control over heavy cross seams.

        * Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
