Tony 310 & 315s

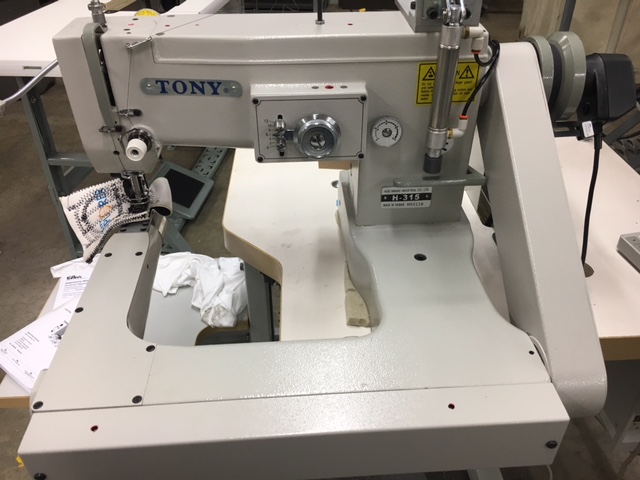

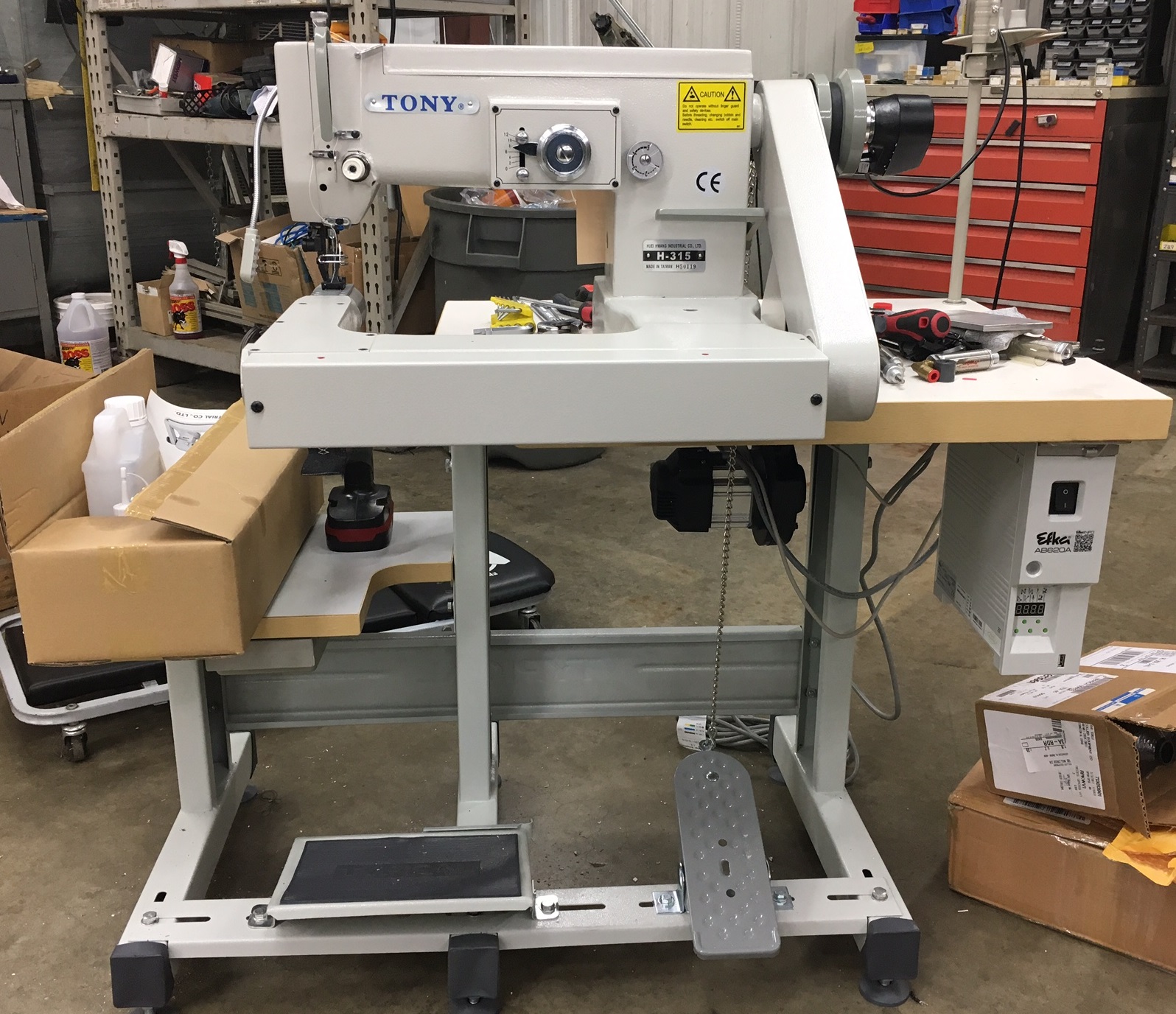

The Tony Model H-315s is a Top Feed and Bottom Feed walking foot zig-zag industrial sewing machine featuring a large capacity bobbin, reverse capability, and cylindrical arm geometry that is ideal for tubular goods like koozies and wetsuits.  The Tony H-315 is a specialized industrial feed-off-the-arm walking foot zigzag machine.

The Tony Model 310 is a Bottom Feed, feed off the arm zig-zag sewing machine for lighter weight fabrics.

Key Specifications

     * Max Speed: 2600–2800 stitches per minute

     * Max Stitch Length: 5 mm

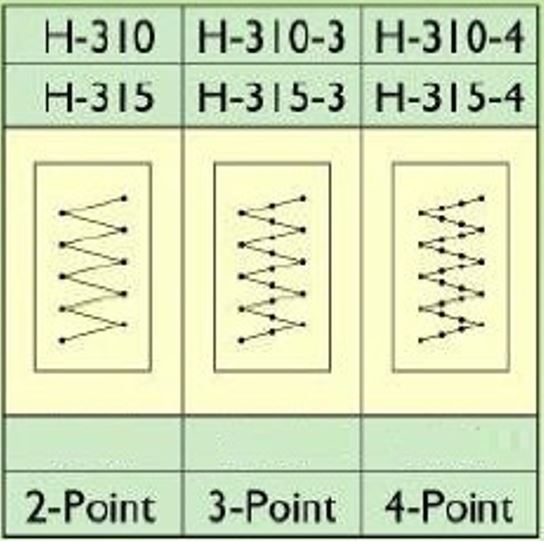

     * Max Zig Zag Width: 10 mm

     * Max Presser Foot Lift: 10 mm

     * Cylinder/Arm Diameter: Approx. 46 mm to 55 mm

     * Feed System:

            - 310: Bottom Feed only.

            - 315s: Top Feed & Bottom Feed ( Walking foot with double presser foot )

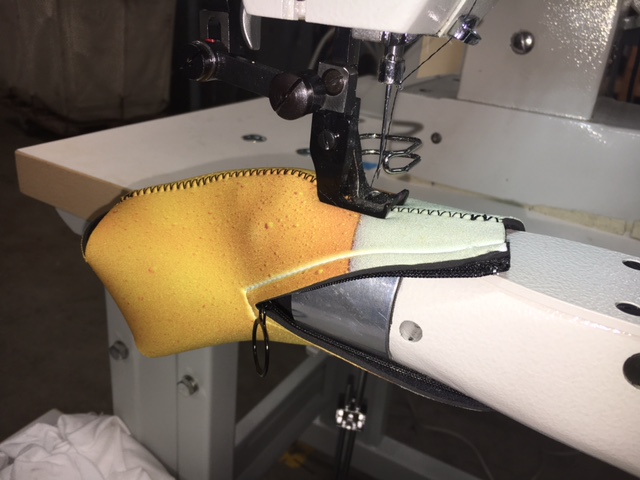

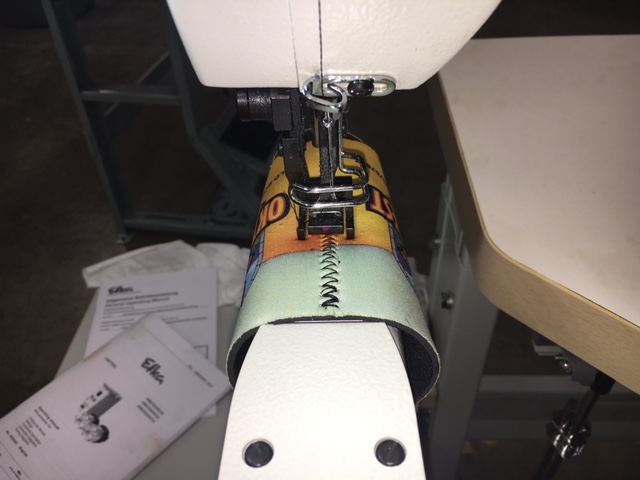

     * Applications & DesignCylindrical Seaming: Built for closed, tubular, or curved items like neoprene can holders/koozies, filtration units, leather boots, and wetsuits.

     * Heavy-Duty Handling: Utilizes a large hook and reverse feed mechanism suited for thick, flexible, or sticky materials.

* Custom Folders, Binders and Guides for the Sewn Products Industry.
