CS-8720A

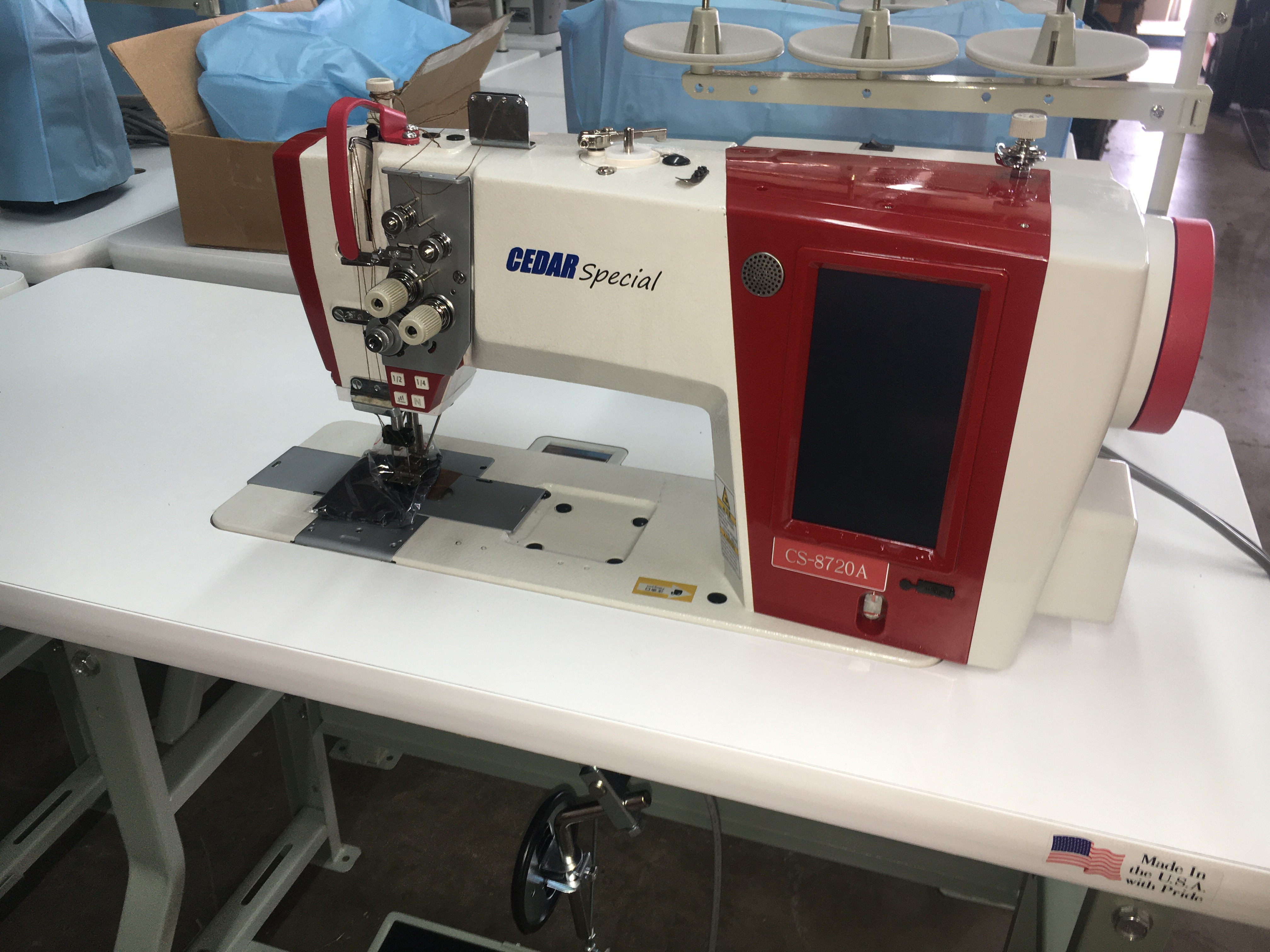

The CEDAR Special CS-8720A is a Direct Drive, twin-needle, heavy-duty industrial sewing machine.  It is designed for making two parallel rows of stitching at the same time and is equipped with an Operator Friendly LCD Panel for Programming.

Uses:

        * Factories use it for canvas, leather, and heavy fabrics.  It can be equipped with a Rear Puller or Side Belt Puller.

The key specifications include:

     * Max Speed: Up to 3,000 stitches per minute.

     * Stitch Length: Up to 5 mm.

     * Needle Feed: Both the needle and the bottom "feed dog" (the metal teeth under the fabric) move to pull thick fabrics evenly.

     * Presser Foot Lift: Up to 13 mm with a knee lifter, or 8 mm automatically.

     * Needle Type: Uses DP × 5 needles.

     * Hook: Uses large vertical rotary hooks for larger bobbins.

     * Needle Gauges: Available gauge set sizes: 1/8" (3.2 mm), 3/16" (4.8 mm), 1/4" (6.4 mm), 3/8" (9.5 mm), up to 1/2" (12.7 mm) and higher depending on the specific application block installed.

     * Custom Folders, Binders and Guides for the Sewn Products Industry
