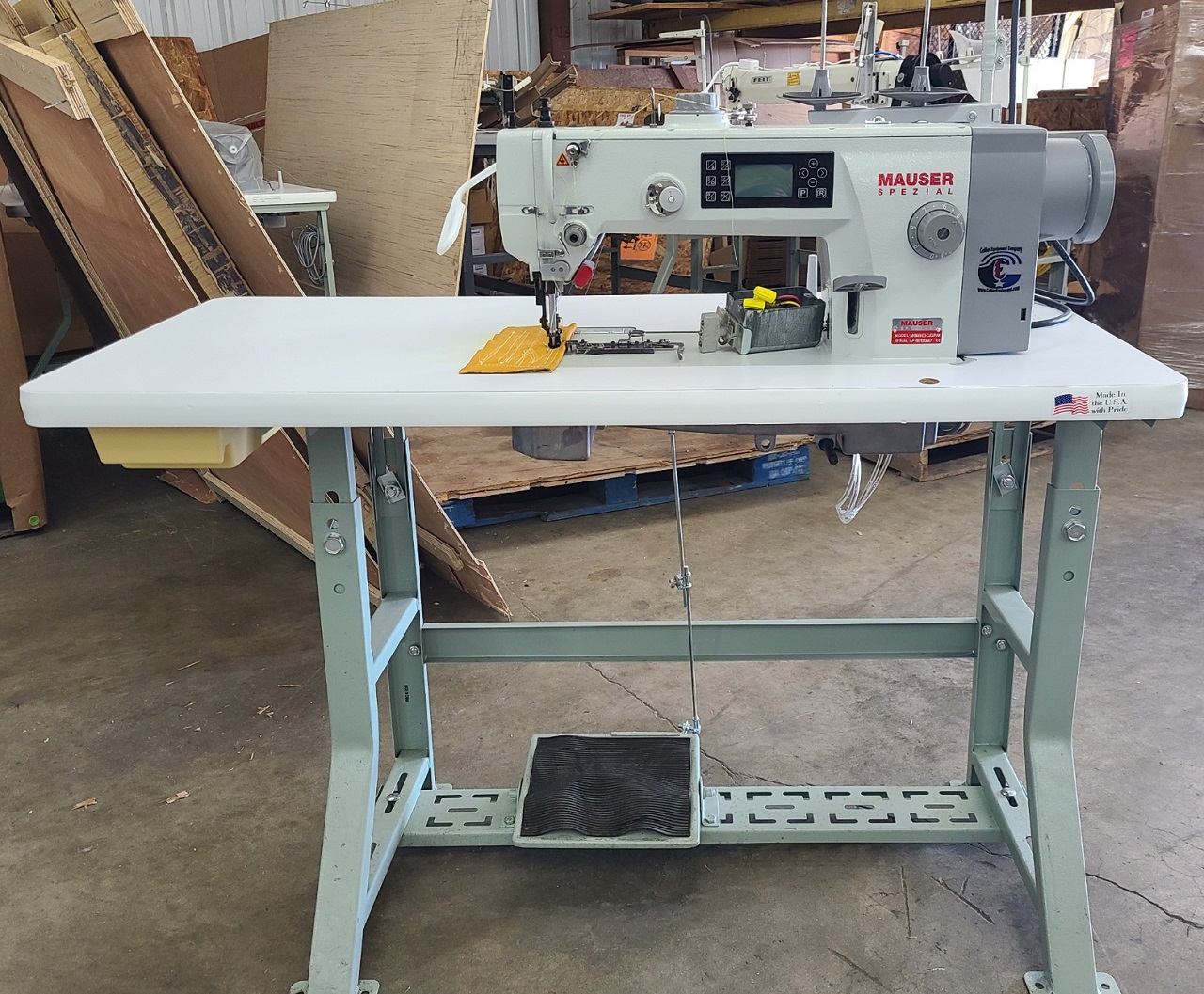

MH-1641

MH-1641 Single Needle Top And Bottom Feed Lockstitch Sewing Machine For Medium-Heavy Material and a great advantage for Binding Operations.

     * Price efficient single needle lockstitch sewing machine with compound or triple feeding system for accurate material transport.

     * Equipped with energy efficient, fully integrated 750W sewing drive and built-in electronic control for electromagnetic thread trimmer, electro-magnetic sewing foot lift and backtacking.

     * The automatic functions require compressed air, making for strong and decisive functionality.

     * Suitable for all sewing operations in medium-heavy material such as home upholstery, leather goods, bags, sofas, leather, technical textiles, etc.

     * Dial for easy adjustment of sewing foot alternation up to 5.5mm.

     * With an arm clearance of 330mm (13") right of the needle and 150mm (5.9") under the arm you can handle bulky material with ease.

     * Fully integrated and powerful 750W sewing drive for fast ramp up and reliable sewing stop to achieve an accurate sewing result in each seam.

     * Specifications:

            * Needle Bar Rise: 38mm

            * Thread Takeup Stroke: 75mm

            * Maximum Stitch Length: 9mm

            * Presser Foot Clearance: 7/16"

            * Needle System: DPx17 #22

            * SPM: 2200

     * Features:

            * Large Operator Control Panel

            * Convenient Bobbin Winder

            * Electromagnet Automatic Thread Release

            * Self-Locking Stitch Regulator

            * Fourth Generaion Powermax Controls & Direct Drive Motor.

            * Pneumatic Foot Lift

            * Pneumatic Back Tack.

        * Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.

          For more information, call or email.

            •    Phone: (256) 229-6595

            •    Email: mauser-spezial@collierequipment.com
