Catalog Categories
Scroll down for machinery
Binders
Browsing Binders inside our premium line of Folders.
Binders
205 Binder
There are a few different styles of the 205 binder. It can be mounted on a swingout, flat bed, or a slide plate. Available for Lock Stitch or Chain Stitch machines as well as Single Needle or Double Needle machines. Also available as a Moving Binder Series to help achieve better quality on inside and outside curves.
A Binding Reel is available along with special Gauge Sets to suit specific operations.
Samples of your materials will be required for us to recommend and produce the best option for you.
* Contact us for all your Custom Folders, Guides, Clamps and Pallets needs.
• Phone: (256) 229-6595
• Email: folders@collierequipment.com
Binders
252 Binder
The 252 Binder is often referred to as a "C Type" binder. Produced for binding that is coming from a roll. Can be mounted to a front slide plate or on a swingout. Available in various configurations.
A Binding Reel is available along with special Gauge Sets to suit specific operations.
Samples of your materials will be required for us to recommend and produce the best option for you.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: folders@collierequipment.com
Binders

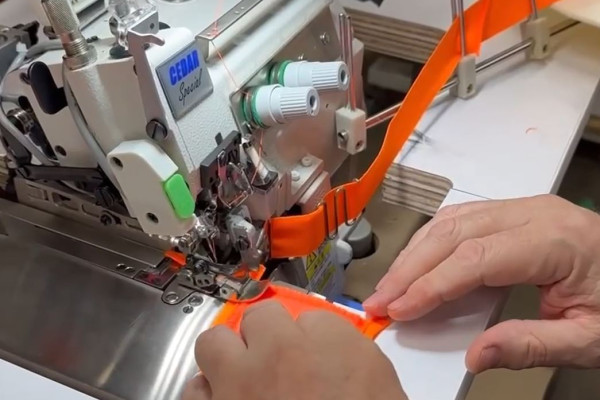

CXT2241
Our CEDAR Special CXT2241-52P2 has a Top Feed to assist the bottom feed for Binding Heavy Fabrics with a Single Needle 401 Stitch Type. At 7,000 spm, it does a wonderful job.
Our premium line of Overlock and Safety Stitch Machines have become one of the best lines on the market. Paired with our technical staff, virtually unmatched in the industry.
Key Features
* Tape Cutter: Programmable, Pneumatic
* Foot Lift: Automatic - Pneumatic
* Stitch Length Adjustment: Push Button
* Dust & Waste Collector: Pneumatic
* Differential Feed Ratio Adjustment: Lever with Mirco-Adjuster
* Lubrication: Automatic
* Fabric Weight: Light - Medium
* Maximum Speed: 7,000 spm
* No. of Needles: 1
* No. of Threads: 2
* Maximum Tape Width: 24mm (wider may be achieved with custom modifications)
* Stitch Type: 401
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: cedar-special@collierequipment.com
Binders
MH-1641
MH-1641 Single Needle Top And Bottom Feed Lockstitch Sewing Machine For Medium-Heavy Material and a great advantage for Binding Operations.
* Price efficient single needle lockstitch sewing machine with compound or triple feeding system for accurate material transport.
* Equipped with energy efficient, fully integrated 750W sewing drive and built-in electronic control for electromagnetic thread trimmer, electro-magnetic sewing foot lift and backtacking.
* The automatic functions require compressed air, making for strong and decisive functionality.
* Suitable for all sewing operations in medium-heavy material such as home upholstery, leather goods, bags, sofas, leather, technical textiles, etc.
* Dial for easy adjustment of sewing foot alternation up to 5.5mm.
* With an arm clearance of 330mm (13") right of the needle and 150mm (5.9") under the arm you can handle bulky material with ease.
* Fully integrated and powerful 750W sewing drive for fast ramp up and reliable sewing stop to achieve an accurate sewing result in each seam.
* Specifications:
* Needle Bar Rise: 38mm
* Thread Takeup Stroke: 75mm
* Maximum Stitch Length: 9mm
* Presser Foot Clearance: 7/16"
* Needle System: DPx17 #22
* SPM: 2200
* Features:
* Large Operator Control Panel
* Convenient Bobbin Winder
* Electromagnet Automatic Thread Release
* Self-Locking Stitch Regulator
* Fourth Generaion Powermax Controls & Direct Drive Motor.
* Pneumatic Foot Lift
* Pneumatic Back Tack.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: mauser-spezial@collierequipment.com
Binders
MH-2645-170
Binding attachment for Walking Foot, Single Needle, Mauser Spezial MH2645-170242-33
a/k/a Triple Feed or Compound Feed.
* Features
* Electro-Magnetic Thread Trimmer
* Electro-Magnetic Presser Foot Lift
* Electro-Magnetic Backtack & Quick Stroke Adjustment
* Presser Foot Lift: Up to 20mm
* Maximum Stitch Length: 9mm
* Thread Size: Up to Nm 10/3 (Tex 300)
* Drive System: 750W Direct Drive
* Ergonomic and powerful single needle triple feed flatbed machine with integrated, high-torque direct drive and control panel.
* Equipped with electro-magnetic thread trimmer, electro-pneumatic presser foot lift, electro-magnetic seam backtacking and quick stroke adjustment.
* The uniform material feed in conjunction with the quick stroke adjustment ensures a consistent - high seam quality, even when overstitching cross seams.
* The ergonomic equipment and the sewing parameters of the machine class MH-2645-170242-33 meet the highest demands of all the users.
* The foot lift of up to 20mm allows effortless insertion of even voluminous material.
* The narrow sewing head with integrated LED light allows a perfect view of the sewing material at any time.
* The stroke height of the sewing feet is easily adjustable via a rotary dial.
* The standard quick stroke adjustment of the presser foot allows quick switching from standard stroke to high stroke and back by means of a knee lever.
* Needle threads up to Nm10/3 (Tex300) can be processed, which also allows decorative seams with thick threads and a stitch length of up to 9mm.
* With a variety of different sewing components, the machine is a versatile tool in your day to day business. With the optional thread nipper you will have a clean seam start with both threads pulled to the bottom side of the sewn material.
* The MH2645-170242-33 is a workhorse for a wide range of sewing operations, especially in the upholstery, automotive and leather goods industry.
* Integrated Direct Drive and Control Panel
- The integrated control panel allows easy access to the main sewing parameters and cares for a clean setup of the machine.
* Quick Stroke Adjustment
- The dial allows you to set your sewing foot stroke for your common sewing operation and benefit from maximum sewing speed. To climb over cross seams just activate the maximum foot stroke by pushing the knee switch. Machine speed will be reduced automatically. Pushing the knee switch again will get you back to your standard foot stroke.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: mauser-spezial@collierequipment.com
Binders
CS-6400BL-7D
The CS-6400BL-7D is TOP in its class.
Direct drive, long arm type, 1-needle, up & low feed, large bobbin, lock stitch sewing machine with automatic thread trimmer series.
Advanced technology, Optimized sewing condition for heavy materials.
Dual control system of presser foot and easy regulation of ascending amount of both main presser foot and auxiliary presser foot by dial are suitable for various sewing conditions such as the work for stepped and different thickness heavy duty material.
With applying reliable feed mechanism, firm stitches and best quality are guaranteed.
The best trimming mechanism for thick materials. The machine realizes structures of dual safety devices and strong trimming drive. The movable knife and fixed knife composed of special materials, not only performs strong trimming drive but guarantees excellent anti abrasion with perfect quality as a sewing for thick materials.
NOTE: * Excellent feeding properties for binding operations
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
* Phone: (256) 229-6595
* Email: cedar-special@collierequipment.com
Binders
Binder
This section explains Binders, how they look, how they perform, how they act and what you can expect from our Binders for the Sewn Products Industry.
Quickly and easily add a professional, finished edge to your sewn products. The binder automatically guides and folds binding into place over the edge of fabric as you sew so you no longer have to hem or trim the edges for a nice clean look.
Easily finish the edges of awnings, bags apparel of all types, and more with custom Binding attachments for your machines. Also available with a swing-out bracket that does not need to be removed after use. Just swing the binder out of the way.
Be sure to download the PDF brochure from our website that explains the finish of each type of Binder that we produce.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
* Phone: (256) 229-6595
* Email: folders@collierequipment.com
