Kansai Special
Browsing Kansai Special inside our premium line of Machine Brands.
Kansai Special

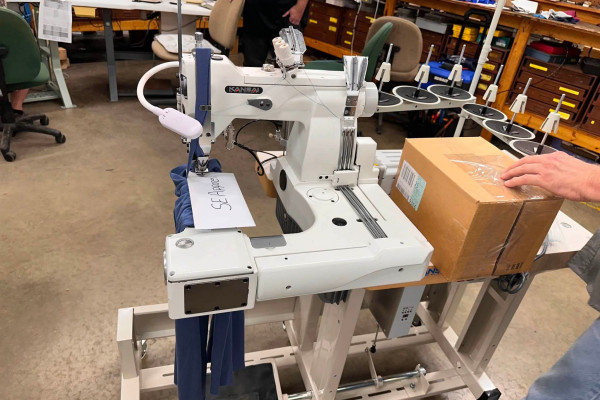

SQ7702FB
Kansai Special SQ7702FB-L/AP/DD
2 Needle, Double Chain Stitch, Feed off the arm for tape attaching.
Made in Japan with a differential feeding system for tape attaching with pneumatic foot lift. Optional manually operated pneumatic tape cutter.
* Features
* Differential feed mechanism to help prevent drag induced puckering.
* Oil filtering system for clean oil and long durability.
* Direct Drive
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
Phone: (256) 229-6595
Email: Kansai-Special@CollierEquipment.com
Kansai Special

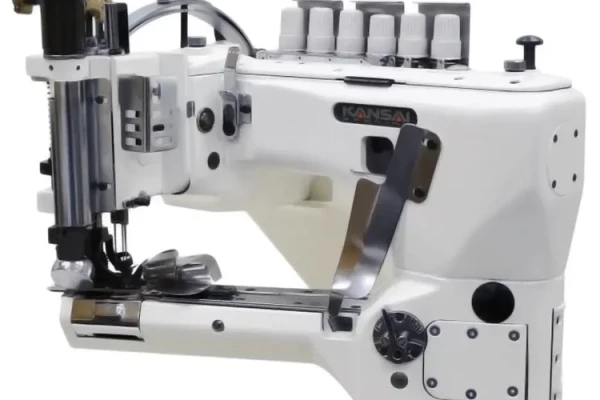

SX6803-PD
The Kansai Special SX6803-PD is a 3-needle, feed-off-the-arm double chain stitch machine built for lap seaming heavy fabrics like denim.
Key Specifications:
* Machine Type: 3-needle, feed-off-the-arm double chain stitch (Type 401) for lap seaming.
* Application: Heavy-weight materials like jeans and work pants.
* Max Sewing Speed: Up to 4,500 rpm.
* Needle System: TV × 3 (#21).
* Stitch Length: Up to 4.2 mm (approx. 6–12 stitches per inch).
* Presser Foot Lift: 8 mm maximum (Optional Pneumatic Foot Lift Device).
* Special Features: Equipped with a rear puller mechanism and differential feed for advanced fabric control over heavy cross seams.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
Phone: (256) 229-6595
Email: Kansai-Special@CollierEquipment.com
Kansai Special

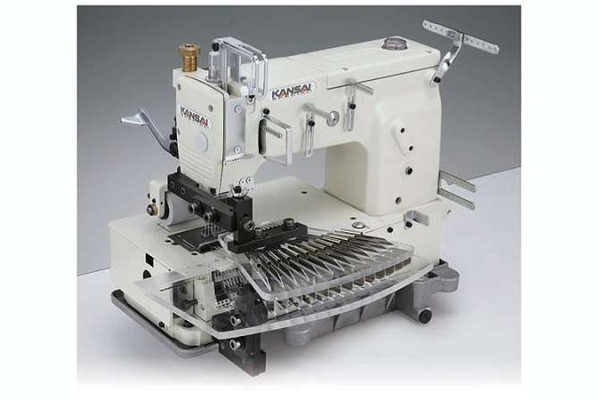

DFB-1412PTV
Flatbed, Pintucking machine ( a/k/a Tuxedo Pleat )
12 needle, flatbed, double chain stitch machine for pintucking operation.
The width of pin-tucking can be changed 2,5 and 8mm by changing the nail blades.
Needle gauge available: 3/16", 1/4", 3/8" & 1/2"
With Rear Puller.
Highly Specialized. Samples of thread, fabric and seam are required.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
Phone: (256) 229-6595
Email: Kansai-Special@CollierEquipment.com
