Button Attach

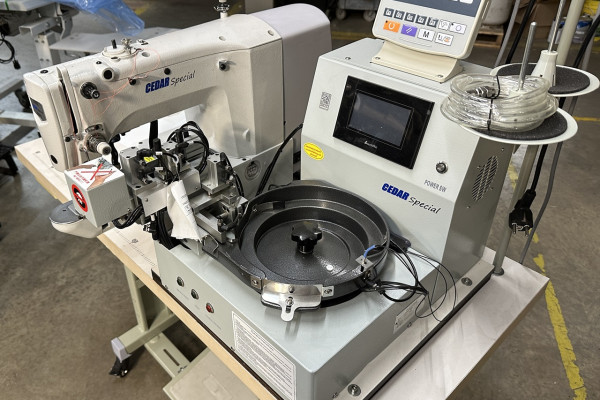

CS-1903-988
This CS-1903 series is an advanced, computer-controlled, high-speed lockstitch button sewing machine, and shown here with the 988 automated button feeding system. It is widely used in garment manufacturing for attaching flat or shank buttons quickly and consistently.
* Core Specifications
* Max Sewing Speed: Up to 2,700 stitches per minute (sti/min)
* Button Size Compatibility: Standard capacities from φ 8 mm to φ 32 mm depending on the subclass (e.g., 301, 302 options)
* Stitch Length: 0.1 to 10 mm (adjustable in 0.1 mm steps)
* Needle Bar Stroke: 45.7 mm
* Work Clamp Lift: Maximum of 13 mm
* Needle Type: DP × 17 (#14 standard)
* Lubrication System: Semi-dry head (frame requires no oil) with minute-quantity lubrication for the hook.
* Drive System: Direct-drive compact AC servomotor.
* Machine & Electronic Features
* Pre-Programmed Patterns: Comes standard with 50 different pre-programmed sewing patterns, supporting various button types (e.g., cross, parallel).
* Pattern Memory: Stores up to 20,000 to 500,000 stitches in internal memory depending on the specific model variation.
* Thread Tension Control: Employs Active Tension (electronic thread tension control) to match changing fabric thicknesses and threads.
* Automatic Thread Trimming: Streamlines workflow, reducing manual tasks and cycle times
* Data Management: Features a built-in USB port for updating software and data management; optional NFC functionality for sharing settings via Android is also supported.
* Custom Folders, Guides, Clamps and Pallets are available.
