Machines by Type
Browse our high-performance line of Machines by Type. Built for reliability, durability, and operational efficiency.
Walking Foot

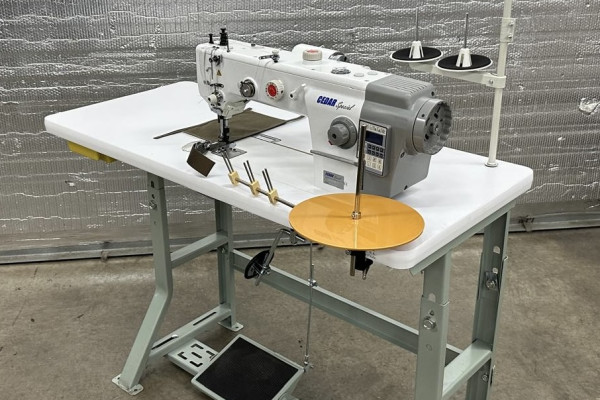

CS-6400BL-7D
The CS-6400BL-7D is TOP in its class.
Direct drive, long arm type, 1-needle, up & low feed, large bobbin, lock stitch sewing machine with automatic thread trimmer series.
Advanced technology, Optimized sewing condition for heavy materials.
Dual control system of presser foot and easy regulation of ascending amount of both main presser foot and auxiliary presser foot by dial are suitable for various sewing conditions such as the work for stepped and different thickness heavy duty material.
With applying reliable feed mechanism, firm stitches and best quality are guaranteed.
The best trimming mechanism for thick materials. The machine realizes structures of dual safety devices and strong trimming drive. The movable knife and fixed knife composed of special materials, not only performs strong trimming drive but guarantees excellent anti abrasion with perfect quality as a sewing for thick materials.
NOTE: * Excellent feeding properties for binding operations
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Walking Foot

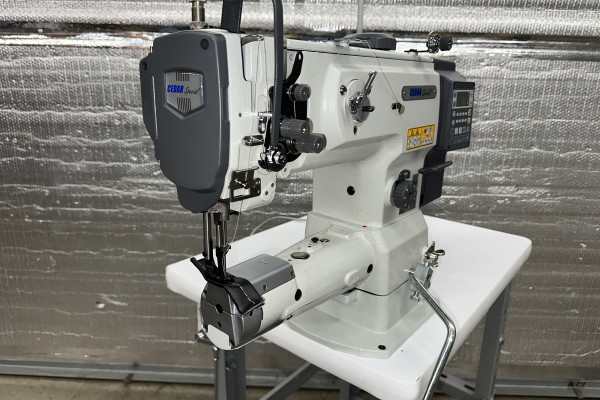

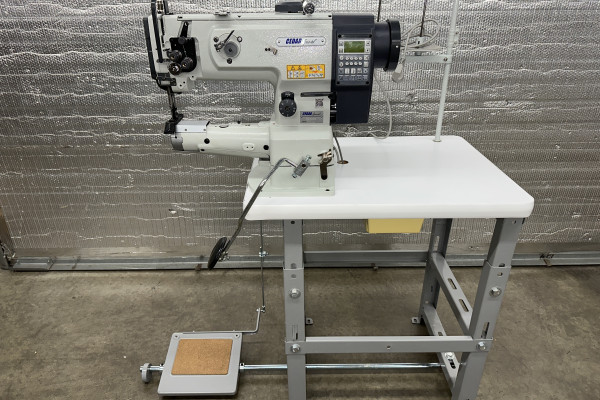

CS-1341D-7
Our CS-1341D-7 is a Direct Drive, Heavy-Duty, single-needle Cylinder-Bed, Walking Foot, lockstitch sewing machine. It is engineered for thick, demanding materials such as automotive interiors, leather goods, home upholstery, and heavy bags.
Specifications:
* Max Speed: 2,500
* Max Stitch Length: 8mm
* Working Space: 255mm Left to Right, 110mm Top to Bottom.
* Feed System: Compound feed (walking foot) and needle feed.
* Bed Type: Cylinder bed, which allows for easy manipulation of 3D, tubular, and curved items.
* Applications: Ideal for car seats, sofas, tents, luggage, and thick thread sewing.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Walking Foot

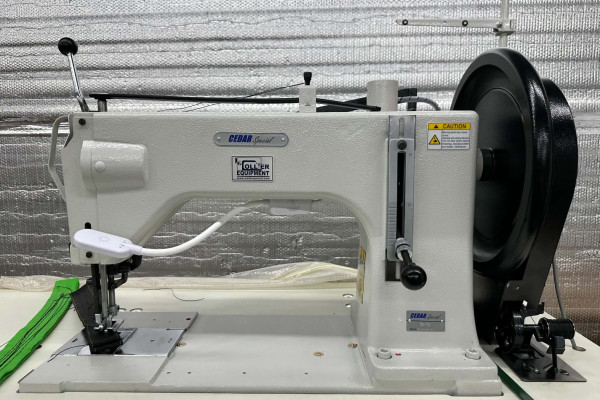

CS-733
The CS-733 is an Extra Heavy -Weight Material Super Large Shuttle, Top And Bottom Feed Sewing Machine.
A few features of the CS-733
*Work Area: 42cm
*With Backstitch + Foot Lift (pneumatic)
* For stitching extra heavy-weight materials. Can sew up to size Tex 556 cord (thread)
Designed for such operations and products as extra heavy duty harnesses and slings (can sew up to 18,000 lb. strength webbing,) safety and logging belts, cargo slings, tents, sails, tarpaulins and covers, fabric structures, construction barriers, buffing wheels, parachutes, balloons, industrial bags, boot stitching, book binding.
* Extra Heavy Duty, Long Arm, Single Needle, Drop Feed, Alternating, Presser Feet, Lockstitch Machine.
* With: Extra Large, Long Point, Oscillating Shuttle Hook and Bobbin, Extra High Foot Lift - (1-11/32” - 34 mm), Two Row Feeder and Reverse Feed.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Walking Foot

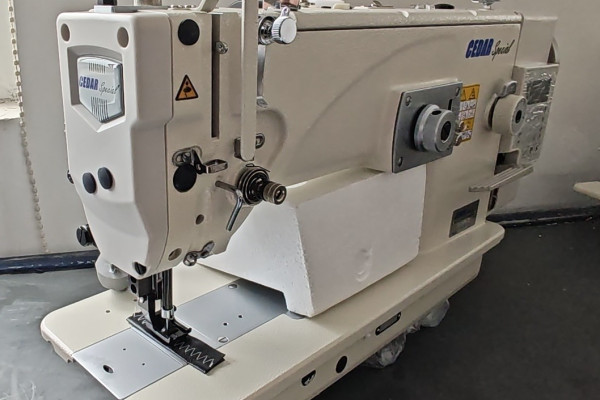

CS-2530-7C
The CS-2530-7C is a Direct Drive, Top & Bottom Feed, Zigzag.
Primary Features:
* 1 step 2 point
* Full function machine utilizes a synchronized top-and-bottom feed mechanism to prevent slippage when sewing thick, heavy layers. Designed for materials like leather, canvas, neoprene, and upholstery.
* Complimented with Automatic Thread Trim, Automatic Back Tack and Automatic Foot Lift.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Walking Foot

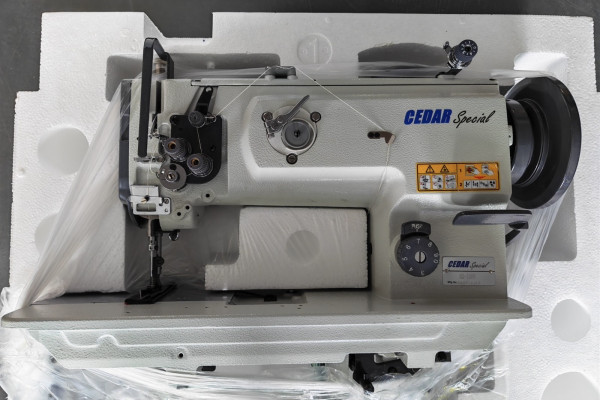

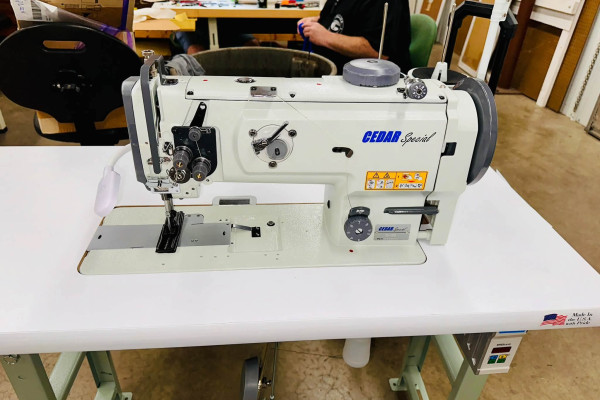

CS-1510N
The CS-1510N is a 1-Needle, Compound Feed Lockstitch.
Some features include:
* Work Space: 260X110mm
* Top Load Bobbin
* The CS-1510N is a heavy-duty, single-needle, unison-feed lockstitch machine with a compound walking foot, primarily used for leather, upholstery, and heavy canvas. It features a large-capacity bobbin, making it ideal for automotive interiors and furniture.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Walking Foot

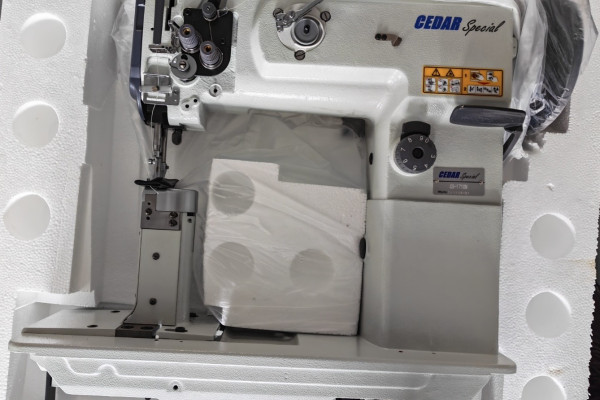

CS-1710N
Our CS-1710N is a post-bed, 1-needle, unison-feed lockstitch machine designed for heavy-duty applications like car seats, furniture, and leather goods. It features an alternating vertical movement mechanism to prevent irregular stitches and is prized by professionals for handling thick materials up to 16 mm thick.
Key Features:
*Belt type
* Feed Mechanism: Unison feed (drop feed, needle feed, and walking foot) prevents slippage when sewing multiple thick layers.
* Stitch Capacity: Handles large stitch lengths up to 9mm to 12mm, ideal for thick threads and decorative topstitching.
* Clearance: Post-bed height typically ranges between 7 to 8 inches, giving you excellent maneuverability for tight, inside curves and corners.
* Hook: Equipped with large vertical-axis hook or extra-large bobbins to accommodate thick industrial threads (like TEX 138) without constant refilling.
Usage and Applications
* Post-bed machines excel where flatbed machines fail: allowing irregular and pre-assembled 3D shapes to rotate freely around the elevated pillar.
* Bags & Footwear: Excellent for gussets, boxing, and adding structural piping.
* Topstitching: Many operators use spring-loaded edge-guide feet to achieve flawless parallel topstitching on curved edges.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Walking Foot

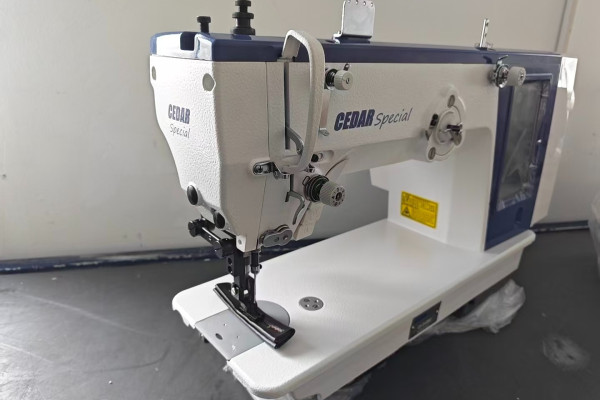

CS-2640Max
Our CS-2640Max is a heavy-duty compound feed lockstitch sewing machine. It is specifically engineered to handle multi-layered materials and thick fabrics, commonly used in professional manufacturing environments for specialized seaming and heavy textile work. The 2640Max belongs to our premium line of industrial sewing machines.
Key features include:
* Zig Zag, Direct Drive, Industrial Sewing Machine
* Top Feed and Bottom Feed mechanism.
* Compound Feed Mechanism: Features a needle-feed (or unison feed) system, ensuring thick materials are moved evenly without slipping.
* Material Handling: Built to sew heavy-weight textiles, making it ideal for canvas, leather, heavy upholstery, and webbing.
* Specialized Applications: Our 2640 series includes variations tailored for double-needle setups and side-cut lockstitch operations.
Anti Bird nest, Top-down Compound Feed Lockstitch.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Walking Foot

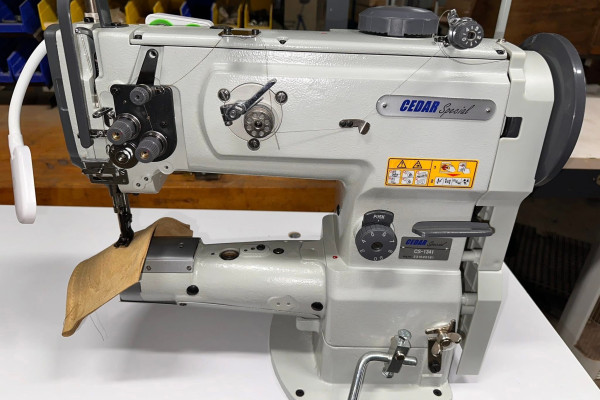

CS-1341
Our CS-1341 is a Belt Drive, heavy-duty, Single-Needle cylinder-bed compound feed, lockstitch sewing machine. It is engineered for thick, demanding materials such as automotive interiors, leather goods, home upholstery, and heavy bags. We provide with your choice of table, legs and Servo Motor.
Specifications:
* Max Speed: 2,500
* Max Stitch Length: 8mm
* Working Space: 255mm Left to Right, 110mm Top to Bottom.
* Feed System: Compound feed (walking foot) and needle feed.
* Bed Type: Cylinder bed, which allows for easy manipulation of 3D, tubular, and curved items.
* Applications: Ideal for car seats, sofas, tents, luggage, and thick thread sewing.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Walking Foot

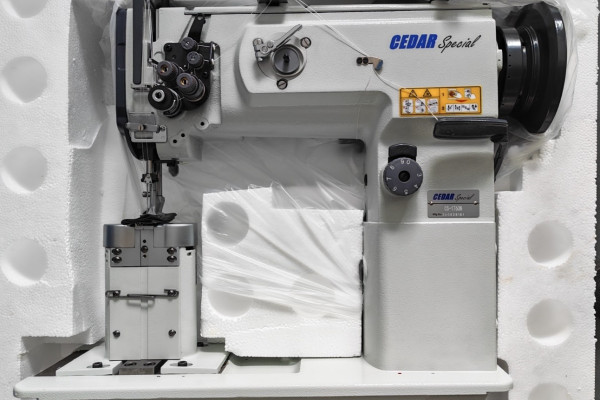

CS-1760N
Our CS-1760N is a post-bed, 2-needle, unison-feed lockstitch machine designed for heavy-duty applications like car seats, furniture, and leather goods. It features an alternating vertical movement mechanism to prevent irregular stitches and is prized by professionals for handling thick materials up to 16 mm thick.
Key Features:
*Belt type
* Needle Gauge : Available in different needle gauges.
* Feed Mechanism: Unison feed (drop feed, needle feed, and walking foot) prevents slippage when sewing multiple thick layers.
* Stitch Capacity: Handles large stitch lengths up to 9mm to 12mm, ideal for thick threads and decorative topstitching.
* Clearance: Post-bed height typically ranges between 7 to 8 inches, giving you excellent maneuverability for tight, inside curves and corners.
* Hooks: Equipped with large vertical-axis hooks or extra-large bobbins to accommodate thick industrial threads (like TEX 138) without constant refilling.
Usage and Applications
* Post-bed machines excel where flatbed machines fail: allowing irregular and pre-assembled 3D shapes to rotate freely around the elevated pillar.
* Bags & Footwear: Excellent for gussets, boxing, and adding structural piping.
* Topstitching: Many operators use spring-loaded edge-guide feet to achieve flawless parallel topstitching on curved edges.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Walking Foot

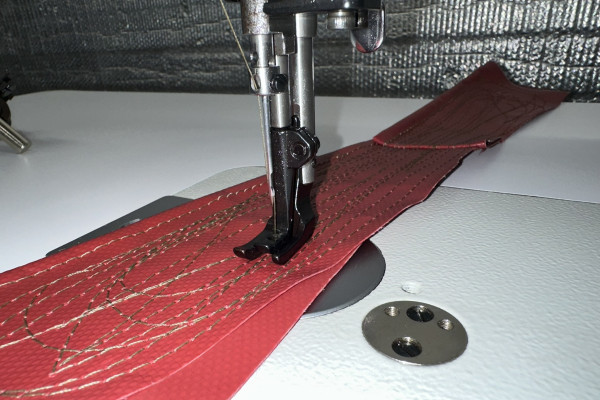

CS-1541S
The CEDAR Special CS-1541S is a Single Needle, Walking Foot machine.
* Key Features:
* Maximum Stitch Length: 9mm
* Foot Lift: 9mm by hand, 16mm with knee lever.
* Integrated Bobbin Winder
* Manual Reverse Lever
* Dual Thread Tension Control
* 30 LED Light w/ Magnetic Base, 3 levels, Touch Control.
* 750W Servo Motor ( Available in 110V or 220V )
* Standard Bobbin Case Opener
* Standard Safety Clutch
* Ease of Walking Foot Height Adjustment
* Common Uses Because of its power, you will find the 1541 in workshops that make:
* Marine or auto upholstery
* Heavy bags and backpacks
* Leather crafts (belts, wallets, heavy jackets)
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Walking Foot

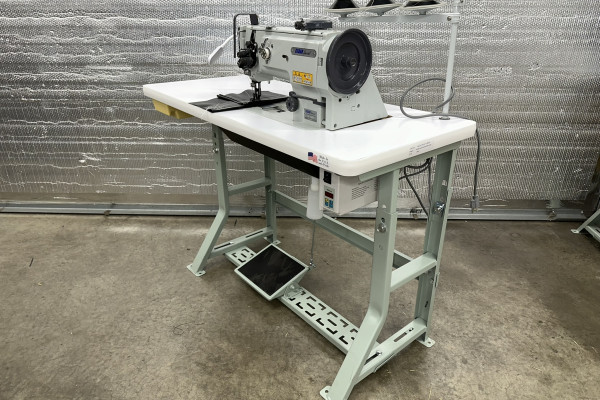

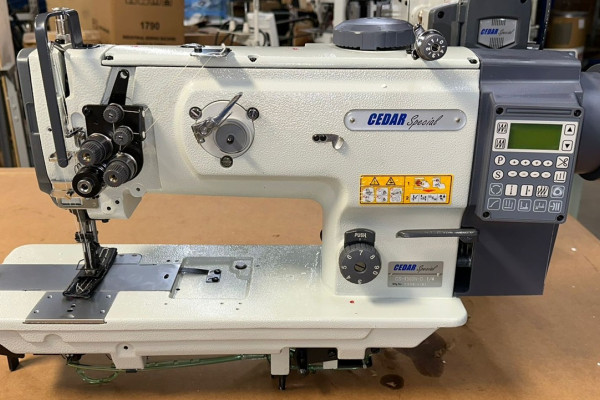

CS-1560N-7D
The CEDAR Special CS-1560N-7D is a heavy-duty, 2-needle unison-feed (walking foot) lockstitch machine featuring an automatic thread trimmer and an alternating foot stroke adjusting dial. It is purpose-built for heavy materials like leather, canvas, upholstery, and vinyl.
* Key Specifications
* Direct Drive
* Sewing Speed: Up to 2,500 stitches per minute (spi/min)
* Stitch Length: Up to 9 mm (both forward and reverse)
* Needle System: 135x17 (Sizes from Nm125 to Nm180)
* Needle Bar Stroke: 36 mm
* Presser Foot Lift: 9 mm (by hand), 16 mm (by knee or auto-lifter)
* Alternating Vertical Movement: Adjustable between 1 mm to 6.5 mm
* Hook: Vertical-axis double-capacity hooks
* Standard Needle Gauges: 1/4" (6.4 mm) (Available from 3/16" to 1/2")
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Walking Foot

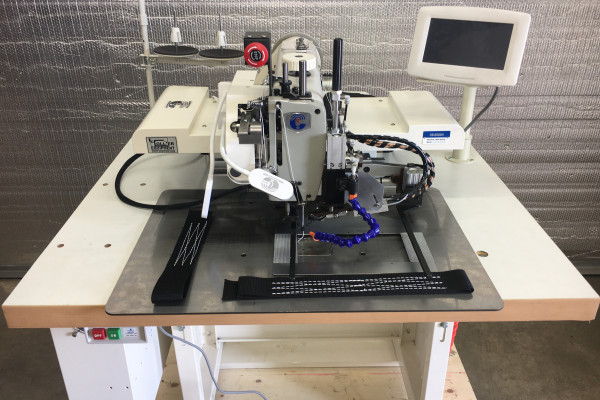

CS-3020H
The CS-3020H is our Heaviest programmable electronic pattern sewing machine for extra heavy duty lifting slings.
The special extra large shuttle hook and bobbin capacity offers high efficiency in sewing products using extra thick thread and has a thread rating up-to Metric size #4, V693, 2000dx3.
Advantages:
* Working Area: 300mm x 200mm
* Maximum Speed: 700 spm
* Trimming Mode: Electrical Heating Cut - Top & Bottom
* Motor: Stepping close-loop motor, synchronous belt, linear guide driven.
* Stitch Length: 0.10 - 12mm
* Presser Foot lifting height: 30mm
* Shuttle: Super Large Shuttle Hook
Can easily sew 6-8 ply synthetic webbing slings (3.5mm of each) or join two ropes and cords together with each of 28mm (independent break testing results show strengths similar to hand splicing, and in some cases exceeding the strength of the rope itself).
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Previous
Next
Showing 1 to 12 of 67 results
