Bartack
Browsing Bartack inside our premium line of Machine Types.
Bartack

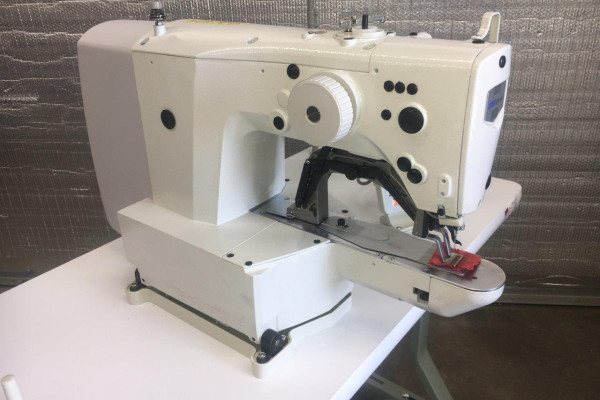

CS-1900
This CEDAR Special CS-1900A is a premium, computer-controlled, high-speed bartacking industrial sewing machine.
The sewing field is 30mm x 40mm and is capable of sewing speeds up to 3,200 stitches per minute.
The onboard touch screen programmer allows for maximum flexibility that can be tailored to your specific stitch specifications. PC programming is also available.
* Custom Folders, Binders, Hemmers, Guides, Pallets and Clamp Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: CEDAR-Special@CollierEquipment.com
Bartack

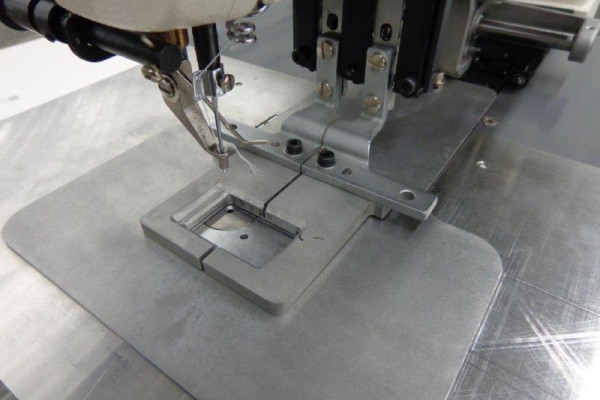

CS-1306
The digital sewing system of the CS-1306HS-22 offers Standard Clamping, Custom Engineered Clamping or Labor Saving Devices that are designed for specific operations.
Key Features and Benefits:
* Sewing Area: 130mm x 60mm.
* Shortened Cycle Time
* Onboard or PC Programmable Patterns.
* Speed: Achieves a maximum sewing speed of 2,500 stitches per minute. The machine reaches this speed by the third stitch and maintains it until the end of sewing, significantly reducing cycle time.
* Thread Trimming: Ensures speedy and consistent thread trimming performance.
* Main-Shaft Direct-Drive System: Enhances machine responsiveness.
* Improved Seam Quality
* Enhanced Feed Accuracy: The encoder-controlled X-Y drive stepping motor improves feed accuracy, reducing pattern deformation when sewing at high speeds or with heavy materials.
* Semi-Dry Head: Utilizes advanced dry technology to prevent oil stains on products.
* Programmable Intermediate Presser
* Adjustable Height: The intermediate presser height can be adjusted steplessly during sewing to accommodate multi-layered materials, preventing stitch skipping and thread breakage.
* Two Types of Feeding Frames
* Monolithic and Separately-Driven: The separately-driven feeding frame allows for easier placement of sewing materials, with adjustable lift and speed for each frame part.
* Double-Stepped Stroke Feeding Frame
* Convenient Positioning: Allows for fine positioning of materials with adjustable stopping height.
* Active Tension
* Precision Control: Enables pinpoint changes in needle thread tension during sewing, adjustable through the operation panel. This reduces setup time for process changes and supports a broader range of sewing conditions.
* Custom Folders, Binders, Hemmers, Guides, Pallets and Clamp Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: CEDAR-Special@CollierEquipment.com
Bartack

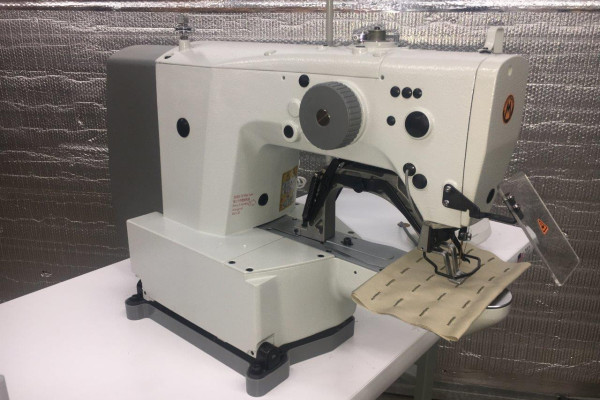

MB-1900
This Mauser Spezial MB-1900E is a premium, computer-controlled, high-speed bartacking industrial sewing machine.
The onboard touch screen programmer allows for maximum flexibility that can be tailored to your specific stitch specifications.
Some Features Include:
* PC programming is also available.
* This series of models has the functions of automatic thread trimming and automatic presser foot lifting, and the fully electronic design greatly improves work efficiency.
* The closed bearing box design still has good stability and vibration even at the maximum speed of 3,000 RPM.
* Within the range of 40×30mm, a variety of pre-programmed tacking patterns can be selected, as illustrated in the below pictures.
* This machine is so much more than just an ordinary bartack.
* We offer instructional videos for this machine.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: mauser-spezial@collierequipment.com
Bartack

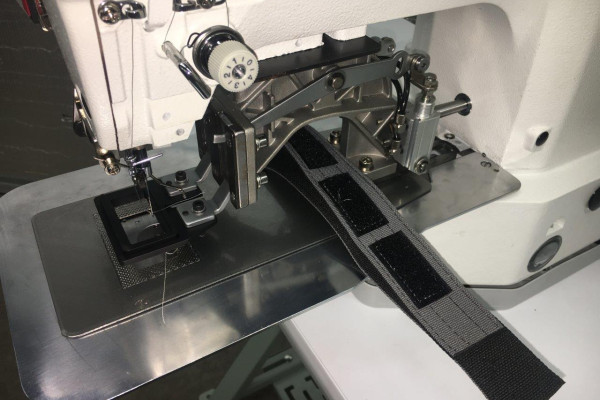

CS-0606
With powerful pneumatic clamping system, the CEDAR Special CS-0606 has a sewing field of 60mm x 60mm (2.36" x 2.36") and is a premium, computer-controlled, high-speed, programmable pattern, industrial sewing machine.
It is capable of sewing speeds up to 3,000 stitches per minute.
The onboard programmer allows for awesome flexibility that can be tailored to meet specific stitch specifications. PC programming is also available.
Minimal 2D programming ability is a plus for successful PC programming.
* Custom Folders, Binders, Hemmers, Guides, Pallets and Clamp Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: CEDAR-Special@CollierEquipment.com
Bartack

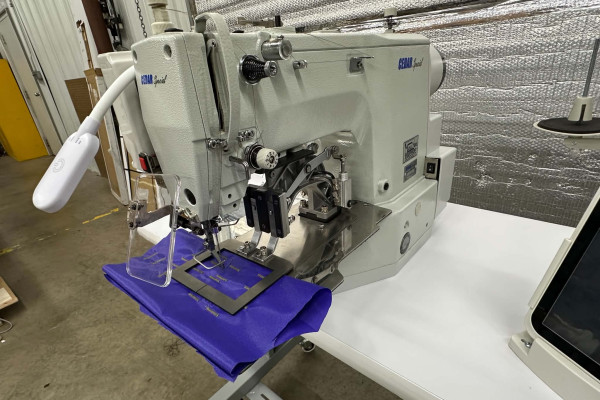

CS-430D-0906
Our CS-430D-0906 industrial, electronic Pattern and Bartack sewing machine. Designed for heavy-duty and high-speed production, it typically sews at up to 3,200 stitches per minute and features a 90 × 60 mm sewing area for bar tacks, box-X patterns, and custom stitching as your choose.
Features:
* Onboard Programming ( Dahao Touch screen )
* PC Programming is also available.
* Electronic Bar Tacking Sewing Machine
* 90mm x 60mm Sewing Field
* 3 pedal system
* Powerful left and right air clamps for maximum holding power!
* Available in other sizes.
* Custom Folders, Binders, Hemmers, Guides, Pallets and Clamp Sets for the Sewn Products Industry.
• Phone: (256) 229-6595
• Email: CEDAR-Special@CollierEquipment.com
Bartack
CS-430D-ATF-A
Model: CS430D-ATF-A
* Automated Fitting and Sewing Integrated Machine.
* For Seat Belts and other types of webbing products.
ADVANTAGES
One machine has multiple functions and can be used as a tape cutting machine through simple adjustments. Two cutting modes, cold cutting and hot cutting can be switched according to actual needs. Adjustable deviation correction function, accurate positioning before sewing, to ensure that the sewing ribbon head is neat and beautiful. Stepless width and narrow device (patented product), quickly adjust the feeding width. Keep the webbing centered at all times. Self-testing function, timely detection of faults and hidden dangers, providing fast and accurate service for maintenance.
Cutting & Bartacking: Built to feed material directly from a spool, measure/cut to length, fold the end (e.g., for backpack straps, harnesses, or loops), and execute high-strength pattern or bar-tack stitches in a single automated sequence. With features like large-capacity bobbins allow a single operator to manage multiple automated stations simultaneously.
APPLICATION
Suitable for folding and sewing all kinds of belts and tape heads.
Model
CS430D-ATF-A
Max Sewing Speed
3,000 spm
Folding Range
10 - 50
Sewing Width
16 - 40
Voltage
AC 220V 50Hz
Air Pressure
0.5Mpa 1.8L min
Sewing length
50 - 999mm
Hot Cutter Power
400W
* Custom Folders, Binders, Hemmers and Guides for the Sewn Products Industry
