Post Bed
Browsing Post Bed inside our premium line of Machines by Type.
Post Bed

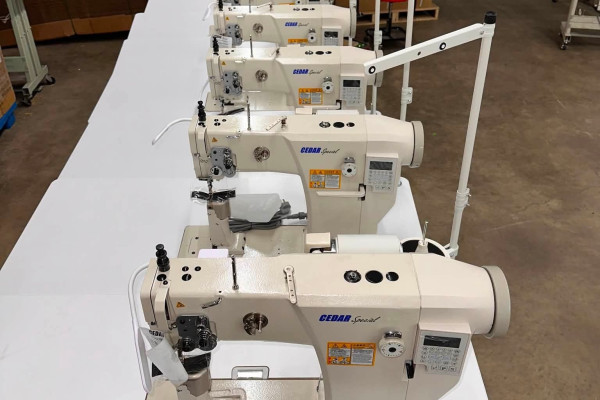

CS-1291-7D
The CEDAR Special CS-1291-7D is a Direct Drive, Needle Feed, Post Bed Machine.
Key Features:
* Single Needle
* Direct Drive
* Automatic Foot Lift
* Automatic Thread Trim
* Automatic Back Tack
* Voltage : 220v
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
Phone: (256) 229-6595
Email: cedar-special@collierequipment.com
Post Bed

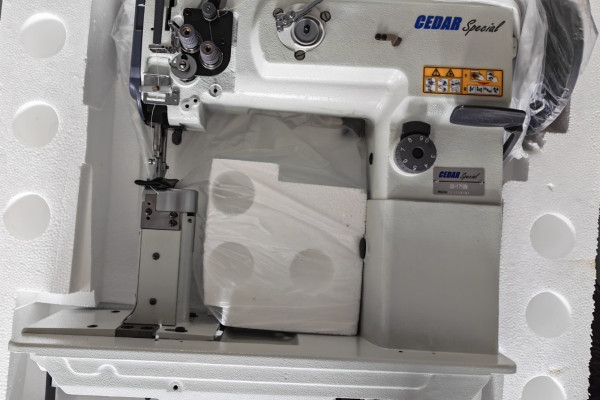

CS-1710N
Our CS-1710N is a post-bed, 1-needle, unison-feed lockstitch machine designed for heavy-duty applications like car seats, furniture, and leather goods. It features an alternating vertical movement mechanism to prevent irregular stitches and is prized by professionals for handling thick materials up to 16 mm thick.
Key Features:
*Belt type
* Feed Mechanism: Unison feed (drop feed, needle feed, and walking foot) prevents slippage when sewing multiple thick layers.
* Stitch Capacity: Handles large stitch lengths up to 9mm to 12mm, ideal for thick threads and decorative topstitching.
* Clearance: Post-bed height typically ranges between 7 to 8 inches, giving you excellent maneuverability for tight, inside curves and corners.
* Hook: Equipped with large vertical-axis hook or extra-large bobbins to accommodate thick industrial threads (like TEX 138) without constant refilling.
Usage and Applications
* Post-bed machines excel where flatbed machines fail: allowing irregular and pre-assembled 3D shapes to rotate freely around the elevated pillar.
* Bags & Footwear: Excellent for gussets, boxing, and adding structural piping.
* Topstitching: Many operators use spring-loaded edge-guide feet to achieve flawless parallel topstitching on curved edges.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: cedar-special@collierequipment.com
Post Bed

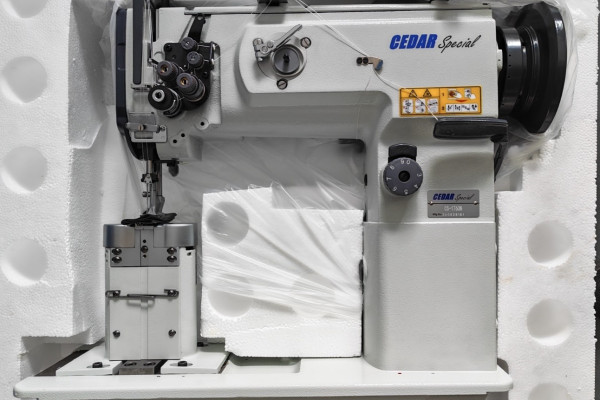

CS-1760N
Our CS-1760N is a post-bed, 2-needle, unison-feed lockstitch machine designed for heavy-duty applications like car seats, furniture, and leather goods. It features an alternating vertical movement mechanism to prevent irregular stitches and is prized by professionals for handling thick materials up to 16 mm thick.
Key Features:
* Belt type
* Needle Gauge : Available in different needle gauges.
* Feed Mechanism: Unison feed (drop feed, needle feed, and walking foot) prevents slippage when sewing multiple thick layers.
* Stitch Capacity: Handles large stitch lengths up to 9mm to 12mm, ideal for thick threads and decorative topstitching.
* Clearance: Post-bed height typically ranges between 7 to 8 inches, giving you excellent maneuverability for tight, inside curves and corners.
* Hooks: Equipped with large vertical-axis hooks or extra-large bobbins to accommodate thick industrial threads (like TEX 138) without constant refilling.
Usage and Applications
* Post-bed machines excel where flatbed machines fail: allowing irregular and pre-assembled 3D shapes to rotate freely around the elevated pillar.
* Bags & Footwear: Excellent for gussets, boxing, and adding structural piping.
* Topstitching: Many operators use spring-loaded edge-guide feet to achieve flawless parallel topstitching on curved edges.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: cedar-special@collierequipment.com
Post Bed

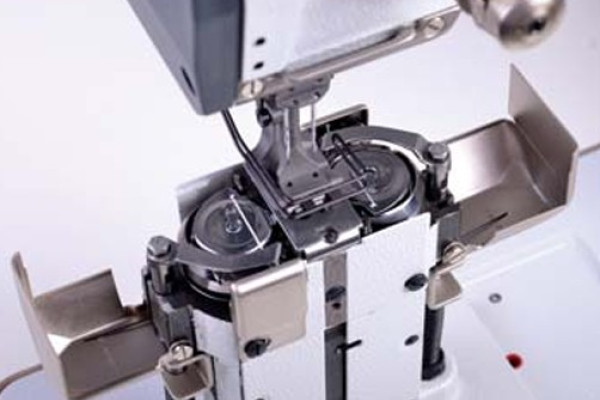

MH-1296
The Mauser Spezial MH-1296 has a Slim Post Bed for easy handling of materials, especially in garments and technical textiles.
Ergonomic design with a narrow post with lower transport wheel integrated into the post.
Tape Cutter
Electronically controlled and fully concealed tape cutter for precise cutting of up to 25mm wide tapes.
Integrated Touch Control Panel
Touch control panel for setting and storage of all relevant welding parameters.
SPECIAL FEATURES
● Unobstructed view of the stitching area .
● The post-bed design is ideal for handling shaped parts before or after they are closed.
● Trouble-free stitching over cross-seams with no difference in stitch length, due to the alternating top feed with 7 mm stroke.
● Accurate and consistent stitch formation on all materials, up to thread sizes of 15/3, synthetic.
● Uncomplicated mechanical system guarantees perfect function.
● Built-in bobbin winder within operator’s view
● Large vertical hook with 60% more thread capacity than conventional hook.
● Protection of the hook against thread jamming by built-in and easy-to-handle overload clutch as standard equipment
● High sewing output and easy operation due to time and cost-saving work aids, such as:
- Thread trimmer
- Automatic presser foot lift
- Back tacking mechanism
- Needle positioning mechanism
● Large fabric clearance of 14 mm for easier loading and removal of the work piece
● As an alternative available with a long stitch (up to 11 mm) for rustic stitching.
AREAS OF APPLICATION
Sewing of medium-heavy materials, e.g. furniture and car upholstery, leather clothing, leather goods, etc.
SUBCLASSES & WORK AIDS
- 6/01: For plain seaming operations.
- 17/01-940/01: Part set for binding, with balcony shaped needle plate for sewing convex-shaped work pieces (Binding attachment required as extra).
- 63/14: Fancy- and top-stitching operations, also on one-sided bulky cross-seams; compensating presser with seam guide, tape guide from below.
- 63/15: Fancy- and top-stitching operations, also on one-sided bulky cross-seams; compensating presser, pneumatically operated, engageable middle seam guide and tape guide from below.
- 900/56: Thread trimmer.
- 911/97: Automatic presser foot lift and back tacking (a pneumatic air filter / regulator is required)
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: mauser-spezial@collierequipment.com
Post Bed
MS-591
MS-591-900/83-910/17-911/50 BL5
Standard single needle post-bed lockstitch machine with wheel feed and driven roller presser (forward and backwards!)
Equipped with energy efficient, fully integrated sewing drive and built-in electromagnetic thread trimmer, seam back tacking and sewing foot lift. The machine does n,
The standard in shoe production!
Stitch-In-Stitch Backtacking
The lower feeding wheel as well as the upper roller presser are driven in sewing direction as well as sewing backwards when backtacking.
Integrated Key Bar
The integrated key bar allows seam backtacking and intermediate backtacking, backtack suppression and needle up position at sewing stop.
Electromagnetic Functions
The machine comes standard with 30mm roller presser (diameter). 25mm and 35mm roller presser are available as an option.
The small vertical hook ensures best sewing results on classic and sport shoes.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
* Phone: (256) 229-6595
* Email: mauser-spezial@collierequipment.com
