Programmable Pattern Tacker
Browsing Programmable Pattern Tacker inside our premium line of Machines by Type.
Programmable Pattern Tacker

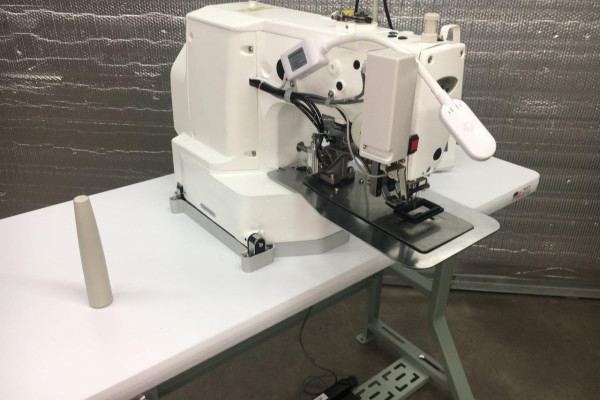

CS-0606
With powerful pneumatic clamping system, the CEDAR Special CS-0606 has a sewing field of 60mm x 60mm (2.36" x 2.36") and is a premium, computer-controlled, high-speed, programmable pattern, industrial sewing machine.
It is capable of sewing speeds up to 3,000 stitches per minute.
The onboard programmer allows for awesome flexibility that can be tailored to meet specific stitch specifications. PC programming is also available.
Minimal 2D programming ability is a plus for successful PC programming.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker

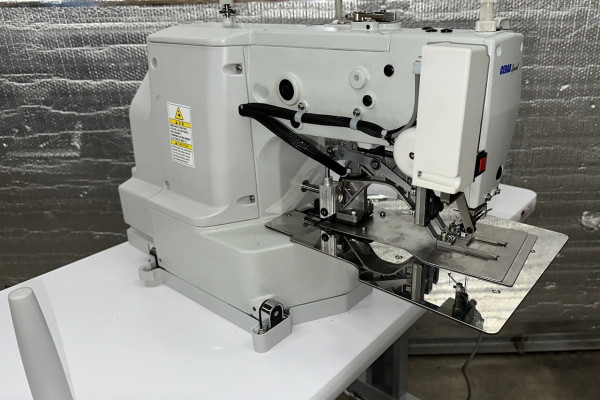

CS-430D-0906
Our CS-430D-0906 industrial, electronic Pattern and Bartack sewing machine. Designed for heavy-duty and high-speed production, it typically sews at up to 3,200 stitches per minute and features a 90 × 60 mm sewing area for bar tacks, box-X patterns, and custom stitching as your choose.
Features:
* Onboard Programming ( Dahao Touch screen )
* PC Programming is also available.
* Electronic Bar Tacking Sewing Machine
* 90mm x 60mm Sewing Field
* 3 pedal system
* Powerful left and right air clamps for maximum holding power!
* Available in other sizes.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker

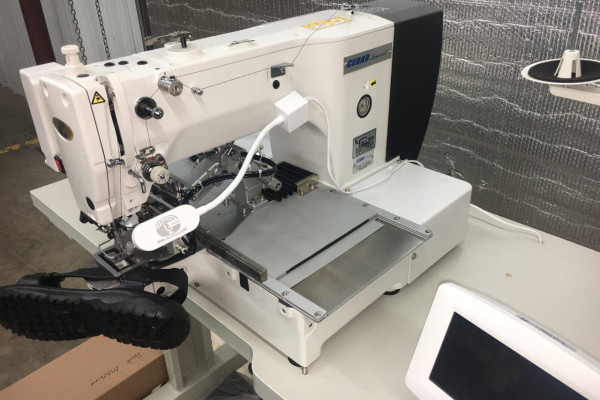

CS-326G
The CEDAR Special CS-326G is an advanced, direct-drive, programmable electronic pattern sewer with a cylinder bed. It delivers a max sewing speed of 2,700 stitches per minute within a sewing area of 220 mm × 100 mm.
This machine is ideal for heavy-duty stitching on materials like canvas, bags, and mattress handles.
Key Machine Specifications
* Sewing Area: 220 mm × 100 mm (Option for 130 mm × 100 mm).
* Max Sewing Speed: 2,700 stitches per minute.
* Max Stitch Length: 0.05 to 12.7 mm
* Memory Capacity: Up to 512–520 stored programs or patterns.
* Work Clamp Lift: 19.5 mm (presser foot) and 30 mm (clamp foot).
* Onboard or PC Programming.
** Also available with Slide Device for attaching hook, loop, labels, and other hard-to-handle small parts **
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker

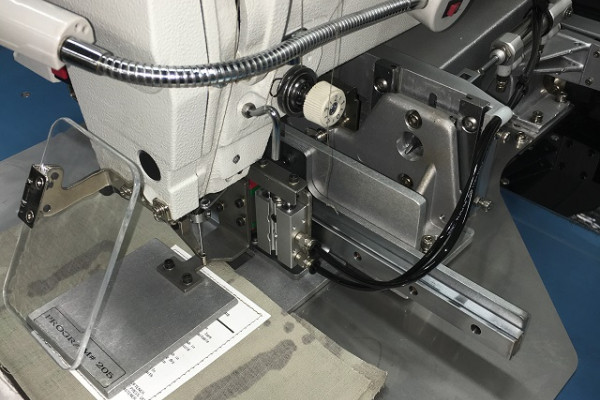

CS-342G
The CEDAR Special CS-342G is an advanced, direct-drive, programmable electronic pattern sewer with a cylinder bed. It delivers a max sewing speed of 2,300 stitches per minute.
This machine is ideal for heavy-duty stitching on materials like canvas, bags, and mattress handles.
Key Machine Specifications
* Sewing Area: 300 mm × 200 mm (Option for 130 mm × 100 mm).
* Max Sewing Speed: 2,300 stitches per minute.
* Max Stitch Length: 0.05 to 12.7 mm
* Memory Capacity: Up to 512–520 stored programs or patterns.
* Work Clamp Lift: 19.5 mm (presser foot) and 30 mm (clamp foot).
* Onboard or PC Programming.
** Also available with Slide Device for attaching hook, loop, labels, and other hard-to-handle small parts **
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker

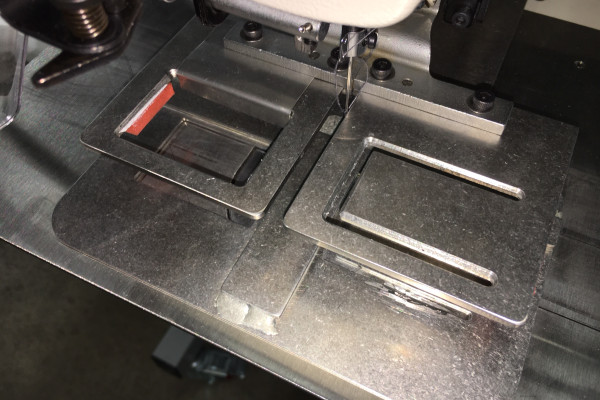

CS-1306
The digital sewing system of the CS-1306HS-22 offers Standard Clamping, Custom Engineered Clamping or Labor Saving Devices that are designed for specific operations.
Key Features and Benefits:
* Sewing Area: 130mm x 60mm.
* Shortened Cycle Time
* Onboard or PC Programmable Patterns.
* Speed: Achieves a maximum sewing speed of 2,500 stitches per minute. The machine reaches this speed by the third stitch and maintains it until the end of sewing, significantly reducing cycle time.
* Thread Trimming: Ensures speedy and consistent thread trimming performance.
* Main-Shaft Direct-Drive System: Enhances machine responsiveness.
* Improved Seam Quality
* Enhanced Feed Accuracy: The encoder-controlled X-Y drive stepping motor improves feed accuracy, reducing pattern deformation when sewing at high speeds or with heavy materials.
* Semi-Dry Head: Utilizes advanced dry technology to prevent oil stains on products.
* Programmable Intermediate Presser
* Adjustable Height: The intermediate presser height can be adjusted steplessly during sewing to accommodate multi-layered materials, preventing stitch skipping and thread breakage.
* Two Types of Feeding Frames
* Monolithic and Separately-Driven: The separately-driven feeding frame allows for easier placement of sewing materials, with adjustable lift and speed for each frame part.
* Double-Stepped Stroke Feeding Frame
* Convenient Positioning: Allows for fine positioning of materials with adjustable stopping height.
* Active Tension
* Precision Control: Enables pinpoint changes in needle thread tension during sewing, adjustable through the operation panel. This reduces setup time for process changes and supports a broader range of sewing conditions.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker

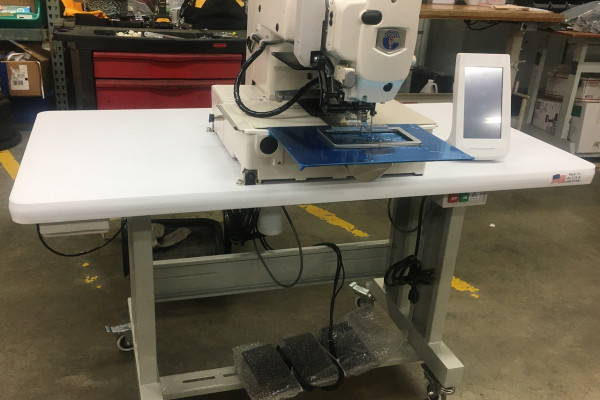

CS-1965
Our CS-1965 is a Direct Drive High Speed, Electronic Pattern Tacker that is designed to sew bar tacks and other patterns on a variety of materials. The Graphic Touch Screen Control Panel allows the operator to create custom pattern designs. Air is NOT required for this machine.
* Key Features
* Direct Drive Servo Motor
* Jump Foot (Programmable Height Adjustment)
* 60mm x 50mm (2.36" x 1.96") Sewing Area
* Graphic Touch Screen for "Custom Programs"
* Easily Adjustable Sewing Speed
* 100 Pre-Programmed Patterns
* Automatic Foot Lifter
* Automatic Thread Trimmer
* Electronic Tension Opener
* Integrated Bobbin Winder
* External LED30 Light
* Complete with Table and Heavy-Duty Height Adjustable Stand.
* Single-Stage Clamp with 2-Step Remote Pedal Controls.
* 220V Single Phase (Voltage converter is available)
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker

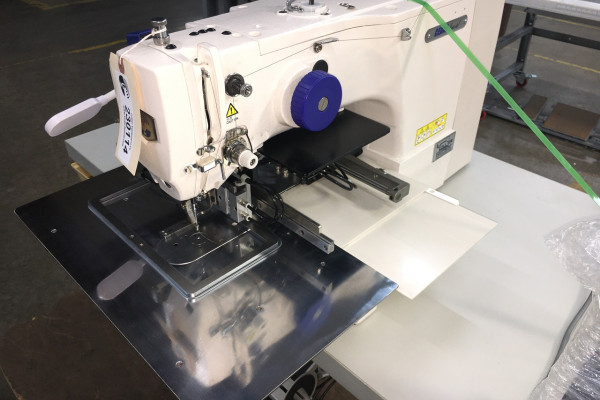

CS-2210
The CEDAR Special CS- 2210 is an industrial, computer-controlled pattern sewing machine featuring a 220 mm × 100 mm sewing area that is designed for high-speed shape-tacking, attaching labels/emblems, sewing small parts, and stitching jean pockets.
* Core Specifications & Features
* Sewing Area: 220 mm (X) × 100 mm (Y)
* Max Sewing Speed: 2,800 stitches/min (sti/min)Drive System:
* Main-shaft direct-drive system with a compact AC servomotor
* Memory Capacity: Up to 999 patterns and 500,000 stitches
* Active Thread Tension: Digitally controlled tension allows for precise, repeatable seam quality
* Productivity Advantages
* Fast Acceleration: Reaches the maximum 2,800 sti/min by the second stitch and maintains it until the end of the seam, drastically reducing cycle times.
* Active Tension Mechanism: Needle thread tension can be adjusted digitally from the touch screen to suit varying material thicknesses and stitch lengths.
* Semi-Dry Head: Minimizes the risk of oil stains on finished garments by using grease lubrication for the needle bar and thread take-up, paired with a minimum-oil-quantity mechanism for the hook.
* Available Options
* Pneumatic Feeding Frame: Holds materials securely in place, ideal for heavy webbing or thick layered materials.
* Separate Two-Step Clamping: Allows the left and right clamps to operate independently for easier, perfectly aligned material positioning.
* Touch Panel Control: Models usually come with the IP-420 control panel for editing, data input, and easy pattern selection.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker

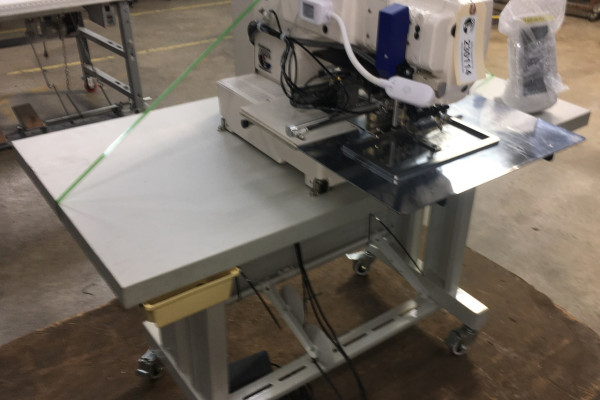

CS-2210+SD
The CEDAR Special CS- 2210+SD has all of the benefits of the basic 2210 with the added feature of the Slide Device for attaching small cut parts. It is an industrial, computer-controlled pattern sewing machine featuring a 220 mm × 100 mm sewing area that is designed for high-speed shape-tacking, attaching labels/emblems, sewing small parts, and stitching jean pockets.
* Core Specifications & Features
* Sewing Area: 220 mm (X) × 100 mm (Y)
* Max Sewing Speed: 2,800 stitches/min (spi/min)
*Drive System: Main-shaft direct-drive system with a compact AC servomotor.
* Memory Capacity: Up to 999 patterns and 500,000 stitches
* Active Thread Tension: Digitally controlled tension allows for precise, repeatable seam quality
* Productivity Advantages
* Fast Acceleration: Reaches the maximum 2,800 spi/min by the second stitch and maintains it until the end of the seam, drastically reducing cycle times.
* Active Tension Mechanism: Needle thread tension can be adjusted digitally from the touch screen to suit varying material thicknesses and stitch lengths.
* Semi-Dry Head: Minimizes the risk of oil stains on finished garments by using grease lubrication for the needle bar and thread take-up, paired with a minimum-oil-quantity mechanism for the hook.
* Available Options
* Pneumatic Feeding Frame: Holds materials securely in place, ideal for heavy webbing or thick layered materials.
* Separate Two-Step Clamping: Allows the left and right clamps to operate independently for easier, perfectly aligned material positioning.
* Touch Panel Control: Models come with the control panel for editing, data input, and easy pattern selection.
* Custom Clamping is a must for this application to be successful *
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker

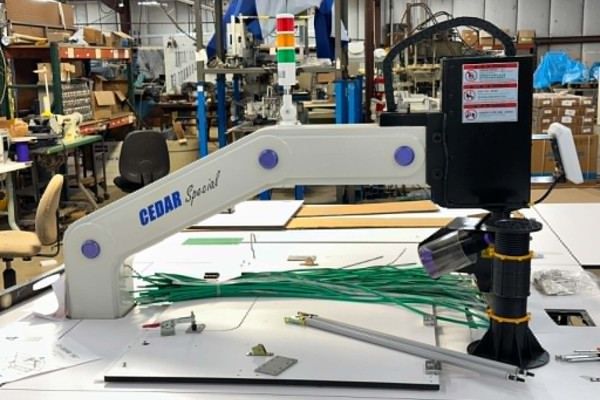

CS-2690H-360
Our CS-26090H-360 is our largest Programmable Pattern machine (so far). The sewing head turns in a complete 360° circle for near-perfect stitching. Used in operations like Home Décor, Large Interior Patterns to be seamless and much more.
* Some features of the machine include:
* Sewing Speed: 2,500 spm, (XY Axis moving speed maximum 10meters/minute.
* Hook: 2X Japan Hirose Hook / Koban Hook (3X Size Hook is Optional).
* Uses latest A8 CPU, Disk/USB Date Memory, XYZ Servo Motor, Highly Accurate (to 0.001mm).
* All templates work with Intelligent Judgement.
* Thread - Break Detector. (Bottom thread stitch quantity is optional).
*Sewing Area: X = 2,500mm, Y = 900mm. Larger sizes may be built.
* Needle Type: DPx5 / DPx17
* Sewing Thickness: 0.1mm - 10mm.
* Presser Foot: Electropneumatic.
* Applications: Tents, Sleeping Mats, Drapes, Banners, etc...
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker
CS-3020+SD
The CEDAR Special CS-3020+SD has all of the benefits, including the Slide Device for attaching small cut parts. It is an industrial, computer-controlled pattern sewing machine featuring a 300 mm × 200 mm sewing area that is designed for high-speed shape-tacking, attaching labels/emblems, sewing small parts, and attaching jeans or t-shirt pockets.
* Core Specifications & Features
* Sewing Area: 300 mm (X) × 200 mm (Y)
* Max Sewing Speed: 2,800 stitches/min (sti/min)
*Drive System: Main-shaft direct-drive system with a compact AC servomotor.
* Memory Capacity: Up to 999 patterns and 500,000 stitches
* Active Thread Tension: Digitally controlled tension allows for precise, repeatable seam quality.
* Productivity Advantages
* Fast Acceleration: Reaches the maximum 2,800 sti/min by the second stitch and maintains it until the end of the seam, drastically reducing cycle times.
* Active Tension Mechanism: Needle thread tension can be adjusted digitally from the touch screen to suit varying material thicknesses and stitch lengths.
* Semi-Dry Head: Minimizes the risk of oil stains on finished garments by using grease lubrication for the needle bar and thread take-up, paired with a minimum-oil-quantity mechanism for the hook.
* Available Options
*Pneumatic Feeding Frame: Holds materials securely in place, ideal for heavy webbing or thick layered materials.
* Separate Two-Step Clamping: Allows the left and right clamps to operate independently for easier, perfectly aligned material positioning.
* Touch Panel Control: Models usually come with the control panel for editing, data input, and easy pattern selection.
* Custom Clamping is a must for this application to be successful *
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker
CS-2210+SDXL
The CEDAR Special CS- 2210+SDXL has all of the benefits of the basic 2210+SD with the added feature of the EXTRA LONG Slide Device for attaching longer pre-cut parts. It is an industrial, computer-controlled pattern sewing machine featuring a 220 mm × 100 mm sewing area that is designed for high-speed shape-tacking, attaching labels/emblems, sewing small parts, and stitching jean pockets.
* Core Specifications & Features
* Sewing Area: 220 mm (X) × 100 mm (Y)
* Max Sewing Speed: 2,800 stitches/min (spi/min)
*Drive System: Main-shaft direct-drive system with a compact AC servomotor.
* Memory Capacity: Up to 999 patterns and 500,000 stitches
* Active Thread Tension: Digitally controlled tension allows for precise, repeatable seam quality.
* Productivity Advantages
* Fast Acceleration: Reaches the maximum 2,800 spi/min by the second stitch and maintains it until the end of the seam, drastically reducing cycle times.
* Active Tension Mechanism: Needle thread tension can be adjusted digitally from the touch screen to suit varying material thicknesses and stitch lengths.
* Semi-Dry Head: Minimizes the risk of oil stains on finished garments by using grease lubrication for the needle bar and thread take-up, paired with a minimum-oil-quantity mechanism for the hook.
* Available Options:
*Pneumatic Feeding Frame: Holds materials securely in place, ideal for heavy webbing or thick layered materials.
* Separate Two-Step Clamping: Allows the left and right clamps to operate independently for easier, perfectly aligned material positioning.
* Touch Panel Control: Models usually come with the control panel for editing, data input, and easy pattern selection.
* Custom Clamping is a must for this application to be successful *
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker

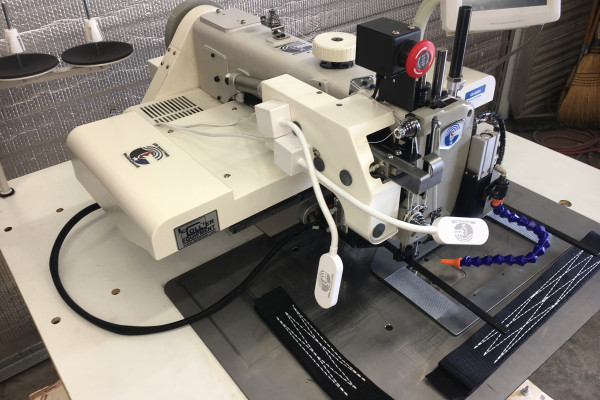

CS-3020H
The CS-3020H is our Heaviest programmable electronic pattern sewing machine for extra heavy duty lifting slings.
The special extra large shuttle hook and bobbin capacity offers high efficiency in sewing products using extra thick thread and has a thread rating up-to Metric size #4, V693, 2000dx3.
Advantages:
* Working Area: 300mm x 200mm
* Maximum Speed: 700 spm
* Trimming Mode: Electrical Heating Cut - Top & Bottom
* Motor: Stepping close-loop motor, synchronous belt, linear guide driven.
* Stitch Length: 0.10 - 12mm
* Presser Foot lifting height: 30mm
* Shuttle: Super Large Shuttle Hook
Can easily sew 6-8 ply synthetic webbing slings (3.5mm of each) or join two ropes and cords together with each of 28mm (independent break testing results show strengths similar to hand splicing, and in some cases exceeding the strength of the rope itself).
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
