Automated Sewing
Browse our high-performance line of Automated Sewing. Built for reliability, durability, and operational efficiency.
CEDAR Systems Automated
215-A.CP
The CEDAR Systems 215-A is modeled after the historic and original Exkell machine that was granted a patent on November 11, 1975.
* Primary Sewing Head is Kansai Special DLR-1508 (Max 3,500 SPM). Other sewing heads may be adapted.
* Machine can be built for Center Pleat (Placket) or Front Hem.
* Machine can be used with or without lining. Please specify when ordering.
* Independently controlled Sewing Head speed and Conveyor speed (Efka DC Drives)
* Complete with Thread Sensors, Cut-Apart (for lining or thread) and Saddle style stacker.
* Sewing Head slide-out for easy maintenance.
* Pre-programmed with Maintenance Functions.
* Level-Locking Casters for easy mobility and stability.
* 50 LED light.
* Easy to clean and maintain for years of service.
- Specific notes were received via phone calls from the inventor and designer of the Original Exkell Center Pleat Machine. Mr. Farney was kind enough to give me his blessing and part of his knowledge to lead me in the right direction so I could successfully re-invent his original machine that he patented in November of 1975. What an awesome gentleman and inventor.
CEDAR Systems Automated

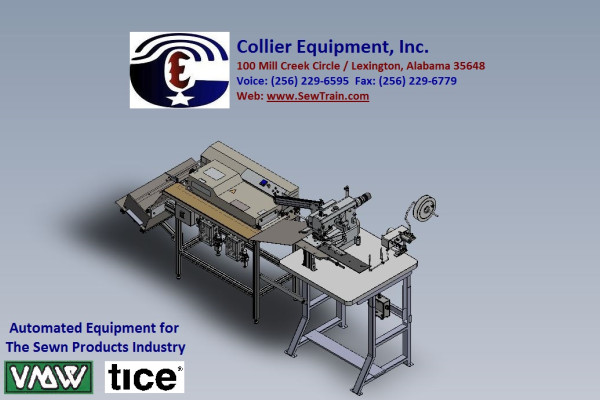

CS-600
The CEDAR Systems Model CS-600 is a Cover Stitch Pocket Hem with fusible lining, with automatic cut apart, fuse and stack.
CEDAR Systems Devices are Operator and Technician Friendly.
Making Sewn Products Automation EASY to Use & Maintain.
- Training Time for CS-600: About 5 days.
- Production: Up to 10 Hemmed, Lined & Fused per Minute.
- 4 Easy Steps: Sewn, Transfer, Fused & Stacked.
- Stacking Platform with Adjustable Indexing Tray.
- May also be adapted for Sleeve Hem
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
CEDAR Systems Automated

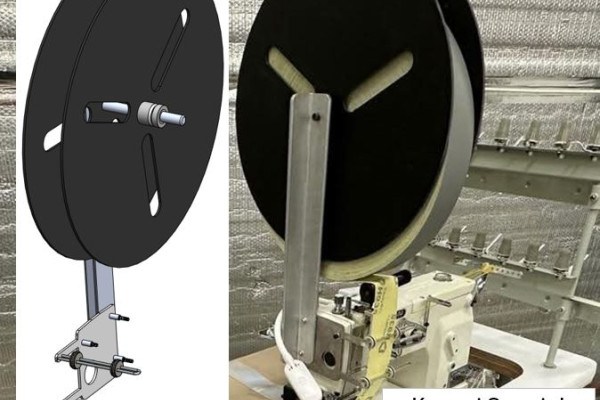

Tape Guide Assembly ( Upper )
CEDAR Systems Labor Saving Device
* Overhead reels to hold rolls of materials such as Hook & Loop, Striping Materials, Webbing, Lining, Keder, Silicone, Zipper, Cord, etc.
* Can be custom configured to fit your specific application.
* Large roll feeders are also available.
* Custom Guides are available *
* Can be custom designed for your specific application(s).
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Labor Saving Devices
Custom Pallets
We design Custom Pallets to suit your specific applications using the most advantageous materials to make them relatively light weight and strong for many production cycles.
Sample materials and products may be needed.
* Contact us for your Custom Folders, Guides, Clamps and Pallets.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Labor Saving Devices

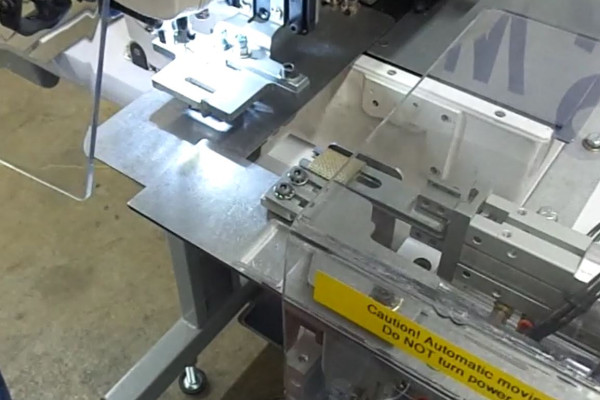

CS-1306
The digital sewing system of the CS-1306HS-22 offers Standard Clamping, Custom Engineered Clamping or Labor Saving Devices that are designed for specific operations along with the following Key Features and Benefits:
* Sewing Area: 130mm x 60mm.
* Shortened Cycle Time
* Onboard or PC Programmable Patterns.
* Speed: Achieves a maximum sewing speed of 2,500 stitches per minute. The machine reaches this speed by the third stitch and maintains it until the end of sewing, significantly reducing cycle time.
* Thread Trimming: Ensures speedy and consistent thread trimming performance.
* Main-Shaft Direct-Drive System: Enhances machine responsiveness.
* Improved Seam Quality
* Enhanced Feed Accuracy: The encoder-controlled X-Y drive stepping motor improves feed accuracy, reducing pattern deformation when sewing at high speeds or with heavy materials.
* Semi-Dry Head: Utilizes advanced dry technology to prevent oil stains on products.
* Programmable Intermediate Presser
* Adjustable Height: The intermediate presser height can be adjusted steplessly during sewing to accommodate multi-layered materials, preventing stitch skipping and thread breakage.
* Two Types of Feeding Frames
* Monolithic and Separately-Driven: The separately-driven feeding frame allows for easier placement of sewing materials, with adjustable lift and speed for each frame part.
* Double-Stepped Stroke Feeding Frame
* Convenient Positioning: Allows for fine positioning of materials with adjustable stopping height.
* Active Tension
* Precision Control: Enables pinpoint changes in needle thread tension during sewing, adjustable through the operation panel. This reduces setup time for process changes and supports a broader range of sewing conditions.
Labor Saving Devices

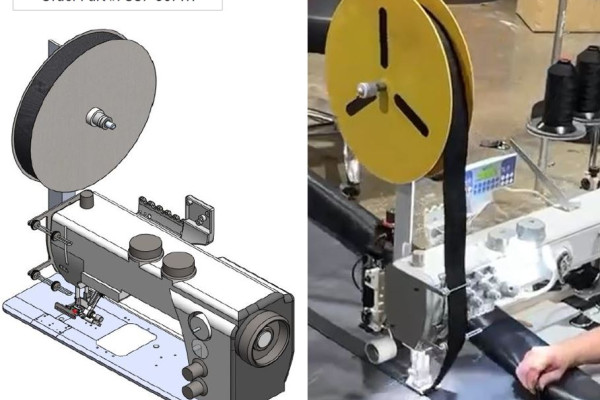

Tape Guide Assembly ( Upper )
CEDAR Systems Labor Saving Device
* Overhead reels to hold rolls of materials such as Hook & Loop, Striping Materials, Webbing, Lining, Keder, Silicone, Zipper, Cord, etc.
* Can be custom configured to fit your specific application.
* Large roll feeders are also available.
* Custom Guides are available *
* Can be custom designed for your specific application(s).
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Labor Saving Devices

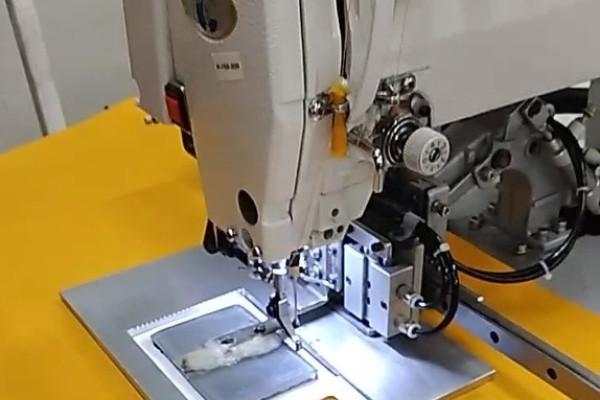

CS-2210
The CEDAR Special CS- 2210 is an industrial, computer-controlled pattern sewing machine featuring a 220 mm × 100 mm sewing area that is designed for high-speed shape-tacking, attaching labels/emblems, sewing small parts, and stitching jean pockets.
* Core Specifications & Features
* Sewing Area: 220 mm (X) × 100 mm (Y)
* Max Sewing Speed: 2,800 stitches/min (sti/min)Drive System:
* Main-shaft direct-drive system with a compact AC servomotor
* Memory Capacity: Up to 999 patterns and 500,000 stitches
* Active Thread Tension: Digitally controlled tension allows for precise, repeatable seam quality
* Productivity Advantages
* Fast Acceleration: Reaches the maximum 2,800 sti/min by the second stitch and maintains it until the end of the seam, drastically reducing cycle times.
* Active Tension Mechanism: Needle thread tension can be adjusted digitally from the touch screen to suit varying material thicknesses and stitch lengths.
* Semi-Dry Head: Minimizes the risk of oil stains on finished garments by using grease lubrication for the needle bar and thread take-up, paired with a minimum-oil-quantity mechanism for the hook.
* Available Options
* Pneumatic Feeding Frame: Holds materials securely in place, ideal for heavy webbing or thick layered materials.
* Separate Two-Step Clamping: Allows the left and right clamps to operate independently for easier, perfectly aligned material positioning.
* Touch Panel Control: Models usually come with the IP-420 control panel for editing, data input, and easy pattern selection.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Labor Saving Devices

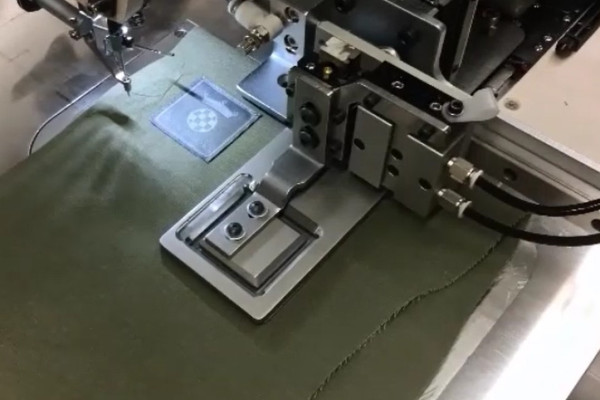

CS-2210+SD
The CEDAR Special CS- 2210+SD has all of the benefits of the basic 2210 with the added feature of the Slide Device for attaching small cut parts. It is an industrial, computer-controlled pattern sewing machine featuring a 220 mm × 100 mm sewing area that is designed for high-speed shape-tacking, attaching labels/emblems, sewing small parts, and stitching jean pockets.
* Core Specifications & Features
* Sewing Area: 220 mm (X) × 100 mm (Y)
* Max Sewing Speed: 2,800 stitches/min (spi/min)
*Drive System: Main-shaft direct-drive system with a compact AC servomotor.
* Memory Capacity: Up to 999 patterns and 500,000 stitches
* Active Thread Tension: Digitally controlled tension allows for precise, repeatable seam quality
* Productivity Advantages
* Fast Acceleration: Reaches the maximum 2,800 spi/min by the second stitch and maintains it until the end of the seam, drastically reducing cycle times.
* Active Tension Mechanism: Needle thread tension can be adjusted digitally from the touch screen to suit varying material thicknesses and stitch lengths.
* Semi-Dry Head: Minimizes the risk of oil stains on finished garments by using grease lubrication for the needle bar and thread take-up, paired with a minimum-oil-quantity mechanism for the hook.
* Available Options
* Pneumatic Feeding Frame: Holds materials securely in place, ideal for heavy webbing or thick layered materials.
* Separate Two-Step Clamping: Allows the left and right clamps to operate independently for easier, perfectly aligned material positioning.
* Touch Panel Control: Models come with the control panel for editing, data input, and easy pattern selection.
* Custom Clamping is a must for this application to be successful *
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Labor Saving Devices

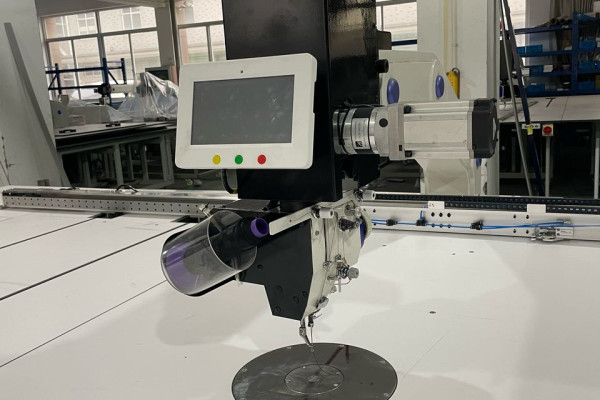

CS-2690H-360
Our CS-26090H-360 is our largest Programmable Pattern machine (so far). The sewing head turns in a complete 360° circle for near-perfect stitching. Used in operations like Home Décor, Large Interior Patterns to be seamless and much more.
* Some features of the machine include:
* Sewing Speed: 2,500 spm, (XY Axis moving speed maximum 10meters/minute.
* Hook: 2X Japan Hirose Hook / Koban Hook (3X Size Hook is Optional).
* Uses latest A8 CPU, Disk/USB Date Memory, XYZ Servo Motor, Highly Accurate (to 0.001mm).
* All templates work with Intelligent Judgement.
* Thread - Break Detector. (Bottom thread stitch quantity is optional).
*Sewing Area: X = 2,500mm, Y = 900mm. Larger sizes may be built.
* Needle Type: DPx5 / DPx17
* Sewing Thickness: 0.1mm - 10mm.
* Presser Foot: Electropneumatic.
* Applications: Tents, Sleeping Mats, Drapes, Banners, etc...
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Labor Saving Devices

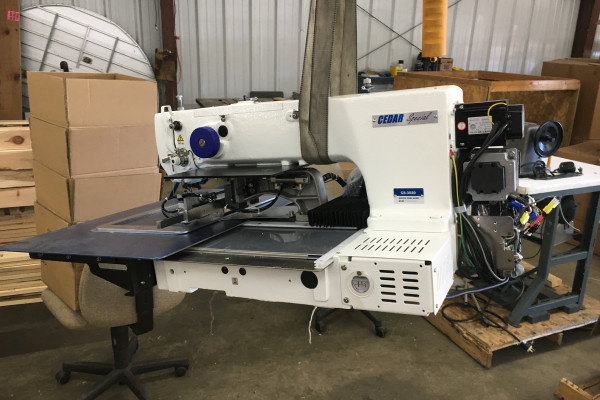

CS-3020+SD
The CEDAR Special CS-3020+SD has all of the benefits, including the Slide Device for attaching small cut parts. It is an industrial, computer-controlled pattern sewing machine featuring a 300 mm × 200 mm sewing area that is designed for high-speed shape-tacking, attaching labels/emblems, sewing small parts, and attaching jeans or t-shirt pockets.
* Core Specifications & Features
* Sewing Area: 300 mm (X) × 200 mm (Y)
* Max Sewing Speed: 2,800 stitches/min (sti/min)
*Drive System: Main-shaft direct-drive system with a compact AC servomotor.
* Memory Capacity: Up to 999 patterns and 500,000 stitches
* Active Thread Tension: Digitally controlled tension allows for precise, repeatable seam quality.
* Productivity Advantages
* Fast Acceleration: Reaches the maximum 2,800 sti/min by the second stitch and maintains it until the end of the seam, drastically reducing cycle times.
* Active Tension Mechanism: Needle thread tension can be adjusted digitally from the touch screen to suit varying material thicknesses and stitch lengths.
* Semi-Dry Head: Minimizes the risk of oil stains on finished garments by using grease lubrication for the needle bar and thread take-up, paired with a minimum-oil-quantity mechanism for the hook.
* Available Options
*Pneumatic Feeding Frame: Holds materials securely in place, ideal for heavy webbing or thick layered materials.
* Separate Two-Step Clamping: Allows the left and right clamps to operate independently for easier, perfectly aligned material positioning.
* Touch Panel Control: Models usually come with the control panel for editing, data input, and easy pattern selection.
* Custom Clamping is a must for this application to be successful *
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Labor Saving Devices

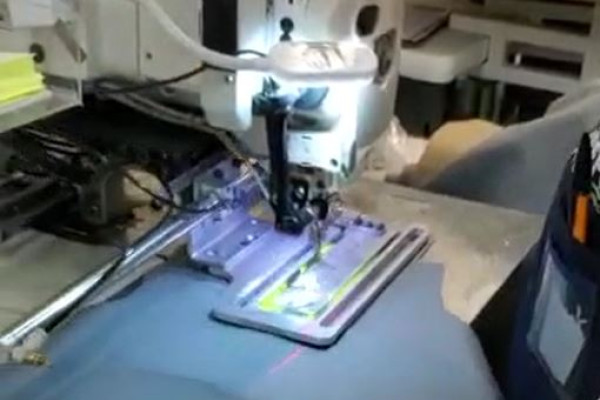

CS-2210+SDXL
The CEDAR Special CS- 2210+SDXL has all of the benefits of the basic 2210+SD with the added feature of the EXTRA LONG Slide Device for attaching longer pre-cut parts. It is an industrial, computer-controlled pattern sewing machine featuring a 220 mm × 100 mm sewing area that is designed for high-speed shape-tacking, attaching labels/emblems, sewing small parts, and stitching jean pockets.
* Core Specifications & Features
* Sewing Area: 220 mm (X) × 100 mm (Y)
* Max Sewing Speed: 2,800 stitches/min (spi/min)
*Drive System: Main-shaft direct-drive system with a compact AC servomotor.
* Memory Capacity: Up to 999 patterns and 500,000 stitches
* Active Thread Tension: Digitally controlled tension allows for precise, repeatable seam quality.
* Productivity Advantages
* Fast Acceleration: Reaches the maximum 2,800 spi/min by the second stitch and maintains it until the end of the seam, drastically reducing cycle times.
* Active Tension Mechanism: Needle thread tension can be adjusted digitally from the touch screen to suit varying material thicknesses and stitch lengths.
* Semi-Dry Head: Minimizes the risk of oil stains on finished garments by using grease lubrication for the needle bar and thread take-up, paired with a minimum-oil-quantity mechanism for the hook.
* Available Options:
*Pneumatic Feeding Frame: Holds materials securely in place, ideal for heavy webbing or thick layered materials.
* Separate Two-Step Clamping: Allows the left and right clamps to operate independently for easier, perfectly aligned material positioning.
* Touch Panel Control: Models usually come with the control panel for editing, data input, and easy pattern selection.
* Custom Clamping is a must for this application to be successful *
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Labor Saving Devices

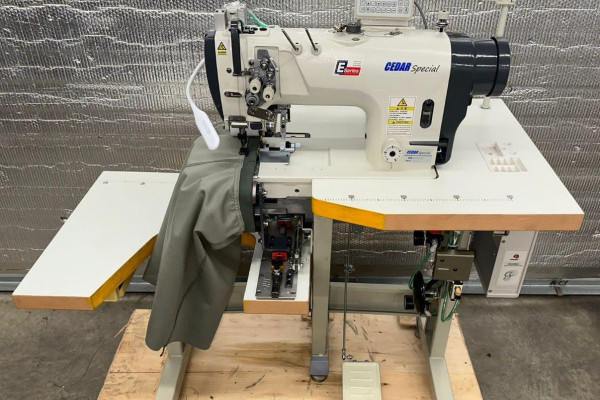

CS-8722DP
The CS-8722DP is an Automated Sewing Station, designed specifically for Top Stitching Waist Bands.
The machine head is a Twin Needle, Needle Feed accompanied by a Rear Puller mechanism.
Machine Features:
* User Friendly, Ergonomic Work Station
* Automatic Back Tack
* Automatic Presser Foot Lift
* Automatic Thread Trim
* Easy Adjustable, Pneumatically Engaged - Roller Guiding System
* State of the art, Electronic Control System
* Premium Micro-Adjustable Edge Guide
* Custom Folders, Binders and Guides for the Sewn Products Industry.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
