Cover Stitch
Browsing Cover Stitch inside our premium line of Machines by Type.
Cover Stitch

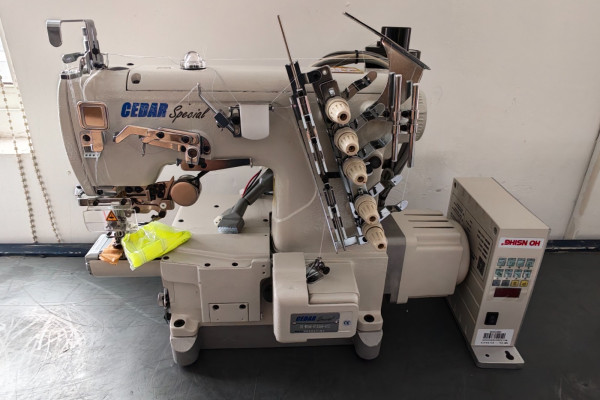

CS-W264
Our CEDAR Special CS-W264 is a Direct Drive, Small Cylinder, Cover Stitch Machine
Machine Features:
* Applications: Coverseam, Hemming, etc.
* No. of needles: 2 or 3 needles
* No. of threads: 4 - 5
* Needle Gauges ( 3.2mm, 4.0mm, 5.6mm, 6.4mm)
* Presser Foot Lift: Max, 5.8mm
* Thread Trimming: Top & Bottom available.
* Also available with Top Feed Mechanism.
* Custom Folders are available upon request.
- Different versions of this machine are available. Be sure to check with one of our experienced technicians or sales representatives for specific information.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cover Stitch

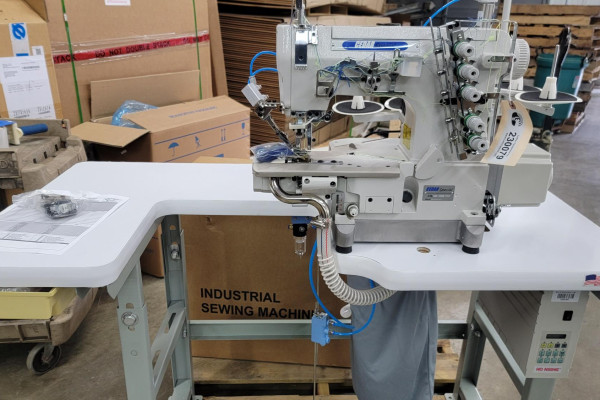

CS-W664
The CEDAR Special W600 Series is a high-speed, cylinderbed interlock (coverstitch) machine used for plain seaming, hemming, and attaching elastic and can come with different variations such as Left Hand Fabric Trimmer. Depending on the specific version, it has a maximum speed of 6,000 stitches per minute and a stitch length between 0.9 mm and 4.5 mm.
Key specifications for the W600 series include:
* Needle Configurations: 2-needle (3.2, 4.0, 4.8, 5.6, or 6.4mm), 3-needle (5.6 or 6.4mm), and 4-needle (6.0mm) options.
* Presser Foot Lift: Up to 5.9 mm.
* Differential Feed Ratio: Adjustable from 1:0.6 to 1:1.5.
The machine is known for its durability and can be equipped with automated features like underbed thread trimmer, fabric trimmer, top thread trimmer, and direct-drive motor, just to name a few.
** The CS-664-35BB-PUT is available with fabric trim knife **
* Custom Folders, Guides, Clamps and Pallets are available.
