Cylinder Bed
Browsing Cylinder Bed inside our premium line of Machines by Type.
Cylinder Bed

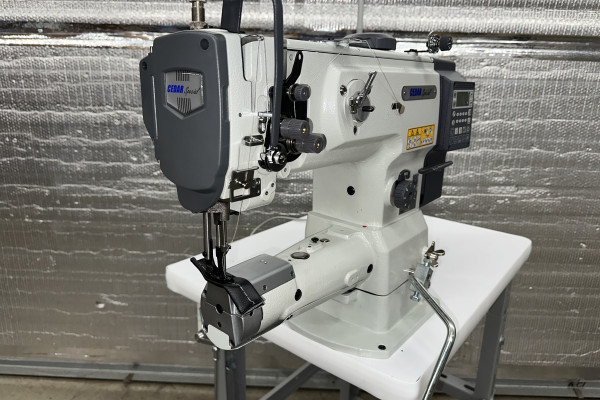

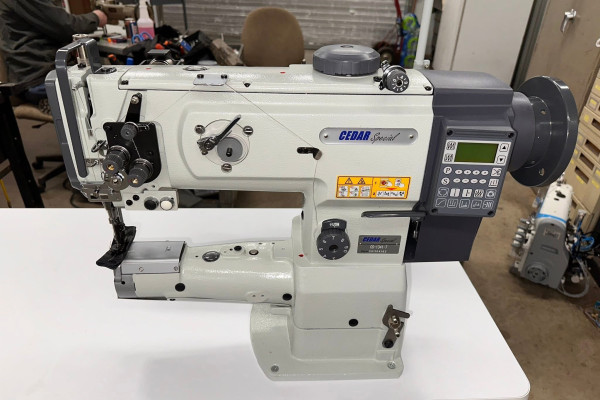

CS-1341D-7
Our CS-1341D-7 is a Direct Drive, Heavy-Duty, single-needle Cylinder-Bed, Walking Foot, lockstitch sewing machine. It is engineered for thick, demanding materials such as automotive interiors, leather goods, home upholstery, and heavy bags.
Specifications:
* Max Speed: 2,500
* Max Stitch Length: 8mm
* Working Space: 255mm Left to Right, 110mm Top to Bottom.
* Feed System: Compound feed (walking foot) and needle feed.
* Bed Type: Cylinder bed, which allows for easy manipulation of 3D, tubular, and curved items.
* Applications: Ideal for car seats, sofas, tents, luggage, and thick thread sewing.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cylinder Bed

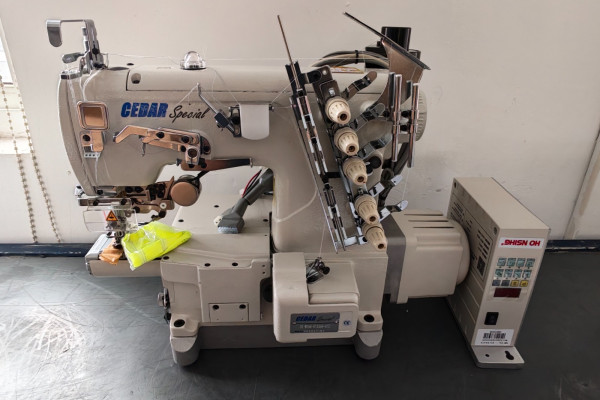

CS-W264
Our CEDAR Special CS-W264 is a Direct Drive, Small Cylinder, Cover Stitch Machine
Machine Features:
* Applications: Coverseam, Hemming, etc.
* No. of needles: 2 or 3 needles
* No. of threads: 4 - 5
* Needle Gauges ( 3.2mm, 4.0mm, 5.6mm, 6.4mm)
* Presser Foot Lift: Max, 5.8mm
* Thread Trimming: Top & Bottom available.
* Also available with Top Feed Mechanism.
* Custom Folders are available upon request.
- Different versions of this machine are available. Be sure to check with one of our experienced technicians or sales representatives for specific information.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cylinder Bed

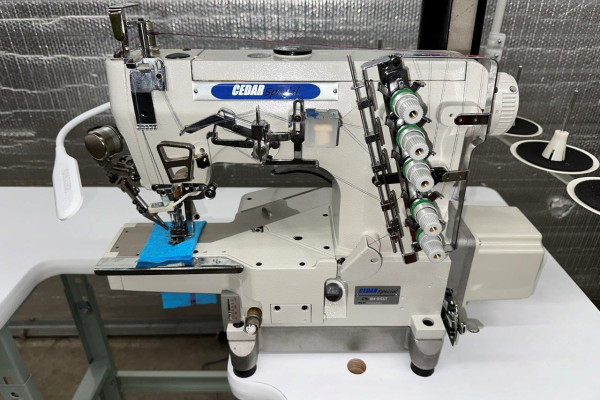

CS-W664
The CEDAR Special W600 Series is a high-speed, cylinderbed interlock (coverstitch) machine used for plain seaming, hemming, and attaching elastic and can come with different variations such as Left Hand Fabric Trimmer. Depending on the specific version, it has a maximum speed of 6,000 stitches per minute and a stitch length between 0.9 mm and 4.5 mm.
Key specifications for the W600 series include:
* Needle Configurations: 2-needle (3.2, 4.0, 4.8, 5.6, or 6.4mm), 3-needle (5.6 or 6.4mm), and 4-needle (6.0mm) options.
* Presser Foot Lift: Up to 5.9 mm.
* Differential Feed Ratio: Adjustable from 1:0.6 to 1:1.5.
The machine is known for its durability and can be equipped with automated features like underbed thread trimmer, fabric trimmer, top thread trimmer, and direct-drive motor, just to name a few.
** The CS-664-35BB-PUT is available with fabric trim knife **
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cylinder Bed

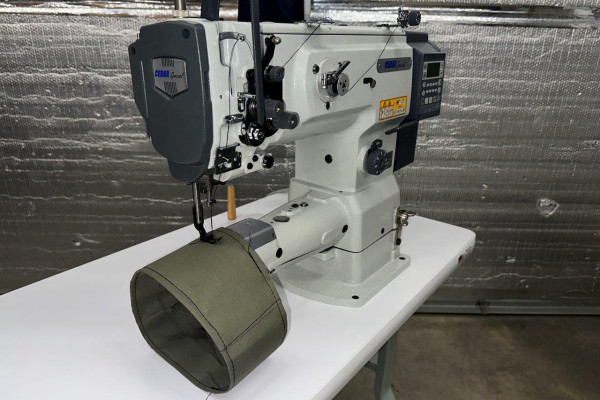

CS-1321-7DJ
Our unique CS-1321-7DJ is a Single Needle, Direct Drive, Cylinder Bed Needle Feed machine.
* Key Functions include:
* Automatic Thread Trimmer
* Automatic Foot Lift
* Automatic Back Tack
* Max Speed: 2,500
* Max Stitch Length: 8mm
* Working Space: 255mm Left to Right, 110mm Top to Bottom.
* Feed System: Compound feed (walking foot) and needle feed.
* Bed Type: Cylinder bed, which allows for easy manipulation of 3D, tubular, and curved items.
* Applications: 6-14 oz. fabrics used on car seats, sofas, tents, luggage and other similar items.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cylinder Bed

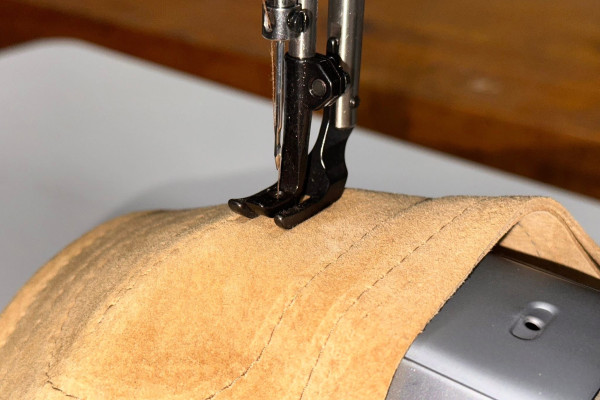

CS-1341
Our CS-1341 is a Belt Drive, heavy-duty, Single-Needle cylinder-bed compound feed, lockstitch sewing machine. It is engineered for thick, demanding materials such as automotive interiors, leather goods, home upholstery, and heavy bags. We provide with your choice of table, legs and Servo Motor.
Specifications:
* Max Speed: 2,500
* Max Stitch Length: 8mm
* Working Space: 255mm Left to Right, 110mm Top to Bottom.
* Feed System: Compound feed (walking foot) and needle feed.
* Bed Type: Cylinder bed, which allows for easy manipulation of 3D, tubular, and curved items.
* Applications: Ideal for car seats, sofas, tents, luggage, and thick thread sewing.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cylinder Bed

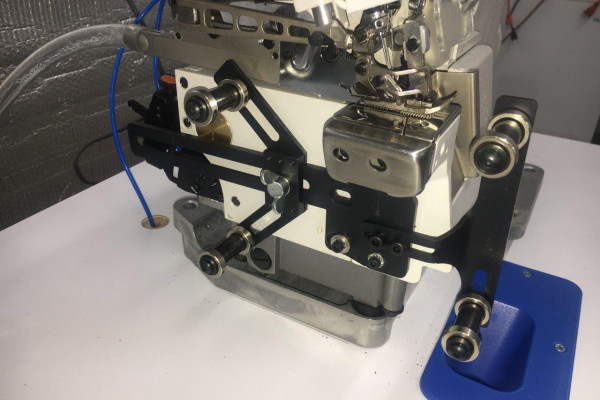

CS-5114D
The CS-5100D Series is a Direct Drive, Cylinder Bed Overlock Machine with Lower Differential Feed Mechanism. It also comes in a Variable Top Feed Version for heavy fabrics.
* General Specifications:
* Stitch Length Adjustment: Push-Button
* Differential Feed Ratio Adjustment: Lever that can be adjusted intermittently, during sewing.
* Maximum Speed: 7,000 spm (Top Feed 6,00 spm)
* Lubrication: Fully Automatic (internal oil pump)
* Cylinder Circumference: 148mm
* Top Feed version feeds the fabric accurately without ply shift or twist.
* Top Feed version can be utilized with light to heavy fabrics.
* Flat Bed style plate available for multi-use setup.
* Alternate Devices & Attachments:
* Roller guide assembly (tensioner style or basic)
* Upper Metering Device for attaching elastic.
* Round Collar
* Tape Cutter
* Chain Cutter
* Automatic Foot Lift
* Hemming Guide
* Pneumatic trimming & lint collector
* Available Stitch Formations:
* 503, 1 needle thread + 1 looper thread
* 504, 1 needle thread + 2 looper threads
* 505, 1 needle thread + 2 looper threads
* 512, 2 needle threads + 2 looper threads
* 514, 2 needle threads + 2 looper threads
* Custom Folders, Guides and Accessories are available.
- Special Automated Machines are Available. Check with one of our experienced sales representatives -
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cylinder Bed

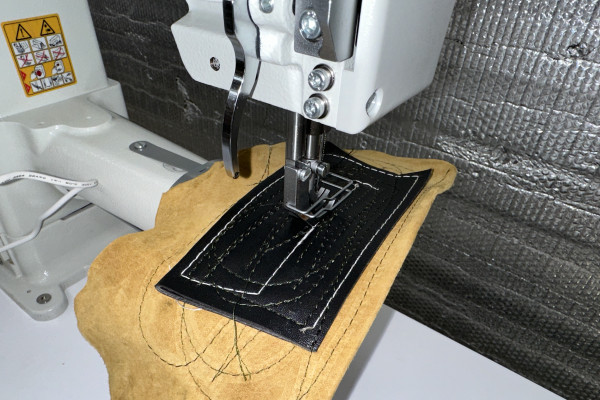

MA-269-373
Mauser Spezial MA-269-373
* Robust single needle lockstitch sewing machine with cylinder arm and large vertical hook for medium heavy materials Equipped with bottom feed, needle feed and alternating top feed.
* Due to the design of the 269 series with the use of a large vertical hook, the machine excellently meets the requirements for processing very dense and stiff materials.
The possibility of damage to the hook due to needle deflection during sewing is minimized.
* This also minimizes downtimes and maintenance requirements.
* A common application is, for example, the sewing of rubber lips on hard cases, the production of tool bags, but also used in particular for processing tubular, or pre-assembled, closed articles, also in the production of bridles for equestrian sports or dog leashes and harnesses.
* The use of a large vertical hook makes it possible to work with dense materials and multi layered workpieces.
* This minimizes the risk of damage to the hook due to needle deflection.
* In addition, the standard overload clutch prevents damage to the hook by unhooking the bottom feed when the machine is overloaded.
* The bottom feed and needle feed in conjunction with the alternating top feed ensure a high pull through force and uniform material feed With the top feed stroke of 5 mm, material thickening and cross seams in the seam course can be climbed over.
* The Mauser Spezial MA 269 is also optionally available as a twin needle machine.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cylinder Bed

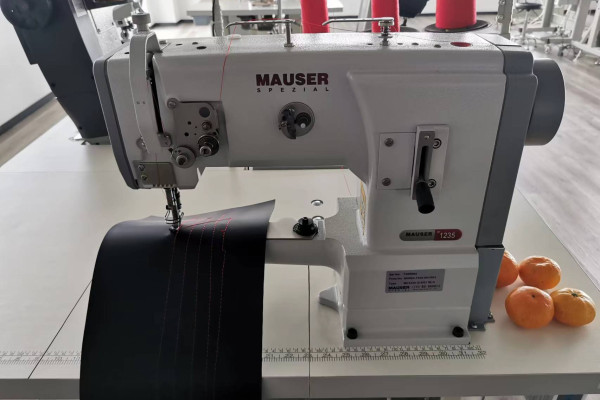

MH-1235
Mauser Spezial MH-1235-G-6/01 CLMN8
* Proven Single-Needle lockstitch sewing machine with narrow cylinder arm for medium-weight materials.
* Equipped with bottom feed, needle feed and alternating top feed.
* The 1235 series is the latest development of the well-known and most widely used 335 triple feed cylinder arm machine worldwide.
* In the equipment line with automatic functions, such as electromagnetic thread trimmer, electropneumatic foot lift and seam backtacking, the Mauser Spezial 1235 also has an integrated 750W direct drive with built-in control panel.
* Thus equipped, the Mauser Spezial 1235 continues to be a reliable production tool in the manufacture of leather goods, handbags and suitcases.
* The Mauser Spezial MH-1235 is a universally applicable free-arm machine that is used in particular for processing tubular or pre-assembled, closed articles.
* The narrow cylinder arm with a diameter of only 51mm allows the machine to be used on workpieces with a small cross-section.
* Typical applications are in the production of small leather goods and leather garments as well as the manufacture of bags, suitcases and upholstery.
* The use of a horizontal hook ensures precise and uniform thread take-up and even bobbin thread tension.
* The bottom feed and needle feed in conjunction with the alternating top feed ensure not only a high pull-through force but also a uniform material feed. With the top feed stroke of 7 mm, material thickenings and cross seams can be passed over effortlessly.
* The MH1235 is also widely used for binding operations on shoes and leather goods. For this purpose, the machine can be equipped with special components with our moving binder to assist with inside and outside curves.
* The binding device is recessed in the throat plate. As a result, the sewing material enters the sewing machine evenly. The binding tape lies tightly against the material edge even with inside and outside radius.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
