Off Arm
Browsing Off Arm inside our premium line of Machine Types.
Off Arm

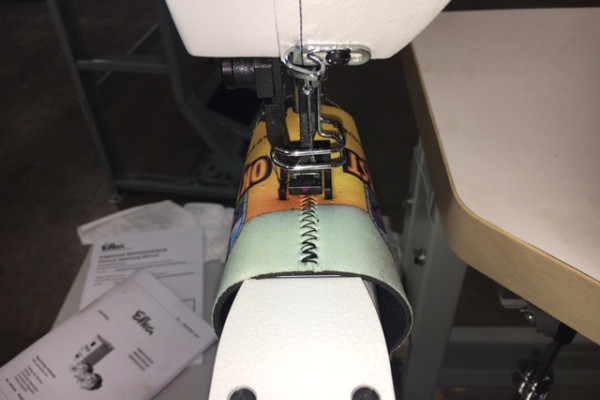

Tony 310 & 315s
The Tony Model H-315s is a Top Feed and Bottom Feed walking foot zig-zag industrial sewing machine featuring a large capacity bobbin, reverse capability, and cylindrical arm geometry that is ideal for tubular goods like koozies and wetsuits. The Tony H-315 is a specialized industrial feed-off-the-arm walking foot zigzag machine.
The Tony Model 310 is a Bottom Feed, feed off the arm zig-zag sewing machine for lighter weight fabrics.
Key Specifications
* Max Speed: 2600–2800 stitches per minute
* Max Stitch Length: 5 mm
* Max Zig Zag Width: 10 mm
* Max Presser Foot Lift: 10 mm
* Cylinder/Arm Diameter: Approx. 46 mm to 55 mm
* Feed System:
- 310: Bottom Feed only.
- 315s: Top Feed & Bottom Feed ( Walking foot with double presser foot )
* Applications & DesignCylindrical Seaming: Built for closed, tubular, or curved items like neoprene can holders/koozies, filtration units, leather boots, and wetsuits.
* Heavy-Duty Handling: Utilizes a large hook and reverse feed mechanism suited for thick, flexible, or sticky materials.
* Custom Folders, Binders and Guides for the Sewn Products Industry.
Collier Equipment
Website: https://collierequipment.com/
Email: Sales@CollierEquipment.com
Phone: (256) 229-6595
Lexington, Alabama 35648
• CEDAR Systems Automated Sewing Machines & Devices
• VMW Automated Sewing Equipment
• Tice Engineering
Off Arm
SQ7702FB
Kansai Special SQ7702FB-L/AP/DD
2 Needle, Double Chain Stitch, Feed off the arm for tape attaching.
Made in Japan with a differential feeding system for tape attaching with pneumatic foot lift. Optional manually operated pneumatic tape cutter.
* Features
* Differential feed mechanism to help prevent drag induced puckering.
* Oil filtering system for clean oil and long durability.
* Direct Drive
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
Phone: (256) 229-6595
Email: Sales@CollierEquipment.com
Off Arm

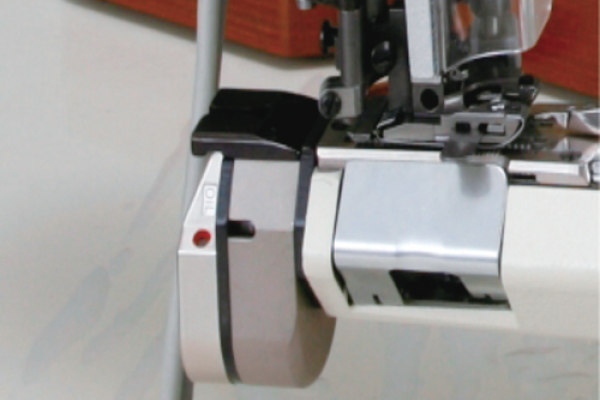

SX6803-PD
The Kansai Special SX6803-PD is a 3-needle, feed-off-the-arm double chain stitch machine built for lap seaming heavy fabrics like denim.
Key Specifications:
* Machine Type: 3-needle, feed-off-the-arm double chain stitch (Type 401) for lap seaming.
* Application: Heavy-weight materials like jeans and work pants.
* Max Sewing Speed: Up to 4,500 rpm.
* Needle System: TV × 3 (#21).
* Stitch Length: Up to 4.2 mm (approx. 6–12 stitches per inch).
* Presser Foot Lift: 8 mm maximum (Optional Pneumatic Foot Lift Device).
* Special Features: Equipped with a rear puller mechanism and differential feed for advanced fabric control over heavy cross seams.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
Phone: (256) 229-6595
Email: Kansai-Special@CollierEquipment.com
