Overlock
Browsing Overlock inside our premium line of Machines by Type.
Overlock

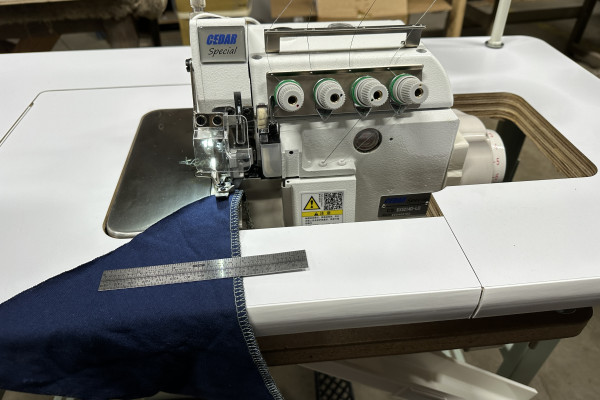

CS-5214
The CEDAR Special CS-5214 is a High Speed, Direct Drive, Mock Safety Stitch overlock machine. It uses 2 needles that are side-by-side, a bottom looper and an upper looper for a total of 4 threads to help ensure the top-quality seams that active wear apparel demands.
* Pneumatic suction chain cutter device
* Footlifter air cylinder
* Solenoid Valves Switch
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Overlock

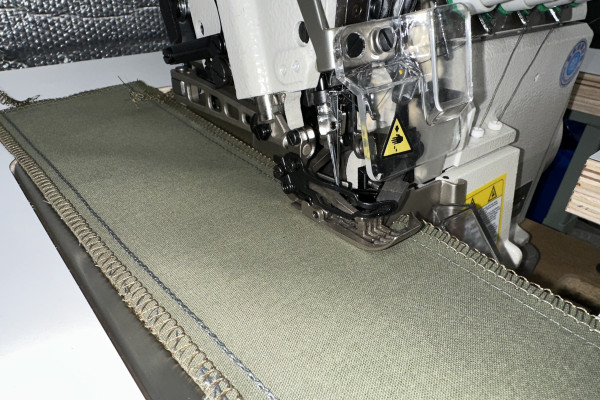

CST-3216H-A05-535
The CST-3216H-A05/535 is a Top Feed with Bottom Feed, 5 Thread Safety Stitch with Direct Drive motor.
Machine Features:
* Ultra High Lift for extra thick fabrics.
* With KH021A flat chain cutters
* With Four rows Of Gauge set
* Without Auto Foot Lift
* Without Suction bucket
- Different variations of machines may be represented in the pictures.
- Available with or without special devices such as chain cutter, auto foot lift, etc.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Overlock

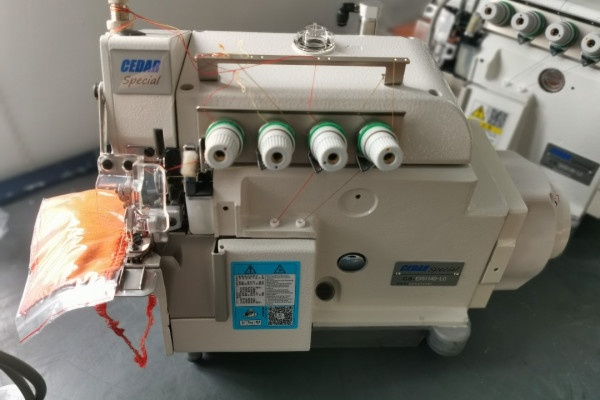

CS-5114D
The CS-5100D Series is a Direct Drive, Cylinder Bed Overlock Machine with Lower Differential Feed Mechanism. It also comes in a Variable Top Feed Version for heavy fabrics.
* General Specifications:
* Stitch Length Adjustment: Push-Button
* Differential Feed Ratio Adjustment: Lever that can be adjusted intermittently, during sewing.
* Maximum Speed: 7,000 spm (Top Feed 6,00 spm)
* Lubrication: Fully Automatic (internal oil pump)
* Cylinder Circumference: 148mm
* Top Feed version feeds the fabric accurately without ply shift or twist.
* Top Feed version can be utilized with light to heavy fabrics.
* Flat Bed style plate available for multi-use setup.
* Alternate Devices & Attachments:
* Roller guide assembly (tensioner style or basic)
* Upper Metering Device for attaching elastic.
* Round Collar
* Tape Cutter
* Chain Cutter
* Automatic Foot Lift
* Hemming Guide
* Pneumatic trimming & lint collector
* Available Stitch Formations:
* 503, 1 needle thread + 1 looper thread
* 504, 1 needle thread + 2 looper threads
* 505, 1 needle thread + 2 looper threads
* 512, 2 needle threads + 2 looper threads
* 514, 2 needle threads + 2 looper threads
* Custom Folders, Guides and Accessories are available.
- Special Automated Machines are Available. Check with one of our experienced sales representatives -
