Chain Stitch
Browsing Chain Stitch inside our premium line of Machines by Type.
Chain Stitch

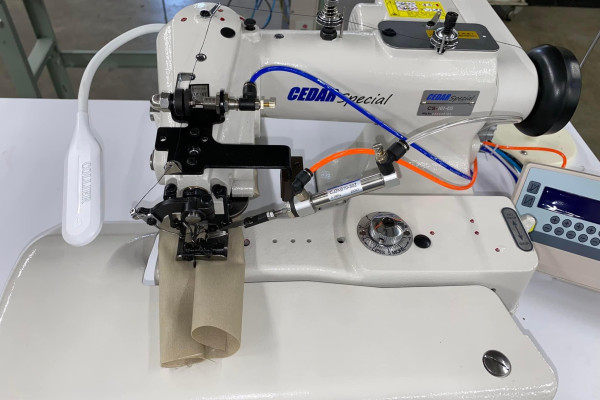

CS-101-D3
The CEDAR Special CS-101-D3 is a Blind Stitch Hemming Machine equipped with an Integrated Drive with Thread Trimming Device, and creates nearly invisible hems on trousers, skirts, and curtains by using a curved needle and a single thread chainstitch.
Unlike standard machines, it catches only a few threads of the fabric's fold so the stitches don't show on the outside.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Chain Stitch

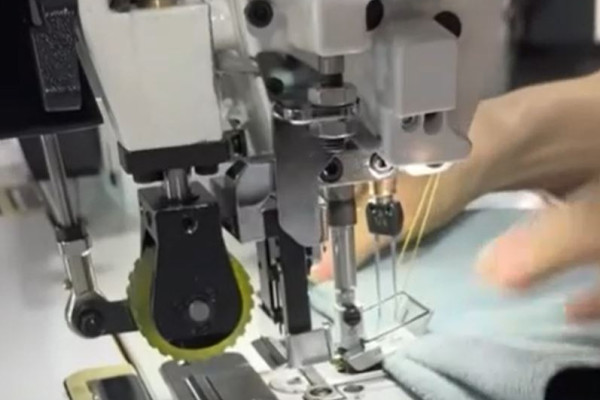

CS-E380ND
The CS-E380ND is an industrial multi-needle chain stitch sewing machine. High-speed, flat-bed, parallel 2-Needle or 3-Needle chainstitch, built for heavy-duty garment manufacturing like jeans and workwear.
- It features Servo motor control for thread cutting and an automatic foot lifter -
* Machine Highlights
* Heavy-Duty Power: Built to handle extremely thick materials, such as 16 layers of heavy denim fabric.
* Smart Controls: Uses a step motor to manage automatic presser foot lifting.
* Multi-Needle Setup: Designed with optimized needle positions for specialized chain stitching tasks.
* Key Performance Specs
* Max Needle Distance: 5mm overall
* Max Speed: 4,000 stitches per minute
* Stitch Length: Up to 4 mm (adjusted via a stitch dial)
* Presser Foot Lift: 5 mm by hand, 13 mm by knee
* Needle Type: TVx7 (sizes #14 to #18)
* Lubrication: Automatic
* Core Features
* 2-Needle or 3-Needle Setup: Sews multiple rows of chain stitch at the same time to boost output.
* Condense Stitching: Uses an easy-to-reach lever to lock/reinforce end stitches to help prevent raveling.
* Durable Looper: Features an inclined crank rocking-type looper designed for long-term stability with minimal wear.
* Custom Folders, Binders and Guides for the Sewn Products Industry.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Lexington, Alabama 35648
• CEDAR Systems Automated Sewing Machines & Devices
• VMW Automated Sewing Equipment
• Tice Engineering
Chain Stitch
CXT2241
Our CEDAR Special CXT2241-52P2 has a Top Feed to assist the bottom feed for Binding Heavy Fabrics with a Single Needle 401 Stitch Type. At 7,000 spm, it does a wonderful job.
Our premium line of Overlock and Safety Stitch Machines have become one of the best lines on the market. Paired with our technical staff, virtually unmatched in the industry.
Key Features
* Tape Cutter: Programmable, Pneumatic
* Foot Lift: Automatic - Pneumatic
* Stitch Length Adjustment: Push Button
* Dust & Waste Collector: Pneumatic
* Differential Feed Ratio Adjustment: Lever with Mirco-Adjuster
* Lubrication: Automatic
* Fabric Weight: Light - Medium
* Maximum Speed: 7,000 spm
* No. of Needles: 1
* No. of Threads: 2
* Maximum Tape Width: 24mm (wider may be achieved with custom modifications)
* Stitch Type: 401
For more information, please call or email.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
