Needle Feed
Browsing Needle Feed inside our premium line of Machine Types.
Needle Feed

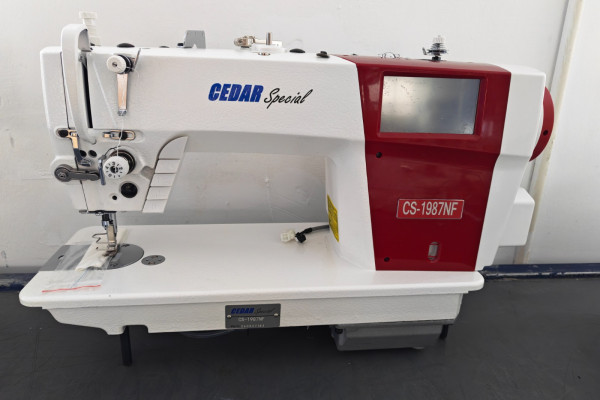

CS-1987NF
Introducing our CS-1987NF, Single Needle, Needle Feed industrial sewing machine.
Technical Specifications
• Machine Type: Computerized Digital Lockstitch Industrial Sewing Machine.
• Maximum Sewing Thickness: 1 cm (10 mm)
• Stitch Length Adjustment: Minimum precision increments down to 0.1 mm
• Remaining Thread Tail: Short remaining thread design (≤ 3 mm after automatic trimming)
• Motor Type: Directly-driven, bearingless undermounted servo motor combined with independent stepper motors.
• Full Function
• Needle feed
• Fully automatic
• Pattern sewing
• "Bar tack"
• 1/4 and 1/2 stitch advance buttons
• Easy to use touch screen
• Semi-dry head
• 500 watt direct drive servo motor
• DBx1 needle system
• "L" class bobbin
Key Features & Operational Capabilities
• Multi-Motor Drive Control: Utilizes a dual-step/multi-step motor architecture. Fabric feeding, automatic thread trimming, and presser foot lifting are driven entirely by dedicated stepper motors to maximize stability and minimize operation noise.
• Digital Interface: Equipped with a smart digital interface—ranging from a 4.3-inch LCD touch panel on baseline models to a massive 7-inch Wi-Fi LCD display on Pro variants—allowing seamless, single-key adjustments of stitch patterns and modes.
• Advanced Feed Mechanism: Features direct motor-controlled electronic feeding with up to four selectable trajectory curves (standard oval, front rise, back rise, and rectangular). This structural control accommodates a broad spectrum of weights, from ultrathin garments to thick multi-layered leathers.
• Anti-Birdnest Technology: Integrates an independent step motor drive for anti-pass thread trimming alongside a dual round knife trimmer system, ensuring a clean finish without messy thread nesting on the underside of fabrics.
• Clean & Lubrication-Free Head: Features a completely sealed oil pan/box layout combined with a specialized oil-free take-up lever and a DLC (Diamond-Like Carbon) coated needle bar. This design prevents oil leakage and protects delicate fabrics from grease stains.
• Ergonomic Features: Features automatic, electronically lifted presser foot mechanisms to alleviate physical strain on operators, synchronous belt transmissions for rapid start-stop speeds, integrated U-shaped LED light strips for uniform workspace visibility, and a built-in cooling fan for continuous thermal dissipation.
* Custom Folders, Binders, Hemmers, Guides, Pallets and Clamp Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: CEDAR-Special@CollierEquipment.com
Needle Feed

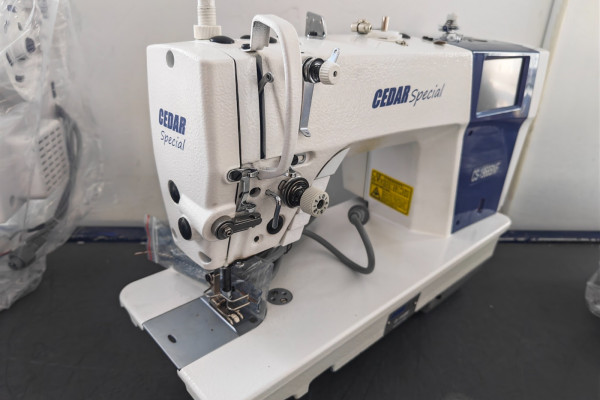

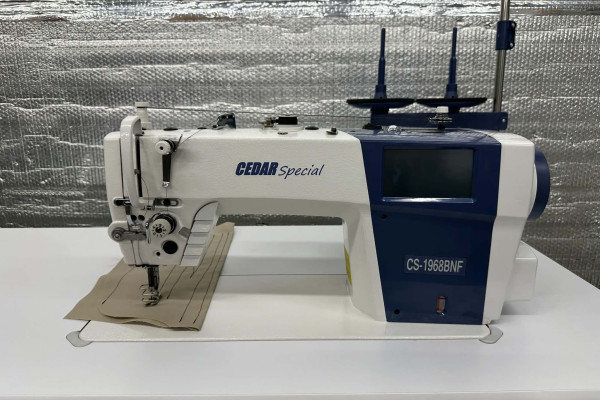

CS-1968BNF
Our CS-1968BNF Needle Feed machine is one of our newest additions. With the intelligent step motor driven feed mechanisms and operator friendly functions, it is quickly becoming one of our most popular machines.
Key Machine Specifications:
• Machine Type: Computerized Single-Needle Lockstitch / Needle Feed.
• Max Sewing Speed: 4,000 to 4,500 rpm (stitches per minute)
• Max Stitch Length: 5 mm (some pattern variants configured up to 2 mm).
• Needle Bar Stroke: 36.5 mm
• Needle Type: DB×1 (sizes #7 to #16)
• Presser Foot Lift Height: 6 mm to 12 mm
• Power Supply: Direct-drive bearingless servo motor, 550W
• Lubrication: Automatic system with a sealed oil/fuel tank and low-oil alarm.
• Single Needle, Needle Feed
• Intelligent Needle feed single needle lockstitch with double step motor driving.
• LED Light
• The machine adopts connecting rod type needle feeding structure, which makes the feeding characteristics more stable, making fabric slips less likely between layers.
• LCD touch screen with simple and clear functions.
* Custom Folders, Binders, Hemmers, Guides, Pallets and Clamp Sets for the Sewn Products Industry.
• Phone: (256) 229-6595
• Email: CEDAR-Special@CollierEquipment.com
Needle Feed

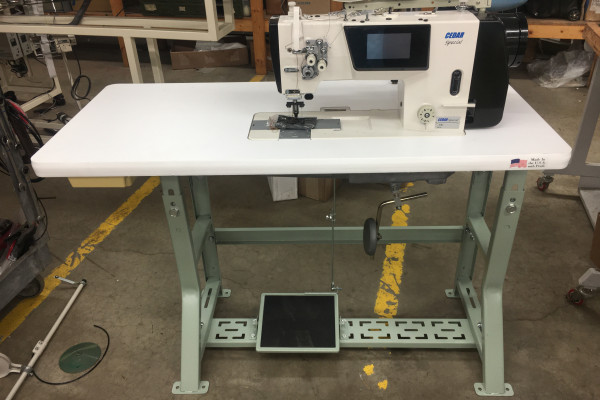

CS-8720D
The CEDAR Special CS-8720D is a Direct Drive, Double Needle, heavy-duty industrial sewing machine. It is designed for making two parallel rows of stitching at the same time. Factories use it for canvas, leather, and heavy fabrics. It can be equipped with a Rear Puller or Side Belt Puller.
The key specifications include:
* Max Speed: Up to 3,000 stitches per minute.
* Stitch Length: Up to 5 - 7 mm.
* Needle Feed: Both the needle and the bottom "feed dog" (the metal teeth under the fabric) move to pull thick fabrics evenly.
* Presser Foot Lift: Up to 13 mm with a knee lifter, or 8 mm automatically.
* Needle Type: Uses DP × 5 needles.
* Hook: Uses large vertical rotary hooks for larger bobbins.
External Functions:
* Needle Positioning
* Manual Foot Lift
* Manual Thread Trim
* Manual Back Tack
* Custom Folders, Binders, Hemmers, Guides, Pallets and Clamp Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: CEDAR-Special@CollierEquipment.com
Needle Feed

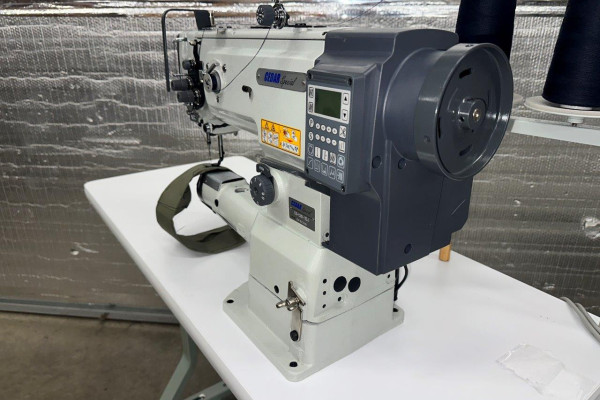

CS-1321-7DJ
Our unique CS-1321-7DJ is a Single Needle, Direct Drive, Cylinder Bed Needle Feed machine.
* Key Functions include:
* Automatic Thread Trimmer
* Automatic Foot Lift
* Automatic Back Tack
* Max Speed: 2,500
* Max Stitch Length: 6mm
* Working Space: 255mm Left to Right, 110mm Top to Bottom.
* Feed System: Bottom Feed and Needle Feed.
* Bed Type: Cylinder bed, which allows for easy manipulation of 3D, tubular, and curved items.
* Applications: 6-14 oz. fabrics used on car seats, sofas, tents, luggage and other similar items.
* Custom Folders, Binders, Hemmers, Guides, Pallets and Clamp Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: CEDAR-Special@CollierEquipment.com
Needle Feed

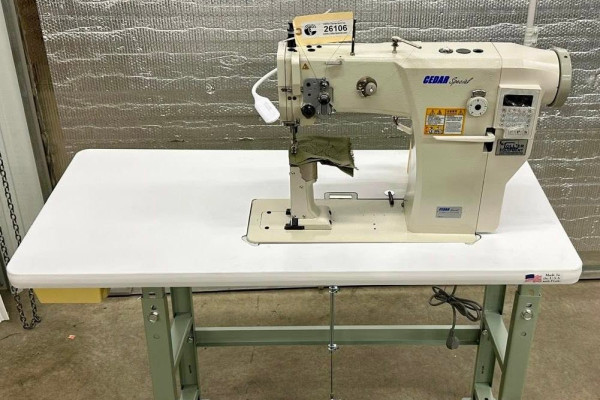

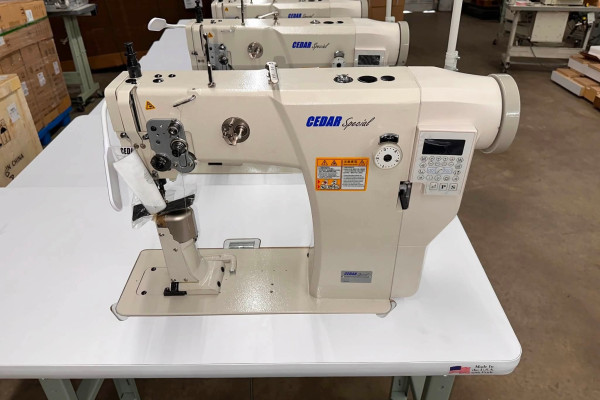

CS-1291-7D
The CEDAR Special CS-1291-7D is a Direct Drive, Needle Feed, Post Bed Machine.
Key Features:
* Single Needle
* Needle System: 134-35
* Recommended Needle Sizes: Size 100/16 to 125/20 depending on the specific subclass.
* Thread weight (e.g., Tex 60 through Tex 80)
* Direct Drive
* Automatic Foot Lift
* Automatic Thread Trim
* Automatic Back Tack
* Voltage : 220v
* Custom Folders, Binders, Hemmers, Guides, Pallets and Clamp Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: CEDAR-Special@CollierEquipment.com
***** Click on Mr. Hook to order CS-1291 Parts *****
Needle Feed

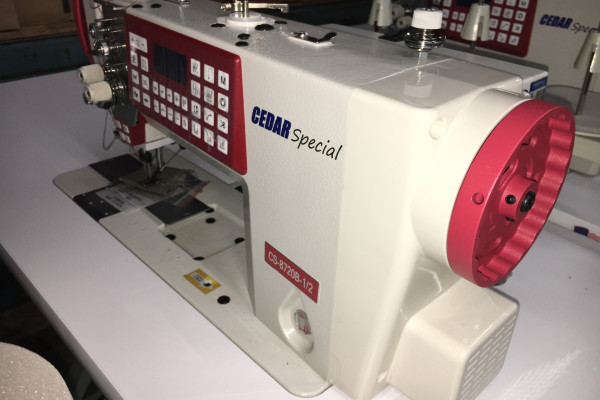

CS-8720B
The CEDAR Special CS-8720B is a Direct Drive, Double Needle, heavy-duty industrial sewing machine. It is designed for making two parallel rows of stitching at the same time and is equipped with an Operator Friendly Touch Button Panel for Programming.
Uses:
* Factories use it for canvas, leather, and heavy fabrics. It can be equipped with a Rear Puller or Side Belt Puller.
The key specifications include:
* Max Speed: Up to 3,000 stitches per minute.
* Stitch Length: Up to 5 - 7 mm.
* Needle Feed: Both the needle and the bottom "feed dog" (the metal teeth under the fabric) move to pull thick fabrics evenly.
* Presser Foot Lift: Up to 13 mm with a knee lifter, or 8 mm automatically.
* Needle Type: Uses DP × 5 needles.
* Hook: Uses large vertical rotary hooks for larger bobbins.
* Needle Gauges: Available gauge set sizes: 1/8" (3.2 mm), 3/16" (4.8 mm), 1/4" (6.4 mm), 3/8" (9.5 mm), up to 1/2" (12.7 mm) and higher depending on the specific application block installed.
* Custom Folders, Binders, Hemmers, Guides, Pallets and Clamp Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: CEDAR-Special@CollierEquipment.com
Needle Feed

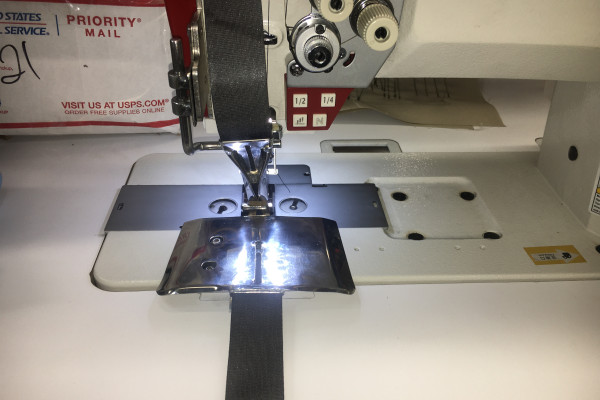

CS-8720A
The CEDAR Special CS-8720A is a Direct Drive, twin-needle, heavy-duty industrial sewing machine. It is designed for making two parallel rows of stitching at the same time and is equipped with an Operator Friendly LCD Panel for Programming.
Uses:
* Factories use it for canvas, leather, and heavy fabrics. It can be equipped with a Rear Puller or Side Belt Puller.
The key specifications include:
* Max Speed: Up to 3,000 stitches per minute.
* Stitch Length: Up to 7 mm.
* Needle Feed: Both the needle and the bottom "feed dog" (the metal teeth under the fabric) move to pull thick fabrics evenly.
* Presser Foot Lift: Up to 13 mm with a knee lifter, or 8 mm automatically.
* Needle Type: Uses DP × 5 needles.
* Hook: Uses large vertical rotary hooks for larger bobbins.
* Needle Gauges: Available gauge set sizes: 1/8" (3.2 mm), 3/16" (4.8 mm), 1/4" (6.4 mm), 3/8" (9.5 mm), up to 1/2" (12.7 mm) and higher depending on the specific application block installed.
- Special Automated Machines are Available. Check with one of our experienced representatives -
* Custom Folders, Binders, Hemmers, Guides, Pallets and Clamp Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: CEDAR-Special@CollierEquipment.com
Needle Feed

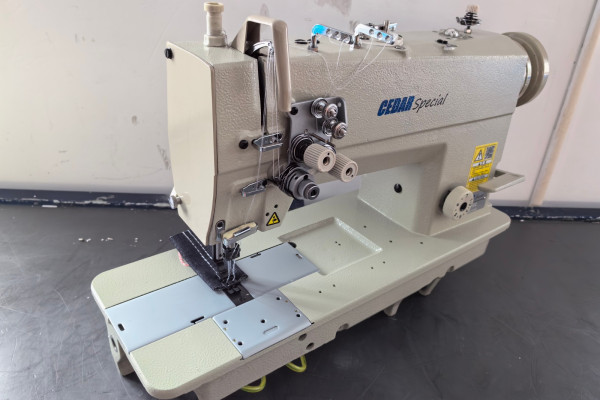

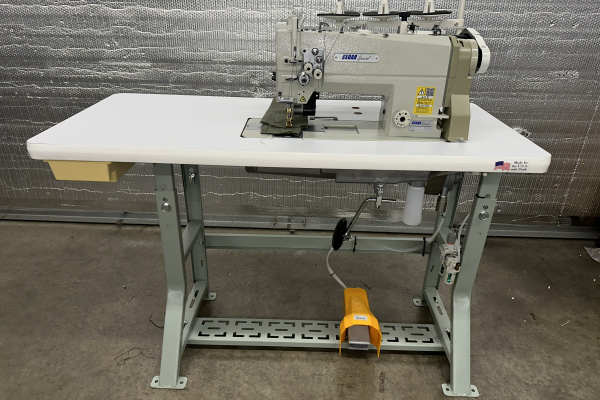

CS-872
The CEDAR Special CS-872 is a Belt Driven, twin-needle, heavy-duty industrial sewing machine. It is designed for making two parallel rows of stitching at the same time.
Uses:
* Factories use it for canvas, leather, and heavy fabrics. It is ideal to be equipped with a Rear Puller or Side Belt Puller for long runs.
The key specifications include:
* Belt Drive
* 750W Servo Motor ( Available in 110V or 220V )
* Max Speed: Up to 3,000 stitches per minute.
* Stitch Length: Up to 7 mm.
* Needle Feed: Both the needle and the bottom "feed dog" (the metal teeth under the fabric) move to pull thick fabrics evenly.
* Presser Foot Lift: Up to 13 mm with a knee lifter.
* Needle Type: Uses DP × 5 needles.
* Hook: Uses large vertical rotary hooks for larger bobbins.
* Needle Gauges: Available gauge set sizes: 1/8" (3.2 mm), 3/16" (4.8 mm), 1/4" (6.4 mm), 3/8" (9.5 mm), up to 1/2" (12.7 mm) and higher depending on the specific application block installed.
- Special Automated Machines are Available. Check with one of our experienced representatives -
* Custom Folders, Binders, Hemmers, Guides, Pallets and Clamp Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: CEDAR-Special@CollierEquipment.com
Needle Feed

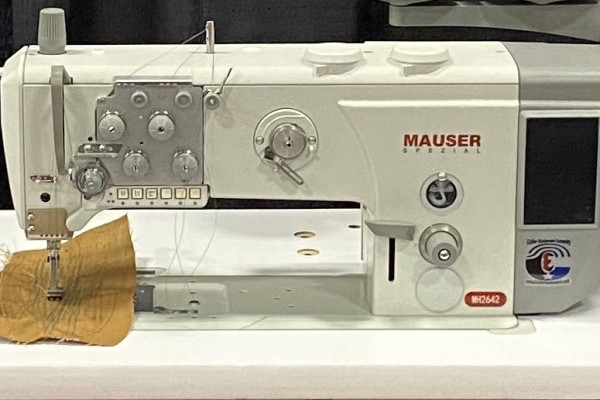

MH-2642
Double Needle, Needle Feed Machine
Mauser Spezial MH2642-250142 31
* Features
* 335mm Bed Width
* XXL Bobbin Capacity (32mm dia.)
* Operator & Technician Friendly Control Panel
* Integrated 750W Direct Drive
* Easily Accessible Integrated LED Work Light
* Automatic Back Tack
* Automatic Foot Lift
* Automatic Thread Trim
- Modern and powerful two needle lockstitch sewing machine with bottom feed and needle feed, equipped with automatic electromagnetic thread trimmer, electropneumatic seam backtacking and presser foot lift.
- As part of the Mauser Spezial MH 2600 series, the MH 2642 features a very robust design and the proven, high torque 750 W direct drive This makes the machine ideally suited for processing medium heavy and bulky materials.
- Thanks to the design of the machine, with the option of using very wide needle spacings, the MH-2645 is particularly recommended for sewing on reflective stripes in safety and workwear In addition, the range of applications extends from technical textiles, to canvas awnings, to jeans production.
- The Mauser Spezial MH 2642 sets a new standard in the processing of workwear and technical textiles.
- The large clearance under the machine arm, the high lift of the presser foot when inserting the material and the slim sewing head with integrated LED sewing light for illuminating the sewing area around the needle make handling the sewing material much easier.
- With a maximum needle distance of 1-3/4" (44 mm), sewing reflective stripes onto safety clothing is a piece of cake.
- For the production of awnings and sun protection systems, the MH-2642 is able to process threads up to a thickness of Nm 15 3.
- The most frequently used function can be conveniently called up via the button bar integrated in the sewing head with programmable favorite button, without having to let go of the sewing material.
- The XXL hooks with 32 mm bobbin diameter allow working with fewer sewing stops for bobbin change, thus increasing productivity.
- As an option, the machine is also available with a thread clamp that ensures that the needle thread is pulled onto the bottom side of the sewing material when the seam is started.
- No thread ends are visible either at the beginning or at the end of the seam.
