Long Arm
Browsing Long Arm inside our premium line of Machine Types.
Long Arm

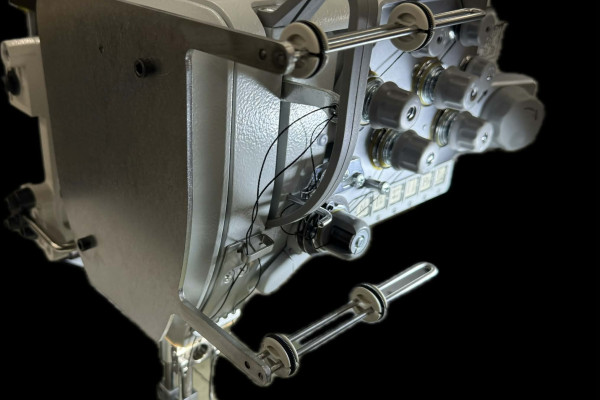

H867-70
Durkopp H867. A new dimension in flexibility.
The powerful machines from the M-TYPE series set new standards in functionality and flexibility. They are the ideal operating means for demanding working processes in the field of medium-heavy duty sewing. The excellent performance parameters facilitate the processing of extreme thread and fabric thicknesses as well as a multitude of most different material.
THE BENEFITS AT A GLANCE
* The large clearance, 335 mm wide (long arm version 700 mm) and 160 mm high facilitates the handling of large area workpieces.
* The extremely high sewing foot lift up to 25 mm facilitates the feeding and removing of bulky workpieces.
* Max. sewing speed up to 1,800 stitches/min.
* Sewing drive with networkable DAC classic control incl. operating panel OP1000 – Industry 4.0 „ready”.
* Powerful and effective feeding system with bottom feed, needle feed and alternating top feed.
* The sewing foot stroke up to 9 mm allows the safe climbing over differently high material plies.
* Robust thread trimmer guarantees a safe and clean cutting of extremely thick sewing threads.
* Single needle or twin needle available.
* Up to 12 mm long stitches for standard seams and decorative topstitching.
* New hook system with 3XL bobbin for thread sizes up to Nm 8/3 max.
*** Download the brochure or contact us for detailed specifications, depending on equipment model.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
Phone: (256) 229-6595
Email: durkopp-adler@CollierEquipment.com
Long Arm

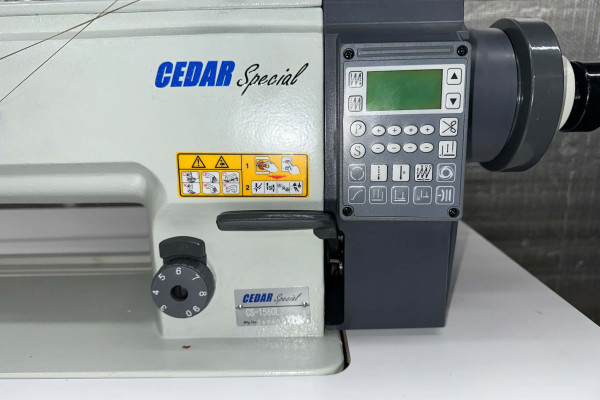

CS-1560L30-7D
The CEDAR Special CS-1560L30-7DJ with a 30" Long Arm clearance is a heavy-duty, 2-needle unison-feed (walking foot) lockstitch machine featuring an automatic thread trimmer and an alternating foot stroke adjusting dial. It is built for heavy materials like leather, canvas, upholstery, and vinyl.
* Key Specifications
* With or without Rear Puller.
* Direct Drive
* Automatic Thread Trim
* Automatic Back Tack
* Automatic Foot Lift
* Sewing Speed: Up to 2,000 stitches per minute (spi/min)
* Stitch Length: Up to 9 mm (both forward and reverse)
* Needle System: 135x17 (Sizes from Nm125 to Nm180)
* Needle Bar Stroke: 36 mm
* Presser Foot Lift: 9 mm (by hand), 16 mm (by knee or auto-lifter)
* Alternating Vertical Movement: Adjustable between 1 mm to 6.5 mm
* Hook: Vertical-axis double-capacity hooks
* Standard Needle Gauges: 1/4" (6.4 mm) (Available from 3/16" to 1/2")
* Custom Folders, Binders, Hemmers, Guides and Clamp Sets for the Sewn Products Industry.
For more information, call or email.
Phone: (256) 229-6595
Email: CEDAR-Special@CollierEquipment.com
***** Click on Mr. Hook to order CS-1560 Parts *****
Long Arm

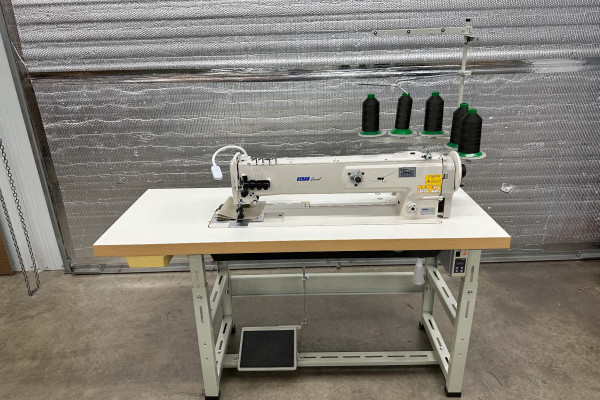

CS-635
Our CS-635 is a Long-Arm, 4 Needle Lockstitch Machine, Drop Feed with Rear Puller.
Available in 3 different Needle Configurations:
* 1/4 x 1/4 x 1/4
* 1/4 x 5/16 x 1/4
* 1/4 x 3/8 x 1/4
Key Features include:
• Parallel 4 Row Lock Stitch.
• Rear Puller for even feeding of heavy materials.
• 25” Long Arm
• Powerful 900 watt Servo Drive
• Automatic Foot Lift
• Automatic Back Tack
• 2-1/4” Heavy Duty Table Top
• Available in Multiple Gauges
* Custom Folders, Binders, Hemmers, Guides, Pallets and Clamp Sets for the Sewn Products Industry.
For more information, call or email.
Phone: (256) 229-6595
Email: CEDAR-Special@CollierEquipment.com
***** Click on Mr. Hook to order CS-635 Parts *****
Long Arm
MH2645-75
The Mauser Spezial MH2645-270242-36-75, Double-needle flatbed heavy-duty machine with XXL extra large vertical rotary hook, dual stitch length, dual presser foot stroke function, and extra-wide workspace (750 mm).
- Order MH2642 for Needle Feed Version -
* Features dual stitch length settings and dual, adjustable presser foot stroke.
* Powerful triple feed system: bottom feed, needle feed, and alternating presser foot feed.
* Touch-type control panel, integrated electronic control (direct drive motor), with multifunctional head shortcut keys such as reinforcement stitching and secondary thread tension adjustment.
* Automatic thread trimming, automatic back stitching, pneumatic presser foot lifting, and HP mechanism for quick adjustment of alternating presser foot stroke, with maximum differential feed of 9 mm, ensuring safe stitching over varying fabric thicknesses.
* XXL extra-large vertical rotary hook enhances productivity (bobbin diameter Ø32 mm; 70% higher bobbin capacity compared to standard Ø26 mm bobbins).
* Presser foot lift height up to 20 mm, facilitating easy loading and unloading of thick and bulky workpieces.
* Stitch length adjustment knob (adjustable stitch length), maximum stitch length 9 mm.
* 750 mm wide x 125 mm high under-arm space.
* Optional needle gauge: 6 mm, 8 mm, 10 mm, etc.
Contact us for more information.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: Mauser-Spezial@CollierEquipment.com
