Zig Zag
Browsing Zig Zag inside our premium line of Machines by Type.
Zig Zag

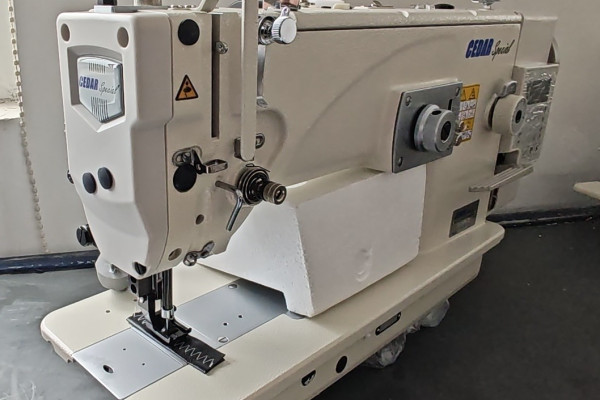

CS-2530-7C
The CS-2530-7C is a Direct Drive, Top & Bottom Feed, Single-Step Zigzag.
Primary Features:
* 1 step 2 point
* Full function machine utilizes a synchronized top-and-bottom feed mechanism to prevent slippage when sewing thick, heavy layers. Designed for materials like leather, canvas, neoprene, and upholstery.
* Complimented with Automatic Thread Trim, Automatic Back Tack and Automatic Foot Lift.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Zig Zag

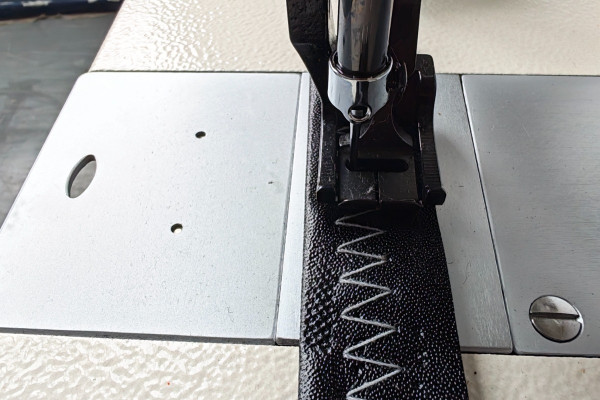

CS-2640Max
Our CS-2640Max is a heavy-duty compound feed lockstitch sewing machine. It is specifically engineered to handle multi-layered materials and thick fabrics, commonly used in professional manufacturing environments for specialized seaming and heavy textile work. The 2640Max belongs to our premium line of industrial sewing machines.
Key features include:
* Zig Zag, Direct Drive, Industrial Sewing Machine
* Top Feed and Bottom Feed mechanism.
* Compound Feed Mechanism: Features a needle-feed (or unison feed) system, ensuring thick materials are moved evenly without slipping.
* Material Handling: Built to sew heavy-weight textiles, making it ideal for canvas, leather, heavy upholstery, and webbing.
* Specialized Applications: Our 2640 series includes variations tailored for double-needle setups and side-cut lockstitch operations.
Anti Bird nest, Top-down Compound Feed Lockstitch.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Zig Zag

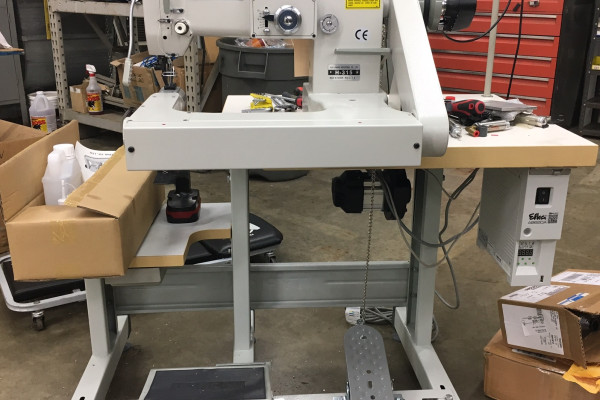

Tony 310 & 315s
The Tony Model H-315s is a Top Feed and Bottom Feed walking foot zig-zag industrial sewing machine featuring a large capacity bobbin, reverse capability, and cylindrical arm geometry that is ideal for tubular goods like koozies and wetsuits. The Tony H-315 is a specialized industrial feed-off-the-arm walking foot zigzag machine.
The Tony Model 310 is a Bottom Feed, feed off the arm zig-zag sewing machine for lighter weight fabrics.
Key Specifications
* Max Speed: 2600–2800 stitches per minute
* Max Stitch Length: 5 mm
* Max Zig Zag Width: 10 mm
* Max Presser Foot Lift: 10 mm
* Cylinder/Arm Diameter: Approx. 46 mm to 55 mm
* Feed System:
- 310: Bottom Feed only.
- 315s: Top Feed & Bottom Feed ( Walking foot with double presser foot )
* Applications & DesignCylindrical Seaming: Built for closed, tubular, or curved items like neoprene can holders/koozies, filtration units, leather boots, and wetsuits.
* Heavy-Duty Handling: Utilizes a large hook and reverse feed mechanism suited for thick, flexible, or sticky materials.
* Custom Folders, Binders and Guides for the Sewn Products Industry.
Collier Equipment
Website: https://collierequipment.com/
Email: Sales@CollierEquipment.com
Phone: (256) 229-6595
Lexington, Alabama 35648
• CEDAR Systems Automated Sewing Machines & Devices
• VMW Automated Sewing Equipment
• Tice Engineering
Zig Zag

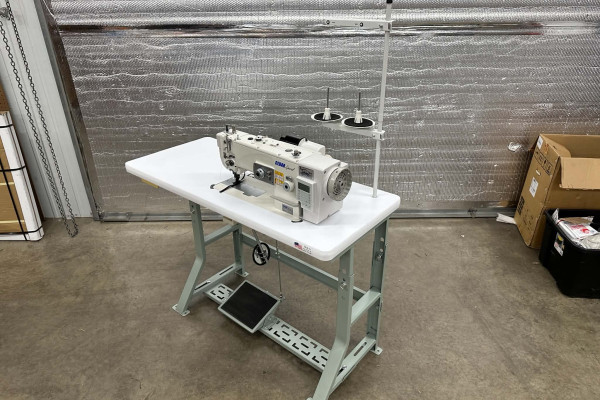

CS-2533-7C
The CS-2533-7C is a Direct Drive, Top & Bottom Feed, Single-Step Zigzag.
Primary Features:
* 2-Step x 3-Point
* Full function machine utilizes a synchronized top-and-bottom feed mechanism to prevent slippage when sewing thick, heavy layers. Designed for materials like leather, canvas, neoprene, and upholstery.
* Complimented with Automatic Thread Trim, Automatic Back Tack and Automatic Foot Lift.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
