Cedar Special
Browsing Cedar Special inside our premium line of Machine Brands.
Cedar Special
CS-5214
The CEDAR Special CS-5214 is a High Speed, Direct Drive, Mock Safety Stitch overlock machine. It uses 2 needles that are side-by-side, a bottom looper and an upper looper for a total of 4 threads to help ensure the top-quality seams that active wear apparel demands.
* Pneumatic suction chain cutter device
* Footlifter air cylinder
* Solenoid Valves Switch
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special
CS-101-D3
The CEDAR Special CS-101-D3 is a Blind Stitch Hemming Machine equipped with an Integrated Drive with Thread Trimming Device, and creates nearly invisible hems on trousers, skirts, and curtains by using a curved needle and a single thread chainstitch.
Unlike standard machines, it catches only a few threads of the fabric's fold so the stitches don't show on the outside.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special
CS-6400BL-7D
The CS-6400BL-7D is TOP in its class.
Direct drive, long arm type, 1-needle, up & low feed, large bobbin, lock stitch sewing machine with automatic thread trimmer series.
Advanced technology, Optimized sewing condition for heavy materials.
Dual control system of presser foot and easy regulation of ascending amount of both main presser foot and auxiliary presser foot by dial are suitable for various sewing conditions such as the work for stepped and different thickness heavy duty material.
With applying reliable feed mechanism, firm stitches and best quality are guaranteed.
The best trimming mechanism for thick materials. The machine realizes structures of dual safety devices and strong trimming drive. The movable knife and fixed knife composed of special materials, not only performs strong trimming drive but guarantees excellent anti abrasion with perfect quality as a sewing for thick materials.
NOTE: * Excellent feeding properties for binding operations
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special
CS-1900
This CEDAR Special CS-1900A is a premium, computer-controlled, high-speed bartacking industrial sewing machine.
The sewing field is 30mm x 40mm and is capable of sewing speeds up to 3,200 stitches per minute.
The onboard touch screen programmer allows for maximum flexibility that can be tailored to your specific stitch specifications. PC programming is also available.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special
CS-0606
With powerful pneumatic clamping system, the CEDAR Special CS-0606 has a sewing field of 60mm x 60mm (2.36" x 2.36") and is a premium, computer-controlled, high-speed, programmable pattern, industrial sewing machine.
It is capable of sewing speeds up to 3,000 stitches per minute.
The onboard programmer allows for awesome flexibility that can be tailored to meet specific stitch specifications. PC programming is also available.
Minimal 2D programming ability is a plus for successful PC programming.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special
CS-1341D-7
Our CS-1341D-7 is a Direct Drive, Heavy-Duty, single-needle Cylinder-Bed, Walking Foot, lockstitch sewing machine. It is engineered for thick, demanding materials such as automotive interiors, leather goods, home upholstery, and heavy bags.
Specifications:
* Max Speed: 2,500
* Max Stitch Length: 8mm
* Working Space: 255mm Left to Right, 110mm Top to Bottom.
* Feed System: Compound feed (walking foot) and needle feed.
* Bed Type: Cylinder bed, which allows for easy manipulation of 3D, tubular, and curved items.
* Applications: Ideal for car seats, sofas, tents, luggage, and thick thread sewing.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special
CS-733
The CS-733 is an Extra Heavy -Weight Material Super Large Shuttle, Top And Bottom Feed Sewing Machine.
A few features of the CS-733
*Work Area: 42cm
*With Backstitch + Foot Lift (pneumatic)
* For stitching extra heavy-weight materials. Can sew up to size Tex 556 cord (thread)
Designed for such operations and products as extra heavy duty harnesses and slings (can sew up to 18,000 lb. strength webbing,) safety and logging belts, cargo slings, tents, sails, tarpaulins and covers, fabric structures, construction barriers, buffing wheels, parachutes, balloons, industrial bags, boot stitching, book binding.
* Extra Heavy Duty, Long Arm, Single Needle, Drop Feed, Alternating, Presser Feet, Lockstitch Machine.
* With: Extra Large, Long Point, Oscillating Shuttle Hook and Bobbin, Extra High Foot Lift - (1-11/32” - 34 mm), Two Row Feeder and Reverse Feed.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special
CS-2530-7C
The CS-2530-7C is a Direct Drive, Top & Bottom Feed, Zigzag.
Primary Features:
* 1 step 2 point
* Full function machine utilizes a synchronized top-and-bottom feed mechanism to prevent slippage when sewing thick, heavy layers. Designed for materials like leather, canvas, neoprene, and upholstery.
* Complimented with Automatic Thread Trim, Automatic Back Tack and Automatic Foot Lift.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

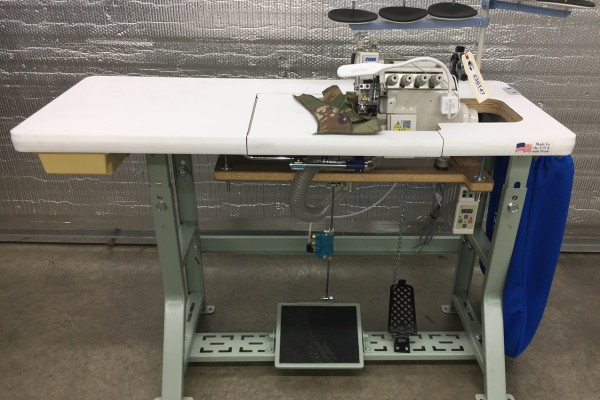

CST-3216H-A05/535
The CST-3216H-A05/535 is a Top Feed with Bottom Feed, 5 Thread Safety Stitch with Direct Drive motor.
Machine Features:
* Ultra High Lift for extra thick fabrics.
* With KH021A flat chain cutters
* With Four rows Of Gauge set
* Without Auto Foot Lift
* Without Suction bucket
- Different variations of machines may be represented in the pictures.
- Available with or without special devices such as chain cutter, auto foot lift, etc.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

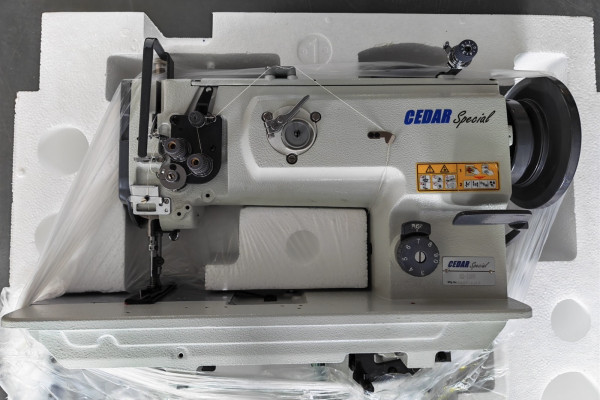

CS-1510N
The CS-1510N is a 1-Needle, Compound Feed Lockstitch.
Some features include:
* Work Space: 260X110mm
* Top Load Bobbin
* The CS-1510N is a heavy-duty, single-needle, unison-feed lockstitch machine with a compound walking foot, primarily used for leather, upholstery, and heavy canvas. It features a large-capacity bobbin, making it ideal for automotive interiors and furniture.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

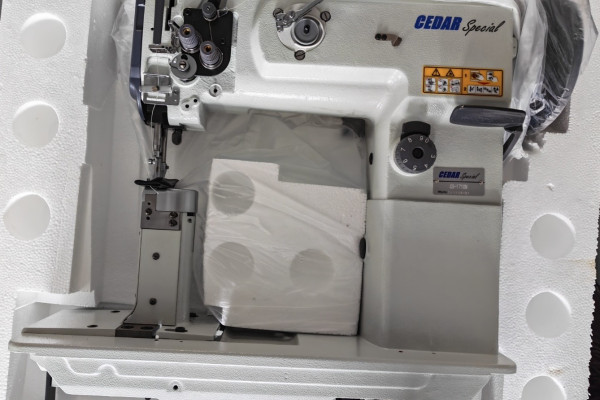

CS-1710N
Our CS-1710N is a post-bed, 1-needle, unison-feed lockstitch machine designed for heavy-duty applications like car seats, furniture, and leather goods. It features an alternating vertical movement mechanism to prevent irregular stitches and is prized by professionals for handling thick materials up to 16 mm thick.
Key Features:
*Belt type
* Feed Mechanism: Unison feed (drop feed, needle feed, and walking foot) prevents slippage when sewing multiple thick layers.
* Stitch Capacity: Handles large stitch lengths up to 9mm to 12mm, ideal for thick threads and decorative topstitching.
* Clearance: Post-bed height typically ranges between 7 to 8 inches, giving you excellent maneuverability for tight, inside curves and corners.
* Hook: Equipped with large vertical-axis hook or extra-large bobbins to accommodate thick industrial threads (like TEX 138) without constant refilling.
Usage and Applications
* Post-bed machines excel where flatbed machines fail: allowing irregular and pre-assembled 3D shapes to rotate freely around the elevated pillar.
* Bags & Footwear: Excellent for gussets, boxing, and adding structural piping.
* Topstitching: Many operators use spring-loaded edge-guide feet to achieve flawless parallel topstitching on curved edges.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

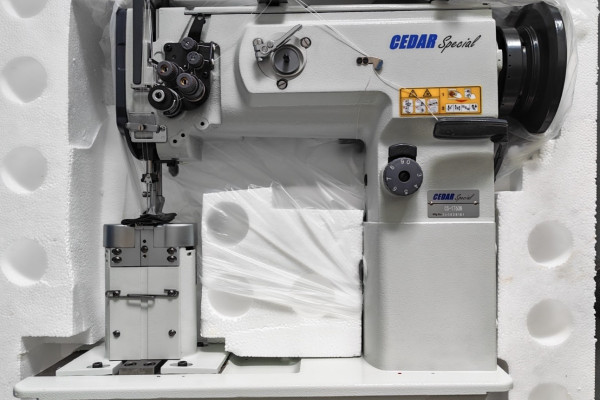

CS-1760N
Double Needle Post Bed Machine
*Belt type
* Needle Gauge : Available in different needle gauges.
* The CS-1760 is a post-bed, 2-needle, unison-feed lockstitch machine designed for heavy-duty applications like car seats, furniture, and leather goods. It features an alternating vertical movement mechanism to prevent irregular stitches and is prized by professionals for handling thick materials up to 16 mm thick.
* Feed Mechanism: Unison feed (drop feed, needle feed, and walking foot) prevents slippage when sewing multiple thick layers.
* Stitch Capacity: Handles large stitch lengths up to 9mm to 12mm, ideal for thick threads and decorative topstitching.
* Clearance: Post-bed height typically ranges between 7 to 8 inches, giving you excellent maneuverability for tight, inside curves and corners.
* Hooks: Equipped with large vertical-axis hooks or extra-large bobbins to accommodate thick industrial threads (like TEX 138) without constant refilling.
Usage and Applications
* Post-bed machines excel where flatbed machines fail: allowing irregular and pre-assembled 3D shapes to rotate freely around the elevated pillar.
* Bags & Footwear: Excellent for gussets, boxing, and adding structural piping.
* Topstitching: Many operators use spring-loaded edge-guide feet to achieve flawless parallel topstitching on curved edges.
* Folders and Guides are available *
