Mauser Spezial
Browsing Mauser Spezial inside our premium line of Machine Brands.
Mauser Spezial

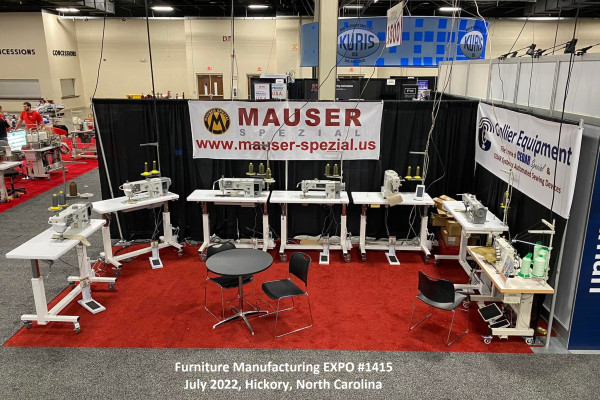

Mauser-Spezial Press
This page has pictures and other information from past exhibitions featuring Mauser Spezial machinery that includes the following:
* Mauser Spezial Model #: MA-269
Single Needle, Cylinder Bed Walking Foot
* Mauser Spezial Model #: MB1900
Electronic - Programmable Tacker 40mm x 30mm
* Mauser Spezial Model #: MH-1296
Double Needle, Post Bed, Walking Foot
* Mauser Spezial Model #: MH-1341
Single Needle, Top & Bottom Feed, Direct Drive (Air is not required)
* Mauser Spezial Model #: MH-1641
Single Needle, Top & Bottom Feed, Direct Drive (Air is required)
* Mauser Spezial Model #: MH-2642
Single Needle or Double Needle, Needle Feed
* Mauser Spezial Model #: MH-2645
Single Needle or Double Needle, Waking Foot
* Mauser Spezial Model #: MH-2645-750
Single Needle or Double Needle, Walking Foot with 750mm Working Area
* Mauser Spezial Model #: MM1020-C
Double Needle Cover Stitch for making Belt Loops
* Mauser Spezial Model #: MP-2210
Programmable Pattern Tacking Machine 220mm x 100mm
* Mauser Spezial Model #: MS-0591
Post Bed, Wheel Feed Machine for sewing 3D Products and Patches
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
Phone: (256) 229-6595
Email: Sales@CollierEquipment.com
Mauser Spezial

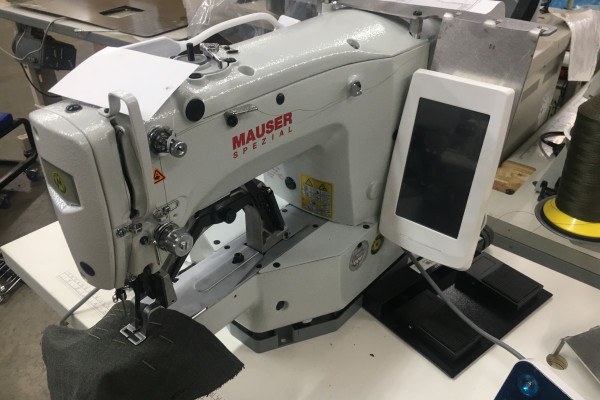

MB-1900
This Mauser Spezial MB-1900E is a premium, computer-controlled, high-speed bartacking industrial sewing machine. The onboard touch screen programmer allows for maximum flexibility that can be tailored to your specific stitch specifications.
Some Features Include:
* PC programming is also available.
* This series of models has the functions of automatic thread trimming and automatic presser foot lifting, and the fully electronic design greatly improves work efficiency.
* The closed bearing box design still has good stability and vibration even at the maximum speed of 3,000 RPM.
* Within the range of 40×30mm, a variety of pre-programmed tacking patterns can be selected, as illustrated in the below pictures.
* This machine is so much more than just an ordinaty bartack.
* We offer instrucional videos for this machine.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Mauser Spezial

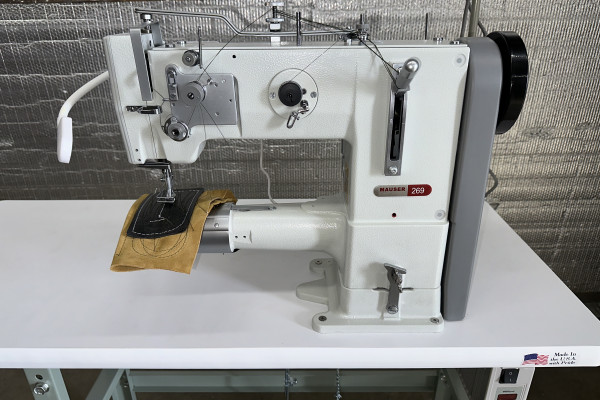

MA-269-373
Mauser Spezial MA-269-373
* Robust single needle lockstitch sewing machine with cylinder arm and large vertical hook for medium heavy materials Equipped with bottom feed, needle feed and alternating top feed.
* Due to the design of the 269 series with the use of a large vertical hook, the machine excellently meets the requirements for processing very dense and stiff materials.
The possibility of damage to the hook due to needle deflection during sewing is minimized.
* This also minimizes downtimes and maintenance requirements.
* A common application is, for example, the sewing of rubber lips on hard cases, the production of tool bags, but also used in particular for processing tubular, or pre-assembled, closed articles, also in the production of bridles for equestrian sports or dog leashes and harnesses.
* The use of a large vertical hook makes it possible to work with dense materials and multi layered workpieces.
* This minimizes the risk of damage to the hook due to needle deflection.
* In addition, the standard overload clutch prevents damage to the hook by unhooking the bottom feed when the machine is overloaded.
* The bottom feed and needle feed in conjunction with the alternating top feed ensure a high pull through force and uniform material feed With the top feed stroke of 5 mm, material thickening and cross seams in the seam course can be climbed over.
* The Mauser Spezial MA 269 is also optionally available as a twin needle machine.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Mauser Spezial

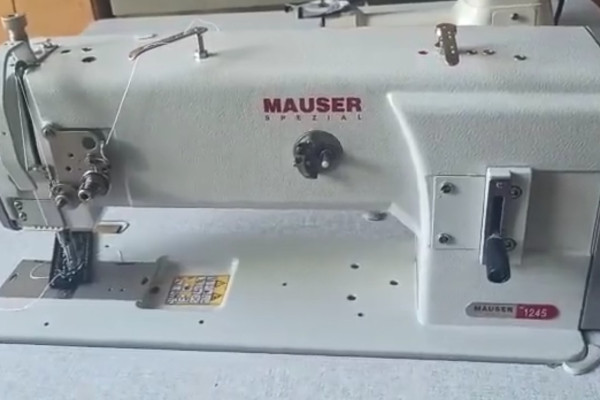

MA-1245
MA 1245 Single and two-needle lockstitch flat bed sewing machines with unison feed.
Special features:
◼ High traction due to unison feet.
◼ Even feed motion without any ply-shift of individual layers.
◼ Large vertical rotary hook with 60% more bobbin thread capacity than other standard-sized hooks.
◼ Automatic hook lubrication.
◼ Efficient hook protection against thread jamming due to standard built-in overload coupling (M).
◼ Rugged and durable.
◼ The high top feed lift (7 mm) allows trouble-free sewing of thick materials and an easy sewing over cross seams.
◼ Easy to service.
◼ Easy loading and unloading – even of bulky material – due to a high fabric clearance of 14 mm
Explanations and additional equipment:
◼ -6/07 CN Special part set for seams with particularly bulky cross seams stitch length max 6 mm, available for machines with thread trimmer -900/56 and for machines without thread trimmer.
◼ -6/07 CN8 Same as -6/07 CN, but stitch length 8 mm
◼ -17/01-650/03 CN Part set for binding, without binder (for machines without P)
◼ -40/01 CN x 5.0 Piping part set for piping size 5 mm, device for the manufacture and simultaneous insertion of piping between two plies of fabric, device fastened on retractable carrier.
* See chart in brochure or pictures for other necessary specification details:
- 1245-6/01 CLMPN
Hook Protection Device (M)
Four motion drop feed (P)
Stitch Length in mm (6)
- 1245-6/01 CLPMN8
Hook Protection Device (M)
Four motion drop feed (P)
Stitch Length in mm (8)
- 1245-6/01 CLMN8
Hook Protection Device (M)
Stitch Length in mm (8)
- 1245-6/01-900/56 / CLPMN
Hook Protection Device (M)
Four motion drop feed (P)
Thread Trimmer (-900/56)
Stitch Length in mm (6)
- 1245-6/01-900/56 / CLPMN8
Hook Protection Device (M)
Four motion drop feed (P)
Thread Trimmer (-900/56)
Stitch Length in mm (8)
- 1245-6/01-900/56-911-97 CLPMN*
Hook Protection Device (M)
Four motion drop feed (P)
Thread Trimmer (-900/56)
Auto Foot Lif / Backtacking (-911/97)
Stitch Length in mm (6)
* An air filter/pressure regulator -925/03 is required for the operation of all machines with -911/97.
Technical Data:
Stitch type: 301 (lockstitch)
Max speed**: 2800
Top feed lift: 7 mm
Fabric clearance: max. 14 mm
Needle system: 134-35
Needle size: 110-140 Nm
Balance wheel: 80 mm eff. dia
Motor power: 0.370 or 0.550 kW, depending on equipment
Clear work space: 270 x 115 mm
Carton dimensions: 77 x 62 x 38 cm
Bedplate dimensions: 476 x 177 mm
Net weight of head: approx. 36 kg
Gross weight (head in carton w/ accessories): approx. 44 kg
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Mauser Spezial

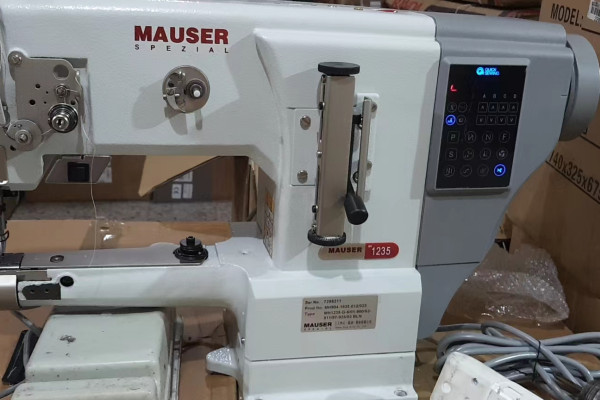

MH-1235
Mauser Spezial MH-1235-G-6/01 CLMN8
* Proven Single-Needle lockstitch sewing machine with narrow cylinder arm for medium-weight materials.
* Equipped with bottom feed, needle feed and alternating top feed.
* The 1235 series is the latest development of the well-known and most widely used 335 triple feed cylinder arm machine worldwide.
* In the equipment line with automatic functions, such as electromagnetic thread trimmer, electropneumatic foot lift and seam backtacking, the Mauser Spezial 1235 also has an integrated 750W direct drive with built-in control panel.
* Thus equipped, the Mauser Spezial 1235 continues to be a reliable production tool in the manufacture of leather goods, handbags and suitcases.
* The Mauser Spezial MH-1235 is a universally applicable free-arm machine that is used in particular for processing tubular or pre-assembled, closed articles.
* The narrow cylinder arm with a diameter of only 51mm allows the machine to be used on workpieces with a small cross-section.
* Typical applications are in the production of small leather goods and leather garments as well as the manufacture of bags, suitcases and upholstery.
* The use of a horizontal hook ensures precise and uniform thread take-up and even bobbin thread tension.
* The bottom feed and needle feed in conjunction with the alternating top feed ensure not only a high pull-through force but also a uniform material feed. With the top feed stroke of 7 mm, material thickenings and cross seams can be passed over effortlessly.
* The MH1235 is also widely used for binding operations on shoes and leather goods. For this purpose, the machine can be equipped with special components with our moving binder to assist with inside and outside curves.
* The binding device is recessed in the throat plate. As a result, the sewing material enters the sewing machine evenly. The binding tape lies tightly against the material edge even with inside and outside radius.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
