Automated Sewing
Browse our high-performance line of Automated Sewing. Built for reliability, durability, and operational efficiency.
Labor Saving Devices

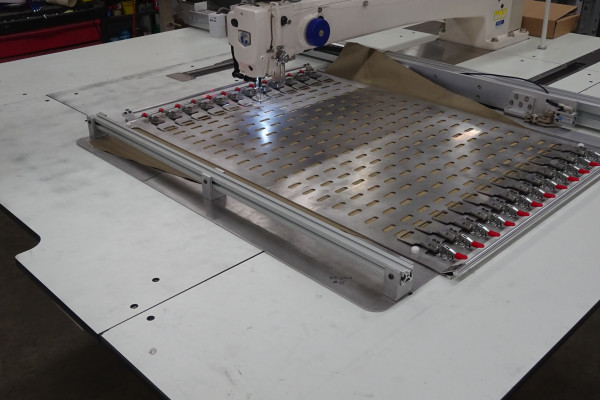

CS-12080
Our CS-12080 is one of our larger Programmable Pattern machine. Used in operations like Home Décor, Large Interior Patterns to be seamless and much more.
* Some features of the machine include:
* Sewing Speed: 2,500 spm, (XY Axis moving speed maximum 10meters/minute.
* Hook: 2X Japan Hirose Hook / Koban Hook (3X Size Hook is Optional).
* Uses latest A8 CPU, Disk/USB Date Memory, XYZ Servo Motor, Highly Accurate (to 0.001mm).
* All templates work with Intelligent Judgement.
* Thread - Break Detector. (Bottom thread stitch quantity is optional).
*Sewing Area: X = 1,200mm, Y = 800mm. Larger sizes are available.
* Needle Type: DPx5 / DPx17
* Sewing Thickness: 0.1mm - 10mm.
* Presser Foot: Electropneumatic.
* Applications: Tents, Sleeping Mats, Drapes, Banners, etc...
In this video, we are sewing more than 200 MOLLE Style Bar Tacks per pallet. The right and left sides of the webbing is hot cut and turned under.
The 2nd pallet in this video has longer left and right tabs to be able to reach over the extended panel to hold the folded webbing.
This machine is equipped with a bar code reader that switches the program automatically between pallets.
Thanks for watching and sharing our videos. I hope you enjoy the video as much as we enjoy building Automated Machines for the Industrial Sewing Industry.
* Custom Designed Pallet Systems are available.
* Custom Folders, Binders and Guides for the Sewn Products Industry.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Lexington, Alabama 35648
• CEDAR Systems Automated Sewing Machines & Devices
• VMW Automated Sewing Equipment
• Tice Engineering
Labor Saving Devices

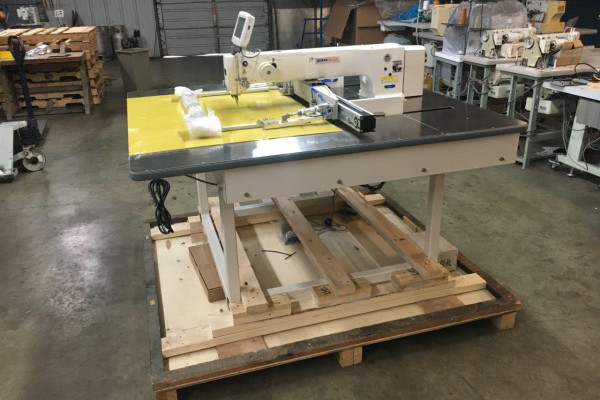

CS-6040+
Our CS-6040+ ( 600mm x 400mm ) is also available as a CS-10040 ( 1000mm x 400mm ) and represent some of our larger Programmable Pattern machines. Used in operations like Home Décor, Large Interior Patterns to be seamless and much more.
Some features of the machine include:
* Sewing Speed: 2,500 spm, (XY Axis moving speed maximum 10meters/minute.
* Hook: 2X Japan Hirose Hook / Koban Hook (3X Size Hook is Optional).
* Uses latest A8 CPU, Disk/USB Date Memory, XYZ Servo Motor, Highly Accurate (to 0.001mm).
* All templates work with Intelligent Judgement.
* Thread - Break Detector. (Bottom thread stitch quantity is optional).
* Needle Type: DPx5 / DPx17
* Sewing Thickness: 0.1mm - 10mm.
* Presser Foot: Electropneumatic.
* Applications: Tents, Sleeping Mats, Drapes, Banners, etc...
Thanks for watching and sharing our videos. I hope you enjoy the video as much as we enjoy building Automated Machines for the Industrial Sewing Industry.
* Custom Designed Pallet Systems are available.
* Custom Folders, Binder and Guides for the Sewn Products Industry.
For more information, please call or email.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Binders
205 Binder
There are a few different styles of the 205 binder. It can be mounted on a swingout, flat bed, or a slide plate. Available for Lock Stitch or Chain Stitch machines as well as Single Needle or Double Needle machines. Also available as a Moving Binder Series to help achieve better quality on inside and outside curves.
A Binding Reel is available along with special Gauge Sets to suit specific operations.
Samples of your materials will be required for us to recommend and produce the best option for you.
* Contact us for all your Custom Folders, Guides, Clamps and Pallets needs.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Binders
252 Binder
The 252 Binder is often referred to as a "C Type" binder. Produced for binding that is coming from a roll. Can be mounted to a front slide plate or on a swingout. Available in various configurations.
A Binding Reel is available along with special Gauge Sets to suit specific operations.
Samples of your materials will be required for us to recommend and produce the best option for you.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Binders
CXT2241
Our CEDAR Special CXT2241-52P2 has a Top Feed to assist the bottom feed for Binding Heavy Fabrics with a Single Needle 401 Stitch Type. At 7,000 spm, it does a wonderful job.
Our premium line of Overlock and Safety Stitch Machines have become one of the best lines on the market. Paired with our technical staff, virtually unmatched in the industry.
Key Features
* Tape Cutter: Programmable, Pneumatic
* Foot Lift: Automatic - Pneumatic
* Stitch Length Adjustment: Push Button
* Dust & Waste Collector: Pneumatic
* Differential Feed Ratio Adjustment: Lever with Mirco-Adjuster
* Lubrication: Automatic
* Fabric Weight: Light - Medium
* Maximum Speed: 7,000 spm
* No. of Needles: 1
* No. of Threads: 2
* Maximum Tape Width: 24mm (wider may be achieved with custom modifications)
* Stitch Type: 401
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
