Walking Foot
Browsing Walking Foot inside our premium line of Machine Types.
Walking Foot

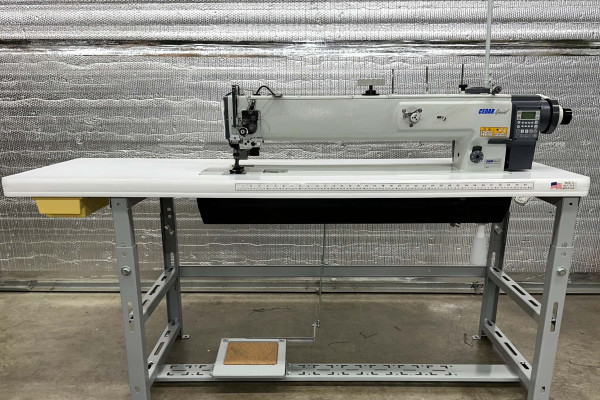

CS-1560L30-7D
The CEDAR Special CS-1560L30-7DJ with a 30" Long Arm clearance is a heavy-duty, 2-needle unison-feed (walking foot) lockstitch machine featuring an automatic thread trimmer and an alternating foot stroke adjusting dial. It is built for heavy materials like leather, canvas, upholstery, and vinyl.
* Key Specifications
* With or without Rear Puller.
* Direct Drive
* Automatic Thread Trim
* Automatic Back Tack
* Automatic Foot Lift
* Sewing Speed: Up to 2,000 stitches per minute (spi/min)
* Stitch Length: Up to 9 mm (both forward and reverse)
* Needle System: 135x17 (Sizes from Nm125 to Nm180)
* Needle Bar Stroke: 36 mm
* Presser Foot Lift: 9 mm (by hand), 16 mm (by knee or auto-lifter)
* Alternating Vertical Movement: Adjustable between 1 mm to 6.5 mm
* Hook: Vertical-axis double-capacity hooks
* Standard Needle Gauges: 1/4" (6.4 mm) (Available from 3/16" to 1/2")
* Custom Folders, Binders, Hemmers, Guides and Clamp Sets for the Sewn Products Industry.
For more information, call or email.
Phone: (256) 229-6595
Email: CEDAR-Special@CollierEquipment.com
***** Click on Mr. Hook to order CS-1560 Parts *****
Walking Foot

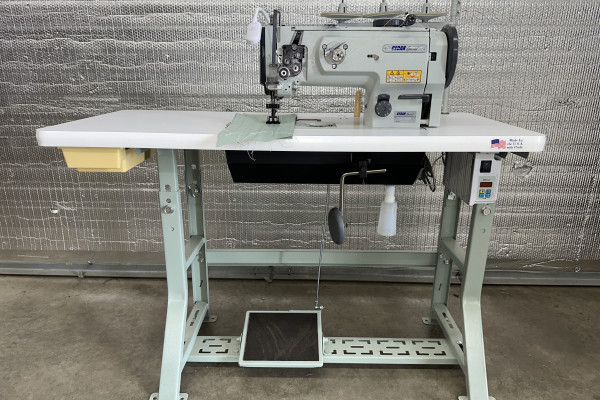

CS-1560N
The CEDAR Special CS-1560N is a heavy-duty, Belt Drive, 2-needle unison-feed (walking foot) lockstitch machine with alternating foot stroke adjusting dial. It is purpose-built for heavy materials like leather, canvas, upholstery, and vinyl.
* Key Specifications
* Belt Drive
* 750W Servo Motor ( Available in 110V or 220V )
* Sewing Speed: Up to 2,500 stitches per minute (spi/min)
* Stitch Length: Up to 9 mm (both forward and reverse)
* Needle System: 135x17 (Sizes from Nm125 to Nm180)
* Needle Bar Stroke: 36 mm
* Presser Foot Lift: 9 mm (by hand), 16 mm (by knee)
* Alternating Vertical Movement: Adjustable between 1 mm to 6.5 mm
* Hook: Vertical-axis double-capacity hooks (28mm)
* Standard Needle Gauges: 1/4" (6.4 mm) (Available from 3/16" to 1/2")
* Custom Folders, Binders, Hemmers, Guides, Pallets and Clamp Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: CEDAR-Special@CollierEquipment.com
***** Click on Mr. Hook to order CS-1560 Parts *****
Walking Foot

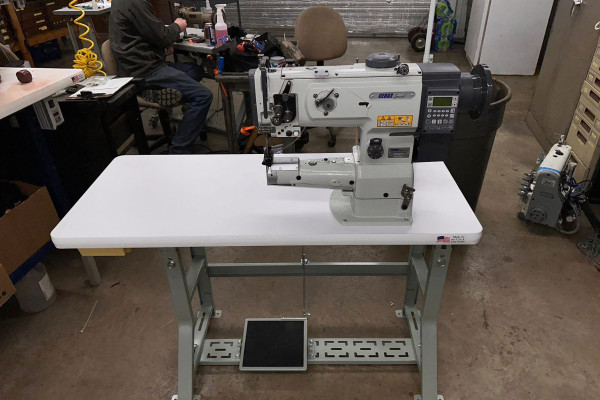

CS-1341-7
The latest - CS-1341D-7 is a Direct Drive, heavy-duty, single-needle cylinder-bed compound feed, lockstitch sewing machine. It is engineered for thick, demanding materials such as automotive interiors, leather goods, home upholstery, and heavy bags.
Key Features:
* Powerful Direct Drive Motor
* Top Load Bobbin
* Easy to Use Control Panel
* Automatic Backtacking
* Automatic Thread Trim
* Automatic Foot Lift
Specifications:
* Max Speed: 2,500
* Max Stitch Length: 9mm
* Working Space: 255mm Left to Right, 110mm Top to Bottom.
* Feed System: Compound feed (walking foot) and needle feed.
* Bed Type: Cylinder bed, which allows for easy manipulation of 3D, tubular, and curved items.
* Applications: Ideal for car seats, sofas, tents, luggage, and thick thread sewing.
* Custom Folders, Binders, Hemmers, Guides, Pallets and Clamp Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: CEDAR-Special@CollierEquipment.com
Walking Foot
MH2645-75
The Mauser Spezial MH2645-270242-36-75, Double-needle flatbed heavy-duty machine with XXL extra large vertical rotary hook, dual stitch length, dual presser foot stroke function, and extra-wide workspace (750 mm).
- Order MH2642 for Needle Feed Version -
* Features dual stitch length settings and dual, adjustable presser foot stroke.
* Powerful triple feed system: bottom feed, needle feed, and alternating presser foot feed.
* Touch-type control panel, integrated electronic control (direct drive motor), with multifunctional head shortcut keys such as reinforcement stitching and secondary thread tension adjustment.
* Automatic thread trimming, automatic back stitching, pneumatic presser foot lifting, and HP mechanism for quick adjustment of alternating presser foot stroke, with maximum differential feed of 9 mm, ensuring safe stitching over varying fabric thicknesses.
* XXL extra-large vertical rotary hook enhances productivity (bobbin diameter Ø32 mm; 70% higher bobbin capacity compared to standard Ø26 mm bobbins).
* Presser foot lift height up to 20 mm, facilitating easy loading and unloading of thick and bulky workpieces.
* Stitch length adjustment knob (adjustable stitch length), maximum stitch length 9 mm.
* 750 mm wide x 125 mm high under-arm space.
* Optional needle gauge: 6 mm, 8 mm, 10 mm, etc.
Contact us for more information.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: Mauser-Spezial@CollierEquipment.com
