Machines by Type
Browse our high-performance line of Machines by Type. Built for reliability, durability, and operational efficiency.
Cylinder Bed
CS-1341
Our CS-1341 is a Belt Drive, heavy-duty, Single-Needle cylinder-bed compound feed, lockstitch sewing machine. It is engineered for thick, demanding materials such as automotive interiors, leather goods, home upholstery, and heavy bags. We provide with your choice of table, legs and Servo Motor.
Specifications:
* Max Speed: 2,500
* Max Stitch Length: 8mm
* Working Space: 255mm Left to Right, 110mm Top to Bottom.
* Feed System: Compound feed (walking foot) and needle feed.
* Bed Type: Cylinder bed, which allows for easy manipulation of 3D, tubular, and curved items.
* Applications: Ideal for car seats, sofas, tents, luggage, and thick thread sewing.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: cedar-special@collierequipment.com
Cylinder Bed
CS-5114D
The CS-5100D Series is a Direct Drive, Cylinder Bed Overlock Machine with Lower Differential Feed Mechanism. It also comes in a Variable Top Feed Version for heavy fabrics.
* General Specifications:
* Stitch Length Adjustment: Push-Button
* Differential Feed Ratio Adjustment: Lever that can be adjusted intermittently, during sewing.
* Maximum Speed: 7,000 spm (Top Feed 6,00 spm)
* Lubrication: Fully Automatic (internal oil pump)
* Cylinder Circumference: 148mm
* Top Feed version feeds the fabric accurately without ply shift or twist.
* Top Feed version can be utilized with light to heavy fabrics.
* Flat Bed style plate available for multi-use setup.
* Alternate Devices & Attachments:
* Roller guide assembly (tensioner style or basic)
* Upper Metering Device for attaching elastic.
* Round Collar
* Tape Cutter
* Chain Cutter
* Automatic Foot Lift
* Hemming Guide
* Pneumatic trimming & lint collector
* Available Stitch Formations:
* 503, 1 needle thread + 1 looper thread
* 504, 1 needle thread + 2 looper threads
* 505, 1 needle thread + 2 looper threads
* 512, 2 needle threads + 2 looper threads
* 514, 2 needle threads + 2 looper threads
* Custom Folders, Guides and Accessories are available.
- Special Automated Machines are Available. Check with one of our experienced sales representatives -
• Phone: (256) 229-6595
• Email: cedar-special@collierequipment.com
Cylinder Bed
MA-269-373
Mauser Spezial MA-269-373
* Robust single needle lockstitch sewing machine with cylinder arm and large vertical hook for medium heavy materials Equipped with bottom feed, needle feed and alternating top feed.
* Due to the design of the 269 series with the use of a large vertical hook, the machine excellently meets the requirements for processing very dense and stiff materials.
The possibility of damage to the hook due to needle deflection during sewing is minimized.
* This also minimizes downtimes and maintenance requirements.
* A common application is, for example, the sewing of rubber lips on hard cases, the production of tool bags, but also used in particular for processing tubular, or pre-assembled, closed articles, also in the production of bridles for equestrian sports or dog leashes and harnesses.
* The use of a large vertical hook makes it possible to work with dense materials and multi layered workpieces.
* This minimizes the risk of damage to the hook due to needle deflection.
* In addition, the standard overload clutch prevents damage to the hook by unhooking the bottom feed when the machine is overloaded.
* The bottom feed and needle feed in conjunction with the alternating top feed ensure a high pull through force and uniform material feed With the top feed stroke of 5 mm, material thickening and cross seams in the seam course can be climbed over.
* The Mauser Spezial MA 269 is also optionally available as a twin needle machine.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: mauser-spezial@collierequipment.com
Cylinder Bed
MH-1235
Mauser Spezial MH-1235-G-6/01 CLMN8
* Proven Single-Needle lockstitch sewing machine with narrow cylinder arm for medium-weight materials.
* Equipped with bottom feed, needle feed and alternating top feed.
* The 1235 series is the latest development of the well-known and most widely used 335 triple feed cylinder arm machine worldwide.
* In the equipment line with automatic functions, such as electromagnetic thread trimmer, electropneumatic foot lift and seam backtacking, the Mauser Spezial 1235 also has an integrated 750W direct drive with built-in control panel.
* Thus equipped, the Mauser Spezial 1235 continues to be a reliable production tool in the manufacture of leather goods, handbags and suitcases.
* The Mauser Spezial MH-1235 is a universally applicable free-arm machine that is used in particular for processing tubular or pre-assembled, closed articles.
* The narrow cylinder arm with a diameter of only 51mm allows the machine to be used on workpieces with a small cross-section.
* Typical applications are in the production of small leather goods and leather garments as well as the manufacture of bags, suitcases and upholstery.
* The use of a horizontal hook ensures precise and uniform thread take-up and even bobbin thread tension.
* The bottom feed and needle feed in conjunction with the alternating top feed ensure not only a high pull-through force but also a uniform material feed. With the top feed stroke of 7 mm, material thickenings and cross seams can be passed over effortlessly.
* The MH1235 is also widely used for binding operations on shoes and leather goods. For this purpose, the machine can be equipped with special components with our moving binder to assist with inside and outside curves.
* The binding device is recessed in the throat plate. As a result, the sewing material enters the sewing machine evenly. The binding tape lies tightly against the material edge even with inside and outside radius.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: mauser-spezial@collierequipment.com
Button Hole

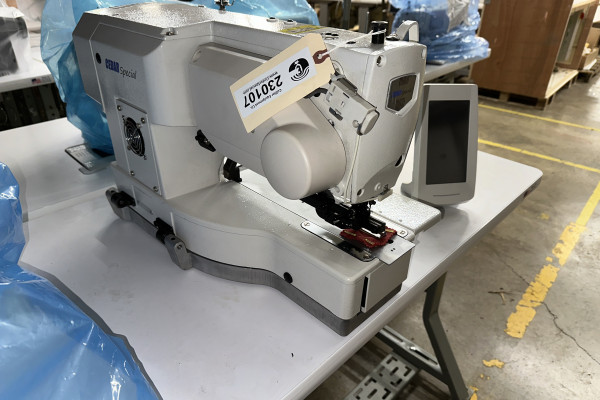

CS-1790A
Our CS-1970A is a highly automated, computer-controlled industrial lockstitch buttonhole machine. It features fully digitized adjustments, active electronic thread tension, and a semi-dry head to eliminate oil stains.
* Here are the key technical specifications for the Juki LBH-1790 series:
* Max. Sewing Speed: Up to 4,200 stitches per minute (spi/min)
* Buttonhole Length: Standard max. 41 mm (optional kits extend this to 70 mm or 120 mm)
* Cloth Cutting Knife Size: 6.4 to 31.8 mm (1/4" to 1-1/4")
* Bartacking Width: Max. 5.0 mm (special order parts allow up to 10 mm)
* Lift of the Work Clamp: 14 mm (up to 17 mm using the reverse-rotation needle-up function)
* Machine & Electronic Specifications
* Lubrication: Semi-dry head (only the hook requires min-quantity lubrication)
* Needle System: DP×5 (#11J) #11J to #14J
* Built-in Patterns: 30 to 31 standard patterns (stores up to 99 distinct input patterns)
* Tension Control: Active Tension (solenoid-controlled electronic thread tension)
* Drive System: Compact AC servomotor (direct-drive)
* Power Requirement: Single-phase 200–240V / 370VA (3-phase also supported on specific models)
* USB & NFC Connectivity: Features an integrated USB port for easy software updates and data management; supports NFC for data transfer.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: cedar-special@collierequipment.com
Button Attach
CS-1903-988
This CS-1903 series is an advanced, computer-controlled, high-speed lockstitch button sewing machine, and shown here with the 988 automated button feeding system. It is widely used in garment manufacturing for attaching flat or shank buttons quickly and consistently.
* Core Specifications
* Max Sewing Speed: Up to 2,700 stitches per minute (sti/min)
* Button Size Compatibility: Standard capacities from φ 8 mm to φ 32 mm depending on the subclass (e.g., 301, 302 options)
* Stitch Length: 0.1 to 10 mm (adjustable in 0.1 mm steps)
* Needle Bar Stroke: 45.7 mm
* Work Clamp Lift: Maximum of 13 mm
* Needle Type: DP × 17 (#14 standard)
* Lubrication System: Semi-dry head (frame requires no oil) with minute-quantity lubrication for the hook.
* Drive System: Direct-drive compact AC servomotor.
* Machine & Electronic Features
* Pre-Programmed Patterns: Comes standard with 50 different pre-programmed sewing patterns, supporting various button types (e.g., cross, parallel).
* Pattern Memory: Stores up to 20,000 to 500,000 stitches in internal memory depending on the specific model variation.
* Thread Tension Control: Employs Active Tension (electronic thread tension control) to match changing fabric thicknesses and threads.
* Automatic Thread Trimming: Streamlines workflow, reducing manual tasks and cycle times
* Data Management: Features a built-in USB port for updating software and data management; optional NFC functionality for sharing settings via Android is also supported.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: cedar-special@collierequipment.com
Off Arm
Tony 310 & 315s
The Tony Model H-315s is a Top Feed and Bottom Feed walking foot zig-zag industrial sewing machine featuring a large capacity bobbin, reverse capability, and cylindrical arm geometry that is ideal for tubular goods like koozies and wetsuits. The Tony H-315 is a specialized industrial feed-off-the-arm walking foot zigzag machine.
The Tony Model 310 is a Bottom Feed, feed off the arm zig-zag sewing machine for lighter weight fabrics.
Key Specifications
* Max Speed: 2600–2800 stitches per minute
* Max Stitch Length: 5 mm
* Max Zig Zag Width: 10 mm
* Max Presser Foot Lift: 10 mm
* Cylinder/Arm Diameter: Approx. 46 mm to 55 mm
* Feed System:
- 310: Bottom Feed only.
- 315s: Top Feed & Bottom Feed ( Walking foot with double presser foot )
* Applications & DesignCylindrical Seaming: Built for closed, tubular, or curved items like neoprene can holders/koozies, filtration units, leather boots, and wetsuits.
* Heavy-Duty Handling: Utilizes a large hook and reverse feed mechanism suited for thick, flexible, or sticky materials.
* Custom Folders, Binders and Guides for the Sewn Products Industry.
Collier Equipment
Website: https://collierequipment.com/
Email: Sales@CollierEquipment.com
Phone: (256) 229-6595
Lexington, Alabama 35648
• CEDAR Systems Automated Sewing Machines & Devices
• VMW Automated Sewing Equipment
• Tice Engineering
Wheel Feed
MS-591
MS-591-900/83-910/17-911/50 BL5
Standard single needle post-bed lockstitch machine with wheel feed and driven roller presser (forward and backwards!)
Equipped with energy efficient, fully integrated sewing drive and built-in electromagnetic thread trimmer, seam back tacking and sewing foot lift. The machine does n,
The standard in shoe production!
Stitch-In-Stitch Backtacking
The lower feeding wheel as well as the upper roller presser are driven in sewing direction as well as sewing backwards when backtacking.
Integrated Key Bar
The integrated key bar allows seam backtacking and intermediate backtacking, backtack suppression and needle up position at sewing stop.
Electromagnetic Functions
The machine comes standard with 30mm roller presser (diameter). 25mm and 35mm roller presser are available as an option.
The small vertical hook ensures best sewing results on classic and sport shoes.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
* Phone: (256) 229-6595
* Email: mauser-spezial@collierequipment.com
Seam Sealing
MW-1720-384
Hot Air - Seam Sealing Machine
Mauser Spezial MW1720-384
- Hot air tape welding machine for continuous seam sealing of water repellent, waterproof and breathable materials.
- All welding parameters are programmable via touch screen and can be saved as a program.
- This allows the operator to load a saved program at any time and therefore ensure exact reproducibility and process security of the weld seam.
- The upper and lower transport rollers are driven separately by motors and thus ensure optimum adaptation of the material transport to the respective operation, with or without fullness.
- The machine welds immediately from the beginning of the tape, there is no loose ends and no need to re-cut the tape.
- The result is lower tape consumption and less cost than with other tape welding machines.
- The tape cutter is electronically controlled and easily adjustable.
Typical applications include:
* Tents, Sleeping Bags, Rain Suits, Dry Storage Coverings, etc.
Standard Equipment for the MW-1720-384:
* Post from the front for easy handling of garments, protective apparel and other outdoor items such as tents or other flat workpieces.
* Steel lower transport roller in conjunction with a silicone upper transport roller, both with a width of 25 mm.
* The machine is equipped with a 22 mm hot air nozzle to process seam sealing tape of the same width.
* The electronic tape cutter can cut tapes up to 25 mm width.
To boost productivity, the machine is able to run welding speeds of up to 14 meters per minute.
It is completely set up on a height adjustable stand set with table top for sitting down operation.
* Other setups and equipment are available on request.
Features:
* Touch control panel for setting and storage of all relevant welding parameters.
* Post from the front for easy handling of welding material.
* Electronically controlled and fully concealed tape cutter for precise cutting of up to 25 mm tapes.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
* Phone: (256) 229-6595
* Email: mauser-spezial@collierequipment.com
