Machines by Type
Browse our high-performance line of Machines by Type. Built for reliability, durability, and operational efficiency.
Walking Foot

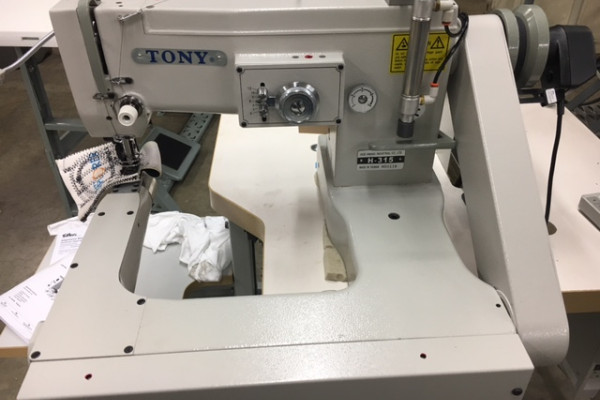

Tony 310 & 315s
The Tony Model H-315s is a Top Feed and Bottom Feed walking foot zig-zag industrial sewing machine featuring a large capacity bobbin, reverse capability, and cylindrical arm geometry that is ideal for tubular goods like koozies and wetsuits. The Tony H-315 is a specialized industrial feed-off-the-arm walking foot zigzag machine.
The Tony Model 310 is a Bottom Feed, feed off the arm zig-zag sewing machine for lighter weight fabrics.
Key Specifications
* Max Speed: 2600–2800 stitches per minute
* Max Stitch Length: 5 mm
* Max Zig Zag Width: 10 mm
* Max Presser Foot Lift: 10 mm
* Cylinder/Arm Diameter: Approx. 46 mm to 55 mm
* Feed System:
- 310: Bottom Feed only.
- 315s: Top Feed & Bottom Feed ( Walking foot with double presser foot )
* Applications & DesignCylindrical Seaming: Built for closed, tubular, or curved items like neoprene can holders/koozies, filtration units, leather boots, and wetsuits.
* Heavy-Duty Handling: Utilizes a large hook and reverse feed mechanism suited for thick, flexible, or sticky materials.
* Custom Folders, Binders and Guides for the Sewn Products Industry.
Collier Equipment
Website: https://collierequipment.com/
Email: Sales@CollierEquipment.com
Phone: (256) 229-6595
Lexington, Alabama 35648
• CEDAR Systems Automated Sewing Machines & Devices
• VMW Automated Sewing Equipment
• Tice Engineering
Walking Foot

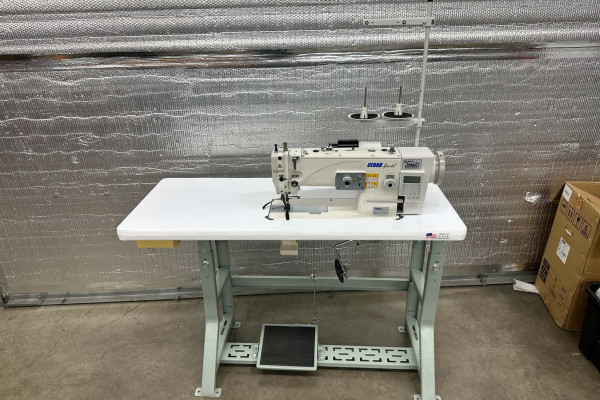

CS-2533-7C
The CS-2533-7C is a Direct Drive, Top & Bottom Feed, Single-Step Zigzag.
Primary Features:
* 2-Step x 3-Point
* Full function machine utilizes a synchronized top-and-bottom feed mechanism to prevent slippage when sewing thick, heavy layers. Designed for materials like leather, canvas, neoprene, and upholstery.
* Complimented with Automatic Thread Trim, Automatic Back Tack and Automatic Foot Lift.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Walking Foot

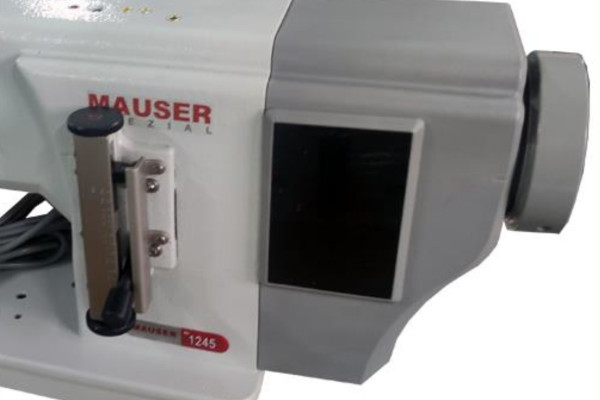

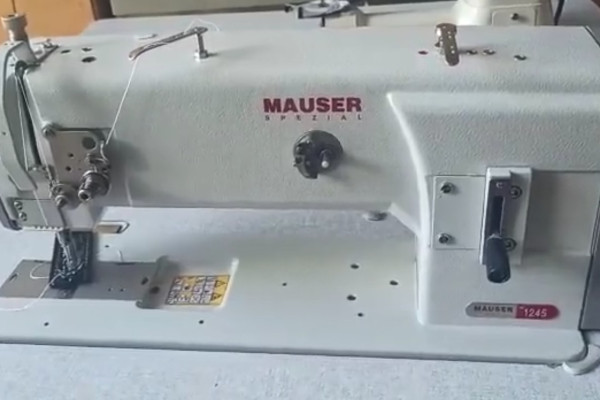

MA-1245
MA 1245 Single and two-needle lockstitch flat bed sewing machines with unison feed.
Special features:
◼ High traction due to unison feet.
◼ Even feed motion without any ply-shift of individual layers.
◼ Large vertical rotary hook with 60% more bobbin thread capacity than other standard-sized hooks.
◼ Automatic hook lubrication.
◼ Efficient hook protection against thread jamming due to standard built-in overload coupling (M).
◼ Rugged and durable.
◼ The high top feed lift (7 mm) allows trouble-free sewing of thick materials and an easy sewing over cross seams.
◼ Easy to service.
◼ Easy loading and unloading – even of bulky material – due to a high fabric clearance of 14 mm
Explanations and additional equipment:
◼ -6/07 CN Special part set for seams with particularly bulky cross seams stitch length max 6 mm, available for machines with thread trimmer -900/56 and for machines without thread trimmer.
◼ -6/07 CN8 Same as -6/07 CN, but stitch length 8 mm
◼ -17/01-650/03 CN Part set for binding, without binder (for machines without P)
◼ -40/01 CN x 5.0 Piping part set for piping size 5 mm, device for the manufacture and simultaneous insertion of piping between two plies of fabric, device fastened on retractable carrier.
* See chart in brochure or pictures for other necessary specification details:
- 1245-6/01 CLMPN
Hook Protection Device (M)
Four motion drop feed (P)
Stitch Length in mm (6)
- 1245-6/01 CLPMN8
Hook Protection Device (M)
Four motion drop feed (P)
Stitch Length in mm (8)
- 1245-6/01 CLMN8
Hook Protection Device (M)
Stitch Length in mm (8)
- 1245-6/01-900/56 / CLPMN
Hook Protection Device (M)
Four motion drop feed (P)
Thread Trimmer (-900/56)
Stitch Length in mm (6)
- 1245-6/01-900/56 / CLPMN8
Hook Protection Device (M)
Four motion drop feed (P)
Thread Trimmer (-900/56)
Stitch Length in mm (8)
- 1245-6/01-900/56-911-97 CLPMN*
Hook Protection Device (M)
Four motion drop feed (P)
Thread Trimmer (-900/56)
Auto Foot Lif / Backtacking (-911/97)
Stitch Length in mm (6)
* An air filter/pressure regulator -925/03 is required for the operation of all machines with -911/97.
Technical Data:
Stitch type: 301 (lockstitch)
Max speed**: 2800
Top feed lift: 7 mm
Fabric clearance: max. 14 mm
Needle system: 134-35
Needle size: 110-140 Nm
Balance wheel: 80 mm eff. dia
Motor power: 0.370 or 0.550 kW, depending on equipment
Clear work space: 270 x 115 mm
Carton dimensions: 77 x 62 x 38 cm
Bedplate dimensions: 476 x 177 mm
Net weight of head: approx. 36 kg
Gross weight (head in carton w/ accessories): approx. 44 kg
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Walking Foot

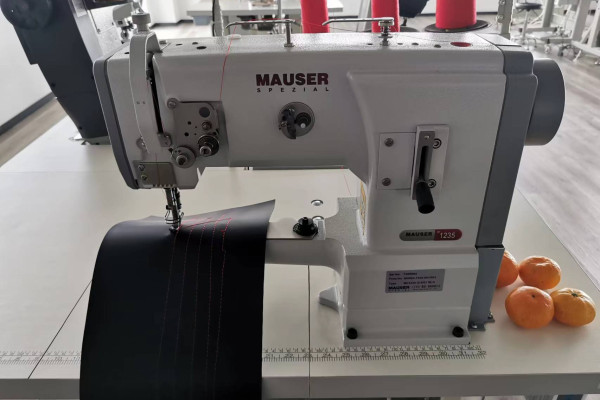

MH-1235
Mauser Spezial MH-1235-G-6/01 CLMN8
* Proven Single-Needle lockstitch sewing machine with narrow cylinder arm for medium-weight materials.
* Equipped with bottom feed, needle feed and alternating top feed.
* The 1235 series is the latest development of the well-known and most widely used 335 triple feed cylinder arm machine worldwide.
* In the equipment line with automatic functions, such as electromagnetic thread trimmer, electropneumatic foot lift and seam backtacking, the Mauser Spezial 1235 also has an integrated 750W direct drive with built-in control panel.
* Thus equipped, the Mauser Spezial 1235 continues to be a reliable production tool in the manufacture of leather goods, handbags and suitcases.
* The Mauser Spezial MH-1235 is a universally applicable free-arm machine that is used in particular for processing tubular or pre-assembled, closed articles.
* The narrow cylinder arm with a diameter of only 51mm allows the machine to be used on workpieces with a small cross-section.
* Typical applications are in the production of small leather goods and leather garments as well as the manufacture of bags, suitcases and upholstery.
* The use of a horizontal hook ensures precise and uniform thread take-up and even bobbin thread tension.
* The bottom feed and needle feed in conjunction with the alternating top feed ensure not only a high pull-through force but also a uniform material feed. With the top feed stroke of 7 mm, material thickenings and cross seams can be passed over effortlessly.
* The MH1235 is also widely used for binding operations on shoes and leather goods. For this purpose, the machine can be equipped with special components with our moving binder to assist with inside and outside curves.
* The binding device is recessed in the throat plate. As a result, the sewing material enters the sewing machine evenly. The binding tape lies tightly against the material edge even with inside and outside radius.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker
CS-0606
With powerful pneumatic clamping system, the CEDAR Special CS-0606 has a sewing field of 60mm x 60mm (2.36" x 2.36") and is a premium, computer-controlled, high-speed, programmable pattern, industrial sewing machine.
It is capable of sewing speeds up to 3,000 stitches per minute.
The onboard programmer allows for awesome flexibility that can be tailored to meet specific stitch specifications. PC programming is also available.
Minimal 2D programming ability is a plus for successful PC programming.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker
CS-430D-0906
Our CS-430D-0906 industrial, electronic Pattern and Bartack sewing machine. Designed for heavy-duty and high-speed production, it typically sews at up to 3,200 stitches per minute and features a 90 × 60 mm sewing area for bar tacks, box-X patterns, and custom stitching as your choose.
Features:
* Onboard Programming ( Dahao Touch screen )
* PC Programming is also available.
* Electronic Bar Tacking Sewing Machine
* 90mm x 60mm Sewing Field
* 3 pedal system
* Powerful left and right air clamps for maximum holding power!
* Available in other sizes.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker
CS-326G
The CEDAR Special CS-326G is an advanced, direct-drive, programmable electronic pattern sewer with a cylinder bed. It delivers a max sewing speed of 2,700 stitches per minute within a sewing area of 220 mm × 100 mm.
This machine is ideal for heavy-duty stitching on materials like canvas, bags, and mattress handles.
Key Machine Specifications
* Sewing Area: 220 mm × 100 mm (Option for 130 mm × 100 mm).
* Max Sewing Speed: 2,700 stitches per minute.
* Max Stitch Length: 0.05 to 12.7 mm
* Memory Capacity: Up to 512–520 stored programs or patterns.
* Work Clamp Lift: 19.5 mm (presser foot) and 30 mm (clamp foot).
* Onboard or PC Programming.
** Also available with Slide Device for attaching hook, loop, labels, and other hard-to-handle small parts **
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker
CS-342G
The CEDAR Special CS-342G is an advanced, direct-drive, programmable electronic pattern sewer with a cylinder bed. It delivers a max sewing speed of 2,300 stitches per minute.
This machine is ideal for heavy-duty stitching on materials like canvas, bags, and mattress handles.
Key Machine Specifications
* Sewing Area: 300 mm × 200 mm (Option for 130 mm × 100 mm).
* Max Sewing Speed: 2,300 stitches per minute.
* Max Stitch Length: 0.05 to 12.7 mm
* Memory Capacity: Up to 512–520 stored programs or patterns.
* Work Clamp Lift: 19.5 mm (presser foot) and 30 mm (clamp foot).
* Onboard or PC Programming.
** Also available with Slide Device for attaching hook, loop, labels, and other hard-to-handle small parts **
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker
CS-1306
The digital sewing system of the CS-1306HS-22 offers Standard Clamping, Custom Engineered Clamping or Labor Saving Devices that are designed for specific operations.
Key Features and Benefits:
* Sewing Area: 130mm x 60mm.
* Shortened Cycle Time
* Onboard or PC Programmable Patterns.
* Speed: Achieves a maximum sewing speed of 2,500 stitches per minute. The machine reaches this speed by the third stitch and maintains it until the end of sewing, significantly reducing cycle time.
* Thread Trimming: Ensures speedy and consistent thread trimming performance.
* Main-Shaft Direct-Drive System: Enhances machine responsiveness.
* Improved Seam Quality
* Enhanced Feed Accuracy: The encoder-controlled X-Y drive stepping motor improves feed accuracy, reducing pattern deformation when sewing at high speeds or with heavy materials.
* Semi-Dry Head: Utilizes advanced dry technology to prevent oil stains on products.
* Programmable Intermediate Presser
* Adjustable Height: The intermediate presser height can be adjusted steplessly during sewing to accommodate multi-layered materials, preventing stitch skipping and thread breakage.
* Two Types of Feeding Frames
* Monolithic and Separately-Driven: The separately-driven feeding frame allows for easier placement of sewing materials, with adjustable lift and speed for each frame part.
* Double-Stepped Stroke Feeding Frame
* Convenient Positioning: Allows for fine positioning of materials with adjustable stopping height.
* Active Tension
* Precision Control: Enables pinpoint changes in needle thread tension during sewing, adjustable through the operation panel. This reduces setup time for process changes and supports a broader range of sewing conditions.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker
CS-1965
Our CS-1965 is a Direct Drive High Speed, Electronic Pattern Tacker that is designed to sew bar tacks and other patterns on a variety of materials. The Graphic Touch Screen Control Panel allows the operator to create custom pattern designs. Air is NOT required for this machine.
* Key Features
* Direct Drive Servo Motor
* Jump Foot (Programmable Height Adjustment)
* 60mm x 50mm (2.36" x 1.96") Sewing Area
* Graphic Touch Screen for "Custom Programs"
* Easily Adjustable Sewing Speed
* 100 Pre-Programmed Patterns
* Automatic Foot Lifter
* Automatic Thread Trimmer
* Electronic Tension Opener
* Integrated Bobbin Winder
* External LED30 Light
* Complete with Table and Heavy-Duty Height Adjustable Stand.
* Single-Stage Clamp with 2-Step Remote Pedal Controls.
* 220V Single Phase (Voltage converter is available)
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker
CS-2210
The CEDAR Special CS- 2210 is an industrial, computer-controlled pattern sewing machine featuring a 220 mm × 100 mm sewing area that is designed for high-speed shape-tacking, attaching labels/emblems, sewing small parts, and stitching jean pockets.
* Core Specifications & Features
* Sewing Area: 220 mm (X) × 100 mm (Y)
* Max Sewing Speed: 2,800 stitches/min (sti/min)Drive System:
* Main-shaft direct-drive system with a compact AC servomotor
* Memory Capacity: Up to 999 patterns and 500,000 stitches
* Active Thread Tension: Digitally controlled tension allows for precise, repeatable seam quality
* Productivity Advantages
* Fast Acceleration: Reaches the maximum 2,800 sti/min by the second stitch and maintains it until the end of the seam, drastically reducing cycle times.
* Active Tension Mechanism: Needle thread tension can be adjusted digitally from the touch screen to suit varying material thicknesses and stitch lengths.
* Semi-Dry Head: Minimizes the risk of oil stains on finished garments by using grease lubrication for the needle bar and thread take-up, paired with a minimum-oil-quantity mechanism for the hook.
* Available Options
* Pneumatic Feeding Frame: Holds materials securely in place, ideal for heavy webbing or thick layered materials.
* Separate Two-Step Clamping: Allows the left and right clamps to operate independently for easier, perfectly aligned material positioning.
* Touch Panel Control: Models usually come with the IP-420 control panel for editing, data input, and easy pattern selection.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker
CS-2210+SD
The CEDAR Special CS- 2210+SD has all of the benefits of the basic 2210 with the added feature of the Slide Device for attaching small cut parts. It is an industrial, computer-controlled pattern sewing machine featuring a 220 mm × 100 mm sewing area that is designed for high-speed shape-tacking, attaching labels/emblems, sewing small parts, and stitching jean pockets.
* Core Specifications & Features
* Sewing Area: 220 mm (X) × 100 mm (Y)
* Max Sewing Speed: 2,800 stitches/min (spi/min)
*Drive System: Main-shaft direct-drive system with a compact AC servomotor.
* Memory Capacity: Up to 999 patterns and 500,000 stitches
* Active Thread Tension: Digitally controlled tension allows for precise, repeatable seam quality
* Productivity Advantages
* Fast Acceleration: Reaches the maximum 2,800 spi/min by the second stitch and maintains it until the end of the seam, drastically reducing cycle times.
* Active Tension Mechanism: Needle thread tension can be adjusted digitally from the touch screen to suit varying material thicknesses and stitch lengths.
* Semi-Dry Head: Minimizes the risk of oil stains on finished garments by using grease lubrication for the needle bar and thread take-up, paired with a minimum-oil-quantity mechanism for the hook.
* Available Options
* Pneumatic Feeding Frame: Holds materials securely in place, ideal for heavy webbing or thick layered materials.
* Separate Two-Step Clamping: Allows the left and right clamps to operate independently for easier, perfectly aligned material positioning.
* Touch Panel Control: Models come with the control panel for editing, data input, and easy pattern selection.
* Custom Clamping is a must for this application to be successful *
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
