Machine Brands
Browse our high-performance line of Machine Brands. Built for reliability, durability, and operational efficiency.
Cedar Special

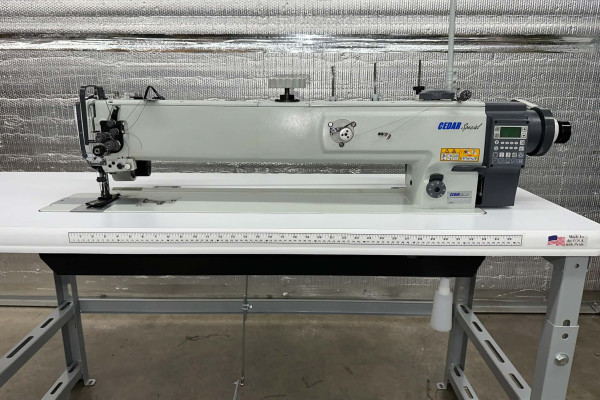

CS-1560L30-7D
The CEDAR Special CS-1560L30-7DJ with a 30" Long Arm clearance is a heavy-duty, 2-needle unison-feed (walking foot) lockstitch machine featuring an automatic thread trimmer and an alternating foot stroke adjusting dial. It is built for heavy materials like leather, canvas, upholstery, and vinyl.
* Key Specifications
* With or without Rear Puller.
* Direct Drive
* Automatic Thread Trim
* Automatic Back Tack
* Automatic Foot Lift
* Sewing Speed: Up to 2,000 stitches per minute (spi/min)
* Stitch Length: Up to 9 mm (both forward and reverse)
* Needle System: 135x17 (Sizes from Nm125 to Nm180)
* Needle Bar Stroke: 36 mm
* Presser Foot Lift: 9 mm (by hand), 16 mm (by knee or auto-lifter)
* Alternating Vertical Movement: Adjustable between 1 mm to 6.5 mm
* Hook: Vertical-axis double-capacity hooks
* Standard Needle Gauges: 1/4" (6.4 mm) (Available from 3/16" to 1/2")
* Custom Folders, Binders, Hemmers, Guides and Clamp Sets for the Sewn Products Industry.
For more information, call or email.
Phone: (256) 229-6595
Email: CEDAR-Special@CollierEquipment.com
***** Click on Mr. Hook to order CS-1560 Parts *****
Cedar Special

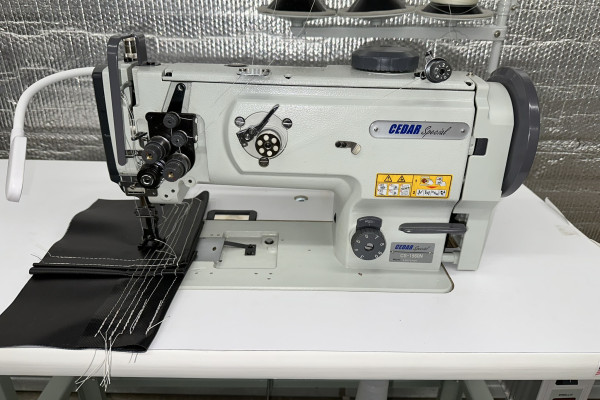

CS-1560N
The CEDAR Special CS-1560N is a heavy-duty, Belt Drive, 2-needle unison-feed (walking foot) lockstitch machine with alternating foot stroke adjusting dial. It is purpose-built for heavy materials like leather, canvas, upholstery, and vinyl.
* Key Specifications
* Belt Direct Drive
* 750W Servo Motor ( Available in 110V or 220V )
* Sewing Speed: Up to 2,500 stitches per minute (spi/min)
* Stitch Length: Up to 9 mm (both forward and reverse)
* Needle System: 135x17 (Sizes from Nm125 to Nm180)
* Needle Bar Stroke: 36 mm
* Presser Foot Lift: 9 mm (by hand), 16 mm (by knee)
* Alternating Vertical Movement: Adjustable between 1 mm to 6.5 mm
* Hook: Vertical-axis double-capacity hooks (28mm)
* Standard Needle Gauges: 1/4" (6.4 mm) (Available from 3/16" to 1/2")
* Custom Folders, Binders, Hemmers, Guides, Pallets and Clamp Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: CEDAR-Special@CollierEquipment.com
***** Click on Mr. Hook to order CS-1560 Parts *****
Cedar Special

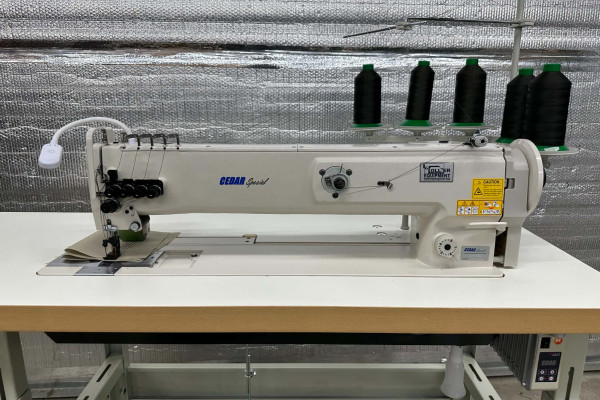

CS-635
Our CS-635 is a Long-Arm, 4 Needle Lockstitch Machine, Drop Feed with Rear Puller.
Available in 3 different Needle Configurations:
* 1/4 x 1/4 x 1/4
* 1/4 x 5/16 x 1/4
* 1/4 x 3/8 x 1/4
Key Features include:
• Parallel 4 Row Lock Stitch.
• Rear Puller for even feeding of heavy materials.
• 25” Long Arm
• Powerful 900 watt Servo Drive
• Automatic Foot Lift
• Automatic Back Tack
• 2-1/4” Heavy Duty Table Top
• Available in Multiple Gauges
* Custom Folders, Binders, Hemmers, Guides, Pallets and Clamp Sets for the Sewn Products Industry.
For more information, call or email.
Phone: (256) 229-6595
Email: CEDAR-Special@CollierEquipment.com
***** Click on Mr. Hook to order CS-635 Parts *****
Cedar Special

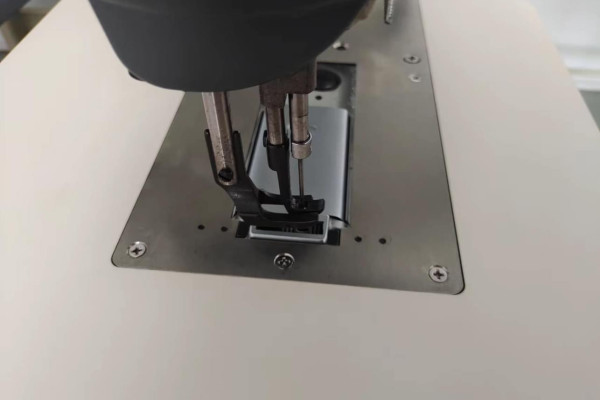

CS-1341-7
The latest - CS-1341D-7 is a Direct Drive, heavy-duty, single-needle cylinder-bed compound feed, lockstitch sewing machine. It is engineered for thick, demanding materials such as automotive interiors, leather goods, home upholstery, and heavy bags.
Key Features:
* Powerful Direct Drive Motor
* Top Load Bobbin
* Easy to Use Control Panel
* Automatic Backtacking
* Automatic Thread Trim
* Automatic Foot Lift
Specifications:
* Max Speed: 2,500
* Max Stitch Length: 9mm
* Working Space: 255mm Left to Right, 110mm Top to Bottom.
* Feed System: Compound feed (walking foot) and needle feed.
* Bed Type: Cylinder bed, which allows for easy manipulation of 3D, tubular, and curved items.
* Applications: Ideal for car seats, sofas, tents, luggage, and thick thread sewing.
* Custom Folders, Binders, Hemmers, Guides, Pallets and Clamp Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: CEDAR-Special@CollierEquipment.com
Mauser Spezial
Mauser-Spezial Press
This page has pictures and other information from past exhibitions featuring Mauser Spezial machinery that includes the following:
* Mauser Spezial Model #: MA-269
Single Needle, Cylinder Bed Walking Foot
* Mauser Spezial Model #: MB1900
Electronic - Programmable Tacker 40mm x 30mm
* Mauser Spezial Model #: MH-1296
Double Needle, Post Bed, Walking Foot
* Mauser Spezial Model #: MH-1341
Single Needle, Top & Bottom Feed, Direct Drive (Air is not required)
* Mauser Spezial Model #: MH-1641
Single Needle, Top & Bottom Feed, Direct Drive (Air is required)
* Mauser Spezial Model #: MH-2642
Single Needle or Double Needle, Needle Feed
* Mauser Spezial Model #: MH-2645
Single Needle or Double Needle, Waking Foot
* Mauser Spezial Model #: MH-2645-750
Single Needle or Double Needle, Walking Foot with 750mm Working Area
* Mauser Spezial Model #: MM1020-C
Double Needle Cover Stitch for making Belt Loops
* Mauser Spezial Model #: MP-2210
Programmable Pattern Tacking Machine 220mm x 100mm

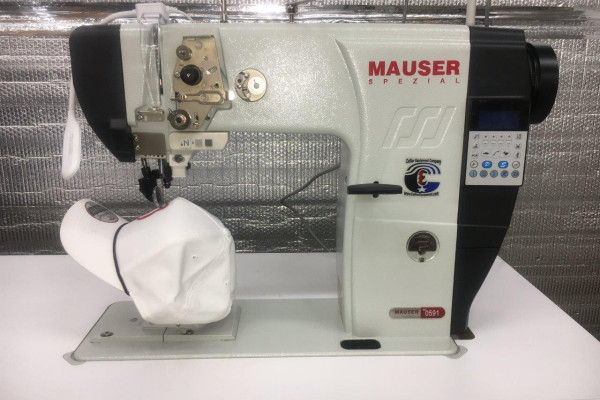

* Mauser Spezial Model #: MS-0591
Post Bed, Wheel Feed Machine for sewing 3D Products and Patches
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
Phone: (256) 229-6595
Email: mauser-spezial@collierequipment.com
Mauser Spezial
MB-1900
This Mauser Spezial MB-1900E is a premium, computer-controlled, high-speed bartacking industrial sewing machine.
The onboard touch screen programmer allows for maximum flexibility that can be tailored to your specific stitch specifications.
Some Features Include:
* PC programming is also available.
* This series of models has the functions of automatic thread trimming and automatic presser foot lifting, and the fully electronic design greatly improves work efficiency.
* The closed bearing box design still has good stability and vibration even at the maximum speed of 3,000 RPM.
* Within the range of 40×30mm, a variety of pre-programmed tacking patterns can be selected, as illustrated in the below pictures.
* This machine is so much more than just an ordinary bartack.
* We offer instructional videos for this machine.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: mauser-spezial@collierequipment.com
Mauser Spezial
MA-269-373
Mauser Spezial MA-269-373
* Robust single needle lockstitch sewing machine with cylinder arm and large vertical hook for medium heavy materials Equipped with bottom feed, needle feed and alternating top feed.
* Due to the design of the 269 series with the use of a large vertical hook, the machine excellently meets the requirements for processing very dense and stiff materials.
The possibility of damage to the hook due to needle deflection during sewing is minimized.
* This also minimizes downtimes and maintenance requirements.
* A common application is, for example, the sewing of rubber lips on hard cases, the production of tool bags, but also used in particular for processing tubular, or pre-assembled, closed articles, also in the production of bridles for equestrian sports or dog leashes and harnesses.
* The use of a large vertical hook makes it possible to work with dense materials and multi layered workpieces.
* This minimizes the risk of damage to the hook due to needle deflection.
* In addition, the standard overload clutch prevents damage to the hook by unhooking the bottom feed when the machine is overloaded.
* The bottom feed and needle feed in conjunction with the alternating top feed ensure a high pull through force and uniform material feed With the top feed stroke of 5 mm, material thickening and cross seams in the seam course can be climbed over.
* The Mauser Spezial MA 269 is also optionally available as a twin needle machine.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: mauser-spezial@collierequipment.com
Mauser Spezial
MA-1245
MA 1245 Single and two-needle lockstitch flat bed sewing machines with unison feed.
Special features:
◼ High traction due to unison feet.
◼ Even feed motion without any ply-shift of individual layers.
◼ Large vertical rotary hook with 60% more bobbin thread capacity than other standard-sized hooks.
◼ Automatic hook lubrication.
◼ Efficient hook protection against thread jamming due to standard built-in overload coupling (M).
◼ Rugged and durable.
◼ The high top feed lift (7 mm) allows trouble-free sewing of thick materials and an easy sewing over cross seams.
◼ Easy to service.
◼ Easy loading and unloading – even of bulky material – due to a high fabric clearance of 14 mm
Explanations and additional equipment:
◼ -6/07 CN Special part set for seams with particularly bulky cross seams stitch length max 6 mm, available for machines with thread trimmer -900/56 and for machines without thread trimmer.
◼ -6/07 CN8 Same as -6/07 CN, but stitch length 8 mm
◼ -17/01-650/03 CN Part set for binding, without binder (for machines without P)
◼ -40/01 CN x 5.0 Piping part set for piping size 5 mm, device for the manufacture and simultaneous insertion of piping between two plies of fabric, device fastened on retractable carrier.
* See chart in brochure or pictures for other necessary specification details:
- 1245-6/01 CLMPN
Hook Protection Device (M)
Four motion drop feed (P)
Stitch Length in mm (6)
- 1245-6/01 CLPMN8
Hook Protection Device (M)
Four motion drop feed (P)
Stitch Length in mm (8)
- 1245-6/01 CLMN8
Hook Protection Device (M)
Stitch Length in mm (8)
- 1245-6/01-900/56 / CLPMN
Hook Protection Device (M)
Four motion drop feed (P)
Thread Trimmer (-900/56)
Stitch Length in mm (6)
- 1245-6/01-900/56 / CLPMN8
Hook Protection Device (M)
Four motion drop feed (P)
Thread Trimmer (-900/56)
Stitch Length in mm (8)
- 1245-6/01-900/56-911-97 CLPMN*
Hook Protection Device (M)
Four motion drop feed (P)
Thread Trimmer (-900/56)
Auto Foot Lif / Backtacking (-911/97)
Stitch Length in mm (6)
* An air filter/pressure regulator -925/03 is required for the operation of all machines with -911/97.
Technical Data:
Stitch type: 301 (lockstitch)
Max speed**: 2800
Top feed lift: 7 mm
Fabric clearance: max. 14 mm
Needle system: 134-35
Needle size: 110-140 Nm
Balance wheel: 80 mm eff. dia
Motor power: 0.370 or 0.550 kW, depending on equipment
Clear work space: 270 x 115 mm
Carton dimensions: 77 x 62 x 38 cm
Bedplate dimensions: 476 x 177 mm
Net weight of head: approx. 36 kg
Gross weight (head in carton w/ accessories): approx. 44 kg
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: mauser-spezial@collierequipment.com
Mauser Spezial
MH-1235
Mauser Spezial MH-1235-G-6/01 CLMN8
* Proven Single-Needle lockstitch sewing machine with narrow cylinder arm for medium-weight materials.
* Equipped with bottom feed, needle feed and alternating top feed.
* The 1235 series is the latest development of the well-known and most widely used 335 triple feed cylinder arm machine worldwide.
* In the equipment line with automatic functions, such as electromagnetic thread trimmer, electropneumatic foot lift and seam backtacking, the Mauser Spezial 1235 also has an integrated 750W direct drive with built-in control panel.
* Thus equipped, the Mauser Spezial 1235 continues to be a reliable production tool in the manufacture of leather goods, handbags and suitcases.
* The Mauser Spezial MH-1235 is a universally applicable free-arm machine that is used in particular for processing tubular or pre-assembled, closed articles.
* The narrow cylinder arm with a diameter of only 51mm allows the machine to be used on workpieces with a small cross-section.
* Typical applications are in the production of small leather goods and leather garments as well as the manufacture of bags, suitcases and upholstery.
* The use of a horizontal hook ensures precise and uniform thread take-up and even bobbin thread tension.
* The bottom feed and needle feed in conjunction with the alternating top feed ensure not only a high pull-through force but also a uniform material feed. With the top feed stroke of 7 mm, material thickenings and cross seams can be passed over effortlessly.
* The MH1235 is also widely used for binding operations on shoes and leather goods. For this purpose, the machine can be equipped with special components with our moving binder to assist with inside and outside curves.
* The binding device is recessed in the throat plate. As a result, the sewing material enters the sewing machine evenly. The binding tape lies tightly against the material edge even with inside and outside radius.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: mauser-spezial@collierequipment.com
Mauser Spezial
MH-1245
MA 1245 Single-Needle or Double-Needle lockstitch flat bed sewing machines with unison feed. Belt Drien wirh Servo Motor.
Special features:
◼ High traction due to unison feet.
◼ Even feed motion without any ply-shift of individual layers.
◼ Large vertical rotary hook with 60% more bobbin thread capacity than other standard-sized hooks.
◼ Automatic hook lubrication.
◼ Efficient hook protection against thread jamming due to standard built-in overload coupling (M).
◼ Rugged and durable.
◼ The high top feed lift (7 mm) allows trouble-free sewing of thick materials and an easy sewing over cross seams.
◼ Easy to service.
◼ Easy loading and unloading – even of bulky material – due to a high fabric clearance of 14 mm
Explanations and additional equipment:
◼ -6/07 CN Special part set for seams with particularly bulky cross seams stitch length max 6 mm, available for machines with thread trimmer -900/56 and for machines without thread trimmer.
◼ -6/07 CN8 Same as -6/07 CN, but stitch length 8 mm
◼ -17/01-650/03 CN Part set for binding, without binder (for machines without P)
◼ -40/01 CN x 5.0 Piping part set for piping size 5 mm, device for the manufacture and simultaneous insertion of piping between two plies of fabric, device fastened on retractable carrier.
* See chart in brochure or pictures for other necessary specification details:
- 1245-6/01 CLMPN
Hook Protection Device (M)
Four motion drop feed (P)
Stitch Length in mm (6)
- 1245-6/01 CLPMN8
Hook Protection Device (M)
Four motion drop feed (P)
Stitch Length in mm (8)
- 1245-6/01 CLMN8
Hook Protection Device (M)
Stitch Length in mm (8)
- 1245-6/01-900/56 / CLPMN
Hook Protection Device (M)
Four motion drop feed (P)
Thread Trimmer (-900/56)
Stitch Length in mm (6)
- 1245-6/01-900/56 / CLPMN8
Hook Protection Device (M)
Four motion drop feed (P)
Thread Trimmer (-900/56)
Stitch Length in mm (8)
- 1245-6/01-900/56-911-97 CLPMN*
Hook Protection Device (M)
Four motion drop feed (P)
Thread Trimmer (-900/56)
Auto Foot Lif / Backtacking (-911/97)
Stitch Length in mm (6)
* An air filter/pressure regulator -925/03 is required for the operation of all machines with -911/97.
Technical Data:
Stitch type: 301 (lockstitch)
Max speed**: 2800
Top feed lift: 7 mm
Fabric clearance: max. 14 mm
Needle system: 134-35
Needle size: 110-140 Nm
Balance wheel: 80 mm eff. dia
Motor power: 0.370 or 0.550 kW, depending on equipment
Clear work space: 270 x 115 mm
Carton dimensions: 77 x 62 x 38 cm
Bedplate dimensions: 476 x 177 mm
Net weight of head: approx. 36 kg
Gross weight (head in carton w/ accessories): approx. 44 kg
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: mauser-spezial@collierequipment.com
Mauser Spezial
MH-1296
The Mauser Spezial MH-1296 has a Slim Post Bed for easy handling of materials, especially in garments and technical textiles.
Ergonomic design with a narrow post with lower transport wheel integrated into the post.
Tape Cutter
Electronically controlled and fully concealed tape cutter for precise cutting of up to 25mm wide tapes.
Integrated Touch Control Panel
Touch control panel for setting and storage of all relevant welding parameters.
SPECIAL FEATURES
● Unobstructed view of the stitching area .
● The post-bed design is ideal for handling shaped parts before or after they are closed.
● Trouble-free stitching over cross-seams with no difference in stitch length, due to the alternating top feed with 7 mm stroke.
● Accurate and consistent stitch formation on all materials, up to thread sizes of 15/3, synthetic.
● Uncomplicated mechanical system guarantees perfect function.
● Built-in bobbin winder within operator’s view
● Large vertical hook with 60% more thread capacity than conventional hook.
● Protection of the hook against thread jamming by built-in and easy-to-handle overload clutch as standard equipment
● High sewing output and easy operation due to time and cost-saving work aids, such as:
- Thread trimmer
- Automatic presser foot lift
- Back tacking mechanism
- Needle positioning mechanism
● Large fabric clearance of 14 mm for easier loading and removal of the work piece
● As an alternative available with a long stitch (up to 11 mm) for rustic stitching.
AREAS OF APPLICATION
Sewing of medium-heavy materials, e.g. furniture and car upholstery, leather clothing, leather goods, etc.
SUBCLASSES & WORK AIDS
- 6/01: For plain seaming operations.
- 17/01-940/01: Part set for binding, with balcony shaped needle plate for sewing convex-shaped work pieces (Binding attachment required as extra).
- 63/14: Fancy- and top-stitching operations, also on one-sided bulky cross-seams; compensating presser with seam guide, tape guide from below.
- 63/15: Fancy- and top-stitching operations, also on one-sided bulky cross-seams; compensating presser, pneumatically operated, engageable middle seam guide and tape guide from below.
- 900/56: Thread trimmer.
- 911/97: Automatic presser foot lift and back tacking (a pneumatic air filter / regulator is required)
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: mauser-spezial@collierequipment.com
Mauser Spezial
MH-1341
The MH-1341 is Perfectly Designed for Binding Operations!
MH-1341 Single Needle Top And Bottom Feed Lockstitch Sewing Machine For Medium-Heavy Material
* Price efficient single needle lockstitch sewing machine with compound or triple feeding system for accurate material transport.
* Equipped with energy efficient, fully integrated 750W sewing drive and built-in electronic control for electromagnetic thread trimmer, electro-magnetic sewing foot lift and backtacking.
* The automatic functions do not require compressed air, making it the ideal choice for smaller shops and the ambitious amateur.
* Suitable for all sewing operations in medium-heavy material such as home upholstery, leather goods and technical textiles.
* Dial for easy adjustment of sewing foot alternation up to 5.5mm.
* With an arm clearance of 330mm (13") right of the needle and 150mm (5.9") under the arm you can handle bulky material with ease.
* Fully integrated and powerful 750W sewing drive for fast ramp up and reliable sewing stop to achieve an accurate sewing result in each seam.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: mauser-spezial@collierequipment.com
