Programmable Pattern Tacker

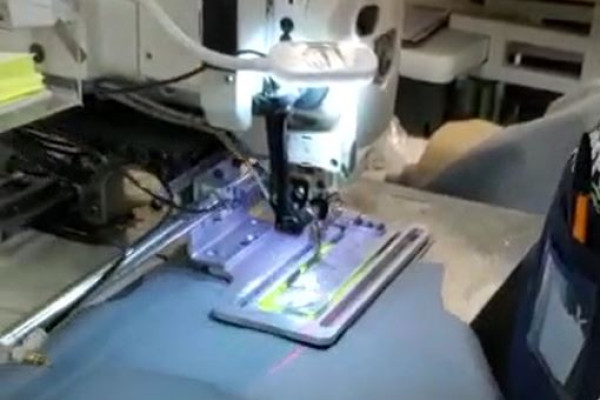

CS-2210+SDXL
The CEDAR Special CS- 2210+SDXL has all of the benefits of the basic 2210+SD with the added feature of the EXTRA LONG Slide Device for attaching longer pre-cut parts. It is an industrial, computer-controlled pattern sewing machine featuring a 220 mm × 100 mm sewing area that is designed for high-speed shape-tacking, attaching labels/emblems, sewing small parts, and stitching jean pockets.
* Core Specifications & Features
* Sewing Area: 220 mm (X) × 100 mm (Y)
* Max Sewing Speed: 2,800 stitches/min (spi/min)
*Drive System: Main-shaft direct-drive system with a compact AC servomotor.
* Memory Capacity: Up to 999 patterns and 500,000 stitches
* Active Thread Tension: Digitally controlled tension allows for precise, repeatable seam quality.
* Productivity Advantages
* Fast Acceleration: Reaches the maximum 2,800 spi/min by the second stitch and maintains it until the end of the seam, drastically reducing cycle times.
* Active Tension Mechanism: Needle thread tension can be adjusted digitally from the touch screen to suit varying material thicknesses and stitch lengths.
* Semi-Dry Head: Minimizes the risk of oil stains on finished garments by using grease lubrication for the needle bar and thread take-up, paired with a minimum-oil-quantity mechanism for the hook.
* Available Options:
*Pneumatic Feeding Frame: Holds materials securely in place, ideal for heavy webbing or thick layered materials.
* Separate Two-Step Clamping: Allows the left and right clamps to operate independently for easier, perfectly aligned material positioning.
* Touch Panel Control: Models usually come with the control panel for editing, data input, and easy pattern selection.
* Custom Clamping is a must for this application to be successful *
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Labor Saving Devices
CS-2210+SDXL
The CEDAR Special CS- 2210+SDXL has all of the benefits of the basic 2210+SD with the added feature of the EXTRA LONG Slide Device for attaching longer pre-cut parts. It is an industrial, computer-controlled pattern sewing machine featuring a 220 mm × 100 mm sewing area that is designed for high-speed shape-tacking, attaching labels/emblems, sewing small parts, and stitching jean pockets.
* Core Specifications & Features
* Sewing Area: 220 mm (X) × 100 mm (Y)
* Max Sewing Speed: 2,800 stitches/min (spi/min)
*Drive System: Main-shaft direct-drive system with a compact AC servomotor.
* Memory Capacity: Up to 999 patterns and 500,000 stitches
* Active Thread Tension: Digitally controlled tension allows for precise, repeatable seam quality.
* Productivity Advantages
* Fast Acceleration: Reaches the maximum 2,800 spi/min by the second stitch and maintains it until the end of the seam, drastically reducing cycle times.
* Active Tension Mechanism: Needle thread tension can be adjusted digitally from the touch screen to suit varying material thicknesses and stitch lengths.
* Semi-Dry Head: Minimizes the risk of oil stains on finished garments by using grease lubrication for the needle bar and thread take-up, paired with a minimum-oil-quantity mechanism for the hook.
* Available Options:
*Pneumatic Feeding Frame: Holds materials securely in place, ideal for heavy webbing or thick layered materials.
* Separate Two-Step Clamping: Allows the left and right clamps to operate independently for easier, perfectly aligned material positioning.
* Touch Panel Control: Models usually come with the control panel for editing, data input, and easy pattern selection.
* Custom Clamping is a must for this application to be successful *
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

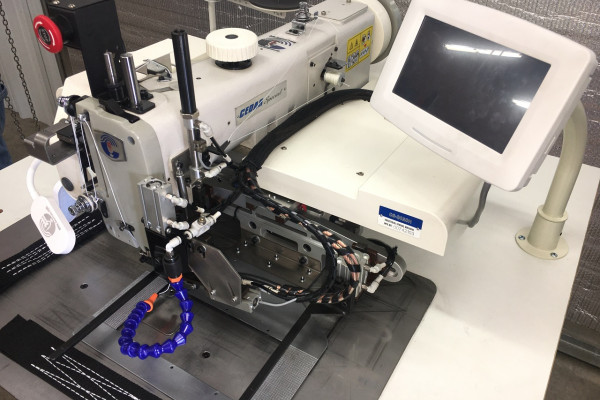

CS-3020H
The CS-3020H is our Heaviest programmable electronic pattern sewing machine for extra heavy duty lifting slings.
The special extra large shuttle hook and bobbin capacity offers high efficiency in sewing products using extra thick thread and has a thread rating up-to Metric size #4, V693, 2000dx3.
Advantages:
* Working Area: 300mm x 200mm
* Maximum Speed: 700 spm
* Trimming Mode: Electrical Heating Cut - Top & Bottom
* Motor: Stepping close-loop motor, synchronous belt, linear guide driven.
* Stitch Length: 0.10 - 12mm
* Presser Foot lifting height: 30mm
* Shuttle: Super Large Shuttle Hook
Can easily sew 6-8 ply synthetic webbing slings (3.5mm of each) or join two ropes and cords together with each of 28mm (independent break testing results show strengths similar to hand splicing, and in some cases exceeding the strength of the rope itself).
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker
CS-3020H
The CS-3020H is our Heaviest programmable electronic pattern sewing machine for extra heavy duty lifting slings.
The special extra large shuttle hook and bobbin capacity offers high efficiency in sewing products using extra thick thread and has a thread rating up-to Metric size #4, V693, 2000dx3.
Advantages:
* Working Area: 300mm x 200mm
* Maximum Speed: 700 spm
* Trimming Mode: Electrical Heating Cut - Top & Bottom
* Motor: Stepping close-loop motor, synchronous belt, linear guide driven.
* Stitch Length: 0.10 - 12mm
* Presser Foot lifting height: 30mm
* Shuttle: Super Large Shuttle Hook
Can easily sew 6-8 ply synthetic webbing slings (3.5mm of each) or join two ropes and cords together with each of 28mm (independent break testing results show strengths similar to hand splicing, and in some cases exceeding the strength of the rope itself).
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Walking Foot
CS-3020H
The CS-3020H is our Heaviest programmable electronic pattern sewing machine for extra heavy duty lifting slings.
The special extra large shuttle hook and bobbin capacity offers high efficiency in sewing products using extra thick thread and has a thread rating up-to Metric size #4, V693, 2000dx3.
Advantages:
* Working Area: 300mm x 200mm
* Maximum Speed: 700 spm
* Trimming Mode: Electrical Heating Cut - Top & Bottom
* Motor: Stepping close-loop motor, synchronous belt, linear guide driven.
* Stitch Length: 0.10 - 12mm
* Presser Foot lifting height: 30mm
* Shuttle: Super Large Shuttle Hook
Can easily sew 6-8 ply synthetic webbing slings (3.5mm of each) or join two ropes and cords together with each of 28mm (independent break testing results show strengths similar to hand splicing, and in some cases exceeding the strength of the rope itself).
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

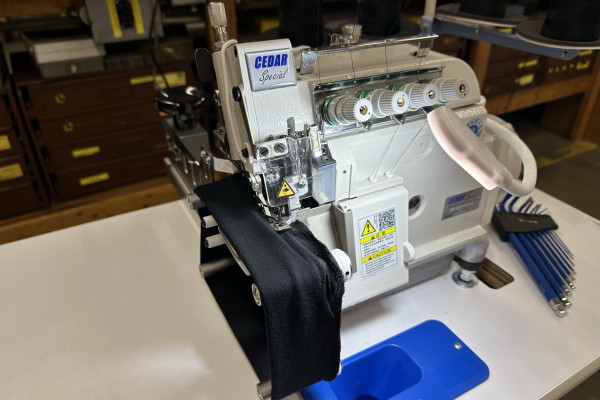

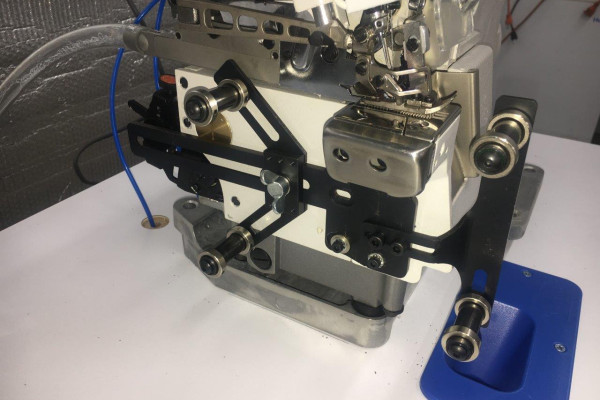

CS-5114D
The CS-5100D Series is a Direct Drive, Cylinder Bed Overlock Machine with Lower Differential Feed Mechanism. It also comes in a Variable Top Feed Version for heavy fabrics.
* General Specifications:
* Stitch Length Adjustment: Push-Button
* Differential Feed Ratio Adjustment: Lever that can be adjusted intermittently, during sewing.
* Maximum Speed: 7,000 spm (Top Feed 6,00 spm)
* Lubrication: Fully Automatic (internal oil pump)
* Cylinder Circumference: 148mm
* Top Feed version feeds the fabric accurately without ply shift or twist.
* Top Feed version can be utilized with light to heavy fabrics.
* Flat Bed style plate available for multi-use setup.
* Alternate Devices & Attachments:
* Roller guide assembly (tensioner style or basic)
* Upper Metering Device for attaching elastic.
* Round Collar
* Tape Cutter
* Chain Cutter
* Automatic Foot Lift
* Hemming Guide
* Pneumatic trimming & lint collector
* Available Stitch Formations:
* 503, 1 needle thread + 1 looper thread
* 504, 1 needle thread + 2 looper threads
* 505, 1 needle thread + 2 looper threads
* 512, 2 needle threads + 2 looper threads
* 514, 2 needle threads + 2 looper threads
* Custom Folders, Guides and Accessories are available.
- Special Automated Machines are Available. Check with one of our experienced sales representatives -
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cylinder Bed
CS-5114D
The CS-5100D Series is a Direct Drive, Cylinder Bed Overlock Machine with Lower Differential Feed Mechanism. It also comes in a Variable Top Feed Version for heavy fabrics.
* General Specifications:
* Stitch Length Adjustment: Push-Button
* Differential Feed Ratio Adjustment: Lever that can be adjusted intermittently, during sewing.
* Maximum Speed: 7,000 spm (Top Feed 6,00 spm)
* Lubrication: Fully Automatic (internal oil pump)
* Cylinder Circumference: 148mm
* Top Feed version feeds the fabric accurately without ply shift or twist.
* Top Feed version can be utilized with light to heavy fabrics.
* Flat Bed style plate available for multi-use setup.
* Alternate Devices & Attachments:
* Roller guide assembly (tensioner style or basic)
* Upper Metering Device for attaching elastic.
* Round Collar
* Tape Cutter
* Chain Cutter
* Automatic Foot Lift
* Hemming Guide
* Pneumatic trimming & lint collector
* Available Stitch Formations:
* 503, 1 needle thread + 1 looper thread
* 504, 1 needle thread + 2 looper threads
* 505, 1 needle thread + 2 looper threads
* 512, 2 needle threads + 2 looper threads
* 514, 2 needle threads + 2 looper threads
* Custom Folders, Guides and Accessories are available.
- Special Automated Machines are Available. Check with one of our experienced sales representatives -
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Overlock
CS-5114D
The CS-5100D Series is a Direct Drive, Cylinder Bed Overlock Machine with Lower Differential Feed Mechanism. It also comes in a Variable Top Feed Version for heavy fabrics.
* General Specifications:
* Stitch Length Adjustment: Push-Button
* Differential Feed Ratio Adjustment: Lever that can be adjusted intermittently, during sewing.
* Maximum Speed: 7,000 spm (Top Feed 6,00 spm)
* Lubrication: Fully Automatic (internal oil pump)
* Cylinder Circumference: 148mm
* Top Feed version feeds the fabric accurately without ply shift or twist.
* Top Feed version can be utilized with light to heavy fabrics.
* Flat Bed style plate available for multi-use setup.
* Alternate Devices & Attachments:
* Roller guide assembly (tensioner style or basic)
* Upper Metering Device for attaching elastic.
* Round Collar
* Tape Cutter
* Chain Cutter
* Automatic Foot Lift
* Hemming Guide
* Pneumatic trimming & lint collector
* Available Stitch Formations:
* 503, 1 needle thread + 1 looper thread
* 504, 1 needle thread + 2 looper threads
* 505, 1 needle thread + 2 looper threads
* 512, 2 needle threads + 2 looper threads
* 514, 2 needle threads + 2 looper threads
* Custom Folders, Guides and Accessories are available.
- Special Automated Machines are Available. Check with one of our experienced sales representatives -
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

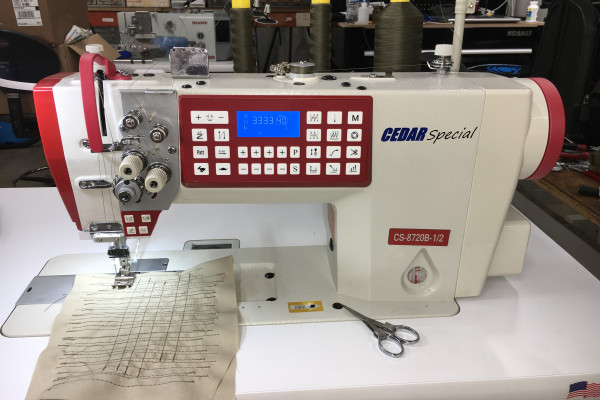

CS-8720B
The CEDAR Special CS-8720B is a Direct Drive, twin-needle, heavy-duty industrial sewing machine. It is designed for making two parallel rows of stitching at the same time and is equipped with an Operator Friendly Touch Button Panel for Programming.
Uses:
* Factories use it for canvas, leather, and heavy fabrics. It can be equipped with a Rear Puller or Side Belt Puller.
The key specifications include:
* Max Speed: Up to 3,000 stitches per minute.
* Stitch Length: Up to 5 mm.
* Needle Feed: Both the needle and the bottom "feed dog" (the metal teeth under the fabric) move to pull thick fabrics evenly.
* Presser Foot Lift: Up to 13 mm with a knee lifter, or 8 mm automatically.
* Needle Type: Uses DP × 5 needles.
* Hook: Uses large vertical rotary hooks for larger bobbins.
* Needle Gauges: Available gauge set sizes: 1/8" (3.2 mm), 3/16" (4.8 mm), 1/4" (6.4 mm), 3/8" (9.5 mm), up to 1/2" (12.7 mm) and higher depending on the specific application block installed.
* Custom Folders, Binders and Guides for the Sewn Products Industry
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Needle Feed
CS-8720B
The CEDAR Special CS-8720B is a Direct Drive, twin-needle, heavy-duty industrial sewing machine. It is designed for making two parallel rows of stitching at the same time and is equipped with an Operator Friendly Touch Button Panel for Programming.
Uses:
* Factories use it for canvas, leather, and heavy fabrics. It can be equipped with a Rear Puller or Side Belt Puller.
The key specifications include:
* Max Speed: Up to 3,000 stitches per minute.
* Stitch Length: Up to 5 mm.
* Needle Feed: Both the needle and the bottom "feed dog" (the metal teeth under the fabric) move to pull thick fabrics evenly.
* Presser Foot Lift: Up to 13 mm with a knee lifter, or 8 mm automatically.
* Needle Type: Uses DP × 5 needles.
* Hook: Uses large vertical rotary hooks for larger bobbins.
* Needle Gauges: Available gauge set sizes: 1/8" (3.2 mm), 3/16" (4.8 mm), 1/4" (6.4 mm), 3/8" (9.5 mm), up to 1/2" (12.7 mm) and higher depending on the specific application block installed.
* Custom Folders, Binders and Guides for the Sewn Products Industry
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

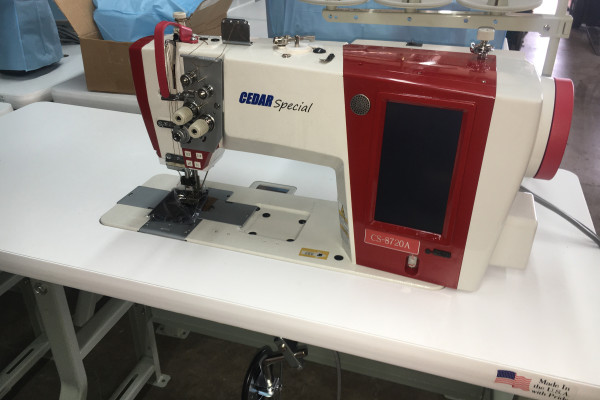

CS-8720A
The CEDAR Special CS-8720A is a Direct Drive, twin-needle, heavy-duty industrial sewing machine. It is designed for making two parallel rows of stitching at the same time and is equipped with an Operator Friendly LCD Panel for Programming.
Uses:
* Factories use it for canvas, leather, and heavy fabrics. It can be equipped with a Rear Puller or Side Belt Puller.
The key specifications include:
* Max Speed: Up to 3,000 stitches per minute.
* Stitch Length: Up to 5 mm.
* Needle Feed: Both the needle and the bottom "feed dog" (the metal teeth under the fabric) move to pull thick fabrics evenly.
* Presser Foot Lift: Up to 13 mm with a knee lifter, or 8 mm automatically.
* Needle Type: Uses DP × 5 needles.
* Hook: Uses large vertical rotary hooks for larger bobbins.
* Needle Gauges: Available gauge set sizes: 1/8" (3.2 mm), 3/16" (4.8 mm), 1/4" (6.4 mm), 3/8" (9.5 mm), up to 1/2" (12.7 mm) and higher depending on the specific application block installed.
* Custom Folders, Binders and Guides for the Sewn Products Industry
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Needle Feed
CS-8720A
The CEDAR Special CS-8720A is a Direct Drive, twin-needle, heavy-duty industrial sewing machine. It is designed for making two parallel rows of stitching at the same time and is equipped with an Operator Friendly LCD Panel for Programming.
Uses:
* Factories use it for canvas, leather, and heavy fabrics. It can be equipped with a Rear Puller or Side Belt Puller.
The key specifications include:
* Max Speed: Up to 3,000 stitches per minute.
* Stitch Length: Up to 5 mm.
* Needle Feed: Both the needle and the bottom "feed dog" (the metal teeth under the fabric) move to pull thick fabrics evenly.
* Presser Foot Lift: Up to 13 mm with a knee lifter, or 8 mm automatically.
* Needle Type: Uses DP × 5 needles.
* Hook: Uses large vertical rotary hooks for larger bobbins.
* Needle Gauges: Available gauge set sizes: 1/8" (3.2 mm), 3/16" (4.8 mm), 1/4" (6.4 mm), 3/8" (9.5 mm), up to 1/2" (12.7 mm) and higher depending on the specific application block installed.
* Custom Folders, Binders and Guides for the Sewn Products Industry
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
