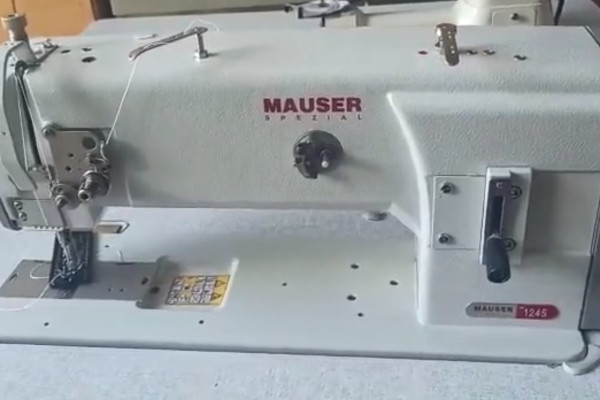

Mauser Spezial
MA-1245
MA 1245 Single and two-needle lockstitch flat bed sewing machines with unison feed.
Special features:
◼ High traction due to unison feet.
◼ Even feed motion without any ply-shift of individual layers.
◼ Large vertical rotary hook with 60% more bobbin thread capacity than other standard-sized hooks.
◼ Automatic hook lubrication.
◼ Efficient hook protection against thread jamming due to standard built-in overload coupling (M).
◼ Rugged and durable.
◼ The high top feed lift (7 mm) allows trouble-free sewing of thick materials and an easy sewing over cross seams.
◼ Easy to service.
◼ Easy loading and unloading – even of bulky material – due to a high fabric clearance of 14 mm
Explanations and additional equipment:
◼ -6/07 CN Special part set for seams with particularly bulky cross seams stitch length max 6 mm, available for machines with thread trimmer -900/56 and for machines without thread trimmer.
◼ -6/07 CN8 Same as -6/07 CN, but stitch length 8 mm
◼ -17/01-650/03 CN Part set for binding, without binder (for machines without P)
◼ -40/01 CN x 5.0 Piping part set for piping size 5 mm, device for the manufacture and simultaneous insertion of piping between two plies of fabric, device fastened on retractable carrier.
* See chart in brochure or pictures for other necessary specification details:
- 1245-6/01 CLMPN
Hook Protection Device (M)
Four motion drop feed (P)
Stitch Length in mm (6)
- 1245-6/01 CLPMN8
Hook Protection Device (M)
Four motion drop feed (P)
Stitch Length in mm (8)
- 1245-6/01 CLMN8
Hook Protection Device (M)
Stitch Length in mm (8)
- 1245-6/01-900/56 / CLPMN
Hook Protection Device (M)
Four motion drop feed (P)
Thread Trimmer (-900/56)
Stitch Length in mm (6)
- 1245-6/01-900/56 / CLPMN8
Hook Protection Device (M)
Four motion drop feed (P)
Thread Trimmer (-900/56)
Stitch Length in mm (8)
- 1245-6/01-900/56-911-97 CLPMN*
Hook Protection Device (M)
Four motion drop feed (P)
Thread Trimmer (-900/56)
Auto Foot Lif / Backtacking (-911/97)
Stitch Length in mm (6)
* An air filter/pressure regulator -925/03 is required for the operation of all machines with -911/97.
Technical Data:
Stitch type: 301 (lockstitch)
Max speed**: 2800
Top feed lift: 7 mm
Fabric clearance: max. 14 mm
Needle system: 134-35
Needle size: 110-140 Nm
Balance wheel: 80 mm eff. dia
Motor power: 0.370 or 0.550 kW, depending on equipment
Clear work space: 270 x 115 mm
Carton dimensions: 77 x 62 x 38 cm
Bedplate dimensions: 476 x 177 mm
Net weight of head: approx. 36 kg
Gross weight (head in carton w/ accessories): approx. 44 kg
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Walking Foot
MA-1245
MA 1245 Single and two-needle lockstitch flat bed sewing machines with unison feed.
Special features:
◼ High traction due to unison feet.
◼ Even feed motion without any ply-shift of individual layers.
◼ Large vertical rotary hook with 60% more bobbin thread capacity than other standard-sized hooks.
◼ Automatic hook lubrication.
◼ Efficient hook protection against thread jamming due to standard built-in overload coupling (M).
◼ Rugged and durable.
◼ The high top feed lift (7 mm) allows trouble-free sewing of thick materials and an easy sewing over cross seams.
◼ Easy to service.
◼ Easy loading and unloading – even of bulky material – due to a high fabric clearance of 14 mm
Explanations and additional equipment:
◼ -6/07 CN Special part set for seams with particularly bulky cross seams stitch length max 6 mm, available for machines with thread trimmer -900/56 and for machines without thread trimmer.
◼ -6/07 CN8 Same as -6/07 CN, but stitch length 8 mm
◼ -17/01-650/03 CN Part set for binding, without binder (for machines without P)
◼ -40/01 CN x 5.0 Piping part set for piping size 5 mm, device for the manufacture and simultaneous insertion of piping between two plies of fabric, device fastened on retractable carrier.
* See chart in brochure or pictures for other necessary specification details:
- 1245-6/01 CLMPN
Hook Protection Device (M)
Four motion drop feed (P)
Stitch Length in mm (6)
- 1245-6/01 CLPMN8
Hook Protection Device (M)
Four motion drop feed (P)
Stitch Length in mm (8)
- 1245-6/01 CLMN8
Hook Protection Device (M)
Stitch Length in mm (8)
- 1245-6/01-900/56 / CLPMN
Hook Protection Device (M)
Four motion drop feed (P)
Thread Trimmer (-900/56)
Stitch Length in mm (6)
- 1245-6/01-900/56 / CLPMN8
Hook Protection Device (M)
Four motion drop feed (P)
Thread Trimmer (-900/56)
Stitch Length in mm (8)
- 1245-6/01-900/56-911-97 CLPMN*
Hook Protection Device (M)
Four motion drop feed (P)
Thread Trimmer (-900/56)
Auto Foot Lif / Backtacking (-911/97)
Stitch Length in mm (6)
* An air filter/pressure regulator -925/03 is required for the operation of all machines with -911/97.
Technical Data:
Stitch type: 301 (lockstitch)
Max speed**: 2800
Top feed lift: 7 mm
Fabric clearance: max. 14 mm
Needle system: 134-35
Needle size: 110-140 Nm
Balance wheel: 80 mm eff. dia
Motor power: 0.370 or 0.550 kW, depending on equipment
Clear work space: 270 x 115 mm
Carton dimensions: 77 x 62 x 38 cm
Bedplate dimensions: 476 x 177 mm
Net weight of head: approx. 36 kg
Gross weight (head in carton w/ accessories): approx. 44 kg
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com

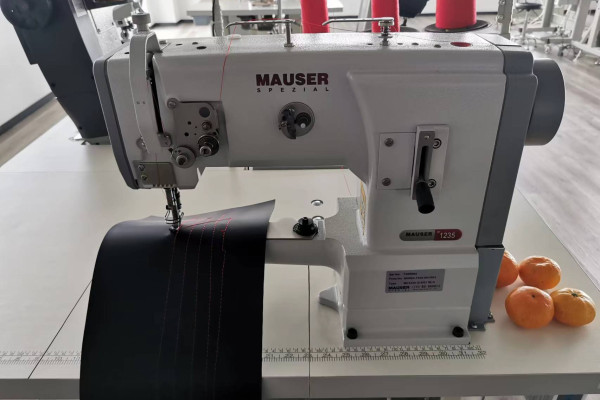

Mauser Spezial
MH-1235
Mauser Spezial MH-1235-G-6/01 CLMN8
* Proven Single-Needle lockstitch sewing machine with narrow cylinder arm for medium-weight materials.
* Equipped with bottom feed, needle feed and alternating top feed.
* The 1235 series is the latest development of the well-known and most widely used 335 triple feed cylinder arm machine worldwide.
* In the equipment line with automatic functions, such as electromagnetic thread trimmer, electropneumatic foot lift and seam backtacking, the Mauser Spezial 1235 also has an integrated 750W direct drive with built-in control panel.
* Thus equipped, the Mauser Spezial 1235 continues to be a reliable production tool in the manufacture of leather goods, handbags and suitcases.
* The Mauser Spezial MH-1235 is a universally applicable free-arm machine that is used in particular for processing tubular or pre-assembled, closed articles.
* The narrow cylinder arm with a diameter of only 51mm allows the machine to be used on workpieces with a small cross-section.
* Typical applications are in the production of small leather goods and leather garments as well as the manufacture of bags, suitcases and upholstery.
* The use of a horizontal hook ensures precise and uniform thread take-up and even bobbin thread tension.
* The bottom feed and needle feed in conjunction with the alternating top feed ensure not only a high pull-through force but also a uniform material feed. With the top feed stroke of 7 mm, material thickenings and cross seams can be passed over effortlessly.
* The MH1235 is also widely used for binding operations on shoes and leather goods. For this purpose, the machine can be equipped with special components with our moving binder to assist with inside and outside curves.
* The binding device is recessed in the throat plate. As a result, the sewing material enters the sewing machine evenly. The binding tape lies tightly against the material edge even with inside and outside radius.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Walking Foot
MH-1235
Mauser Spezial MH-1235-G-6/01 CLMN8
* Proven Single-Needle lockstitch sewing machine with narrow cylinder arm for medium-weight materials.
* Equipped with bottom feed, needle feed and alternating top feed.
* The 1235 series is the latest development of the well-known and most widely used 335 triple feed cylinder arm machine worldwide.
* In the equipment line with automatic functions, such as electromagnetic thread trimmer, electropneumatic foot lift and seam backtacking, the Mauser Spezial 1235 also has an integrated 750W direct drive with built-in control panel.
* Thus equipped, the Mauser Spezial 1235 continues to be a reliable production tool in the manufacture of leather goods, handbags and suitcases.
* The Mauser Spezial MH-1235 is a universally applicable free-arm machine that is used in particular for processing tubular or pre-assembled, closed articles.
* The narrow cylinder arm with a diameter of only 51mm allows the machine to be used on workpieces with a small cross-section.
* Typical applications are in the production of small leather goods and leather garments as well as the manufacture of bags, suitcases and upholstery.
* The use of a horizontal hook ensures precise and uniform thread take-up and even bobbin thread tension.
* The bottom feed and needle feed in conjunction with the alternating top feed ensure not only a high pull-through force but also a uniform material feed. With the top feed stroke of 7 mm, material thickenings and cross seams can be passed over effortlessly.
* The MH1235 is also widely used for binding operations on shoes and leather goods. For this purpose, the machine can be equipped with special components with our moving binder to assist with inside and outside curves.
* The binding device is recessed in the throat plate. As a result, the sewing material enters the sewing machine evenly. The binding tape lies tightly against the material edge even with inside and outside radius.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cylinder Bed
MH-1235
Mauser Spezial MH-1235-G-6/01 CLMN8
* Proven Single-Needle lockstitch sewing machine with narrow cylinder arm for medium-weight materials.
* Equipped with bottom feed, needle feed and alternating top feed.
* The 1235 series is the latest development of the well-known and most widely used 335 triple feed cylinder arm machine worldwide.
* In the equipment line with automatic functions, such as electromagnetic thread trimmer, electropneumatic foot lift and seam backtacking, the Mauser Spezial 1235 also has an integrated 750W direct drive with built-in control panel.
* Thus equipped, the Mauser Spezial 1235 continues to be a reliable production tool in the manufacture of leather goods, handbags and suitcases.
* The Mauser Spezial MH-1235 is a universally applicable free-arm machine that is used in particular for processing tubular or pre-assembled, closed articles.
* The narrow cylinder arm with a diameter of only 51mm allows the machine to be used on workpieces with a small cross-section.
* Typical applications are in the production of small leather goods and leather garments as well as the manufacture of bags, suitcases and upholstery.
* The use of a horizontal hook ensures precise and uniform thread take-up and even bobbin thread tension.
* The bottom feed and needle feed in conjunction with the alternating top feed ensure not only a high pull-through force but also a uniform material feed. With the top feed stroke of 7 mm, material thickenings and cross seams can be passed over effortlessly.
* The MH1235 is also widely used for binding operations on shoes and leather goods. For this purpose, the machine can be equipped with special components with our moving binder to assist with inside and outside curves.
* The binding device is recessed in the throat plate. As a result, the sewing material enters the sewing machine evenly. The binding tape lies tightly against the material edge even with inside and outside radius.
* Custom Folders, Binders, Guides and Clamps Sets for the Sewn Products Industry.
For more information, call or email.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
