Walking Foot
CS-1560N-7D
The CEDAR Special CS-1560N-7D is a heavy-duty, 2-needle unison-feed (walking foot) lockstitch machine featuring an automatic thread trimmer and an alternating foot stroke adjusting dial. It is purpose-built for heavy materials like leather, canvas, upholstery, and vinyl.
* Key Specifications
* Direct Drive
* Sewing Speed: Up to 2,500 stitches per minute (spi/min)
* Stitch Length: Up to 9 mm (both forward and reverse)
* Needle System: 135x17 (Sizes from Nm125 to Nm180)
* Needle Bar Stroke: 36 mm
* Presser Foot Lift: 9 mm (by hand), 16 mm (by knee or auto-lifter)
* Alternating Vertical Movement: Adjustable between 1 mm to 6.5 mm
* Hook: Vertical-axis double-capacity hooks
* Standard Needle Gauges: 1/4" (6.4 mm) (Available from 3/16" to 1/2")
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

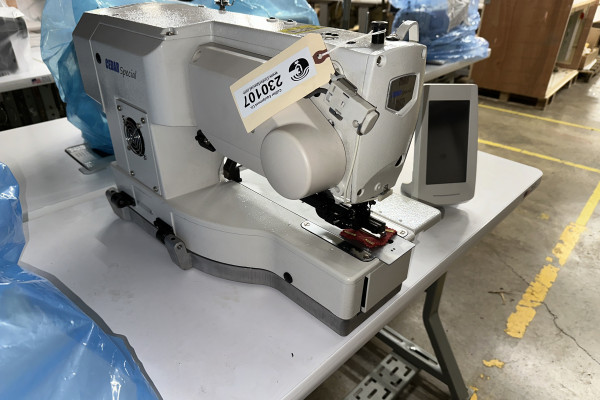

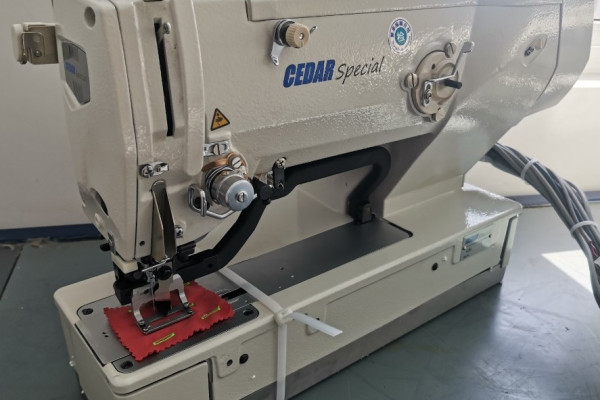

CS-1790A
Our CS-1790A is a highly automated, computer-controlled industrial lockstitch buttonhole machine. It features fully digitized adjustments, active electronic thread tension, and a semi-dry head to eliminate oil stains.
* Here are the key technical specifications for the Juki LBH-1790 series:
* Max. Sewing Speed: Up to 4,200 stitches per minute (spi/min)
* Buttonhole Length: Standard max. 41 mm (optional kits extend this to 70 mm or 120 mm)
* Cloth Cutting Knife Size: 6.4 to 31.8 mm (1/4" to 1-1/4")
* Bartacking Width: Max. 5.0 mm (special order parts allow up to 10 mm)
* Lift of the Work Clamp: 14 mm (up to 17 mm using the reverse-rotation needle-up function)
* Machine & Electronic Specifications
* Lubrication: Semi-dry head (only the hook requires min-quantity lubrication)
* Needle System: DP×5 (#11J) #11J to #14J
* Built-in Patterns: 30 to 31 standard patterns (stores up to 99 distinct input patterns)
* Tension Control: Active Tension (solenoid-controlled electronic thread tension)
* Drive System: Compact AC servomotor (direct-drive)
* Power Requirement: Single-phase 200–240V / 370VA (3-phase also supported on specific models)
* USB & NFC Connectivity: Features an integrated USB port for easy software updates and data management; supports NFC for data transfer.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Button Hole
CS-1790A
Our CS-1970A is a highly automated, computer-controlled industrial lockstitch buttonhole machine. It features fully digitized adjustments, active electronic thread tension, and a semi-dry head to eliminate oil stains.
* Here are the key technical specifications for the Juki LBH-1790 series:
* Max. Sewing Speed: Up to 4,200 stitches per minute (spi/min)
* Buttonhole Length: Standard max. 41 mm (optional kits extend this to 70 mm or 120 mm)
* Cloth Cutting Knife Size: 6.4 to 31.8 mm (1/4" to 1-1/4")
* Bartacking Width: Max. 5.0 mm (special order parts allow up to 10 mm)
* Lift of the Work Clamp: 14 mm (up to 17 mm using the reverse-rotation needle-up function)
* Machine & Electronic Specifications
* Lubrication: Semi-dry head (only the hook requires min-quantity lubrication)
* Needle System: DP×5 (#11J) #11J to #14J
* Built-in Patterns: 30 to 31 standard patterns (stores up to 99 distinct input patterns)
* Tension Control: Active Tension (solenoid-controlled electronic thread tension)
* Drive System: Compact AC servomotor (direct-drive)
* Power Requirement: Single-phase 200–240V / 370VA (3-phase also supported on specific models)
* USB & NFC Connectivity: Features an integrated USB port for easy software updates and data management; supports NFC for data transfer.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

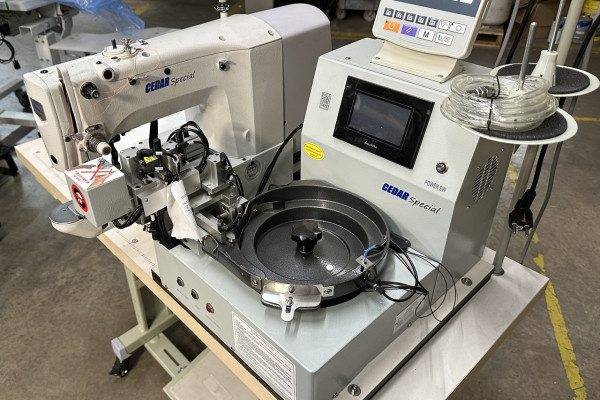

CS-1903-988
This CS-1903 series is an advanced, computer-controlled, high-speed lockstitch button sewing machine, and shown here with the 988 automated button feeding system. It is widely used in garment manufacturing for attaching flat or shank buttons quickly and consistently.
* Core Specifications
* Max Sewing Speed: Up to 2,700 stitches per minute (sti/min)
* Button Size Compatibility: Standard capacities from φ 8 mm to φ 32 mm depending on the subclass (e.g., 301, 302 options)
* Stitch Length: 0.1 to 10 mm (adjustable in 0.1 mm steps)
* Needle Bar Stroke: 45.7 mm
* Work Clamp Lift: Maximum of 13 mm
* Needle Type: DP × 17 (#14 standard)
* Lubrication System: Semi-dry head (frame requires no oil) with minute-quantity lubrication for the hook.
* Drive System: Direct-drive compact AC servomotor.
* Machine & Electronic Features
* Pre-Programmed Patterns: Comes standard with 50 different pre-programmed sewing patterns, supporting various button types (e.g., cross, parallel).
* Pattern Memory: Stores up to 20,000 to 500,000 stitches in internal memory depending on the specific model variation.
* Thread Tension Control: Employs Active Tension (electronic thread tension control) to match changing fabric thicknesses and threads.
* Automatic Thread Trimming: Streamlines workflow, reducing manual tasks and cycle times
* Data Management: Features a built-in USB port for updating software and data management; optional NFC functionality for sharing settings via Android is also supported.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Button Attach
CS-1903-988
This CS-1903 series is an advanced, computer-controlled, high-speed lockstitch button sewing machine, and shown here with the 988 automated button feeding system. It is widely used in garment manufacturing for attaching flat or shank buttons quickly and consistently.
* Core Specifications
* Max Sewing Speed: Up to 2,700 stitches per minute (sti/min)
* Button Size Compatibility: Standard capacities from φ 8 mm to φ 32 mm depending on the subclass (e.g., 301, 302 options)
* Stitch Length: 0.1 to 10 mm (adjustable in 0.1 mm steps)
* Needle Bar Stroke: 45.7 mm
* Work Clamp Lift: Maximum of 13 mm
* Needle Type: DP × 17 (#14 standard)
* Lubrication System: Semi-dry head (frame requires no oil) with minute-quantity lubrication for the hook.
* Drive System: Direct-drive compact AC servomotor.
* Machine & Electronic Features
* Pre-Programmed Patterns: Comes standard with 50 different pre-programmed sewing patterns, supporting various button types (e.g., cross, parallel).
* Pattern Memory: Stores up to 20,000 to 500,000 stitches in internal memory depending on the specific model variation.
* Thread Tension Control: Employs Active Tension (electronic thread tension control) to match changing fabric thicknesses and threads.
* Automatic Thread Trimming: Streamlines workflow, reducing manual tasks and cycle times
* Data Management: Features a built-in USB port for updating software and data management; optional NFC functionality for sharing settings via Android is also supported.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

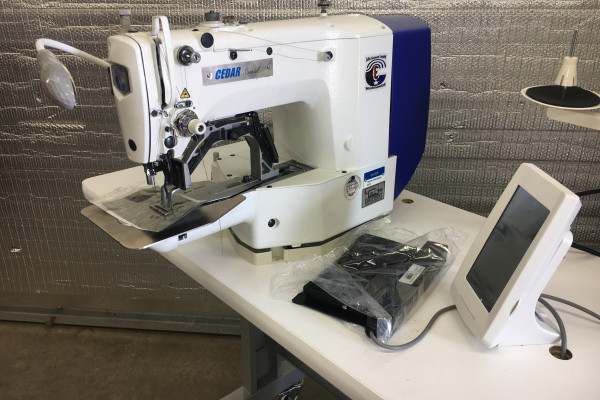

CS-1965
Our CS-1965 is a Direct Drive High Speed, Electronic Pattern Tacker that is designed to sew bar tacks and other patterns on a variety of materials. The Graphic Touch Screen Control Panel allows the operator to create custom pattern designs. Air is NOT required for this machine.
* Key Features
* Direct Drive Servo Motor
* Jump Foot (Programmable Height Adjustment)
* 60mm x 50mm (2.36" x 1.96") Sewing Area
* Graphic Touch Screen for "Custom Programs"
* Easily Adjustable Sewing Speed
* 100 Pre-Programmed Patterns
* Automatic Foot Lifter
* Automatic Thread Trimmer
* Electronic Tension Opener
* Integrated Bobbin Winder
* External LED30 Light
* Complete with Table and Heavy-Duty Height Adjustable Stand.
* Single-Stage Clamp with 2-Step Remote Pedal Controls.
* 220V Single Phase (Voltage converter is available)
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker
CS-1965
Our CS-1965 is a Direct Drive High Speed, Electronic Pattern Tacker that is designed to sew bar tacks and other patterns on a variety of materials. The Graphic Touch Screen Control Panel allows the operator to create custom pattern designs. Air is NOT required for this machine.
* Key Features
* Direct Drive Servo Motor
* Jump Foot (Programmable Height Adjustment)
* 60mm x 50mm (2.36" x 1.96") Sewing Area
* Graphic Touch Screen for "Custom Programs"
* Easily Adjustable Sewing Speed
* 100 Pre-Programmed Patterns
* Automatic Foot Lifter
* Automatic Thread Trimmer
* Electronic Tension Opener
* Integrated Bobbin Winder
* External LED30 Light
* Complete with Table and Heavy-Duty Height Adjustable Stand.
* Single-Stage Clamp with 2-Step Remote Pedal Controls.
* 220V Single Phase (Voltage converter is available)
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

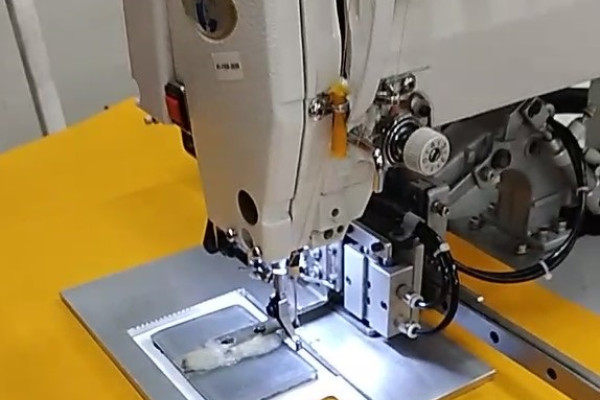

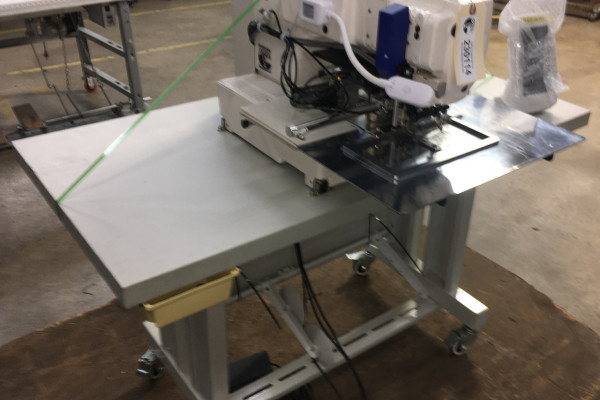

CS-2210
The CEDAR Special CS- 2210 is an industrial, computer-controlled pattern sewing machine featuring a 220 mm × 100 mm sewing area that is designed for high-speed shape-tacking, attaching labels/emblems, sewing small parts, and stitching jean pockets.
* Core Specifications & Features
* Sewing Area: 220 mm (X) × 100 mm (Y)
* Max Sewing Speed: 2,800 stitches/min (sti/min)Drive System:
* Main-shaft direct-drive system with a compact AC servomotor
* Memory Capacity: Up to 999 patterns and 500,000 stitches
* Active Thread Tension: Digitally controlled tension allows for precise, repeatable seam quality
* Productivity Advantages
* Fast Acceleration: Reaches the maximum 2,800 sti/min by the second stitch and maintains it until the end of the seam, drastically reducing cycle times.
* Active Tension Mechanism: Needle thread tension can be adjusted digitally from the touch screen to suit varying material thicknesses and stitch lengths.
* Semi-Dry Head: Minimizes the risk of oil stains on finished garments by using grease lubrication for the needle bar and thread take-up, paired with a minimum-oil-quantity mechanism for the hook.
* Available Options
* Pneumatic Feeding Frame: Holds materials securely in place, ideal for heavy webbing or thick layered materials.
* Separate Two-Step Clamping: Allows the left and right clamps to operate independently for easier, perfectly aligned material positioning.
* Touch Panel Control: Models usually come with the IP-420 control panel for editing, data input, and easy pattern selection.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker
CS-2210
The CEDAR Special CS- 2210 is an industrial, computer-controlled pattern sewing machine featuring a 220 mm × 100 mm sewing area that is designed for high-speed shape-tacking, attaching labels/emblems, sewing small parts, and stitching jean pockets.
* Core Specifications & Features
* Sewing Area: 220 mm (X) × 100 mm (Y)
* Max Sewing Speed: 2,800 stitches/min (sti/min)Drive System:
* Main-shaft direct-drive system with a compact AC servomotor
* Memory Capacity: Up to 999 patterns and 500,000 stitches
* Active Thread Tension: Digitally controlled tension allows for precise, repeatable seam quality
* Productivity Advantages
* Fast Acceleration: Reaches the maximum 2,800 sti/min by the second stitch and maintains it until the end of the seam, drastically reducing cycle times.
* Active Tension Mechanism: Needle thread tension can be adjusted digitally from the touch screen to suit varying material thicknesses and stitch lengths.
* Semi-Dry Head: Minimizes the risk of oil stains on finished garments by using grease lubrication for the needle bar and thread take-up, paired with a minimum-oil-quantity mechanism for the hook.
* Available Options
* Pneumatic Feeding Frame: Holds materials securely in place, ideal for heavy webbing or thick layered materials.
* Separate Two-Step Clamping: Allows the left and right clamps to operate independently for easier, perfectly aligned material positioning.
* Touch Panel Control: Models usually come with the IP-420 control panel for editing, data input, and easy pattern selection.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Labor Saving Devices
CS-2210
The CEDAR Special CS- 2210 is an industrial, computer-controlled pattern sewing machine featuring a 220 mm × 100 mm sewing area that is designed for high-speed shape-tacking, attaching labels/emblems, sewing small parts, and stitching jean pockets.
* Core Specifications & Features
* Sewing Area: 220 mm (X) × 100 mm (Y)
* Max Sewing Speed: 2,800 stitches/min (sti/min)Drive System:
* Main-shaft direct-drive system with a compact AC servomotor
* Memory Capacity: Up to 999 patterns and 500,000 stitches
* Active Thread Tension: Digitally controlled tension allows for precise, repeatable seam quality
* Productivity Advantages
* Fast Acceleration: Reaches the maximum 2,800 sti/min by the second stitch and maintains it until the end of the seam, drastically reducing cycle times.
* Active Tension Mechanism: Needle thread tension can be adjusted digitally from the touch screen to suit varying material thicknesses and stitch lengths.
* Semi-Dry Head: Minimizes the risk of oil stains on finished garments by using grease lubrication for the needle bar and thread take-up, paired with a minimum-oil-quantity mechanism for the hook.
* Available Options
* Pneumatic Feeding Frame: Holds materials securely in place, ideal for heavy webbing or thick layered materials.
* Separate Two-Step Clamping: Allows the left and right clamps to operate independently for easier, perfectly aligned material positioning.
* Touch Panel Control: Models usually come with the IP-420 control panel for editing, data input, and easy pattern selection.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

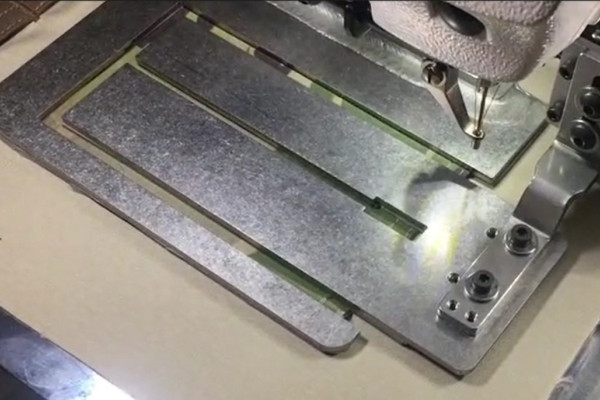

CS-2210+SD
The CEDAR Special CS- 2210+SD has all of the benefits of the basic 2210 with the added feature of the Slide Device for attaching small cut parts. It is an industrial, computer-controlled pattern sewing machine featuring a 220 mm × 100 mm sewing area that is designed for high-speed shape-tacking, attaching labels/emblems, sewing small parts, and stitching jean pockets.
* Core Specifications & Features
* Sewing Area: 220 mm (X) × 100 mm (Y)
* Max Sewing Speed: 2,800 stitches/min (spi/min)
*Drive System: Main-shaft direct-drive system with a compact AC servomotor.
* Memory Capacity: Up to 999 patterns and 500,000 stitches
* Active Thread Tension: Digitally controlled tension allows for precise, repeatable seam quality
* Productivity Advantages
* Fast Acceleration: Reaches the maximum 2,800 spi/min by the second stitch and maintains it until the end of the seam, drastically reducing cycle times.
* Active Tension Mechanism: Needle thread tension can be adjusted digitally from the touch screen to suit varying material thicknesses and stitch lengths.
* Semi-Dry Head: Minimizes the risk of oil stains on finished garments by using grease lubrication for the needle bar and thread take-up, paired with a minimum-oil-quantity mechanism for the hook.
* Available Options
* Pneumatic Feeding Frame: Holds materials securely in place, ideal for heavy webbing or thick layered materials.
* Separate Two-Step Clamping: Allows the left and right clamps to operate independently for easier, perfectly aligned material positioning.
* Touch Panel Control: Models come with the control panel for editing, data input, and easy pattern selection.
* Custom Clamping is a must for this application to be successful *
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker
CS-2210+SD
The CEDAR Special CS- 2210+SD has all of the benefits of the basic 2210 with the added feature of the Slide Device for attaching small cut parts. It is an industrial, computer-controlled pattern sewing machine featuring a 220 mm × 100 mm sewing area that is designed for high-speed shape-tacking, attaching labels/emblems, sewing small parts, and stitching jean pockets.
* Core Specifications & Features
* Sewing Area: 220 mm (X) × 100 mm (Y)
* Max Sewing Speed: 2,800 stitches/min (spi/min)
*Drive System: Main-shaft direct-drive system with a compact AC servomotor.
* Memory Capacity: Up to 999 patterns and 500,000 stitches
* Active Thread Tension: Digitally controlled tension allows for precise, repeatable seam quality
* Productivity Advantages
* Fast Acceleration: Reaches the maximum 2,800 spi/min by the second stitch and maintains it until the end of the seam, drastically reducing cycle times.
* Active Tension Mechanism: Needle thread tension can be adjusted digitally from the touch screen to suit varying material thicknesses and stitch lengths.
* Semi-Dry Head: Minimizes the risk of oil stains on finished garments by using grease lubrication for the needle bar and thread take-up, paired with a minimum-oil-quantity mechanism for the hook.
* Available Options
* Pneumatic Feeding Frame: Holds materials securely in place, ideal for heavy webbing or thick layered materials.
* Separate Two-Step Clamping: Allows the left and right clamps to operate independently for easier, perfectly aligned material positioning.
* Touch Panel Control: Models come with the control panel for editing, data input, and easy pattern selection.
* Custom Clamping is a must for this application to be successful *
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
