Cedar Special

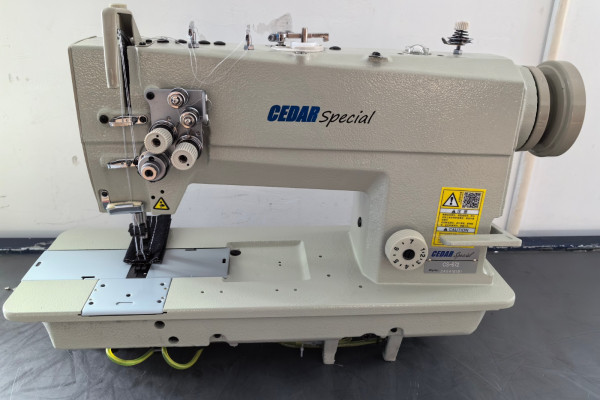

CS-872D
The CEDAR Special CS-872D is a Belt Driven, twin-needle, heavy-duty industrial sewing machine. It is designed for making two parallel rows of stitching at the same time and is equipped with an Operator Friendly LCD Panel for Speed and Positioning controls.
Uses:
* Factories use it for canvas, leather, and heavy fabrics. It is ideal to be equipped with a Rear Puller or Side Belt Puller for long runs.
The key specifications include:
* Max Speed: Up to 3,000 stitches per minute.
* Stitch Length: Up to 5 mm.
* Needle Feed: Both the needle and the bottom "feed dog" (the metal teeth under the fabric) move to pull thick fabrics evenly.
* Presser Foot Lift: Up to 13 mm with a knee lifter.
* Needle Type: Uses DP × 5 needles.
* Hook: Uses large vertical rotary hooks for larger bobbins.
* Needle Gauges: Available gauge set sizes: 1/8" (3.2 mm), 3/16" (4.8 mm), 1/4" (6.4 mm), 3/8" (9.5 mm), up to 1/2" (12.7 mm) and higher depending on the specific application block installed.
* Custom Folders, Binders and Guides for the Sewn Products Industry
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Needle Feed
CS-872D
The CEDAR Special CS-872D is a Belt Driven, twin-needle, heavy-duty industrial sewing machine. It is designed for making two parallel rows of stitching at the same time and is equipped with an Operator Friendly LCD Panel for Speed and Positioning controls.
Uses:
* Factories use it for canvas, leather, and heavy fabrics. It is ideal to be equipped with a Rear Puller or Side Belt Puller for long runs.
The key specifications include:
* Max Speed: Up to 3,000 stitches per minute.
* Stitch Length: Up to 5 mm.
* Needle Feed: Both the needle and the bottom "feed dog" (the metal teeth under the fabric) move to pull thick fabrics evenly.
* Presser Foot Lift: Up to 13 mm with a knee lifter.
* Needle Type: Uses DP × 5 needles.
* Hook: Uses large vertical rotary hooks for larger bobbins.
* Needle Gauges: Available gauge set sizes: 1/8" (3.2 mm), 3/16" (4.8 mm), 1/4" (6.4 mm), 3/8" (9.5 mm), up to 1/2" (12.7 mm) and higher depending on the specific application block installed.
* Custom Folders, Binders and Guides for the Sewn Products Industry
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

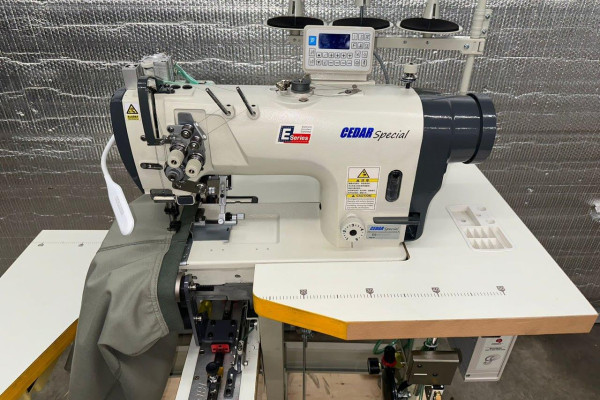

CS-8722DP
The CS-8722DP is an Automated Sewing Station, designed specifically for Top Stitching Waist Bands.
The machine head is a Twin Needle, Needle Feed accompanied by a Rear Puller mechanism.
Machine Features:
* User Friendly, Ergonomic Work Station
* Automatic Back Tack
* Automatic Presser Foot Lift
* Automatic Thread Trim
* Easy Adjustable, Pneumatically Engaged - Roller Guiding System
* State of the art, Electronic Control System
* Premium Micro-Adjustable Edge Guide
* Custom Folders, Binders and Guides for the Sewn Products Industry.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Labor Saving Devices
CS-8722DP
The CS-8722DP is an Automated Sewing Station, designed specifically for Top Stitching Waist Bands.
The machine head is a Twin Needle, Needle Feed accompanied by a Rear Puller mechanism.
Machine Features:
* User Friendly, Ergonomic Work Station
* Automatic Back Tack
* Automatic Presser Foot Lift
* Automatic Thread Trim
* Easy Adjustable, Pneumatically Engaged - Roller Guiding System
* State of the art, Electronic Control System
* Premium Micro-Adjustable Edge Guide
* Custom Folders, Binders and Guides for the Sewn Products Industry.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

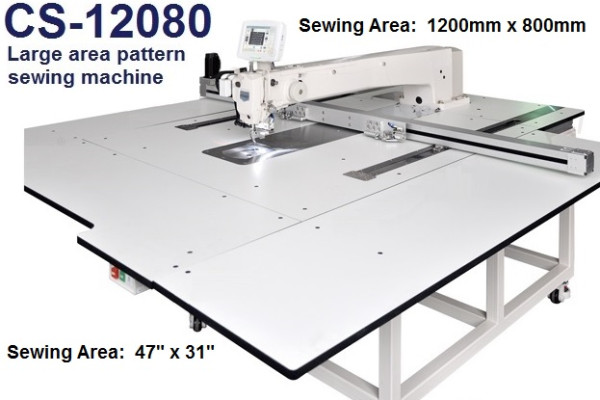

CS-12080
Our CS-12080 is one of our larger Programmable Pattern machine. Used in operations like Home Décor, Large Interior Patterns to be seamless and much more.
* Some features of the machine include:
* Sewing Speed: 2,500 spm, (XY Axis moving speed maximum 10meters/minute.
* Hook: 2X Japan Hirose Hook / Koban Hook (3X Size Hook is Optional).
* Uses latest A8 CPU, Disk/USB Date Memory, XYZ Servo Motor, Highly Accurate (to 0.001mm).
* All templates work with Intelligent Judgement.
* Thread - Break Detector. (Bottom thread stitch quantity is optional).
*Sewing Area: X = 1,200mm, Y = 800mm. Larger sizes are available.
* Needle Type: DPx5 / DPx17
* Sewing Thickness: 0.1mm - 10mm.
* Presser Foot: Electropneumatic.
* Applications: Tents, Sleeping Mats, Drapes, Banners, etc...

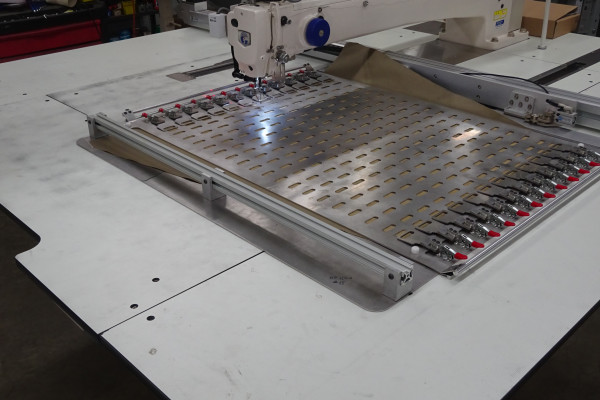

In this video, we are sewing more than 200 MOLLE Style Bar Tacks per pallet. The right and left sides of the webbing is hot cut and turned under.
The 2nd pallet in this video has longer left and right tabs to be able to reach over the extended panel to hold the folded webbing.
This machine is equipped with a bar code reader that switches the program automatically between pallets.
Thanks for watching and sharing our videos. I hope you enjoy the video as much as we enjoy building Automated Machines for the Industrial Sewing Industry.
* Custom Designed Pallet Systems are available.
* Custom Folders, Binders and Guides for the Sewn Products Industry.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Lexington, Alabama 35648
• CEDAR Systems Automated Sewing Machines & Devices
• VMW Automated Sewing Equipment
• Tice Engineering
Programmable Pattern Tacker
CS-12080
Our CS-12080 is one of our larger Programmable Pattern machine. Used in operations like Home Décor, Large Interior Patterns to be seamless and much more.
* Some features of the machine include:
* Sewing Speed: 2,500 spm, (XY Axis moving speed maximum 10meters/minute.
* Hook: 2X Japan Hirose Hook / Koban Hook (3X Size Hook is Optional).
* Uses latest A8 CPU, Disk/USB Date Memory, XYZ Servo Motor, Highly Accurate (to 0.001mm).
* All templates work with Intelligent Judgement.
* Thread - Break Detector. (Bottom thread stitch quantity is optional).
*Sewing Area: X = 1,200mm, Y = 800mm. Larger sizes are available.
* Needle Type: DPx5 / DPx17
* Sewing Thickness: 0.1mm - 10mm.
* Presser Foot: Electropneumatic.
* Applications: Tents, Sleeping Mats, Drapes, Banners, etc...
In this video, we are sewing more than 200 MOLLE Style Bar Tacks per pallet. The right and left sides of the webbing is hot cut and turned under.
The 2nd pallet in this video has longer left and right tabs to be able to reach over the extended panel to hold the folded webbing.
This machine is equipped with a bar code reader that switches the program automatically between pallets.
Thanks for watching and sharing our videos. I hope you enjoy the video as much as we enjoy building Automated Machines for the Industrial Sewing Industry.
* Custom Designed Pallet Systems are available.
* Custom Folders, Binders and Guides for the Sewn Products Industry.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Lexington, Alabama 35648
• CEDAR Systems Automated Sewing Machines & Devices
• VMW Automated Sewing Equipment
• Tice Engineering
Labor Saving Devices
CS-12080
Our CS-12080 is one of our larger Programmable Pattern machine. Used in operations like Home Décor, Large Interior Patterns to be seamless and much more.
* Some features of the machine include:
* Sewing Speed: 2,500 spm, (XY Axis moving speed maximum 10meters/minute.
* Hook: 2X Japan Hirose Hook / Koban Hook (3X Size Hook is Optional).
* Uses latest A8 CPU, Disk/USB Date Memory, XYZ Servo Motor, Highly Accurate (to 0.001mm).
* All templates work with Intelligent Judgement.
* Thread - Break Detector. (Bottom thread stitch quantity is optional).
*Sewing Area: X = 1,200mm, Y = 800mm. Larger sizes are available.
* Needle Type: DPx5 / DPx17
* Sewing Thickness: 0.1mm - 10mm.
* Presser Foot: Electropneumatic.
* Applications: Tents, Sleeping Mats, Drapes, Banners, etc...
In this video, we are sewing more than 200 MOLLE Style Bar Tacks per pallet. The right and left sides of the webbing is hot cut and turned under.
The 2nd pallet in this video has longer left and right tabs to be able to reach over the extended panel to hold the folded webbing.
This machine is equipped with a bar code reader that switches the program automatically between pallets.
Thanks for watching and sharing our videos. I hope you enjoy the video as much as we enjoy building Automated Machines for the Industrial Sewing Industry.
* Custom Designed Pallet Systems are available.
* Custom Folders, Binders and Guides for the Sewn Products Industry.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Lexington, Alabama 35648
• CEDAR Systems Automated Sewing Machines & Devices
• VMW Automated Sewing Equipment
• Tice Engineering
Cedar Special

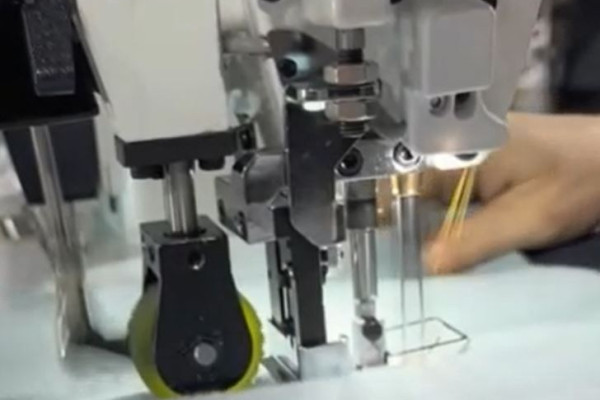

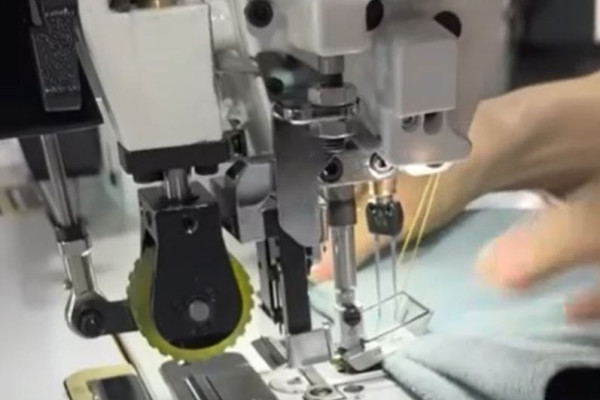

CS-E380ND
The CS-E380ND is an industrial multi-needle chain stitch sewing machine. High-speed, flat-bed, parallel 2-Needle or 3-Needle chainstitch, built for heavy-duty garment manufacturing like jeans and workwear.
- It features Servo motor control for thread cutting and an automatic foot lifter -
* Machine Highlights
* Heavy-Duty Power: Built to handle extremely thick materials, such as 16 layers of heavy denim fabric.
* Smart Controls: Uses a step motor to manage automatic presser foot lifting.
* Multi-Needle Setup: Designed with optimized needle positions for specialized chain stitching tasks.
* Key Performance Specs
* Max Needle Distance: 5mm overall
* Max Speed: 4,000 stitches per minute
* Stitch Length: Up to 4 mm (adjusted via a stitch dial)
* Presser Foot Lift: 5 mm by hand, 13 mm by knee
* Needle Type: TVx7 (sizes #14 to #18)
* Lubrication: Automatic
* Core Features
* 2-Needle or 3-Needle Setup: Sews multiple rows of chain stitch at the same time to boost output.
* Condense Stitching: Uses an easy-to-reach lever to lock/reinforce end stitches to help prevent raveling.
* Durable Looper: Features an inclined crank rocking-type looper designed for long-term stability with minimal wear.
* Custom Folders, Binders and Guides for the Sewn Products Industry.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Lexington, Alabama 35648
• CEDAR Systems Automated Sewing Machines & Devices
• VMW Automated Sewing Equipment
• Tice Engineering
Chain Stitch
CS-E380ND
The CS-E380ND is an industrial multi-needle chain stitch sewing machine. High-speed, flat-bed, parallel 2-Needle or 3-Needle chainstitch, built for heavy-duty garment manufacturing like jeans and workwear.
- It features Servo motor control for thread cutting and an automatic foot lifter -
* Machine Highlights
* Heavy-Duty Power: Built to handle extremely thick materials, such as 16 layers of heavy denim fabric.
* Smart Controls: Uses a step motor to manage automatic presser foot lifting.
* Multi-Needle Setup: Designed with optimized needle positions for specialized chain stitching tasks.
* Key Performance Specs
* Max Needle Distance: 5mm overall
* Max Speed: 4,000 stitches per minute
* Stitch Length: Up to 4 mm (adjusted via a stitch dial)
* Presser Foot Lift: 5 mm by hand, 13 mm by knee
* Needle Type: TVx7 (sizes #14 to #18)
* Lubrication: Automatic
* Core Features
* 2-Needle or 3-Needle Setup: Sews multiple rows of chain stitch at the same time to boost output.
* Condense Stitching: Uses an easy-to-reach lever to lock/reinforce end stitches to help prevent raveling.
* Durable Looper: Features an inclined crank rocking-type looper designed for long-term stability with minimal wear.
* Custom Folders, Binders and Guides for the Sewn Products Industry.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Lexington, Alabama 35648
• CEDAR Systems Automated Sewing Machines & Devices
• VMW Automated Sewing Equipment
• Tice Engineering
Cedar Special
CXT2241
Our CEDAR Special CXT2241-52P2 has a Top Feed to assist the bottom feed for Binding Heavy Fabrics with a Single Needle 401 Stitch Type. At 7,000 spm, it does a wonderful job.
Our premium line of Overlock and Safety Stitch Machines have become one of the best lines on the market. Paired with our technical staff, virtually unmatched in the industry.
Key Features
* Tape Cutter: Programmable, Pneumatic
* Foot Lift: Automatic - Pneumatic
* Stitch Length Adjustment: Push Button
* Dust & Waste Collector: Pneumatic
* Differential Feed Ratio Adjustment: Lever with Mirco-Adjuster
* Lubrication: Automatic
* Fabric Weight: Light - Medium
* Maximum Speed: 7,000 spm
* No. of Needles: 1
* No. of Threads: 2
* Maximum Tape Width: 24mm (wider may be achieved with custom modifications)
* Stitch Type: 401
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Chain Stitch
CXT2241
Our CEDAR Special CXT2241-52P2 has a Top Feed to assist the bottom feed for Binding Heavy Fabrics with a Single Needle 401 Stitch Type. At 7,000 spm, it does a wonderful job.
Our premium line of Overlock and Safety Stitch Machines have become one of the best lines on the market. Paired with our technical staff, virtually unmatched in the industry.
Key Features
* Tape Cutter: Programmable, Pneumatic
* Foot Lift: Automatic - Pneumatic
* Stitch Length Adjustment: Push Button
* Dust & Waste Collector: Pneumatic
* Differential Feed Ratio Adjustment: Lever with Mirco-Adjuster
* Lubrication: Automatic
* Fabric Weight: Light - Medium
* Maximum Speed: 7,000 spm
* No. of Needles: 1
* No. of Threads: 2
* Maximum Tape Width: 24mm (wider may be achieved with custom modifications)
* Stitch Type: 401
For more information, please call or email.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Binders
CXT2241
Our CEDAR Special CXT2241-52P2 has a Top Feed to assist the bottom feed for Binding Heavy Fabrics with a Single Needle 401 Stitch Type. At 7,000 spm, it does a wonderful job.
Our premium line of Overlock and Safety Stitch Machines have become one of the best lines on the market. Paired with our technical staff, virtually unmatched in the industry.
Key Features
* Tape Cutter: Programmable, Pneumatic
* Foot Lift: Automatic - Pneumatic
* Stitch Length Adjustment: Push Button
* Dust & Waste Collector: Pneumatic
* Differential Feed Ratio Adjustment: Lever with Mirco-Adjuster
* Lubrication: Automatic
* Fabric Weight: Light - Medium
* Maximum Speed: 7,000 spm
* No. of Needles: 1
* No. of Threads: 2
* Maximum Tape Width: 24mm (wider may be achieved with custom modifications)
* Stitch Type: 401
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
