Catalog Categories
Scroll down for machinery
Industrial Catalog & Supplies
We are a family business with over 100 years combined experience in the Sewn Products Industry, providing high-quality Parts and Supplies for all your sewing needs. Browse our collection and find exactly what you need for your next project. We also offer custom made Folders / Binders, Gauge Sets, etc.
We are continuously adding products to our store. If you don't find what you are looking for, call our office at 256-229-6595 or send an email to rachelleroberts@collierequipment.com.
Needle Feed
CS-1968BNF
Our CS-1968BNF Needle Feed machine is one of our newest additions. With the intelligent step motor driven feed mechanisms and operator friendly functions, it is quickly becoming one of our most popular machines.
Key Machine Specifications:
* Single Needle, Needle Feed
* Intelligent Needle feed single needle lockstitch with double step motor driving.
* LED Light
* The machine adopts connecting rod type needle feeding structure, which makes the feeding characteristics more stable, making fabric slips less likely between layers.
* LCD touch screen with simple and clear functions.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

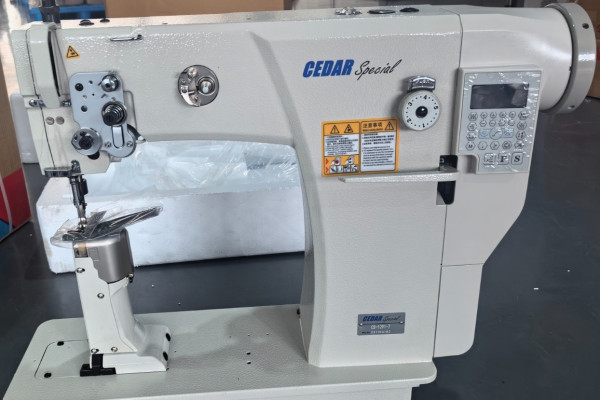

CS-1291-7D
The CEDAR Special CS-1291-7D is a Needle Feed, Post Bed Machine
Key Features:
* Single Needle
* Direct Drive
* Automatic Foot Lift
* Automatic Thread Trim
* Automatic Back Tack
* Voltage : 220v
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Post Bed

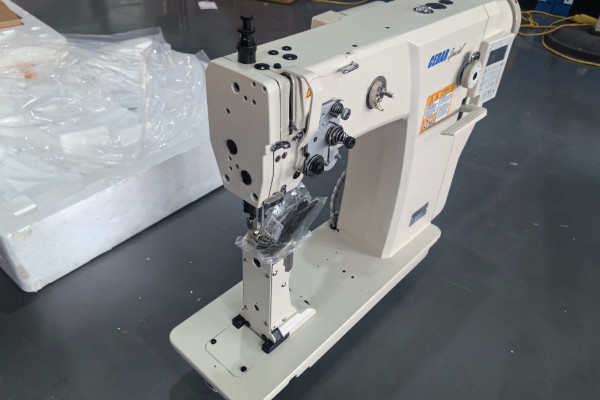

CS-1291-7D
The CEDAR Special CS-1291-7D is a Needle Feed, Post Bed Machine
Key Features:
* Single Needle
* Direct Drive
* Automatic Foot Lift
* Automatic Thread Trim
* Automatic Back Tack
* Voltage : 220v
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Zig Zag
CS-2530-7C
The CS-2530-7C is a Direct Drive, Top & Bottom Feed, Single-Step Zigzag.
Primary Features:
* 1 step 2 point
* Full function machine utilizes a synchronized top-and-bottom feed mechanism to prevent slippage when sewing thick, heavy layers. Designed for materials like leather, canvas, neoprene, and upholstery.
* Complimented with Automatic Thread Trim, Automatic Back Tack and Automatic Foot Lift.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Zig Zag
CS-2640Max
Our CS-2640Max is a heavy-duty compound feed lockstitch sewing machine. It is specifically engineered to handle multi-layered materials and thick fabrics, commonly used in professional manufacturing environments for specialized seaming and heavy textile work. The 2640Max belongs to our premium line of industrial sewing machines.
Key features include:
* Zig Zag, Direct Drive, Industrial Sewing Machine
* Top Feed and Bottom Feed mechanism.
* Compound Feed Mechanism: Features a needle-feed (or unison feed) system, ensuring thick materials are moved evenly without slipping.
* Material Handling: Built to sew heavy-weight textiles, making it ideal for canvas, leather, heavy upholstery, and webbing.
* Specialized Applications: Our 2640 series includes variations tailored for double-needle setups and side-cut lockstitch operations.
Anti Bird nest, Top-down Compound Feed Lockstitch.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cylinder Bed

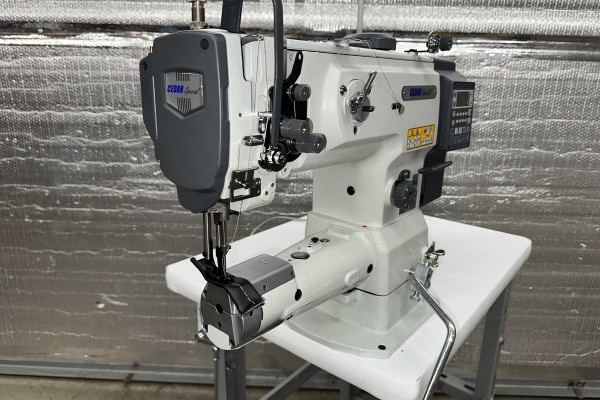

CS-1341D-7
Our CS-1341D-7 is a Direct Drive, Heavy-Duty, single-needle Cylinder-Bed, Walking Foot, lockstitch sewing machine. It is engineered for thick, demanding materials such as automotive interiors, leather goods, home upholstery, and heavy bags.
Specifications:
* Max Speed: 2,500
* Max Stitch Length: 8mm
* Working Space: 255mm Left to Right, 110mm Top to Bottom.
* Feed System: Compound feed (walking foot) and needle feed.
* Bed Type: Cylinder bed, which allows for easy manipulation of 3D, tubular, and curved items.
* Applications: Ideal for car seats, sofas, tents, luggage, and thick thread sewing.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cylinder Bed

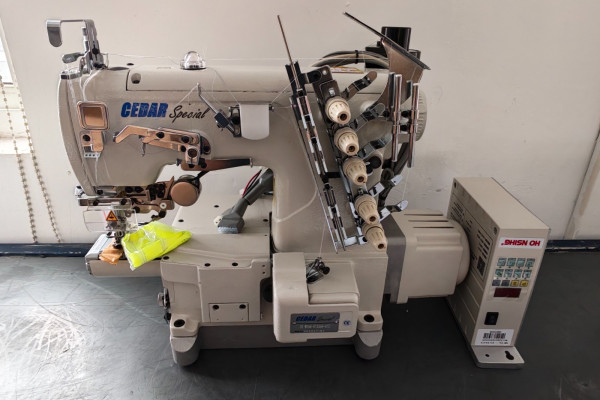

CS-W264
Our CEDAR Special CS-W264 is a Direct Drive, Small Cylinder, Cover Stitch Machine
Machine Features:
* Applications: Coverseam, Hemming, etc.
* No. of needles: 2 or 3 needles
* No. of threads: 4 - 5
* Needle Gauges ( 3.2mm, 4.0mm, 5.6mm, 6.4mm)
* Presser Foot Lift: Max, 5.8mm
* Thread Trimming: Top & Bottom available.
* Also available with Top Feed Mechanism.
* Custom Folders are available upon request.
- Different versions of this machine are available. Be sure to check with one of our experienced technicians or sales representatives for specific information.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
CEDAR Systems Automated

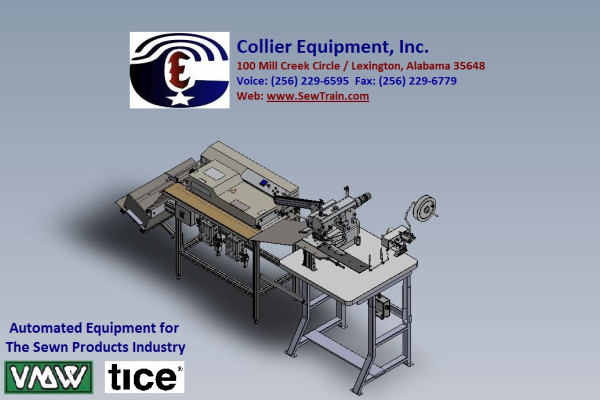

CS-600
The CEDAR Systems Model CS-600 is a Cover Stitch Pocket Hem with fusible lining, with automatic cut apart, fuse and stack.
CEDAR Systems Devices are Operator and Technician Friendly.
Making Sewn Products Automation EASY to Use & Maintain.
- Training Time for CS-600: About 5 days.
- Production: Up to 10 Hemmed, Lined & Fused per Minute.
- 4 Easy Steps: Sewn, Transfer, Fused & Stacked.
- Stacking Platform with Adjustable Indexing Tray.
- May also be adapted for Sleeve Hem
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

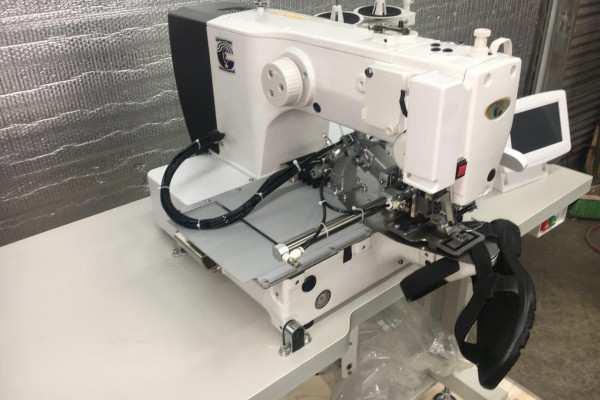

CS-326G
The CEDAR Special CS-326G is an advanced, direct-drive, programmable electronic pattern sewer with a cylinder bed. It delivers a max sewing speed of 2,700 stitches per minute within a sewing area of 220 mm × 100 mm.
This machine is ideal for heavy-duty stitching on materials like canvas, bags, and mattress handles.
Key Machine Specifications
* Sewing Area: 220 mm × 100 mm (Option for 130 mm × 100 mm).
* Max Sewing Speed: 2,700 stitches per minute.
* Max Stitch Length: 0.05 to 12.7 mm
* Memory Capacity: Up to 512–520 stored programs or patterns.
* Work Clamp Lift: 19.5 mm (presser foot) and 30 mm (clamp foot).
* Onboard or PC Programming.
** Also available with Slide Device for attaching hook, loop, labels, and other hard-to-handle small parts **
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker
CS-326G
The CEDAR Special CS-326G is an advanced, direct-drive, programmable electronic pattern sewer with a cylinder bed. It delivers a max sewing speed of 2,700 stitches per minute within a sewing area of 220 mm × 100 mm.
This machine is ideal for heavy-duty stitching on materials like canvas, bags, and mattress handles.
Key Machine Specifications
* Sewing Area: 220 mm × 100 mm (Option for 130 mm × 100 mm).
* Max Sewing Speed: 2,700 stitches per minute.
* Max Stitch Length: 0.05 to 12.7 mm
* Memory Capacity: Up to 512–520 stored programs or patterns.
* Work Clamp Lift: 19.5 mm (presser foot) and 30 mm (clamp foot).
* Onboard or PC Programming.
** Also available with Slide Device for attaching hook, loop, labels, and other hard-to-handle small parts **
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

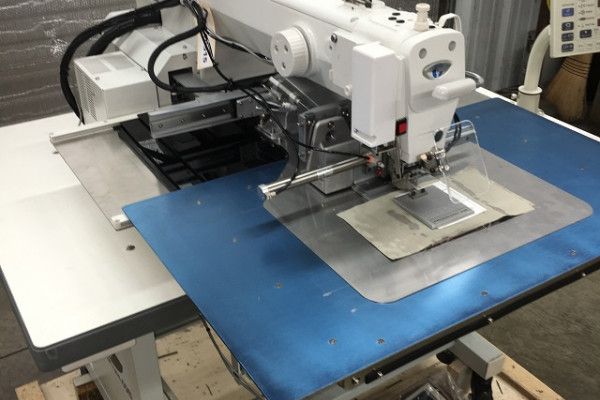

CS-342G
The CEDAR Special CS-342G is an advanced, direct-drive, programmable electronic pattern sewer with a cylinder bed. It delivers a max sewing speed of 2,300 stitches per minute.
This machine is ideal for heavy-duty stitching on materials like canvas, bags, and mattress handles.
Key Machine Specifications
* Sewing Area: 300 mm × 200 mm (Option for 130 mm × 100 mm).
* Max Sewing Speed: 2,300 stitches per minute.
* Max Stitch Length: 0.05 to 12.7 mm
* Memory Capacity: Up to 512–520 stored programs or patterns.
* Work Clamp Lift: 19.5 mm (presser foot) and 30 mm (clamp foot).
* Onboard or PC Programming.
** Also available with Slide Device for attaching hook, loop, labels, and other hard-to-handle small parts **
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Programmable Pattern Tacker
CS-342G
The CEDAR Special CS-342G is an advanced, direct-drive, programmable electronic pattern sewer with a cylinder bed. It delivers a max sewing speed of 2,300 stitches per minute.
This machine is ideal for heavy-duty stitching on materials like canvas, bags, and mattress handles.
Key Machine Specifications
* Sewing Area: 300 mm × 200 mm (Option for 130 mm × 100 mm).
* Max Sewing Speed: 2,300 stitches per minute.
* Max Stitch Length: 0.05 to 12.7 mm
* Memory Capacity: Up to 512–520 stored programs or patterns.
* Work Clamp Lift: 19.5 mm (presser foot) and 30 mm (clamp foot).
* Onboard or PC Programming.
** Also available with Slide Device for attaching hook, loop, labels, and other hard-to-handle small parts **
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
