Cedar Special
CS-W664

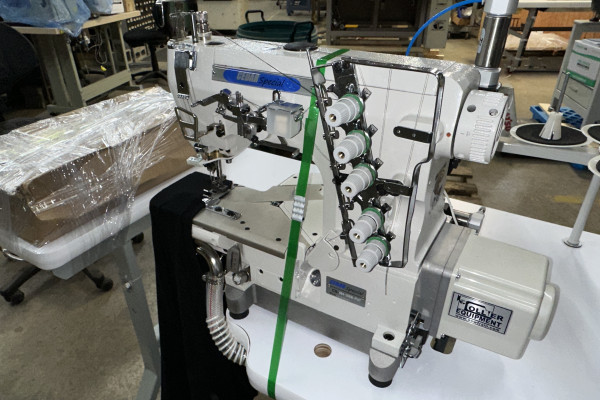

The CEDAR Special W600 Series is a high-speed, cylinderbed interlock (coverstitch) machine used for plain seaming, hemming, and attaching elastic and can come with different variations such as Left Hand Fabric Trimmer. Depending on the specific version, it has a maximum speed of 6,000 stitches per minute and a stitch length between 0.9 mm and 4.5 mm.
Key specifications for the W600 series include:
* Needle Configurations: 2-needle (3.2, 4.0, 4.8, 5.6, or 6.4mm), 3-needle (5.6 or 6.4mm), and 4-needle (6.0mm) options.
* Presser Foot Lift: Up to 5.9 mm.
* Differential Feed Ratio: Adjustable from 1:0.6 to 1:1.5.
The machine is known for its durability and can be equipped with automated features like underbed thread trimmer, fabric trimmer, top thread trimmer, and direct-drive motor, just to name a few.
** The CS-664-35BB-PUT is available with fabric trim knife **
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cylinder Bed
CS-W664
The CEDAR Special W600 Series is a high-speed, cylinderbed interlock (coverstitch) machine used for plain seaming, hemming, and attaching elastic and can come with different variations such as Left Hand Fabric Trimmer. Depending on the specific version, it has a maximum speed of 6,000 stitches per minute and a stitch length between 0.9 mm and 4.5 mm.
Key specifications for the W600 series include:
* Needle Configurations: 2-needle (3.2, 4.0, 4.8, 5.6, or 6.4mm), 3-needle (5.6 or 6.4mm), and 4-needle (6.0mm) options.
* Presser Foot Lift: Up to 5.9 mm.
* Differential Feed Ratio: Adjustable from 1:0.6 to 1:1.5.
The machine is known for its durability and can be equipped with automated features like underbed thread trimmer, fabric trimmer, top thread trimmer, and direct-drive motor, just to name a few.
** The CS-664-35BB-PUT is available with fabric trim knife **
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cover Stitch
CS-W664
The CEDAR Special W600 Series is a high-speed, cylinderbed interlock (coverstitch) machine used for plain seaming, hemming, and attaching elastic and can come with different variations such as Left Hand Fabric Trimmer. Depending on the specific version, it has a maximum speed of 6,000 stitches per minute and a stitch length between 0.9 mm and 4.5 mm.
Key specifications for the W600 series include:
* Needle Configurations: 2-needle (3.2, 4.0, 4.8, 5.6, or 6.4mm), 3-needle (5.6 or 6.4mm), and 4-needle (6.0mm) options.
* Presser Foot Lift: Up to 5.9 mm.
* Differential Feed Ratio: Adjustable from 1:0.6 to 1:1.5.
The machine is known for its durability and can be equipped with automated features like underbed thread trimmer, fabric trimmer, top thread trimmer, and direct-drive motor, just to name a few.
** The CS-664-35BB-PUT is available with fabric trim knife **
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special
CS-1306

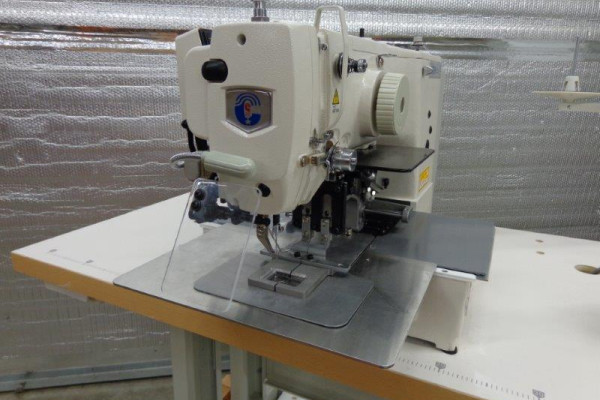

The digital sewing system of the CS-1306HS-22 offers Standard Clamping, Custom Engineered Clamping or Labor Saving Devices that are designed for specific operations.
Key Features and Benefits:
* Sewing Area: 130mm x 60mm.
* Shortened Cycle Time
* Onboard or PC Programmable Patterns.
* Speed: Achieves a maximum sewing speed of 2,500 stitches per minute. The machine reaches this speed by the third stitch and maintains it until the end of sewing, significantly reducing cycle time.
* Thread Trimming: Ensures speedy and consistent thread trimming performance.
* Main-Shaft Direct-Drive System: Enhances machine responsiveness.
* Improved Seam Quality
* Enhanced Feed Accuracy: The encoder-controlled X-Y drive stepping motor improves feed accuracy, reducing pattern deformation when sewing at high speeds or with heavy materials.
* Semi-Dry Head: Utilizes advanced dry technology to prevent oil stains on products.
* Programmable Intermediate Presser
* Adjustable Height: The intermediate presser height can be adjusted steplessly during sewing to accommodate multi-layered materials, preventing stitch skipping and thread breakage.
* Two Types of Feeding Frames
* Monolithic and Separately-Driven: The separately-driven feeding frame allows for easier placement of sewing materials, with adjustable lift and speed for each frame part.
* Double-Stepped Stroke Feeding Frame
* Convenient Positioning: Allows for fine positioning of materials with adjustable stopping height.
* Active Tension
* Precision Control: Enables pinpoint changes in needle thread tension during sewing, adjustable through the operation panel. This reduces setup time for process changes and supports a broader range of sewing conditions.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Labor Saving Devices
CS-1306
The digital sewing system of the CS-1306HS-22 offers Standard Clamping, Custom Engineered Clamping or Labor Saving Devices that are designed for specific operations along with the following Key Features and Benefits:
* Sewing Area: 130mm x 60mm.
* Shortened Cycle Time
* Onboard or PC Programmable Patterns.
* Speed: Achieves a maximum sewing speed of 2,500 stitches per minute. The machine reaches this speed by the third stitch and maintains it until the end of sewing, significantly reducing cycle time.
* Thread Trimming: Ensures speedy and consistent thread trimming performance.
* Main-Shaft Direct-Drive System: Enhances machine responsiveness.
* Improved Seam Quality
* Enhanced Feed Accuracy: The encoder-controlled X-Y drive stepping motor improves feed accuracy, reducing pattern deformation when sewing at high speeds or with heavy materials.
* Semi-Dry Head: Utilizes advanced dry technology to prevent oil stains on products.
* Programmable Intermediate Presser
* Adjustable Height: The intermediate presser height can be adjusted steplessly during sewing to accommodate multi-layered materials, preventing stitch skipping and thread breakage.
* Two Types of Feeding Frames
* Monolithic and Separately-Driven: The separately-driven feeding frame allows for easier placement of sewing materials, with adjustable lift and speed for each frame part.
* Double-Stepped Stroke Feeding Frame
* Convenient Positioning: Allows for fine positioning of materials with adjustable stopping height.
* Active Tension
* Precision Control: Enables pinpoint changes in needle thread tension during sewing, adjustable through the operation panel. This reduces setup time for process changes and supports a broader range of sewing conditions.
Programmable Pattern Tacker
CS-1306
The digital sewing system of the CS-1306HS-22 offers Standard Clamping, Custom Engineered Clamping or Labor Saving Devices that are designed for specific operations.
Key Features and Benefits:
* Sewing Area: 130mm x 60mm.
* Shortened Cycle Time
* Onboard or PC Programmable Patterns.
* Speed: Achieves a maximum sewing speed of 2,500 stitches per minute. The machine reaches this speed by the third stitch and maintains it until the end of sewing, significantly reducing cycle time.
* Thread Trimming: Ensures speedy and consistent thread trimming performance.
* Main-Shaft Direct-Drive System: Enhances machine responsiveness.
* Improved Seam Quality
* Enhanced Feed Accuracy: The encoder-controlled X-Y drive stepping motor improves feed accuracy, reducing pattern deformation when sewing at high speeds or with heavy materials.
* Semi-Dry Head: Utilizes advanced dry technology to prevent oil stains on products.
* Programmable Intermediate Presser
* Adjustable Height: The intermediate presser height can be adjusted steplessly during sewing to accommodate multi-layered materials, preventing stitch skipping and thread breakage.
* Two Types of Feeding Frames
* Monolithic and Separately-Driven: The separately-driven feeding frame allows for easier placement of sewing materials, with adjustable lift and speed for each frame part.
* Double-Stepped Stroke Feeding Frame
* Convenient Positioning: Allows for fine positioning of materials with adjustable stopping height.
* Active Tension
* Precision Control: Enables pinpoint changes in needle thread tension during sewing, adjustable through the operation panel. This reduces setup time for process changes and supports a broader range of sewing conditions.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Bartack
CS-1306
The digital sewing system of the CS-1306HS-22 offers Standard Clamping, Custom Engineered Clamping or Labor Saving Devices that are designed for specific operations.
Key Features and Benefits:
* Sewing Area: 130mm x 60mm.
* Shortened Cycle Time
* Onboard or PC Programmable Patterns.
* Speed: Achieves a maximum sewing speed of 2,500 stitches per minute. The machine reaches this speed by the third stitch and maintains it until the end of sewing, significantly reducing cycle time.
* Thread Trimming: Ensures speedy and consistent thread trimming performance.
* Main-Shaft Direct-Drive System: Enhances machine responsiveness.
* Improved Seam Quality
* Enhanced Feed Accuracy: The encoder-controlled X-Y drive stepping motor improves feed accuracy, reducing pattern deformation when sewing at high speeds or with heavy materials.
* Semi-Dry Head: Utilizes advanced dry technology to prevent oil stains on products.
* Programmable Intermediate Presser
* Adjustable Height: The intermediate presser height can be adjusted steplessly during sewing to accommodate multi-layered materials, preventing stitch skipping and thread breakage.
* Two Types of Feeding Frames
* Monolithic and Separately-Driven: The separately-driven feeding frame allows for easier placement of sewing materials, with adjustable lift and speed for each frame part.
* Double-Stepped Stroke Feeding Frame
* Convenient Positioning: Allows for fine positioning of materials with adjustable stopping height.
* Active Tension
* Precision Control: Enables pinpoint changes in needle thread tension during sewing, adjustable through the operation panel. This reduces setup time for process changes and supports a broader range of sewing conditions.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special
CS-8720D

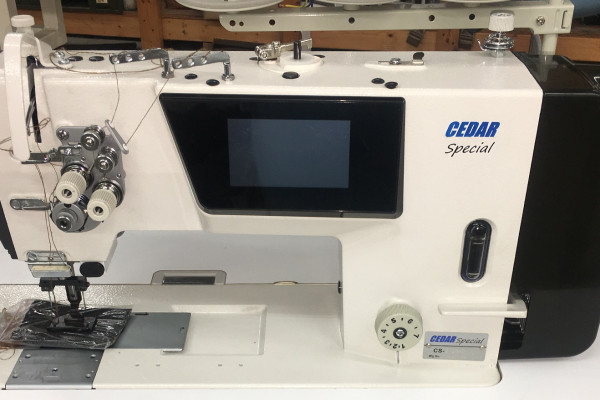

The CEDAR Special CS-8720D is a Direct Drive, twin-needle, heavy-duty industrial sewing machine. It is designed for making two parallel rows of stitching at the same time. Factories use it for canvas, leather, and heavy fabrics. It can be equipped with a Rear Puller or Side Belt Puller.
The key specifications include:
* Max Speed: Up to 3,000 stitches per minute.
* Stitch Length: Up to 5 mm.
* Needle Feed: Both the needle and the bottom "feed dog" (the metal teeth under the fabric) move to pull thick fabrics evenly.
* Presser Foot Lift: Up to 13 mm with a knee lifter, or 8 mm automatically.
* Needle Type: Uses DP × 5 needles.
* Hook: Uses large vertical rotary hooks for larger bobbins.
External Functions:
* Needle Positioning
* Manual Foot Lift
* Manual Thread Trim
* Manual Back Tack
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Needle Feed
CS-8720D
The CEDAR Special CS-8720D is a Direct Drive, twin-needle, heavy-duty industrial sewing machine. It is designed for making two parallel rows of stitching at the same time. Factories use it for canvas, leather, and heavy fabrics. It can be equipped with a Rear Puller or Side Belt Puller.
The key specifications include:
* Max Speed: Up to 3,000 stitches per minute.
* Stitch Length: Up to 5 mm.
* Needle Feed: Both the needle and the bottom "feed dog" (the metal teeth under the fabric) move to pull thick fabrics evenly.
* Presser Foot Lift: Up to 13 mm with a knee lifter, or 8 mm automatically.
* Needle Type: Uses DP × 5 needles.
* Hook: Uses large vertical rotary hooks for larger bobbins.
External Functions:
* Needle Positioning
* Manual Foot Lift
* Manual Thread Trim
* Manual Back Tack
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special
CS-1321-7DJ

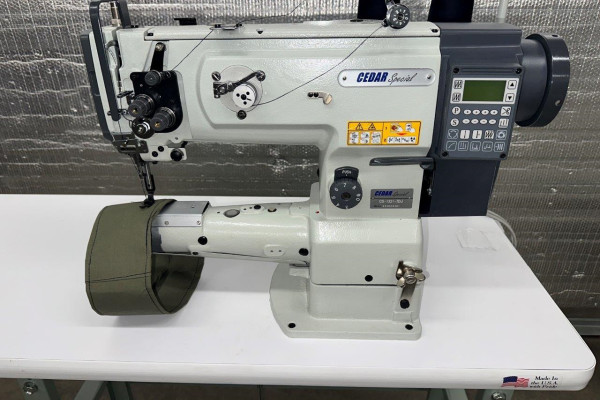

Our unique CS-1321-7DJ is a Single Needle, Direct Drive, Cylinder Bed Needle Feed machine.
* Key Functions include:
* Automatic Thread Trimmer
* Automatic Foot Lift
* Automatic Back Tack
* Max Speed: 2,500
* Max Stitch Length: 8mm
* Working Space: 255mm Left to Right, 110mm Top to Bottom.
* Feed System: Compound feed (walking foot) and needle feed.
* Bed Type: Cylinder bed, which allows for easy manipulation of 3D, tubular, and curved items.
* Applications: 6-14 oz. fabrics used on car seats, sofas, tents, luggage and other similar items.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cylinder Bed
CS-1321-7DJ
Our unique CS-1321-7DJ is a Single Needle, Direct Drive, Cylinder Bed Needle Feed machine.
* Key Functions include:
* Automatic Thread Trimmer
* Automatic Foot Lift
* Automatic Back Tack
* Max Speed: 2,500
* Max Stitch Length: 8mm
* Working Space: 255mm Left to Right, 110mm Top to Bottom.
* Feed System: Compound feed (walking foot) and needle feed.
* Bed Type: Cylinder bed, which allows for easy manipulation of 3D, tubular, and curved items.
* Applications: 6-14 oz. fabrics used on car seats, sofas, tents, luggage and other similar items.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Needle Feed
CS-1321-7DJ
Our unique CS-1321-7DJ is a Single Needle, Direct Drive, Cylinder Bed Needle Feed machine.
* Key Functions include:
* Automatic Thread Trimmer
* Automatic Foot Lift
* Automatic Back Tack
* Max Speed: 2,500
* Max Stitch Length: 8mm
* Working Space: 255mm Left to Right, 110mm Top to Bottom.
* Feed System: Compound feed (walking foot) and needle feed.
* Bed Type: Cylinder bed, which allows for easy manipulation of 3D, tubular, and curved items.
* Applications: 6-14 oz. fabrics used on car seats, sofas, tents, luggage and other similar items.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
